Middleby Marshall PS2620 Series Bedienungsanleitung

OWNER’S

OPERATING &

INSTALLATION

MANUAL

PS2020 Series Electric Ovens

PS2620 Series Electric Ovens

PS2020 PS2620 Series Electric Ovens: English

Combinations:

• Single Oven

• Double-Stacked Oven

The information contained in this manual is important for the

proper installation, use, maintenance, and repair of this oven.

Follow these procedures and instructions to help ensure

satisfactory baking results and years of trouble-free service.

Errors – descriptive, typographic, or pictorial – are subject to

correction. Specifications are subject to change without notice.

This Owner’s Operating and Installation Manual should be given to the user.

The operator of the oven should be familiar with the

function and operation of the oven.This manual must be kept in a prominent,

easily reachable location near the oven.

Middleby Marshall suggests a service contract with a Middleby Authorized

Service Agent (ASA).

Please carefully read this manual and retain it for future reference.

For further information, call

877-34-OVENS

877-346-8367

This page intentionally

left blank

Table of Contents

Safety Information

Important Safety Information - Please Read First i

General Safety Information i

Reducing Fire Risk ii

Preventing Oven Damage ii

Grounding Instructions ii

Power Cord Replacement ii

Specifications and Installation

PS2020 Dimensions 1

PS2020 Electrical Specifications 1

PS2620 Dimensions 2

PS2620 Electrical Specifications 2

Packaging 3

Certifications 3

Construction 3

Installation Instructions 3

Delivery and Initial Inspection 3

Lifting the Oven 3

Oven Location and Placement 3

Installation Near Open Heat Source 4

Ventilation Requirements 4

Cleaning

Daily Cleaning Instructions 5

Weekly Cleaning Instructions 6-8

Standard Oven Operation

Oven Controls 9

Cooking 10-11

Editing a Cooking Profile 12

Changing a Cooking Profile Name 12

Adjusting the Belt Speed 13

Adjusting the Temperature 13

Adjusting the Top and Bottom Air 13

Oven Modes

Config Mode 14

Smart Card Screen (Loading a Menu) 14

Accessing the Fault Count Screen 14

Accessing the Setup Mode 14

Setup Mode 14

Changing the Display Temperature 15

Changing the Belt Direction 15

Edit Options Screen 15

Changing the Speaker Volume 16

Info Screen 16

Updating the Firmware 16

Troubleshooting 17-18

Replaceable Parts 19

North America Limited Warranty 20-22

International Limited Warranty 23-26

SAFETY INFORMATION

Important Safety Information – Please Read First

Improper installation, adjustment, alteration, service, or maintenance of this equipment can

cause property damage, injury, or death. Thoroughly read the installation, operating, and

maintenance instructions before installing or servicing this equipment. Strictly adhere to the

following safety information to reduce the risk of:

oDamage to the oven

oDamage to property near the oven

oPersonal injury

oBurns

oFire

oElectric shock

General Safety Information

oUse this appliance only for its intended uses as described in this manual.

oOnly qualified service personnel should service this appliance. Contact the nearest

authorized service facility for examination, repair, or adjustment. Visit

www.middlebymarshall.com to find your nearest Authorized Service Agent.

oAlways ensure the oven is disconnected from the power supply before servicing,

repairing, or adjusting any components or parts.

oThis appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of the appliance by a person

responsible for their safety.

oThe equipment warranty is not valid unless the oven is installed, started, and

demonstrated under the supervision of a factory certified installer.

oThe equipment is only for professional use and shall be used by qualified personnel.

oDO NOT place the cord near heated surfaces.

oDO NOT store or use flammable vapors or liquids (e.g., gasoline) in the vicinity of this

appliance.

oDO NOT allow children to use this appliance. Children should be supervised to ensure

that they do not play with the appliance

oDO NOT place corrosive chemicals or vapors in this appliance. It is not designed for

industrial or laboratory use.

oDO NOT Operate this appliance if it:

Has a damaged cord or plug

Is not working properly

Has been damaged or dropped

oDO NOT cover or block any openings on this appliance.

oDO NOT store this appliance outdoors.

oDO NOT use this appliance near water.

oDO NOT immerse this appliance or any of its components (e.g., cord, plug, etc.) in water.

oDO NOT let the cord hang over the edge of a table or counter.

ii SAFETY INFORMATION

Reducing Fire Risk

If materials inside the oven ignite or if smoke is observed,

1. Turn off the oven.

2. Disconnect the power cord or shut off power at the fuse/circuit breaker panel.

Carefully attend the oven if paper, plastic, or other combustible materials are placed

inside the oven to facilitate cooking.

oDO NOT leave items in the cook cavity when the oven is not in use.

oDO NOT cook items wrapped in cling wrap or plastic film.

oDO NOT overcook food.

Preventing Oven Damage

When servicing this appliance, do not tear insulation to get to components. Rather, find

the edge of the insulation and remove the tape that holds it in place.

oClean the oven daily.

oClean the oven only with approved cleaner.

oDO NOT clean with a water jet.

oDO NOT allow cleaning solution or water to remain in the cook cavity longer than

necessary.

Grounding Instructions

WARNING: Improper grounding increases the risk of electric shock.

This appliance must be grounded. The cord is equipped with a grounding wire and plug,

which in the event of an electrical short circuit, reduce the risk of electric shock by providing

an escape wire for the electric current. The wire must be plugged into an outlet that is

properly installed and grounded.

Consult a qualified electrician or serviceman to determine whether or not the appliance is

properly grounded.

oDO NOT use an extension cord. If the power supply cord is too short, request a qualified

electrician or serviceman to install an outlet near the appliance.

Power Cord Replacement

To avoid potential hazards, only the manufacturer, its service agent, or a similarly-qualified

person should replace a damaged power cord.

SPECIFICATION AND INSTALLATION

PS2020 Dimensions

Exterior

Height 13.0” (330 mm)

--with legs 17.0” (432 mm)

Width 48.0” (1219 mm)

Depth 35.8” (909 mm)

Conveyor

Length 48.0” (1219 mm)

Width 20.0” (508 mm)

Electrical Specifications

North America

3 Phase

208/240 VAC

50/60 Hz

40 amp current draw

Max Input: 14.4 kW

4-wire supply

NEMA 15-50P plug (4-pin IEC60309 available

by special order)

50-amp max circuit breaker protection

Europe/Asia (220-240 VAC)

3 Phase

220-240 VAC

50/60 Hz

40 amp current draw

Max Input: 14.4 kW

4-wire supply

IEC60309 4-pin plug

64-amp max circuit breaker protection

Europe/Asia (380-415 VAC)

3 Phase

380-415 VAC

50/60 Hz

20 amp current draw

Max Input: 14.4 kW

5-wire supply

IEC60309 5-pin plug

32-amp max circuit breaker protection

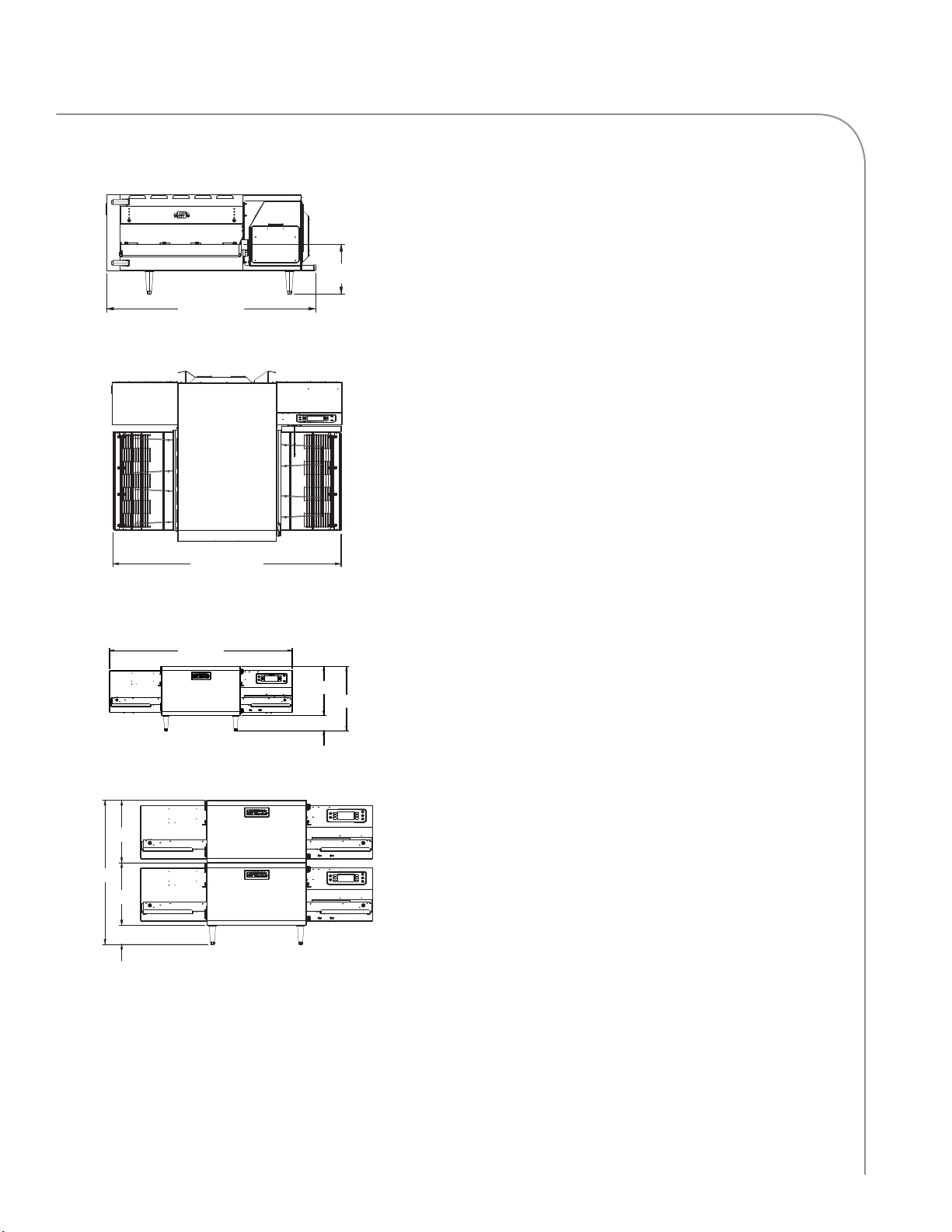

Figure 1: PS2020 Oven Dimensions – Side

Figure 2: PS2020 Oven Dimensions – Top

Figure 3: PS2020 Oven Dimensions – Front (Single)

Figure 4: PS2020 Oven Dimensions – Front (Double)

35.8"(909 mm)35.8"(909 mm)

8.5"

(216 mm)

48.0" (1219 mm)

W/O 12"W/O 12" eexxttensionsensions

17.0"

(432 mm)(432 mm)

4.0"

(102 mm)

13.0"

(330mm)

48.4"(1229 mm)48.4"(1229 mm)

4.0

(102 mm)

30.0

(1092 mm)(1092 mm)

13.0

(330 mm)

13.0

(330 mm)

2SPECIFICATION AND INSTALLATION 2

PS2620 Dimensions

Exterior

Height 13.0” (330 mm)

--with legs 17.0” (432 mm)

Width 48.0” (1219 mm)

Depth 35.8” (909 mm)

Conveyor

Length 48.0” (1219 mm)

Width 26.0” (660 mm)

Electrical Specifications

North America

3 Phase

208/240 VAC

50/60 Hz

40 amp current draw

Max Input: 14.4 kW

4-wire supply

NEMA 15-50P plug (4-pin IEC60309 available

by special order)

50-amp max circuit breaker protection

Europe/Asia (220-240 VAC)

3 Phase

220-240 VAC

50/60 Hz

40 amp current draw

Max Input: 14.4 kW

4-wire supply

IEC60309 4-pin plug

64-amp max circuit breaker protection

Europe/Asia (380-415 VAC)

3 Phase

380-415 VAC

50/60 Hz

20 amp current draw

Max Input: 14.4 kW

5-wire supply

IEC60309 5-pin plug

32-amp max circuit breaker protection

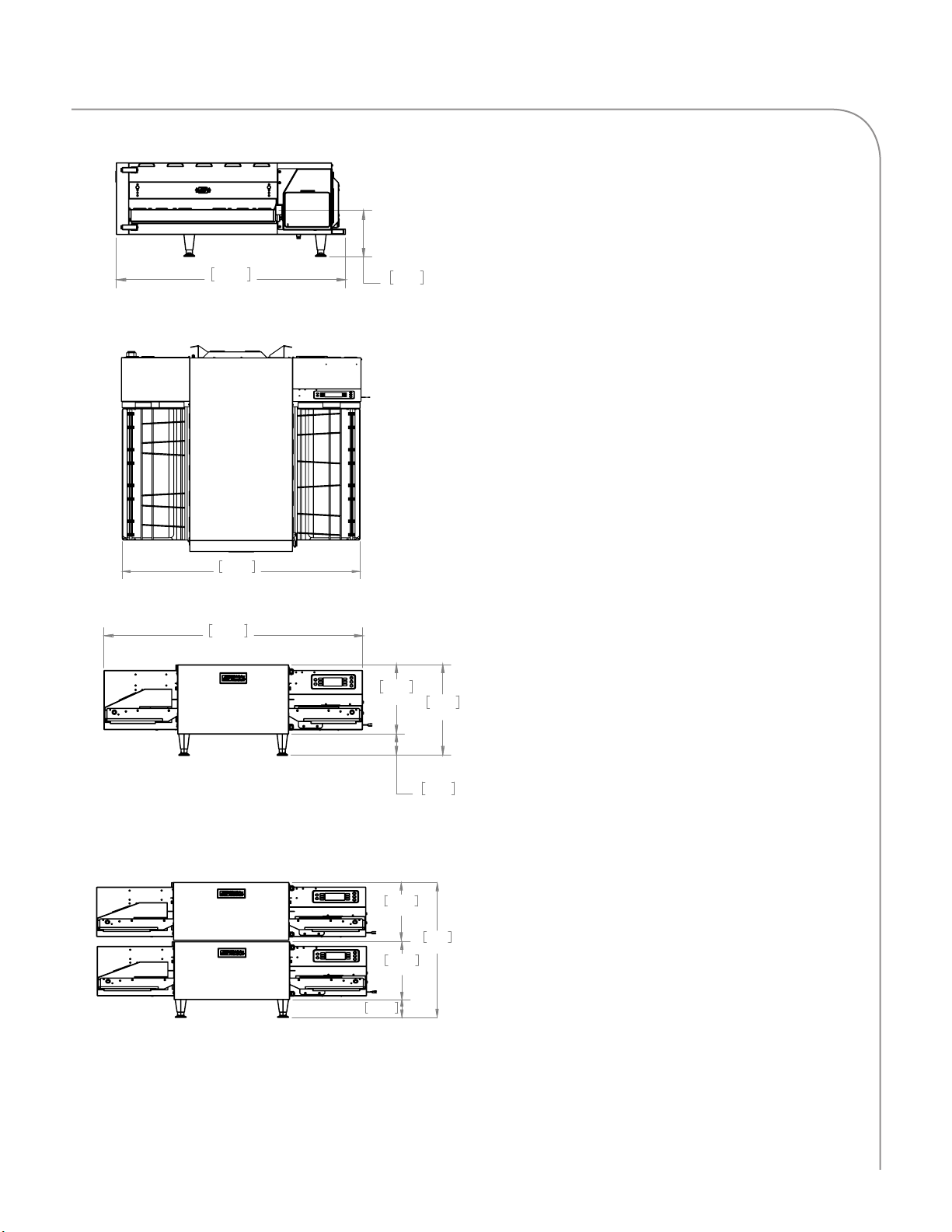

Figure 1: PS2620 Oven Dimensions – Side

Figure 2: PS2620 Oven Dimensions – Top

Figure 3: PS2620 Oven Dimensions – Front (Single)

Figure 4: PS2620 Oven Dimensions – Front (Double)

1219.2

48.0

1061.3

41.8

215.0

8.5

1229.3

48.4

101.6

4.0

330.2

13.0

431.8

17.0

101.6

4.0

330.2

13.0

330.2

13.0

1092

30.0
