OWNER’S MANUAL

AIR COOLER

Model: AC100-20ARB

READ AND SAVE THESE INSTRUCTIONS

Attention: Pictures in the IM are for reference only.

IMPORTANT SAFETY INSTRUCTIONS

Read Rules for Safe Operation and Instructions Carefully.

Caution

WARNING

1. If the supply cord is damaged, it must be replaced by

manufacturer, its service agent or a similarly qualified person

in order to avoid a hazard.

2. Household and indoor use only.

3. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by

children without supervision.

4. Unplug the appliance during filling and cleaning.

5. Prior to cleaning or other maintenance, the appliance must be

disconnected from the supply mains.

6. Correct Disposal of this product

This marking indicates that this product should not be

disposed with other household wastes throughout the EU. To

prevent possible harm to the environment or human health

from uncontrolled waste disposal, recycle it responsibly to

promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems

or contact the retailer where the product was purchased. They

can take this product for environmental safe recycling. The

packaging material is recyclable. Dispose of the packaging in

an environmentally friendly manner and make it available for

the recyclable material collection-service.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

7. Non-specialized personnel or unauthorized repair personnel

shall not to repair or modify the machine.

8. It is forbidden to operate with wet hands to avoid electric

shock.

9. If the unit is not in use for a long time, unplug the power cord.

10. To prevent accidental injury or damage to the unit, please do

not insert any foreign matter into the air inlet and outlet,

because the unit incorporates a high-speed wind rotor.

11. It is prohibited to use this unit in environments with flammable

and explosive gases and direct sunlight for a long period shall

be avoided.

12. Do not place this unit in an inclined or other uneven place to

prevent the unit from falling and causing damage to the unit

or internal parts.

13. This machine has a safety switch. If the honeycomb filter

support has not been installed well, the unit will not work as

usual; when the machine is working, do not remove the

honeycomb filter frame.

14. At any time the water level in the tank shall not exceed

"MAX" (maximum) scale, and during humidification, the total

water level in the tank shall be controlled, and shall not be

below "MIN" (minimum) scale.

15. After the water tank is filled with water, do not tilt or collide

with the unit when placing or moving it. To move the unit

body, please drive it slowly from the side to prevent water

overflow.

16. In using the unit, prohibit overturning to avoid any accident.

If the unit topples over accidentally, and it contains water,

unplug the power cord immediately and take it to repair store.

17. Do not place items on the unit, and covering the outlet is

strictly prohibited.

18. When wash the unit appearance, apply a damp cloth (or add

a little cleaning agent) to wipe, and never use corrosive

cleaning agent or solvent for cleaning. Never rinse the unit

with water.

19. Do not have the air inlet and outlet of the unit close to walls,

curtains and other objects, or they may block the airflow and

affect air supply.

20. When the unit is running, do not knock at or shock the unit

body forcibly or it may lead to automatic shutdown, in which

case simply restart the unit.

21. In summer, the water in the tank may easily deteriorate and

generate odor, please pay attention to regular change of

water; if the indoor temperature is below zero in winter

humidification, it is best to use warm water for humidification.

22. Do not place the unit directly below the power outlet.

23. Do not use the unit around the tub, sprinkler or swimming

pool.

24. Product repair must be carried out in a designated agency.

25. To protect against the risk of electrical shock, do not

immerse the unit, cord or plug in water or other liquid.

26. Use a soft cloth moisten with mild soap, and then use a dry

cloth to wipe it again.

27.Be aware that high humidity levels may encourage the growth

of biological organisms in the Environment.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

1. Never insert fingers, pencils, or any other object through the

grille when fan is running.

2. Disconnect fan when moving from one location to another.

3. Be sure fan is on a stable surface when operating to avoid

overturning.

4. DO NOT use fan in window, rain may create electrical hazard.

5. Household use only.

RULES FOR SAFE OPERATION

28.Do not permit the area around the humidifier to become damp

or wet. If dampness occurs, turn the output of the humidifier

down. If the humidifier output volume cannot be turned down,

use the humidifier intermittently. Do not allow absorbent

materials, such as carpeting, curtains, drapes, or tablecloths,

to become damp.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

Control part

Reel

Water tank

buckles

Wet curtain

Ice crystal box

Water tank

PRODUCT INTRODUCTION

Notice

Pictures in the manual are for reference only, and real objects within the packaging box will

prevail in the end.

Notice

Parts name

Guidance on feeding water and disassemble & washing of the

water tank

INSTRUCTIONS

Please clean up water accumulated at the bottom of the water tank in a timely manner when the product

is left unused.

Please remove the power plug when feeding water and cleaning.

Please make sure that the water pump module is fixed in position before startup. Random displacement

of the water pump module can cause the abnormalities of the product in cool wind function.

Two ways for feeding water:

①Pull out half of the water tank, and feed water directly without disassembling the water pump module.

②Separate water pump module, and fully pull out the water tank, to feed water or clean the water tank.

Pull out the water tank to the position

as shown in the figure (push the water

tank inside after feeding water)

Pull the water tank buckle to

the horizontal state.

Guidance on feeding water and disassemble & washing of the

water tank

INSTRUCTIONS

Unscrew the rotary knob in "—" shape

manually (90° anticlockwise) to separate

the water tank from the water pump

module (including the water pipe).

3Pull out the water tank slowly to

clean it up or feed water.

After feeding water or cleaning the water

tank, install the water pump module in the

water tank. Insert front hook into the slot

of the water tank, and then rotate rotary

knob in "—" shape clockwise for 90°, and

close it as shown in the figure.

5Push the water tank inside slowly, and

stir the water tank buckle to lock it up.

Water pump module

Rotary knob in "—" shape

1Pull out half of the water tank below

the machine.

Scale of the water tank

①The ice crystal box can be frozen repeatedly and recycled; You can also choose not to use it

based on the temperature.

②Please keep the ice crystal box closed to prevent from damage and liquid leakage.

③The ice crystal box is made of eco-friendly and toxic-free materials, and can be refrigerated in

fridge safely.

④When using the frozen ice crystal box in the water tank, the temperature at the air outlet will drop

after operating cool wind function.

⑤Ice blocks can be used to replace the frozen ice crystal box, to exert the same cooling effect.

⑥Control the water level of the water tank to be lower than the "max" (maximum) indicating scale

when feeding water, and if the water level is lower than "min" (minimum) indicating scale, please

feed water in time.

Take the ice crystal box out of the

package and place it inside a refrigerator

to freeze for more than 3 hours. Put the

frozen ice crystal box in the water tank,

and feed water below "max" (maximum)

indicating scale.

Usage of the ice crystal box

INSTRUCTIONS

Notice

The product is activated or shut down.

Touch the air swing button, to activate or shut down air swing.

Buttons Function description

Startup/Standby

Timing/

Reservation

Wind type

Air swing

Wind speed

Cool wind

Press the button to switch wind speed to low-grade , medium-grade

, and high-grade .

Press the button to select among these three types of wind: Normal wind

(grade 3, the wind speed indicator light is on), sleep wind (grade 1,

sleep wind the indicator light is on), natural wind (grade 1,

natural wind the indicator light is on).

The indicator light will be on when pressing the button under startup

state, and the timed shutdown time can be set by shortly pressing the

button (the cyclic is based on 1-2-3 ···-7-0-1··· )

The indicator light will be on when pressing the button under standby

state, and the reserved startup time can be set by shortly pressing the

button (the cyclic is based on 1-2-3 ···-7-0-1···)

Shortly press to open or close cool wind under startup state. The

experience effect is better, when opening the cool wind function in dried

or hot weather.

If indicator light flashes, please feed water in time, and repress

Operating instructions of the machine body

INSTRUCTIONS

Notice

The remote control should be normally used within 5 meters of the front of the product and 30 degrees

of the deviation angle.

The battery contains many heavy metals, acids and bases, etc., which may threaten human's health;

Waste batteries should be recycled separately.

Note: Both machine body operation " " and remote control " "

are buttons of wind type;

Both machine body operation " " and remote control " "

are buttons of cool wind;

Open/stop

air swing

Startup/Standby

Set the timed shutdown/

reserved startup

"+" indicates accelerating

wind speed

"-" indicates decreasing

wind speed

Set wind

type

Open/close

cool wind

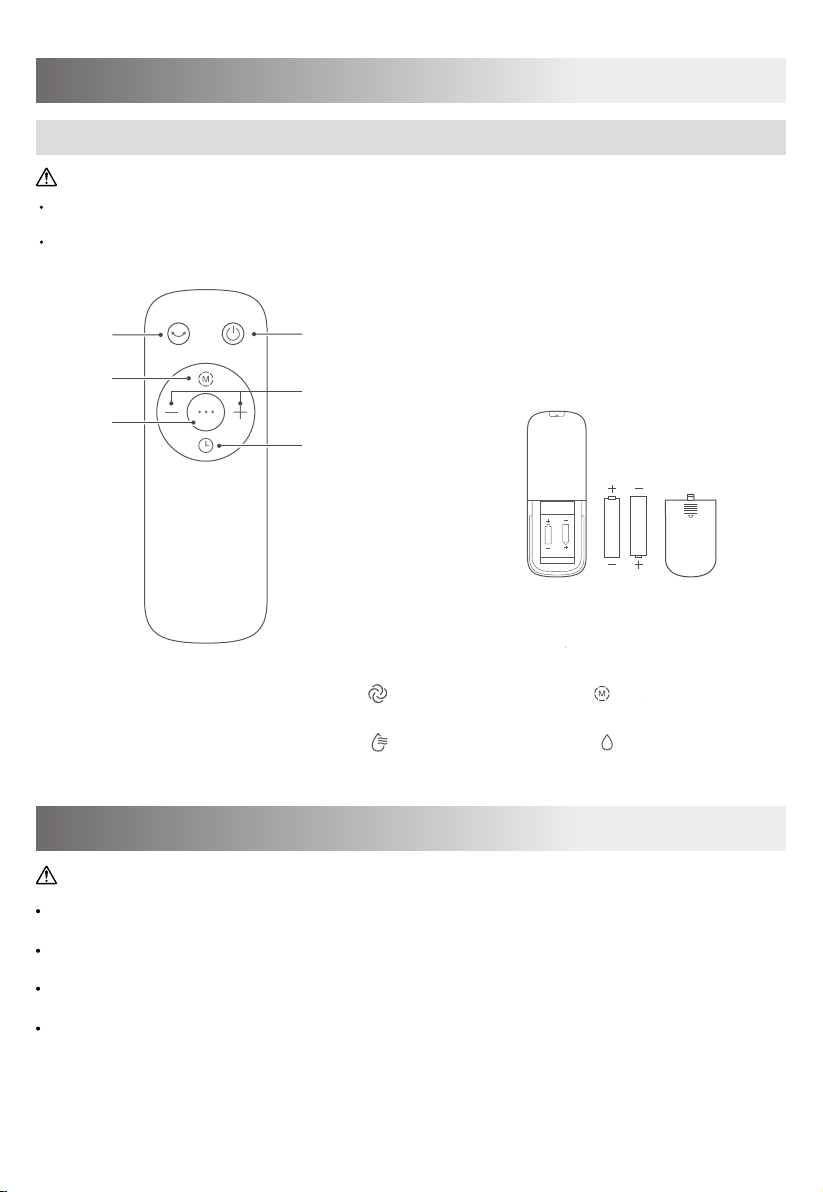

Remote control button description

INSTRUCTIONS

CLEANING AND MAINTENANCE

AAA Battery, 1.5 V

Battery

Use manganese or alkaline batteries of type

"AAA". DO not use rechargeable batteries.

Disconnect the power before cleaning the product. Clean after the product is shut down for two

minutes.

Prevent from using any abrasive tools and solvents that may damage the surface to clean up the

product. Detergent can be used in the cleaning, and then wiped clean with dried cloth in time.

Prevent from washing the machine body with water directly, and wash disassemble parts (wet

curtain parts) with a soft brush and then install them after they are cleaned and dried.

It is not allowed to take the product apart for any modification. It is recommended that this product

should be checked and cleaned regularly in order to extend its service life.

Inhaltsverzeichnis

Andere Midea Klimaanlage Handbücher

Midea

Midea MPPD40C Bedienungsanleitung

Midea

Midea CPA-09B Bedienungsanleitung

Midea

Midea VC Pro Series Dimensionsleitfaden

Midea

Midea MPM1-10CEN1-BB6 Betriebsanleitung

Midea

Midea MUE-18FNXD0 Bedienungsanleitung

Midea

Midea EWK06CW5 Bedienungsanleitung

Midea

Midea VRF Betriebsanleitung

Midea

Midea MDV-D280W/SN2 Bedienungsanleitung

Midea

Midea MEU-18MPH2 Bedienungsanleitung

Midea

Midea Corona MSC-07CRN1 Bedienungsanleitung

Midea

Midea MAP Bedienungsanleitung

Midea

Midea VRF Series Bedienungsanleitung

Midea

Midea MRCT-075CWN1-D(C) Betriebsanleitung

Midea

Midea 9ASI-A-1209 Bedienungsanleitung

Midea

Midea MW06DRWBA1RCM Bedienungsanleitung

Midea

Midea PREMIER SERIES Bedienungsanleitung

Midea

Midea MRCT-062CWN1-R(C) Bedienungsanleitung

Midea

Midea MAC28LW Bedienungsanleitung

Midea

Midea M2OA Bedienungsanleitung

Midea

Midea MKB-300 Handbuch

Midea

Midea MD-CCM04/E Bedienungsanleitung

Midea

Midea 373127 Reparaturanleitung

Midea

Midea MW120WWBA2RC1 Bedienungsanleitung

Midea

Midea MVX36A-VA1 Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
