Midea MVF22A-VA1 Bedienungsanleitung

DM16-01.01.02-09en

Service manual

MIV V4+ Indoor units

Floor Standing

MVF22A-VA1

MVF28A-VA1

MVF36A-VA1

MVF45A-VA1

MVF56A-VA1

MVF71A-VA1

MVF80A-VA1

MVB22A-VA1

MVB28A-VA1

MVB36A-VA1

MVB45A-VA1

MVB56A-VA1

MVB71A-VA1

MVB80A-VA1

DM16-01.01.02-09en MIV V4+ Indoor Units

Floor Standing Type MVF-A-VA1 MVB-A-VA1 1

Floor Standing



1. Feature ............................................................................... 2

2. Specifications .................................................................... 3

3. Dimensions ........................................................................ 6

4. Service Spaces .................................................................. 8

5. Piping Diagrams ................................................................ 9

6. Wiring Diagrams ............................................................. 10

7. Capacity Tables ............................................................... 11

8. Electrical Characteristics ............................................... 17

9. Sound Levels ................................................................... 18

MIV V4+ Indoor Units DM16-01.01.02-09en

2 Floor Standing Type MVF-A-VA1 MVB-A-VA1

1. Feature

1.1 Exposed & Concealed type

Air intake from front (F4 series) Air intake from below (F5 series)

1.2 Lower noise

Flat shape air outlet, three speeds adjustment. Smoother airflow with less turbulence.

Adoption of the built-in Fujikoki brand electronical expansion valve, ensures precise flow control, as well as

lower modulation noise when EXV operating.

1.3 Easy Installation

Floor standing types can be hung on the wall or installed on the floor. The former can make cleaning and

maintenance much more easily. Running the piping from the back allows the unit to be hung on walls.

Cleaning under the unit, where dust tends to accumulate, is considerably easier.

1.4 Easy maintenance

Filter is equipped as standard accessory; and it can be removed and cleaned easily due to Midea’s

sophisticated design as well as the removable blades.

Streamlined appearance makes it much more harmonious with the decoration. All metal parts are made of

commercial grade galvanized steel, providing maximum protection against corrosion.

1.5 Auto restart

When the indoor unit is powered off, it will auto restart when powered on again after 3 minutes and operate in

the original state.

DM16-01.01.02-09en MIV V4+ Indoor Units

Floor Standing Type MVF-A-VA1 MVB-A-VA1 3

2. Specifications

Model MVF22A-VA1 MVF28A-VA1 MVF36A-VA1

MVB22A-VA1 MVB28A-VA1 MVB36A-VA1

Power supply V- Ph-Hz 220-240V, 1Ph, 50Hz

Cooling

Capacity kW 2.2 2.8 3.6

Input W 40 46 55

Rated current A 0.18 0.19 0.22

Heating

Capacity kW 2.4 3.2 4.0

Input W 40 46 46

Rated current A 0.18 0.19 0.22

Indoor fan

motor

Model YSK20-4A YSK20-4A YSK20-6

Type AC motor

Brand Welling Welling Yongan

Input W 40 42 49

Capacitor μF 0.8 1 1.2

Speed (h/m/l) r/min 870/745/660 935/810/720 750/645/500

Indoor

coil

Number of rows 2 2 3

Tube pitch(a)x row pitch(b) mm 25.4*22 25.4*22 25.4*22

Fin spacing mm 1.8 1.8 1.8

Fin type Hydrophilic aluminum

Tube outside diameter and mm Ф9.52 Inner grooved tube

Coil length×height×width mm 568×254×44 568×254×44 768×254×66

Number of circuits 3 3 3

Indoor air flow (H/M/L) m3/h 530/456/400 569/485/421 624/522/375

Indoor external static pressure (H) Pa 12 12 12

Indoor noise level (Hi/Mid/Lo) F4 dB(A) 36/33/29 36/33/29 37/34/30

F5 36/33/29 36/33/29 37/34/30

Indoor unit

Dimension (W×H×D) F4 mm 1000×569×225 1000×569×225 1200×596×225

F5 1000×677×220 1000×677×220 1200×677×220

Packing (W×H×D) F4 mm 1089×683×312 1089×683×312 1289×683×312

F5 1182×683×312 1182×683×312 1382×683×312

Net/Gross weight F4 kg 30/35 30/35 36/44

F5 30/38 30/38 35.5/41

Refrigerant type R410A

Throttle Type EXV (Built-in)

Model D20MISZ-1R(L)

Design pressure MPa 4.4/2.6

Refrigerant piping Liquid side/ Gas side mm Ф6.35/Ф12.7 Ф6.35/Ф12.7 Ф6.35/Ф12.7

Connecting wiring Power wiring mm2 3×2.5

(

L≤20m

);

3×3.5

(

L≤50m

)

Signal wiring mm2 3×0.75

Drainage water pipe diameter mm ODФ25

Controller Wireless remote controller (RM05/BG(T)E-A)

Notes: 1. Nominal cooling capacities are based on the following conditions: return air temperature: 27°CDB, 19°CWB,

outdoor temperature:35°CDB,equivalent ref. Piping: 8m(horizontal)

2. Nominal heating capacities are based on the following conditions: return air temperature: 20°CDB,outdoor temperature:

7°CDB,6°CWB,equivalent ref. Piping: 8m(horizontal)

MIV V4+ Indoor Units DM16-01.01.02-09en

4 Floor Standing Type MVF-A-VA1 MVB-A-VA1

Model MVF45A-VA1 MVF56A-VA1

MVB45A-VA1 MVB56A-VA1

Power supply V- Ph-Hz 220-240V, 1Ph, 50Hz

Cooling

Capacity kW 4.5 5.6

Input W 49 88

Rated current A 0.22 0.43

Heating

Capacity kW 5.0 6.3

Input W 49 88

Rated current A 0.22 0.43

Indoor

fan motor

Model YSK20-6 YSK28-4E

Type AC motor

Brand Yongan Welling

Input W 49 95

Capacitor μF 2 2.5

Speed (h/m/l) r/min 820/745/600 915/770/660

Indoor

coil

Number of rows 3 2

Tube pitch(a)x row pitch(b) mm 25.4×22 25.4×22

Fin spacing mm 1.8 1.8

Fin type Hydrophilic aluminum

Tube outside diameter and mm Ф9.52 Inner grooved tube

Coil length×height×width mm 768×254×66 1068×254×44

Number of circuits 3 4

Indoor air flow (H/M/L) m3/h 660/542/440 1150/970/830

Indoor external static pressure (H) Pa 12 12

Indoor noise level (H/M/L) F4 dB(A) 37/34/30 41/35/31

F5 37/34/30 41/35/31

Indoor

unit

Dimension (W×H×D) F4 mm 1200×596×225 1500×596×225

F5 1200×677×220 1500×677×220

Packing (W×H×D) F4 mm 1289×683×312 1589×683×312

F5 1382×683×312 1682×683×312

Net/Gross weight F4 kg 36/44 41/46.5

F5 35.5/41 42/51

Refrigerant type R410A

Throttle Type EXV (Built-in)

Model D20MISZ-1R(L)

Design pressure MPa 4.4/2.6

Refrigerant piping Liquid side/ Gas mm Ф6.35/Ф12.7 Ф9.53/Ф15.9

Connecting wiring Power wiring mm2 3×2.5(L≤20m); 3×3.5(L≤50m)

Signal wiring mm2 3×0.75

Drainage water pipe diameter mm ODФ25

Controller Wireless remote controller (RM05/BG(T)E-A)(Standard)

Notes: 1. Nominal cooling capacities are based on the following conditions: return air temperature : 27°CDB, 19°CWB,

outdoor temperature:35°CDB,equivalent ref. Piping: 8m(horizontal)

2. Nominal heating capacities are based on the following conditions: return air temperature: 20°CDB,outdoor temperature:

7°CDB,6°CWB,equivalent ref. Piping: 8m(horizontal)

DM16-01.01.02-09en MIV V4+ Indoor Units

Floor Standing Type MVF-A-VA1 MVB-A-VA1 5

Model MVF71A-VA1 MVF80A-VA1

MVB71A-VA1 MVB80A-VA1

Power supply V- Ph-Hz 220-240V, 1Ph, 50Hz

Cooling

Capacity kW 7.1 8.0

Input W 130 130

Rated current A 0.63 0.63

Heating

Capacity kW 8.0 9.0

Input W 130 130

Rated current A 0.63 0.63

Indoor fan

motor

Model YSK74-4E YSK74-4E

Type AC motor

Brand Yongan Yongan

Input W 138.5 138.5

Capacitor μF 3 3

Speed (h/m/l) r/min 1120/1020/880 1120/1020/880

Indoor coil

Number of rows 2 3

Tube pitch(a)x row pitch(b) mm 25.4×22 25.4×22

Fin spacing mm 1.8 1.8

Fin type Hydrophilic aluminum

Tube outside diameter and type mm Φ9.52 inner grooved tube

Coil length×height×width mm 1068×254×44 1068×254×66

Number of circuits 4 3

Indoor air flow (H/M/L) m3/h 1380/1100/870 1380/1100/870

Indoor external static pressure (H) Pa 12 12

Indoor noise level (H/M/L) F4 dB(A) 44/39/33 44/39/33

F5 44/39/33 44/39/33

Indoor

unit

Dimension (W×H×D) F4 mm 1500×596×225 1500×596×225

F5 1500×677×220 1500×677×220

Packing (W×H×D) F4 mm 1589×683×312 1589×683×312

F5 1682×683×312 1682×683×312

Net/Gross weight F4 kg 41/46.5 42.5/48.5

F5 42/51 44/53

Refrigerant type R410A

Throttle Type EXV (Built-in)

Model D20MISZ-1R(L)

Design pressure MPa 4.4/2.6

Refrigerant piping Liquid side/ Gas side mm Ф9.53/Ф15.9 Ф9.53/Ф15.9

Connecting wiring Power wiring mm2 3×2.5(L≤20m); 3×3.5(L≤50m)

Signal wiring mm2 3×0.75

Drainage water pipe diameter mm ODФ25

Controller Wireless remote controller (RM05/BG(T)E-A)

Notes: 1. Nominal cooling capacities are based on the following conditions: return air temperature : 27°CDB, 19°CWB,

outdoor temperature:35°CDB,equivalent ref. Piping: 8m(horizontal)

2. Nominal heating capacities are based on the following conditions: return air temperature: 20°CDB,outdoor temperature:

7°CDB,6°CWB,equivalent ref. Piping: 8m(horizontal)

MIV V4+ Indoor Units DM16-01.01.02-09en

6 Floor Standing Type MVF-A-VA1 MVB-A-VA1

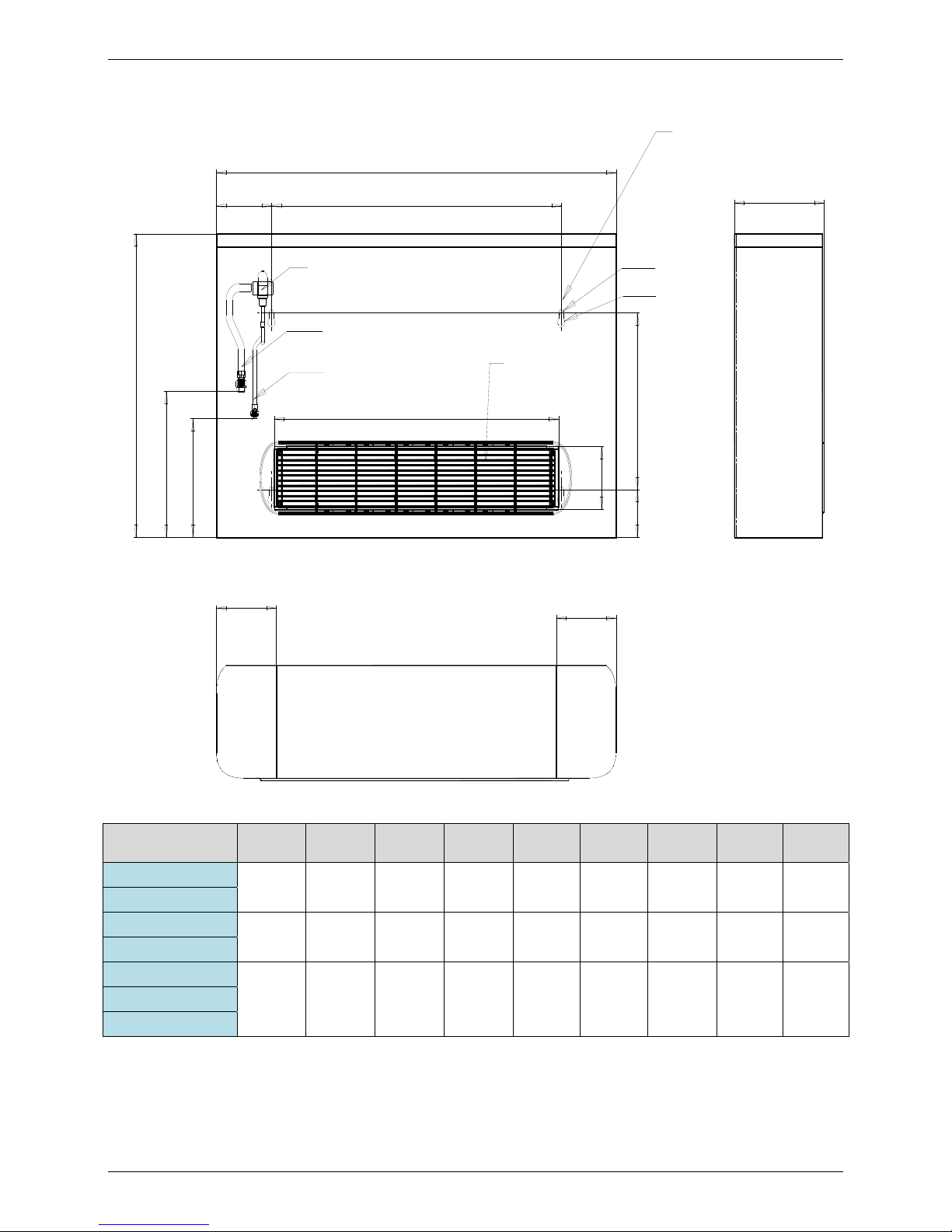

3. Dimensions

3.1 Exposed Floor-standing (air inlet from front)

Mounting hole, 4

Liquid side

connector

Gas side

connector

EXV

Air outlet grille

Left

Cover

Right

Cover

Air inlet grille

4¡ Á¦µ11

4¡ Á

¦µ18

138

149.5 149.5

Unit: mm

MODEL

(MVF-A-VA1) A B C D E F G H I

22 1000 725 596 284 232 112 345 94 225

36 1200 925 596 310 258 112 345 100 225

1500 1225 596 310 258 112 345 100 225

DM16-01.01.02-09en MIV V4+ Indoor Units

Floor Standing Type MVF-A-VA1 MVB-A-VA1 7

3.2 Exposed Floor-standing (air inlet from bottom)

Mounting hole, 4

Air inlet grille

Liquid side

connector

Gas side

connector

EXV

Air outlet grille

Left

Cover

Right

Cover

149.5 149.5

4¡ Á

¦µ11

4¡ Á

¦µ18

Unit: mm

MODEL

(MVB-A-VA1) A B C D E F G H I J

22 1000 725 677 592 284 232 345 94 220 150

36 1200 925 677 592 310 258 345 100 220 150

1500 1225 677 592 310 258 345 100 220 150

MIV V4+ Indoor Units DM16-01.01.02-09en

8 Floor Standing Type MVF-A-VA1 MVB-A-VA1

4. Service Spaces

F4 series

Vertical unit with casing , with air intake from front and air

outlet on top, for installation on a wall or on feet on the floor.

F5 series

Vertical unit with casing , with air intake from below and air

outlet on top, for installation on a wall or on feet on the floor.

Required clearance for above 2 versions:

Additionally, it is required to keep 20mm between the rear and wall; 600mm between the front face and the

obstacle. 1700mm vertical distance between the top of unit(outlet) and the upper obstacle.

Model F4 F5

a (mm) ≥150 ≥150

b (mm) - (with bottom feet)

DM16-01.01.02-09en MIV V4+ Indoor Units

Floor Standing Type MVF-A-VA1 MVB-A-VA1 9

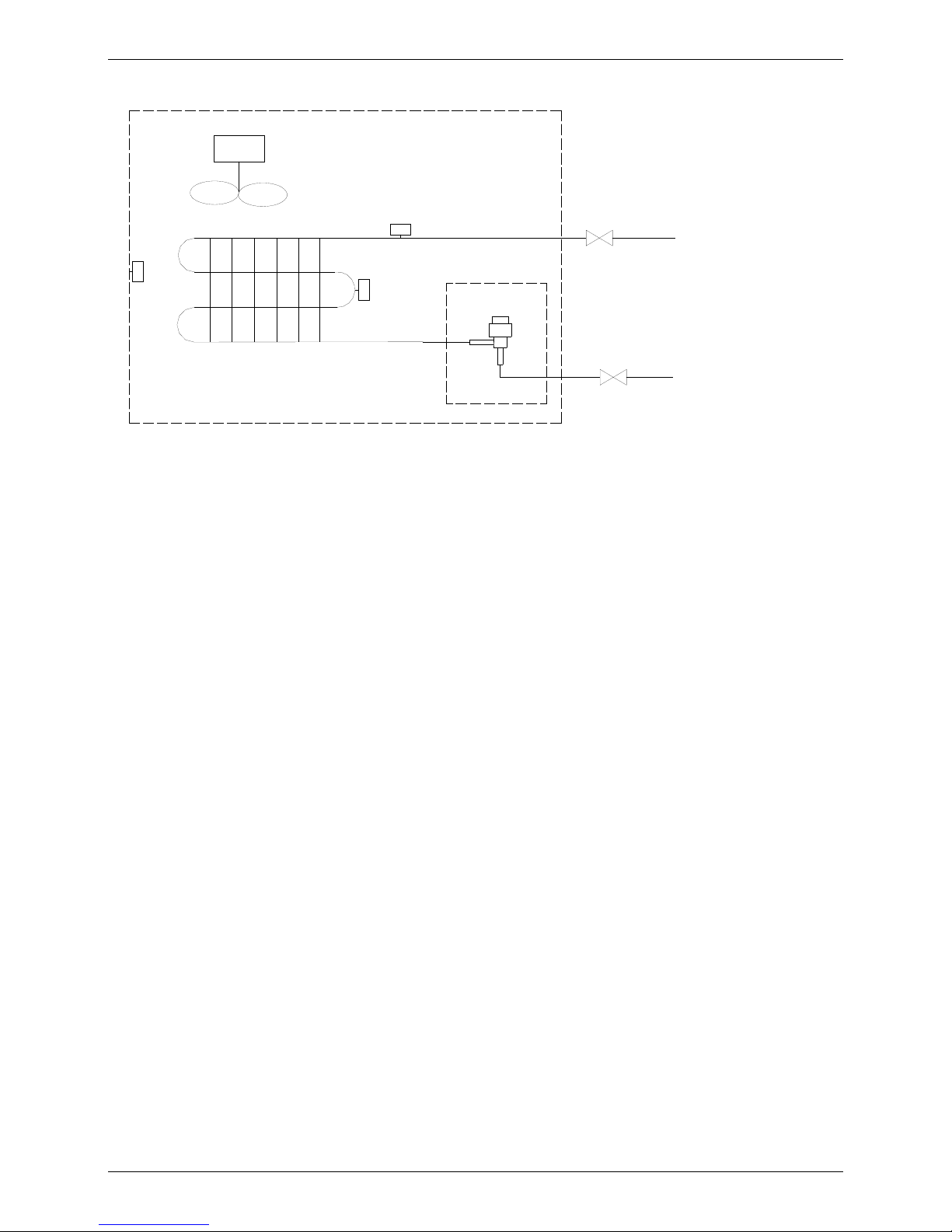

5. Piping Diagrams

flare nut

T2B

gas side

motor

heat exchanger

fan

EXV

liquid side

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Midea Klimaanlage Handbücher

Midea

Midea RG15A1/E Bedienungsanleitung

Midea

Midea MWA12CR71 Bedienungsanleitung

Midea

Midea FLAIR Bedienungsanleitung

Midea

Midea 9000 Btu Bedienungsanleitung

Midea

Midea MDTA-76CRN2 Bedienungsanleitung

Midea

Midea EasyCool MPF08CR81-E Bedienungsanleitung

Midea

Midea MCAC-RTSM-2013-04 Bedienungsanleitung

Midea

Midea MISSION2 3D INVERTER Series Bedienungsanleitung

Midea

Midea MFAU-12FNXD0 Bedienungsanleitung

Midea

Midea WWK08CW71E Bedienungsanleitung

Midea

Midea MPA-08CE Bedienungsanleitung

Midea

Midea 9ASI-A-1209 Bedienungsanleitung

Midea

Midea PD Bedienungsanleitung

Midea

Midea MAP12S1TBL Bedienungsanleitung

Midea

Midea MWHUK-05CMN8-BCK0 Bedienungsanleitung

Midea

Midea MS11M-09HRFN1-BW0W Bedienungsanleitung

Midea

Midea COOLIX MSC2-12HRDN1-QE Bedienungsanleitung

Midea

Midea MDV-D100W/S Bedienungsanleitung

Midea

Midea LC3 Series Betriebsanleitung

Midea

Midea DLFSDA Bedienungsanleitung

Midea

Midea INVERTER SPLIT TYPE ROOM AIR CONDITIONER Bedienungsanleitung

Midea

Midea MCD-18HRFN1-QRC4 Bedienungsanleitung

Midea

Midea Corona MSC-07CRN1 Betriebsanleitung

Midea

Midea MHD 60 Technisches Datenblatt

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
