Midea A24MABOF50 Handbuch

Overseas Thin Range Hood

Installation and Service Manual

Warning

The installation service manual is not intended for ordinary user. Product

maintenance should be done by qualified professional technician. Incorrect

maintenance may cause other danger.

Please cut off the power supply before the maintenance.

If the power cord has hidden fault, please replace it with relevant technical

parameter. (Please refer to the manual for parameter)

Please read the safety warning in the manual carefully before servicing the product.

After the maintenance, detect it according to relevant regulations before using

This service manual includes multiple models. Please refer to the real product

during operation.

Customer Service Center

March.29th, 2014

Catalogue

1. Precaution …………………………………………………………1

2. Dimension……………………………………………………………………1

3. Function………… …………………………………………………………2

3.1 Lighting Function…………………………………………………………………..2

3.2 Smoke Absorption Function………………………………………………………2

4. Circuit Diagram………………………………………………………………..3

5. Installation ………………………………………………………………………….3

5.1 Preparation before Installation…………………………………………………..3

5.2 Range Hood Installation…………………………………………………………3

6. Components Dismantling………………………………………………..4

6.1 Filter Mounting and Dismounting………………………………………4

6.2 Check Valve and Fan Cover Dismantling ………………………5

6.3 Spotlight Dismantling…………………………………………………….5

6.4 Dismantle Control Box Assembly ………………………………...5

6.5 Volute Assembly Dismantling……………………………………………….6

6.6 Motor Dismantling ………………………………………………………………..7

6.7 Dismantle Power Cord………………………………………………………….9

6.8 Lamp Holder Dismantling ……………………………………………………….10

7. Troubleshooting…………………………………………………..11

7.1 Electrical Appliance Faults…………………………………………………11

7.2 Main Components Maintenance and Detection…………………….11

-- 1

1. Precaution

1.1 Safety Precaution

1、Please follow the following instructions to avoid hurting the user or other property damage.

2、Faulty operation due to neglecting the instructions will caused injury or damage.

3、Please read the following instructions carefully before the maintenance.

1.2 Warning

1. When replacing the power cord, please use the insulation power cord with model number no less than

3*0.75mm^2 and heat resistance over 70℃.

2. All appliances within 50mm around the product should be heat resistant over 75°C,otherwise, the

surrounding appliances will be deformed in the process of using the product.

3. When remove the packaging material, metal piece, bubble bag, foam and screw, etc should be kept

beyond the reach of children to avoid potential threat, for example, children might swallow smaller

component or suffer suffocation in the process of playing packaging bag.

2. Dimension

-- 2

Note: Dimension data is only for reference.

3. Function

3.1 Lighting Function

As shown in the picture, press or toggle the button indicated by the red circle, the lamp is on; press or toggle

again, lamp is off;

3.2 Smoke Absorption Function

3.2.1 Mechanical Switch

MODEL

A24MABOF50

597mm

500mm

140mm

A30MABOF50

757mm

500mm

140mm

A35MABOF50

897mm

500mm

140mm

E60MEBOF52

597mm

500mm

150mm

E76MEBOF52

757mm

500mm

150mm

E90MEBOF52

897mm

500mm

150mm

E60MEBOF96

597mm

500mm

135mm

E76MEBOF96

757mm

500mm

135mm

E90MEBOF96

897mm

500mm

135mm

-- 3

As shown in the picture, press the button indicated by the red arrow, smoke exhaust function of large airflow

is on; press the button indicated by the yellow arrow, switched to smoke exhaust function of middle airflow;

press the button indicated by the green arrow, switched to smoke exhaust function of small airflow; press the

button indicated by the brown arrow, all smoke exhaust functions except lamp are cancelled. All smoke

exhaust function buttons will be auto reset.

3.2.2 Toggle Switch

As shown in the picture, the button indicated by the red circle is toggle switch smoke exhaust control

button, 0,1,2,3 respectively indicate stop, low speed, middle speed and high speed; toggle the switch to the

left and right, the airflow and switch of range hood can be switched freely.

Note: please refer to the User Manual for the specific operation steps of hood function

4. Circuit Diagram

Note: the above is the circuit diagram of basic models, please be subject to the circuit diagram in

product instruction book if there is difference.

5. Installation

5.1 Preparation before Installation

1. Please remove the package first, then install according to the dimension in the following instruction;

(Please dispose the packaging material properly)

2. No inflammable, explosive or non-heat-resistant article should contact or approach around the range

hood.

3. The wall where the hood is hung should have sufficient strength and flatness to ensure that the product

has adequate stability.

-- 4

5.2 Range Hood Installation

Methods 1: as shown in Figure（1）, to ensure the thin range hood in the cabinet, wooden plank should be

parallel to the four lock holes of thin hood top. Install the four screws in the cabinet according to

the relative position of four lock holes and tighten them.

Methods 2: as shown in Figure（2）, first ascertain the relative position on the wall according to the four lock

holes at the back of thin range hood, then punch hole on the top two positions of the wall and

install expansion screw, mount screw within the expansion screw, set aside 3-5mm distance at

screw end, align the two hanging holes at the hood back with the screw, then hang on the wall,

tighten the screw and install the screws at below two holes.

6. Components Mounting and Dismounting

6.1 Filter Mounting and Dismounting

-- 5

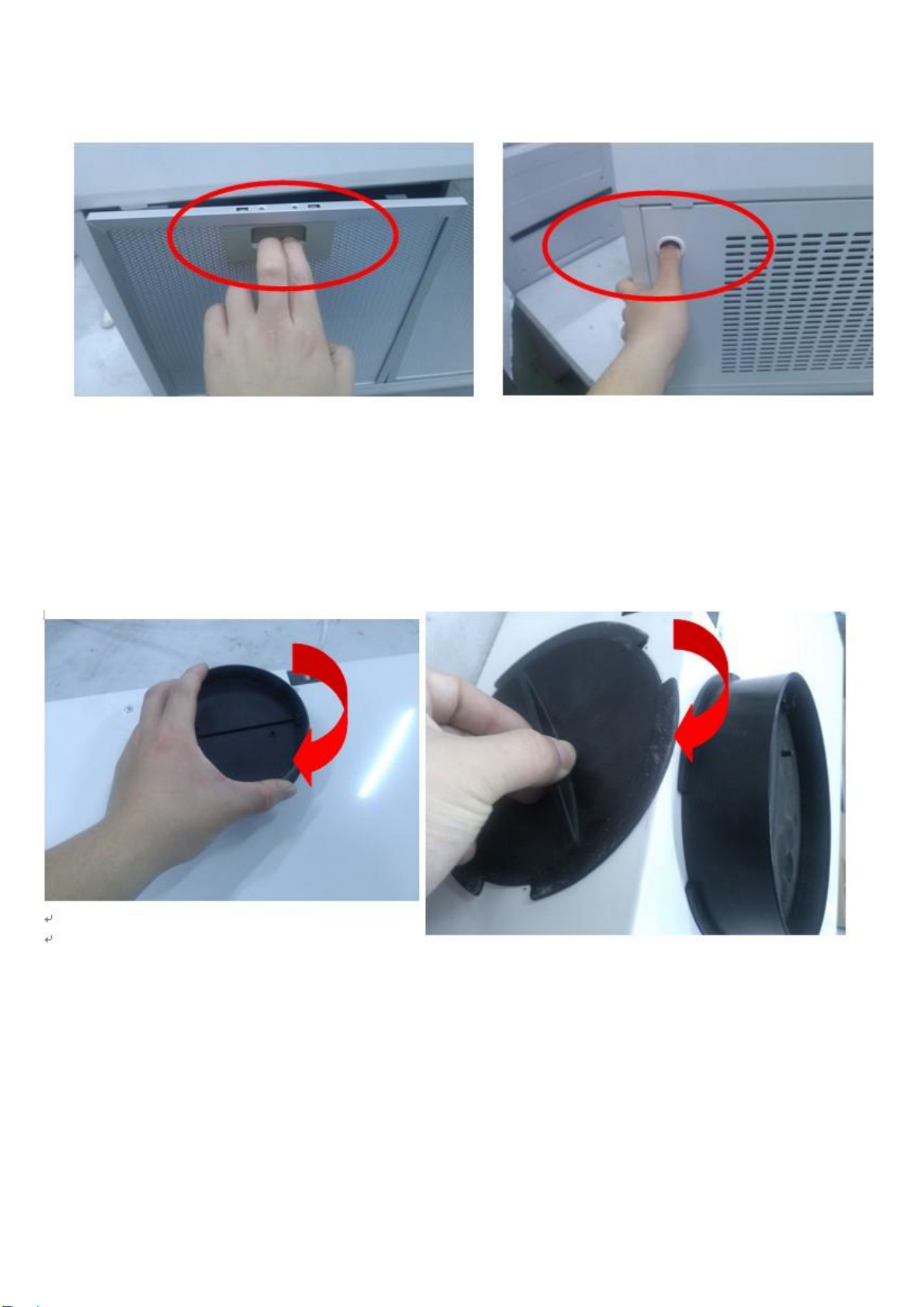

Clasp the filter buckle by hand, press down and pull out

6.2 Check Valve and Fan Cover Mounting and Dismounting

Step: as shown in the picture, hold the check valve or fan cover respectively, rotate until the blade

rotated to the vacant position from the board, then, the check valve or fan cover can be taken

down.

6.3 Dismantle Spotlight

Tool: Cross screwdriver

Step: first remove the transparent lamp panel in the front, then hold the incandescent lamp and rotate

inward, take out the bulb, as shown in the following picture.

-- 6

6.4 Dismantle Control Box Assembly

Tool: Cross screwdriver

Step 1: twist off the two fixing screws of control box assembly with cross screwdriver, as shown in the


Step 2: pull out the terminal connecting control box assembly to fan, the control box assembly

dismantling is done, as shown in the picture.

Rotate the bulb in the arrow direction,

take out the bulb

Remove the screw of lamp panel, tilt the

right and push out the lamp panel in the

arrow direction

-- 7

6.5 Volute Assembly Dismantling

Tool: Cross screwdriver

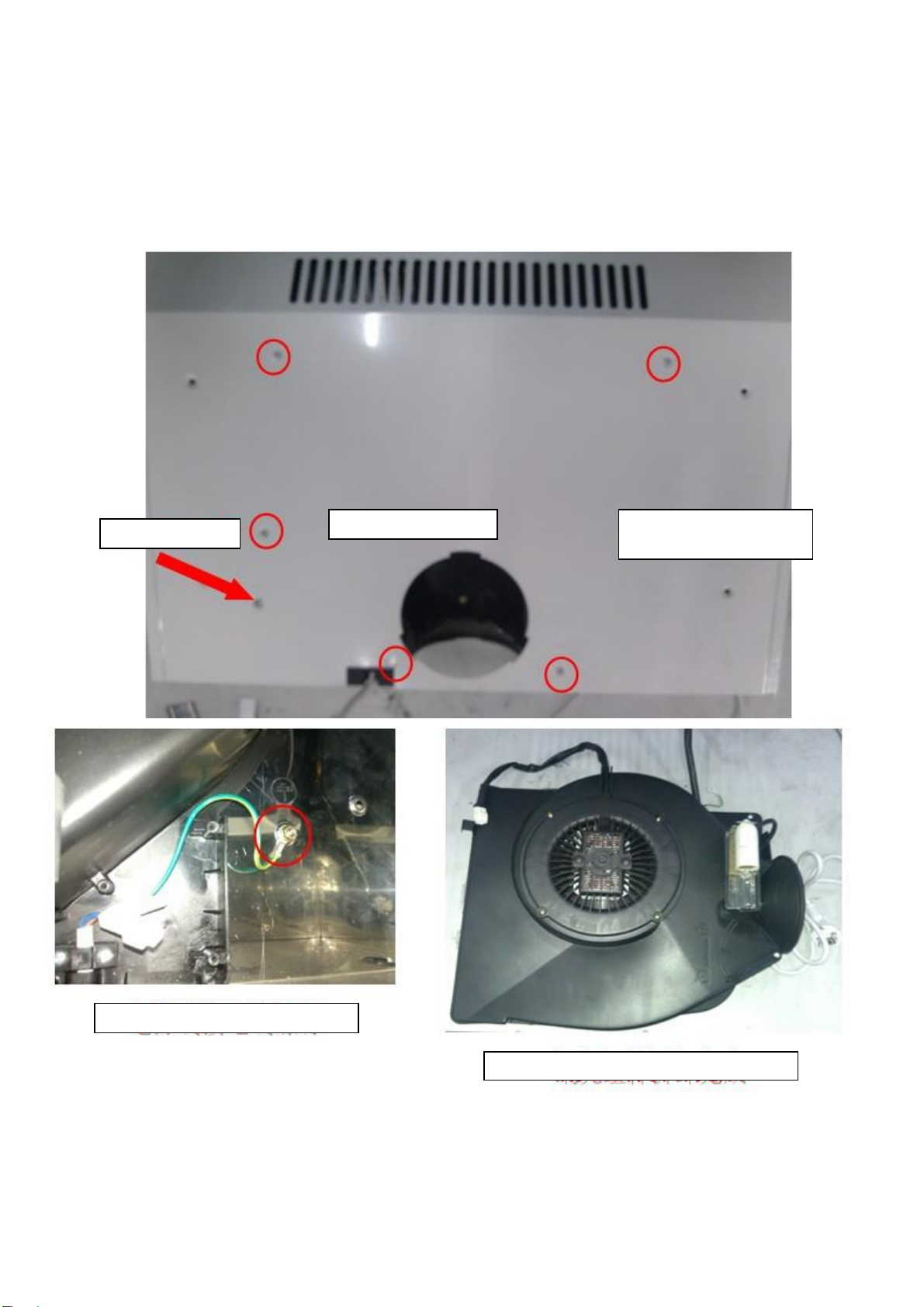

Step: as the above step, pull out the terminal connecting control box assembly to terminal box, twist off

six volute fixing screws on the body top and one grounding screw, take out volute assembly, as

shown in the picture.

6.6 Motor Dismantling

Tool: Cross screwdriver, M4 hex nut sleeve and M5 hex nut sleeve.

Grounding screw of power cord

Volute assembly dismantling is completed.

Grounding screw

Pull out the terminal

Control box assembly

dismantling is completed.

-- 8

Step: as the above step, pull out the terminal connecting the motor to control box assembly, twist off the

four fixing screws of air inlet cover with cross screwdriver, then take out motor impeller assembly,

as shown in the picture.

Black decoration cover and

motor fixing nut

Motor, impeller and air inlet cover

dismantling are completed.

Motor shaft nut and impeller blade
