Miele G 600 Series Bedienungsanleitung

Installation instructions

Integrated dishwasher

To prevent accidents

and machine damage,

read these instructions

before

installation or use, M-Nr, 05 620 662

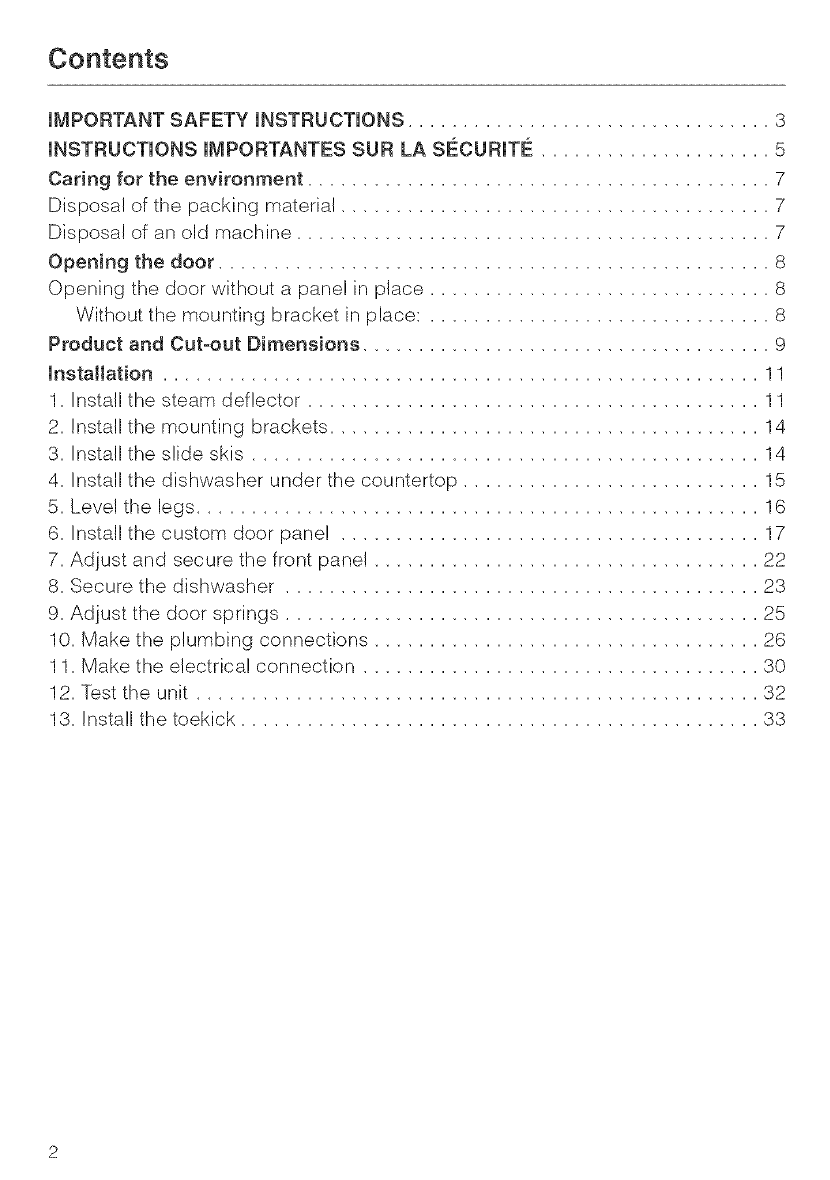

Contents

iMPORTANT SAFETY INSTRUCTmONS ................................. 3

mNSTRUCTmONSmMPORTANTES SUR LA SECURmTE ..................... 5

Caring for the environment .......................................... 7

Disposal of the packing material ....................................... 7

Disposal of an old machine ........................................... 7

Opening the door .................................................. 8

Opening the door without a panel in place ............................... 8

Without the mounting bracket in place: ............................... 8

Product and Cut-out Dimensions ..................................... 9

Installation ...................................................... 11

1, install the steam deflector ......................................... 11

2, install the mounting brackets ....................................... 14

3, Install the slide skis .............................................. 14

4, install the dishwasher under the countertop ........................... 15

5. Level the legs ................................................... 16

6, install the custom door panel ...................................... 17

7. Adjust and secure the front panel ................................... 22

8, Secure the dishwasher ........................................... 23

9, Adjust the door springs ........................................... 25

10, Make the plumbing connections ................................... 26

11, Make the electrical connection .................................... 30

12, Test the unit ................................................... 32

13, Install the toekick ............................................... 33

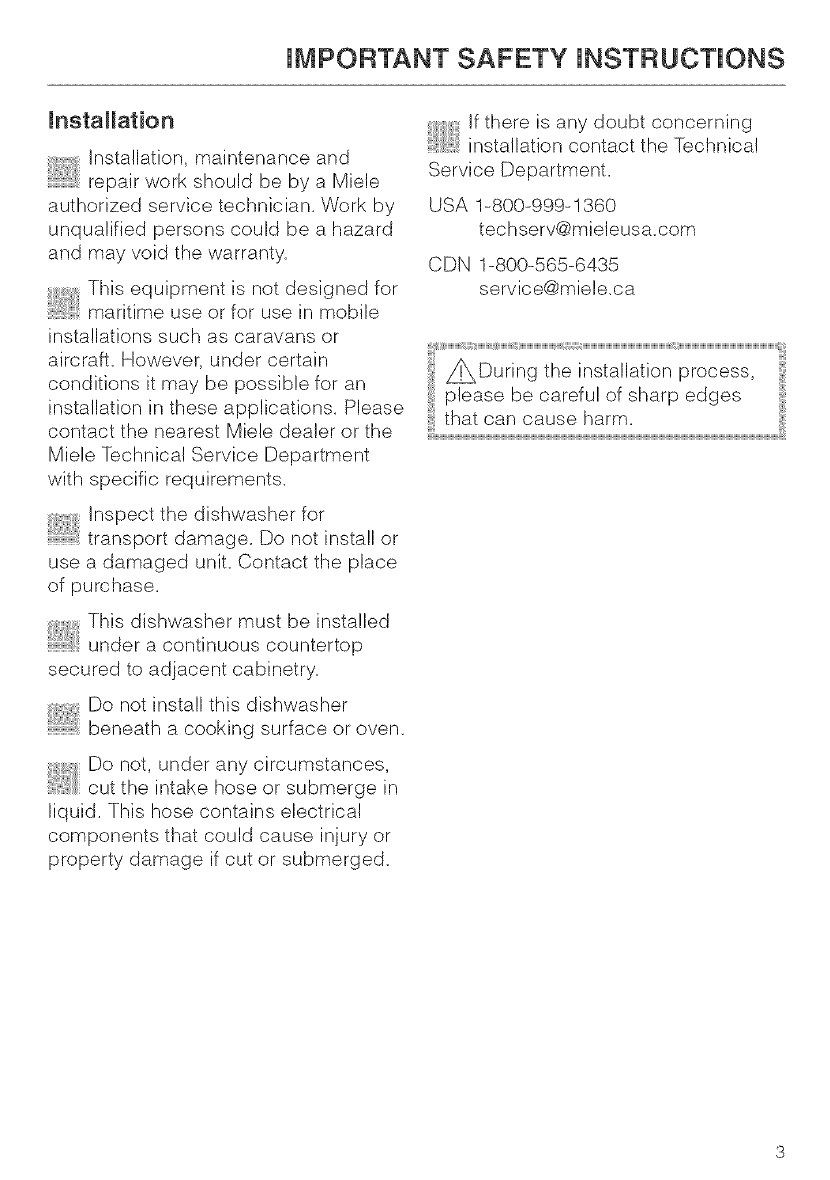

iMPORTANT SAFETY iNSTRUCTiONS

mnstallation

Insta!lation, maintenance and

repairworkshou,dbebyaM,e,e

authorized service technician. Work by

unqualified persons could be a hazard

and may void the warranty.

Th,sequipmentisnotdesignedfor

maritime use or for use in mobile

installations such as caravans or

aircrafL However, under certain

conditions it may be possible for an

installation in these applications. Please

contact the nearest Miele dealer or the

Miele Technical Service Department

with specific requirements.

Inspect the dishwasher for

i} transportdamage.Donot,nsta,,or

use a damaged uniL Contact the place

of purchase.

This dishwasher must be installed

deracont_nuouscountertop

secured to adiacent cabinetry.

Donot,nsta,,thisdishwasher

beneath a cooking surface or oven.

Donot,underanye,rcumstances,

cut the intake hose or submerge in

liquid. This hose contains electrical

components that could cause iniury or

property damage if cut or submerged.

If there is any doubt concerning

installation contact the Technical

Service Department.

USA 1-800-999- !360

[email protected]

CDN 1-800-565-6435

[email protected]

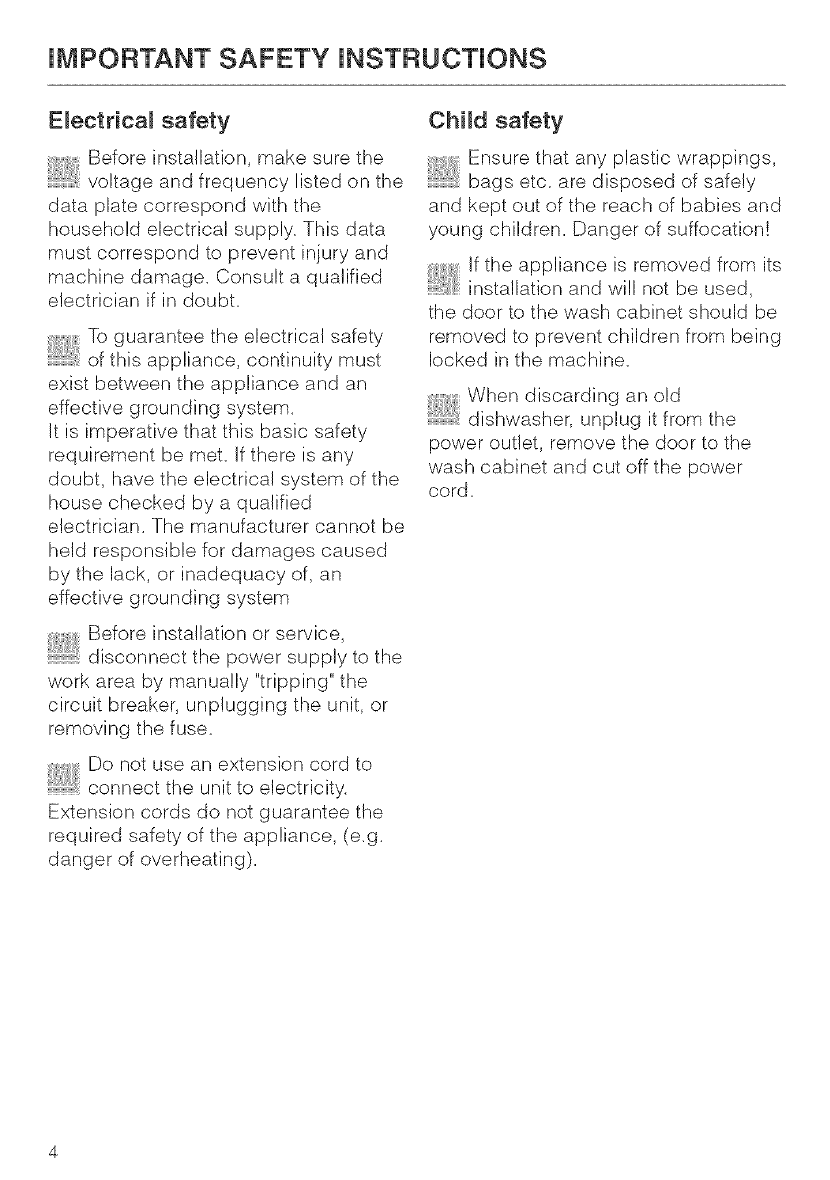

iMPORTANT SAFETY iNSTRUCTiONS

E_ectrica_ safety

Before installation, make sure the

voltage and frequency listed on the

data plate correspond with the

household electrical supply. This data

must correspond to prevent injury and

machine damage. Consult a qualified

electrician if in doubL

To guarantee the electrical safety

of this appliance, continuity must

exist between the appliance and an

effective grounding system.

It is imperative that this basic safety

requirement be met. If there is any

doubt, have the electrical system of the

house checked by a qualified

electrician. The manufacturer cannot be

held responsible for damages caused

by the lack, or inadequacy of, an

effective grounding system

Before installation or service,

idisconnectthepowersupplytothe

work area by manually "tripping" the

circuit breaker, unplugging the unit, or

removing the fuse.

Do not use an extension cord to

connect the unit to electricity.

Extension cords do not guarantee the

required safety of the appliance, (e.g.

danger of overheating).

ChHd safety

Ensurethatanyplasticwrappings,

bags etc. are disposed of safely

and kept out of the reach of babies and

young children. Danger of suffocation!

,ftheapp,ianceisremovedfromits

installation and will not be used,

the door to the wash cabinet should be

removed to prevent children from being

locked in the machine.

When discarding an old

' dishwasher, unplug it from the

power outlet, remove the door to the

wash cabinet and cut off the power

cord.

iNSTRUCTiONS JMPORTANTES SUR LA SECURJTE

Installation Si vous avez des doutes au sujet

de I'installation, contactez le D6-

L'insta,ationetlestravauxder6pa-

rationetd'entretiendoiventUreef- partement du service technique Miele,

fectu6s par un technicien de service USA !-800-999-1360

autoris6 Miele, Les travaux effectues techserv@mieleusa,com

par des personnes non qualifi6es,

pourraient _tre dangereux et faire annu-

ler la garantie,

Cet equipernent n'a pas 6t6 con_u

pour usage maritime ou pour les

installations mobiles te!les que les rou-

Iottes ou les avions, Toutefois, il peut

6tre parfois possible de faire

I'installation de ces applications sous

certaines conditions, Veuillez contacter

le Concessionnaire Miele le plus pres

de chez-vous ou le D6partement du

service technique Miele pour leur don-

ner vos exigences precises,

Inspecter le lave-vaisselle pour voir

s'_aet6endommag6_orsde

I'exp6dition, Ne pas installer ou utiliser,

un appareil endommag6, Veuillez

contacter le point d'achat,

Ce lave-vaisse!le dolt 6tre installe

sous un comptoir continu bien fix6

aux armoires adjacentes,

Ne pas installer ce lave-vaisselle

sous une surface de cuisson ou un

four,

CDN !-800-565-6435

service@miele,ca

_]HHHHHHHH _;Jii]ii

i Ourantleprocessus ii

d installation, veuillez faire attention

ii aux rebords coupants qui peuvent

Ne jamais, sous aucunes circons-

tances,couper_eboyaudepr_se

ou submerger dans un liquide, Ce

boyau contient des el#merits #lectri-

ques qui pourraient causer des blessu-

res ou des d6g&ts mat@iels s'ils sont

coup6s ou submerg#s,

iNSTRUCTiONS JMPORTANTES SUR LA SECUFHTE

S6curite 61ectrique

Avant I'installation, s'assurer que la

tensionet fr6quence6num6r6es

sur la plaque signal6tique correspon-

dent b,la source d'61ectricit6 de la resi-

dence. Ces donnees doivent corres-

pondre afin d'6viter de vous blesser et

d'endommager I'appareik Consulter un

electricien qualifi6 si vous avez des

doutes.

Pour garantir la s6curit6 electrique

de cet appareil, il dolt y avoir conti-

nuit6 entre I'appareil et un syst6me effi-

cace de mise _.la terre. Ce critere de

s6curite dolt absolument 6tre respect6.

Si vous avez des doutes, loire v@ifier le

systeme 61ectrique de votre maison par

un 61ectricien qualifi6. Le fabricant ne

peut pas 6tre tenu responsable des

dommages caus6s par un systeme de

raise b,la terre efficace, manquant ou

inad6quaL

D6branc her le courant de lazone

...... de travail avant I'installation, en d6-

branchant I'appareil, retirant le fusible

ou en faisant "sauter" le disjoncteuk

Ne pas utiliser de rallonge pour

brancher I'appareik Les ra!longes

ne garantissent pas la s6curit6 requise

pour I'appareil, (par ex. danger de sur-

chauffage).

Securite des enfants

S'assurer de disposer de bus les

emba,agesdep ast que,sacsetc

et de les garder hors de la port6 des

b6bes et jeunes enfants. Danger de

suffocatio!!

Si I'appareil est retir6 de son instal-

lation et que vous ne !'utilisez pas,

vous devez retirer la porte du meuble

de lavage pour empScher les enfants

de s'enfermer dons I'appareik

Pour disposer d'un ancien

lave-vaisselle, le d6brancher de la

prise, enlever la porte du meuble de la-

vage et couper le cordon @lectrique.

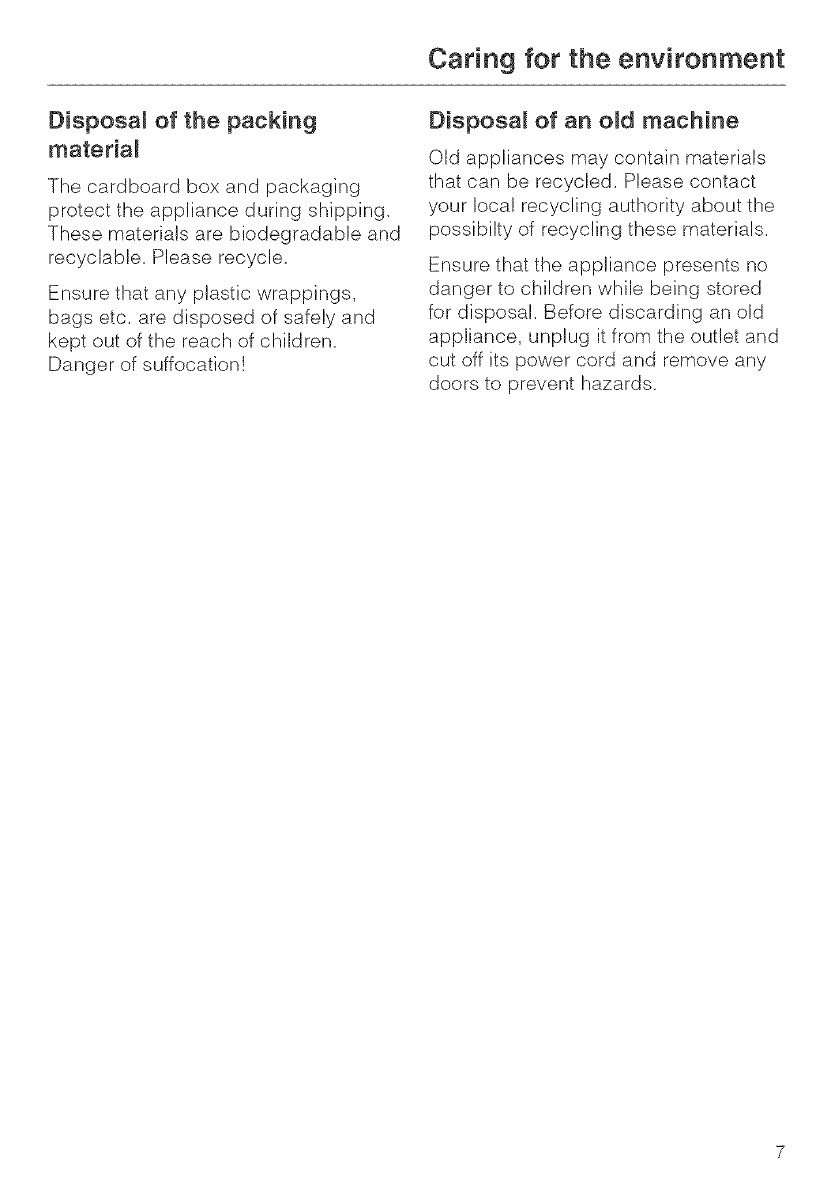

Caring for the environment

Disposa_ of the packing

materia_

The cardboard box and packaging

protect the appliance during shipping.

These materials are biodegradable and

recyclable. Please recycle.

Ensure that any plastic wrappings,

bags etc. are disposed of safely and

kept out of the reach of children.

Danger of suffocatio!!

Disposa_ of an o_d machine

Old appliances may contain materials

that can be recycled. Please contact

your local recycling authority about the

possibilty of recycling these materials.

Ensure that the appliance presents no

danger to children while being stored

for disposal. Before discarding an old

appliance, unplug it from the outlet and

cut off its power cord and remove any

doors to prevent hazards.

Opening the door

Opening the door without a

pane[ in place Without the mounting bracket in

place:

[] Gently pull on the upper portion of

the mounting bracket until the door

latch releases (small arrow),

[] Grip the T shaped opening with a

finger and pull the door open,

Product and Cut-out Dimensions

G600 Series Dishwashers

Full size models G 643 - G 663

Removing the Jeg extensions

The black leg extensions can be

removed to reduce the machine height

to 32 1/4"- 33" (819-838 ram) (see

Inset).

A = Black leg extension (removable)

B = White leg (must be installed on

machine).

[] After removing the black leg

extensions, screw the white legs onto

the dishwasher.

i re necessary.

Contact the Miele Technical Service

Department for the appropriate legs. .........

Product and Cut-out Dimensions

G 800 Series Dishwashers

Full size models G 843 - G 863

greater than 35" (889 ram), extended ill

legs (part# 02 702 601) are

necessary.

Contact the Miele Technical Service
