Miele G 7919 SCI XXL Bedienungsanleitung
Quick Start Guide
for dishwashers
These short instructions are not a substitute for the
operating instructions supplied with the machine.
It is essential to familiarise yourself with the dishwasher
before using it for the first time. Take note of the Warning
and Safety instructions, as well as the full descriptions
on how to use your appliance.
en-AU, NZ
M.-Nr. 11 480 750 / 01
Guide to the appliance

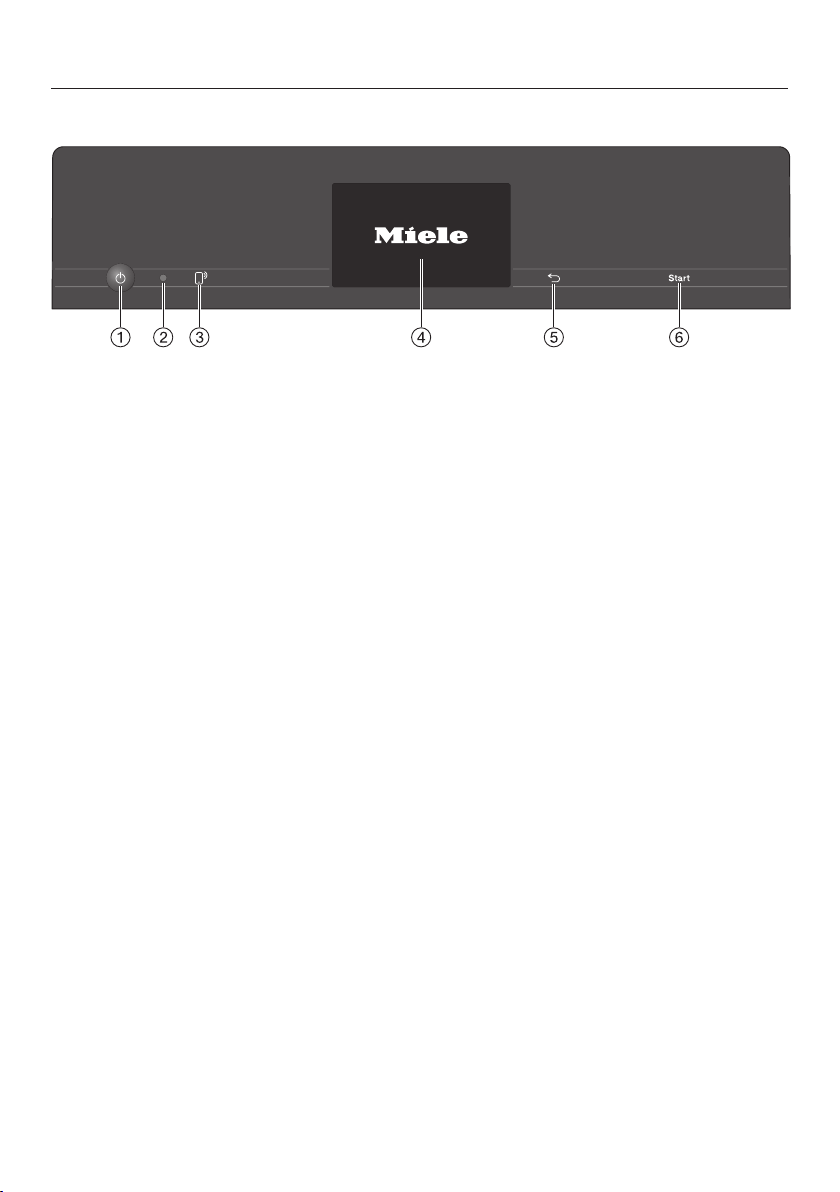

Control panel
aOn/Offsensor
For switching the dishwasher on and
off.
bOptical interface
For service technicians.
cRemote controlsensor
For activating/deactivating the
Remote control option.
dTouch display
For further information, see “Guide to
the appliance - Display functions” in
the operating instructions.
eBacksensor
For navigating back to the previous
menu or deleting values which have
been set previously.
fStartsensor
For starting the selected programme.
Brief instructions
aAutoDos (automatic dispensing)
bDetergent compartment
cRinse aid reservoir
dSalt reservoir
eFilter combination
Filling the salt reservoir
Remove the lower basket from the
wash cabinet and unscrew the salt
reservoir cap.
Damage to the water softener
from detergents.
Dishwasher detergent will damage
the water softener.
Do not fill the salt reservoir with
powder or liquid detergent.
Risk of corrosion due to saline
solution.
Water or saline solution will run out
of the reservoir when the cap is
opened. Saline solution that runs out
can cause corrosion in the wash
cabinet and to the dishwasher load.
The salt reservoir should therefore
only be opened to replenish the salt.
Fill the salt reservoir with approx. 2l
of water (first use only).
Place the funnel provided over the
salt reservoir and carefully fill with
dishwasher salt until the reservoir is
full.
Clean any excess salt from around
the reservoir opening and then screw
the salt reservoir cap on again firmly.
Immediately after filling the salt
container, run the QuickPowerWash
65°C programme with the
Express option and without any
load in the dishwasher to dissolve
and remove any traces of salt from
the cabinet.
Adding rinse aid
Lift the yellow catch on the lid of the
rinse aid container .
Only fill with rinse aid until the fill level
indicator (see arrow) turns dark when
the door is open horizontally.
Close the lid making sure it clicks into
place.
Wipe up any spilled rinse aid. This
prevents over-foaming occurring
during the next programme.
Loading the dishwasher
Detergent dispensing
There are two ways of dispensing the
detergent.
During automatic dispensing, the
AutoDos function will automatically
dispense the required amount of
detergent for each programme once a
PowerDisk has been inserted.
If you have deactivated automatic
dispensing, you can dispense detergent
manually.
Automatic detergent dispensing
Before you can use AutoDos, you must
insert a PowerDisk containing powder
detergent into the PowerDisk
compartment.

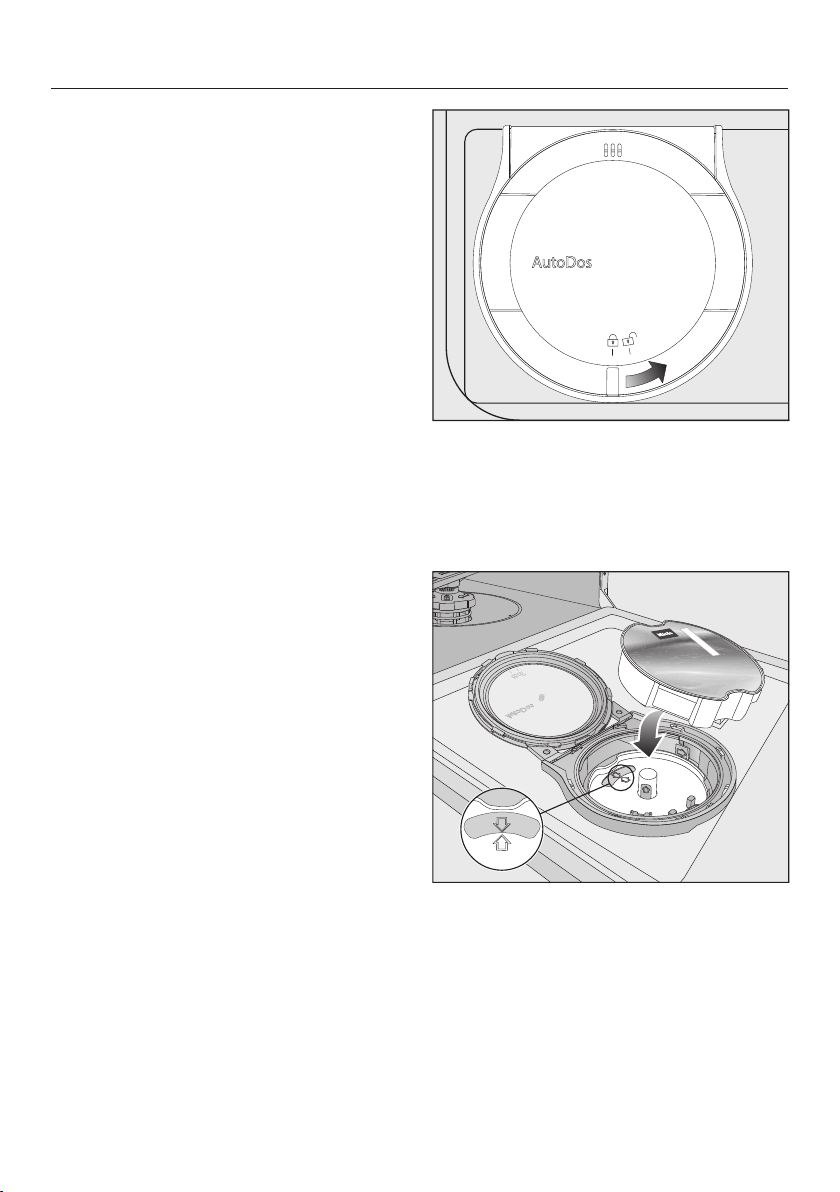

Slide the yellow catch of the AutoDos
lid to and open it.
Before you use AutoDos for the first
time, remove the transport lock from
the PowerDisk compartment.
If the arrows in the PowerDisk holder
and in the viewing window are not
pointing towards each other, remove
the PowerDisk holder.
Put the holder back into place so that
the arrows point towards each other
and the holder lies flat.
When doing this, only hold the
PowerDisk holder by the yellow tab in
the middle. Do not hold it by the side
tab.
Insert the new PowerDisk and press it
evenly downwards until it sits flush.
Close the AutoDos lid and slide the
yellow catch until it is aligned with the
symbol.
TheAutoDos function will be
activated automatically.
This setting applies to all programmes
and can be changed in a programme's
"Extras" menu.
If the PowerDisk is not in the correct
starting position, it will be rotated
automatically.
Wait until this process is finished before
you start a programme.
This setting applies to all programmes
and can be changed in a programme's
"Extras" menu.
Manual detergent dispensing
Dispense detergent manually if you
have deactivated automatic dispensing.
Follow the detergent dosage
recommended by the manufacturer
on the packaging.
Unless directed otherwise, use one
detergent tab or add 20 to 30ml of
detergent to the detergent
compartment, depending on the
degree of soiling of the crockery.
Lift the yellow catch on the lid of the
detergent compartment .
The lid will open.
Fill the detergent compartment with
detergent and push the lid shut until
you hear it click into place.
Switching on
Close the door.
Turn on the tap if it is turned off.
Touch the sensor.
The "Programmes" menu will appear in
the display.
Selecting a programme
Select the required programme in the
display.
The display will change to the "Extras"
menu.
Selecting Extras (if required)
All available Extras are shown in the
display.
Select the Extras you want.
If you want to cancel the selection of
an Extra, touch the sensor for the
Extra again.
Activating the timer (if required)
Touch the Timeroption in the
display.
Select the function you want.
Set the time you want for the timer
and confirm with OK.
Starting a programme
Touch the Startsensor.
Programme end - Switching off
The signal tones may sound at the end
of the programme.
The programme has finished when the
message Finished appears in the
display and the door has opened
slightly (if applicable).
The drying fan may continue to run for
a few minutes at the end of the
programme.
The dishwasher can be switched off
at any time using the sensor.
Confirm the query Switch appliance off?
with Yes.
Risk of damage due to steam.
Steam from the dishwasher could
damage the edges of delicate
worktops when you open the door at
the end of the programme if the fan
is no longer running.
If you have deactivated the
automatic door opening function but
would still like to open the door at
the end of the programme, make
sure that you open the door fully.
Unloading the dishwasher
Dishes tend to break and chip more
easily when they are hot. Allow the
dishes to cool until they are comfortable
enough to handle before unloading
them.
Cleaning and care
Cleaning the spray arms
Particles of food can get stuck in the
spray arm jets and bearings. The spray
arms should therefore be inspected
regularly (approx. every 2–4months).
Do not run a wash programme
without the lower spray arm or
without the filters fitted.
Switch the dishwasher off.
Take out the cutlery tray (if your
dishwasher is fitted with one).

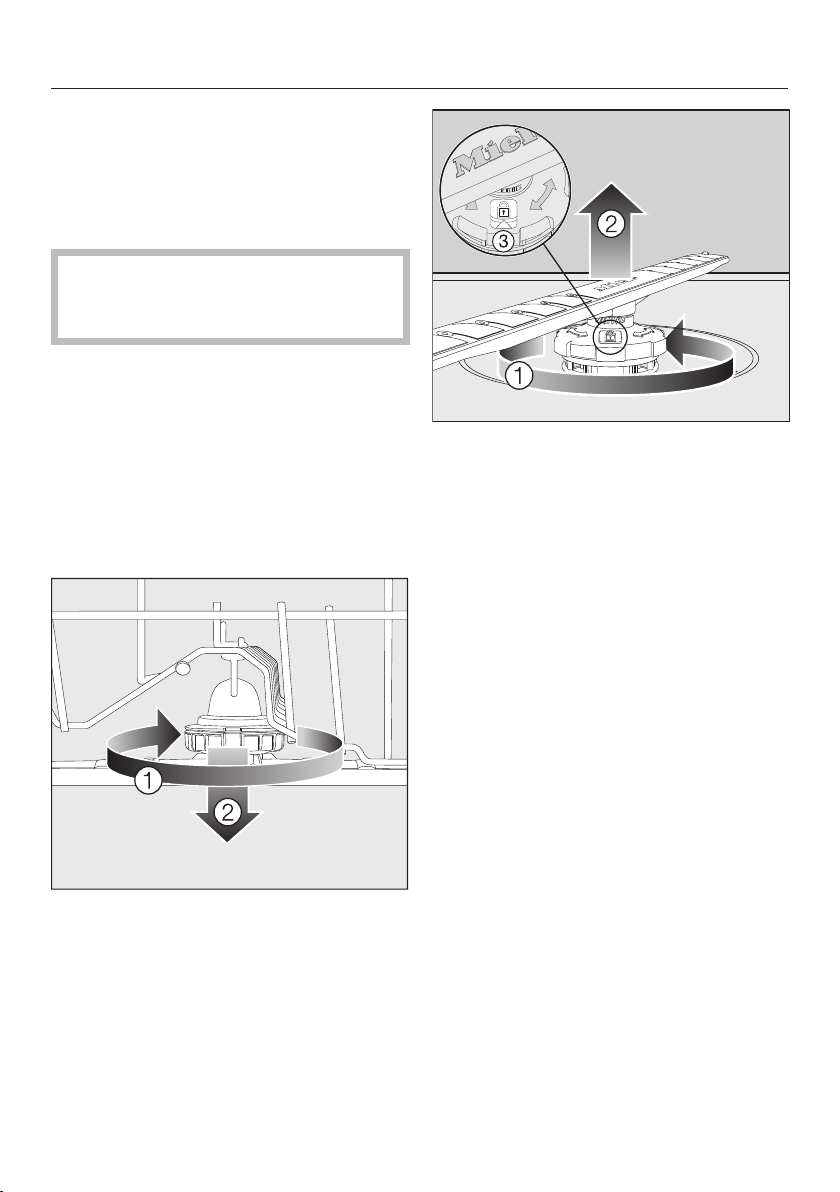

Push the upper spray arm upwards to
engage the inner ratchet. Then
unscrew the spray arm by rotating the
screw thread anti-clockwise
(overhead perspective).
Rotate the screw thread of the middle
spray arm clockwise (see diagram)
and remove the spray arm .
Remove the lower basket.
Rotate the screw thread of the lower
spray arm anti-clockwise and pull
the spray arm upwards to remove.
Use a pointed object to push food
particles stuck in the jets into the
spray arm.
Rinse the spray arm thoroughly under
running water.
Refit the upper and middle spray
arms.
Refit the lower spray arm and ensure
that the filter combination lies flat in
the base of the wash cabinet.
Rotate the screw thread of the lower
spray arm clockwise until the arrow in
the viewing window points to the
lock symbol.
Make sure the spray arms can rotate
freely.
Checking the filters in the
wash cabinet
Do not run a wash programme
without the filters or without the
lower spray arm fitted.
The message Remove filters and clean
them if necessary will appear in the
display after every 50 programme
sequences.
Monitor the condition of the filter
combination regularly and clean it if
necessary.
Confirm the message with OK.
Cleaning the filters
Switch the dishwasher off.
Remove the lower spray arm.
Before removing the filter
combination, remove any coarse
soiling to prevent it from entering the
circulation system.
Remove the filter combination.
In order to clean the inside of the
filter, pull the microfilter downwards
and away from the filter combination.
Rinse all the parts under running
water.
Push the microfilter back onto the
filter combination.
Refit the filter combination so that it
lies flat in the base of the wash
cabinet.
Refit the lower spray arm to the filter
combination using the screw thread.
Rotate the screw thread clockwise
until the arrow in the viewing window
points to the lock symbol.
Programme chart
Temperature-sensitive dishes,
glasses and plastics
Pots, pans, everyday porcelain
and cutlery
No crockery
Lightly dried-on food deposits
Stubborn dried-on, burnt-on
food deposits containing
starch or protein1
Residual salt after refilling
the salt container
Programme with glass care
Water and
energy saving programme
Maximum
cleaning performance
Flushes out
salt residues
Crockery Food deposits Programme
features
Robust items that
need to be hygienically
clean, e.g. baby bottles,
chopping boards
Lightly dried-on food deposits
Programme with special
parameters
for the hygienic cleaning
Mixed crockery
Standard dried-on normal
food deposits
Very quiet programme
All fresh to dried-on food
deposits
Lightly dried-on food deposits
Variable,
sensor-controlled programme
Short programme taking
less than an hour
1Food such as potatoes, pasta, rice or stews can leave starchy deposits.
Deposits containing protein can be left by food such as fried meat or fish.
Gentle45°C
Auto 45–65°C
QuickPowerWash 65°C
ExtraQuiet55°C
QuickPowerWash 65°C
+ Express
Programme2
Hygiene 70°C
2All programmes can be combined with the “Express” or “IntenseZone” programme options.
3The estimated values may change due to the selected settings or programme options,
or the conditions in which the appliance is being used.
Consumption estimate3
Energy consumption
Water consumption
Programme duration
Energy consumption
Water consumption
Programme duration
Energy consumption
Water consumption
Programme duration
Energy consumption
Water consumption
ECO50°C
Energy consumption
Water consumption
Programme duration
Programme duration
Intensive 75°C
Energy consumption
Water consumption
Programme duration
Energy consumption
Water consumption
Programme duration 13 minutes,
no heating up,
solely for flushing out salt.
Programme duration
Dieses Handbuch passt für folgende Modelle
10
Inhaltsverzeichnis
Andere Miele Spülmaschine Handbücher
Miele
Miele G 7460 SCVi AutoDos Bedienungsanleitung
Miele
Miele PG 8080 U Bedienungsanleitung
Miele
Miele G 5482 Bedienungsanleitung
Miele
Miele HG07 Bedienungsanleitung
Miele
Miele G 1 Series Bedienungsanleitung
Miele
Miele G2872SC Bedienungsanleitung
Miele
Miele G 4920 Bedienungsanleitung
Miele
Miele PG 8083 SCVi Bedienungsanleitung
Miele
Miele G 1472 Bedienungsanleitung
Miele
Miele 06 868 521 Bedienungsanleitung
Miele
Miele G 6910 Bedienungsanleitung
Miele
Miele PG 8131i Bedienungsanleitung
Miele
Miele PFD 101 Bedienungsanleitung
Miele
Miele PTD 701 Bedienungsanleitung
Miele
Miele PG 8130i 240V Bedienungsanleitung
Miele
Miele G 4700 Bedienungsanleitung
Miele
Miele G 1000 Bedienungsanleitung
Miele
Miele G 698-3 Bedienungsanleitung
Miele
Miele G 832 SC Bedienungsanleitung
Miele
Miele G 1672 Bedienungsanleitung
