Installationsplan G

PT 7135 C / PT 5135 C EL

Materialnummer / Mat. no.: 06 664 250

Änderungsstand / Version: 01

Datum Zeichnung / Drawing date: 25.04.2005

Datum Legende / Legend date: 31.05.2005

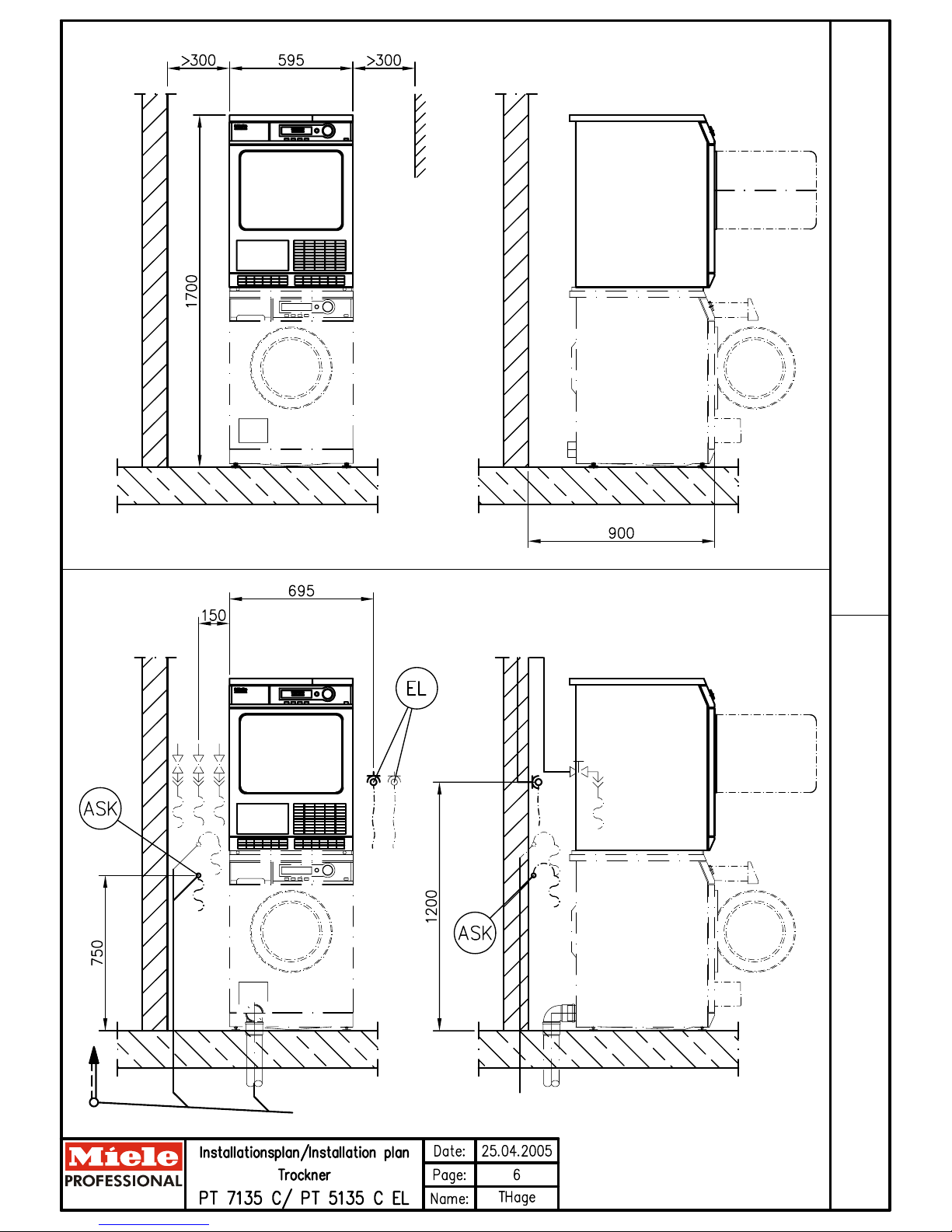

Installationsplan PT 7135 C / PT 5135 C EL

Stand: 31.05.2005 Seite 8

Technical datasheet

Tumble dryers:

Heating:

PT 7135 C / PT 5135 C

Electric (EL)

Legend:

Circled, bold-type abbreviations:

Connection required

Abbreviations surrounded by broken circle:

Connection optional or required, depending on model

Optional extras:

UG/UO 5005Miele plinth

(UG = Box plinth/UO = Open plinth)

Height Model mm 300

Width UG (UO) mm 609 (598)

Depth UG (UO) mm 622 (615)

Concrete platform Concrete platform optional (Min. quality B15)

Recommended height mm 300

Minimum height mm 100

Recommended width mm 600

Recommended depth mm 650

Ensure good anchorage!

Machine connections:

1. Standard voltage (as supplied) V 2N AC 400

Frequency Hz 50

Rated load kW 3.68

Fuse rating A 2 × 10

Electrical

connection

Connection cable, min. cross-section mm² 4 × 1.5

Length of supply lead (H07 RN-F without plug)

(supplied)

mm 2000

1. Alternative voltage V 3 AC 230

Frequency Hz 50

Rated load kW 3.68

Fuse rating A 3 × 16

Supply lead as above

convertible

2. Alternative voltage V 1N AC 230

Frequency Hz 50

Rated load kW 3.68

Fuse rating A 1 × 16

Connection cable, min. cross-section mm² 3 × 1.5

Length of supply lead (H05 RN-F without plug)

(supplied)

convertible

mm 2000

3. Alternative voltage V 1N AC 230

Frequency Hz 50

Rated load kW 2.15

Fuse rating A 1 × 10

Supply lead as above

convertible

Country variations:

2. Standard voltage (as supplied) V 1N AC 220-230

Frequency Hz 50

G i

Rated load kW 2.7 – 2.95

Fuse rating A 1 × 13

Connection cable, min. cross-section mm² 3 × 1.5

Length of supply lead (H05 RN-F with plug)

(supplied)

mm 2000

Installationsplan PT 7135 C / PT 5135 C EL

Stand: 31.05.2005 Seite 9

3. Standard voltage (as supplied) V 2N AC 400

Frequency Hz 50

j S

Rated load kW 3.68

Fuse rating A 2 × 10

Connection cable, min. cross-section mm² 4 × 1.5

Length of supply lead (H05 RN-F without plug)

(supplied)

mm 2000

4. Standard voltage (as supplied) V 1N AC 230

Frequency Hz 50

Rated load kW 3.68

Fuse rating A 1 × 16

Connection cable, min. cross-section mm² 3 × 1.5

Length of supply lead (H05 RN-F without plug)

(supplied)

mm 2000

5. Standard voltage (as supplied) V 1N AC 230-240

Frequency Hz 50

Rated load kW 2.15 – 2.35

Fuse rating A 1 × 10

Connection cable, min. cross-section mm² 3 × 1.0

Length of supply lead (H05 RN-F with plug)

(supplied)

mm 2000

6. Standard voltage (as supplied) V 2N AC 200

Frequency Hz 50-60

Rated load kW 2.85

Fuse rating A 2 × 20

Connection cable, min. cross-section mm² 3 × 2.75

Length of supply lead (H05 RN-F with plug)

(supplied)

mm 2000

Plug and socket connection in accordance with IEC 60309

recommended to facilitate electrical safety tests.

Install mains isolator according to IEC 60947 on hard-wired

connection.

Wall socket or mains isolator must be accessible after

installation.

The use of an earth leakage circuit breaker (ELCB) is strongly

recommended.

If necessary, equipotential bonding with good galvanic contact

must be provided in accordance with all appropriate national

and local regulations.

Unobstructed vent required for cold airCold air intake

Unobstructed vent required for cold airCold air

discharge vent

Max. temperature °C 60

Drain hose (Int. dia. × wall thickness × l) [DN 10] mm 10 × 2.5 × 2000

Condensate drain

hose

Hose sleeve for drain hose to be provided on site (ext. dia. x l) mm 10 × 30

Max. transient throughput l/min 3

Max. head height (measured from base of unit) mm 1000

Miele plinth UG/UO 5005Fittings (supplied)

4 × metal angled brackets (to secure machine to plinth)

4 × screws DIN 571 (Ø × length) mm 8 × 65

4 × rawl plugs (Ø × length) mm 12 × 60

Machine must be bolted to the floor!

Fixing materials for floating screed floor to be provided on site

On concrete platform

2 × screws DIN 571 (Ø × length) mm 6 × 50

2 × rawl plugs (Ø × length) mm 8 × 40

Machine must be bolted to the floor!

Fixing materials for floating screed floor to be provided on site

Installationsplan PT 7135 C / PT 5135 C EL

Stand: 31.05.2005 Seite 10

Without plinth

2 × screws DIN 571 (Ø × length) mm 6 × 50

2 × rawl plugs (Ø × length) mm 8 × 40

Machine must be bolted to the floor!

Fixing materials for floating screed floor to be provided on site

Payment system

The following extensions are possible:

Installation of payment system

Possible

extensions

Installation as washer-dryer stack

Connection to serial interface, RS 232

Machine data Width mm 595

Depth mm 700

Height mm 850

Knocked-down dimensions (W × H) mm 600 x 900

Recommended rear wall gap (measured to front of machine) mm 1100

Net weight kg 60

Dynamic floor load, max. N ~ 670

Average heat dissipation

(dependent on ambient room temperature and programme

selected)

W 2.500

Acoustic power level (re1 pW) dB (A) 68

Sound pressure level

(measured at a distance of 1 m from the machine and at a

height of 1.6 m)

dB (A) approx. 55

Installation should only be carried out by authorised fitters in accordance with valid regulations!
