Miele T 230 C Bedienungsanleitung

Operating instructions

for condenser tumble dryer

T 230 C

To avoid the risk of accidents or

damage to the machine it is

essential to read these instructions

before it is installed or used for the first time.

M.-Nr. 05 993 020

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Energy saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

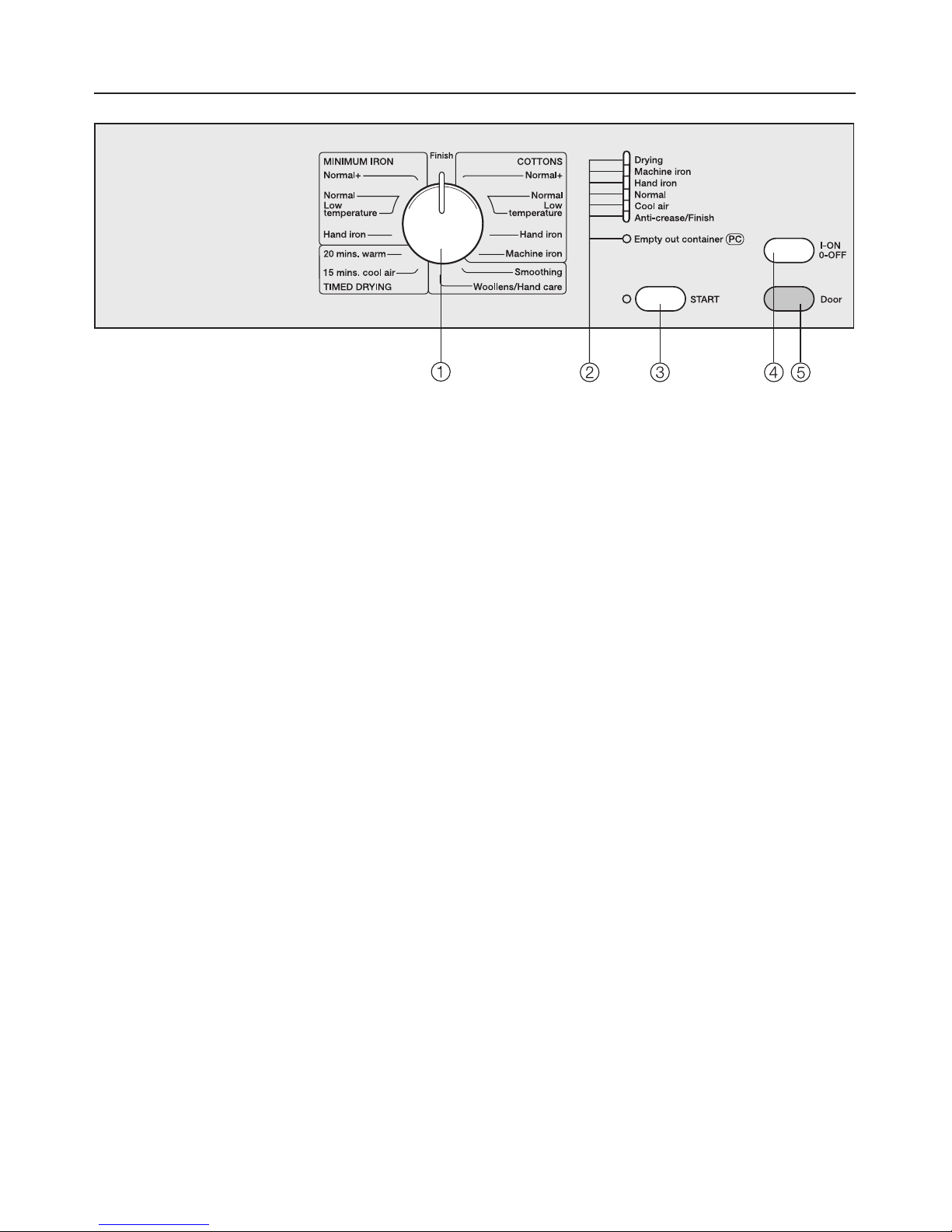

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Notes on laundry care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

How to dry correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

APrepare the laundry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

BLoad the drum and switch on the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

CSelect a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

DStart the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Selecting a different programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Interrupting a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Adding or removing items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

To cancel a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

EAt the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Emptying the condensed

water container . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Cleaning the fluff filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Cleaning them whilst dry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Cleaning them with water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Cleaning the tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Cleaning the condenser unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Removing the condenser unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Checking the condenser unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Cleaning the condenser unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Replacing the condenser unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Contents

Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

General problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Check and fault indicator lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

To change the interior drum lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

PC indicator lamp (interface for service technicians). . . . . . . . . . . . . . . . . . . . 29

Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Front view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Installation site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Transporting the machine to its installation site . . . . . . . . . . . . . . . . . . . . . . . . 31

Building under a continous worktop / in a row of kitchen units . . . . . . . . . . . . 31

Replacing the lid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Levelling the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Room in which the dryer is located . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Washer - dryer stack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Before moving the machine again (e.g. when moving house) . . . . . . . . . . . . . 32

External condensed water outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Setting up the drain hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Connection to a sink drain outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

If you no longer wish to use an external condensed water outlet . . . . . . . . . . 34

Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Increased drying level in the COTTONS programmes . . . . . . . . . . . . . . . . . . . . . 39

Increased drying level in the MINIMUM IRON programmes. . . . . . . . . . . . . . . . . 40

Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Contents

To avoid the risk of accidents and

damage to the machine please read

these instructions carefully before

using it for the first time. They

contain important information on its

safety, installation, use and

maintenance.

Keep these instructions in a safe

place and ensure that new users are

familiar with the content. Pass them

on to any future owner of the

machine.

Correct use

The tumble dryer is only intended

for drying fabrics which have been

washed in a water solution, marked on

the manufacturer's care label as being

suitable for tumble drying.

"Dry cleaning kits" for freshening up

garments in a tumble dryer are

increasingly available on the market. If

using, do so at your own risk, and

follow the instructions provided on the

packaging.

Any other applications may be

dangerous. The manufacturer is not

liable for damage resulting from

improper use or operation.

Technical safety

Before setting up the machine,

check it for any externally visible

damage.

Do not install or use a damaged

machine.

Before connecting the machine,

ensure that the connection data on

the data plate (voltage and connected

load) match the mains electricity

supply. If in any doubt, consult a

qualified electrician.

The electrical safety of this

machine can only be guaranteed

when continuity is complete between it

and an effective earthing system which

complies with local and national

regulations. It is most important that this

basic safety requirement is present and

regularly tested, and where there is any

doubt the household wiring system

should be inspected by a qualified

electrician. The manufacturer cannot be

held liable for the consequences of an

inadequate earthing system (e.g.

electric shock).

Do not connect the appliance to

the mains electricity supply by an

extension lead. Extension leads do not

guarantee the required safety of the

appliance (e.g. danger of overheating).

Warning and Safety instructions

The machine is built in accordance

with current safety requirements.

Unauthorised repairs could result in

unforeseen dangers for the user, for

which the manufacturer cannot accept

liability. Repairs should only be

undertaken by a Miele approved

technician.

Ensure current is not supplied to the

machine until after maintenance or

repair work has been carried out.

Faulty components must only be

replaced by genuine Miele original

spare parts. Only when these parts are

fitted can the safety standards of the

machine be guaranteed.

If the connection cable is faulty it

must only be replaced by a Miele

approved service technician to protect

the user from danger.

In countries where there are areas

which may be subject to infestation

by cockroaches or other vermin, pay

particular attention to keeping the

machine and its surroundings in a

clean condition at all times. Any

damage which may be caused by

cockroaches or other vermin will not be

covered by the machine guarantee.

Warning and Safety instructions

In the event of a fault or for

cleaning purposes, the machine is

only completely isolated from the

electiricty supply when:

–it is switched off at the wall socket

and the plug is withdrawn, or

–it is switched off at the mains, or

–the mains fuse is withdrawn.

Operation

This equipment may only be used

in mobile installations such as

ships, caravans, aircraft etc. if a risk

assessment of the installation has been

carried out by a suitably qualified

engineer.

The dryer must not be used without

the fluff filters in place or if the fluff

filters are damaged in any way.

The fluff filters must be thoroughly

dried after cleaning. If they are still

damp or wet when replaced there is a

risk of faults occurring when the

machine is used.

The dryer must not be used without

the condenser unit in place.

Do not install the machine in a

room where there is a risk of frost

occurring. At temperatures around

freezing point the machine may not be

able to operate properly.

There is a risk of damage if the

condensed water is allowed to freeze in

the pump, hoses and / or condensed

water container.

The ambient room temperature should

be between +2°C and +35°C.

If the water is drained externally

through the drain hose instead of

being collected in the condensed water

container, make sure the drain hose is

securely attached if you hang it in a

sink or basin to avoid the hose slipping

and the water causing damage.

Condensed water is not drinking

water. It can cause health

problems in both people and animals.

Always keep the area around the

machine free of dust and fluff. Dust

drawn into the machine can, over time,

cause blockages in the condenser unit.

Warning and Safety instructions

Do not let anyone sit or lean on the

door, as this can cause the

machine to tip up.

Always close the door after use.

This way you will avoid the danger

of:

–children climbing onto or into the

dryer or hiding things in it.

–pets or other small animals climbing

into it.

To prevent the risk of fire the

following textiles must not be

dried in this machine:

– fabrics which contain a large

proportion of rubber, foam rubber or

rubber like materials.

– items which contain padding or

fillings (e.g. pillows, jackets).

– items which have been treated with

inflammable cleaning agents.

– items which have been splashed with

hair lacquer, hair spray, nail varnish

remover or similar substances.

–items which have been soiled with

oils or residues containing grease

(kitchen oils, cosmetics etc.).

–items soiled with wax or other

chemicals (e.g. mops and floor

cloths).

–items which have not been

thoroughly cleaned and which are

still soiled with grease or oil, e.g.

workwear. Such clothing may require

a heavy duty detergent to get them

clean. If necessary consult the

detergent manufacturer for advice.

Safety with children

Keep children away from the

machine at all times and supervise

them whilst you are using it. This

machine is not a toy. To avoid the risk of

injury, do not allow children to play on

or near it or to play with its controls.

Supervise its use by the elderly or

infirm.

Using accessories

Accessory parts may only be fitted

when expressly approved by Miele.

If non-Miele parts are used with this

machine, guarantee, performance and

product liability claims may be

invalidated.

Disposal of your old machine

Before discarding an old machine,

switch it off at the wall socket and

unplug it. Render the plug useless and

cut off the cable directly behind the

machine. This should be done by a

competent person.

The manufacturer cannot be held

liable for damage caused by non-

compliance with these Warning and

Safety instructions.

Warning and Safety instructions

Disposal of the packing

material

The transport and protective packing

has been selected from materials which

are environmentally friendly for disposal

and can normally be recycled.

Ensure that any plastic wrappings,

bags etc. are disposed of safely and

kept out of the reach of babies and

young children. Danger of suffocation!

Rather than just throwing these

materials away, please ensure they are

offered for recycling.

Disposal of your old appliance

Electrical and electronic appliances

often contain materials which, if

handled or disposed of incorrectly,

could be potentially hazardous to

human health and to the environment.

They are, however, essential for the

correct functioning of your appliance.

Please do not therefore dispose of your

appliance with your household waste.

Please dispose of it at your local

community waste collection / recycling

centre and ensure that it presents no

danger to children while being stored

for disposal.

It should be unplugged or disconnected

from the mains electricity supply by a

competent person. The plug must be

rendered useless and the cable cut off

directly behind it to prevent misuse.

See the "Warning and Safety" section of

this booklet for further details.

Energy saving tips

To avoid unnecessarily long drying

times and high consumption of energy:

–Make sure that your laundry is

thoroughly spun before drying.

The higher the spin, the greater the

savings that can be made in energy

and time during drying.

– Load according to the optimum

amount of laundry recommended for

the programme being used (see

Programme chart).

Underloading is uneconomical.

Overloading gives a poorer quality of

drying and may cause unnecessary

creasing.

–Make sure the room in which the

dryer is located is well ventilated.

–Make sure the fluff filters are clean

before using the dryer.

–Check the condenser unit from time

to time and clean it when necessary.

Caring for the environment

aProgramme selector

The programme selector can be

turned clockwise or anti-clockwise.

bProgramme sequence and check

lamps

cStart button

Press the

Start

button to start a

programme.

The

Start

indicator lamp will flash as

soon as a programme can be

started. It lights up constantly once

the programme has started.

dI-On/0-Off button

To switch the machine on or off / to

interrupt a programme.

The Anti-crease/Finish lamp will light

up as confirmation that the machine

has been switched on.

eDoor Button

To open the door / to cancel a

programme.

Pressing this button will open the

door even when the machine is

switched off at the mains.

If the machine is switched on at the

mains and the door is opened the

drum lighting will come on. It will go

out a few minutes later to save

energy.

PC indicator light

The indicator light marked PC is used

by Miele Service technicians as an

optical interface.

Control panel

Wash care labels

Before drying check the drying

symbol on the wash care label.

Significance of symbols:

qDry at normal temperature

rDry at low temperature

sDo not tumble dry

If no symbol is featured, dry at your

own risk applying the following

principles:

Cotton and minimum iron items should

be dried using the appropriate

programme for the degree of drying

required. See programme chart.

For delicates and fabrics with the

following wash care label rdry using

the

Low temperature

option.

Never overload the drum. Do not

exceed the maximum recommended

loads given in the "Programme

chart". Overloading can cause

unnecessary wear and tear to the

laundry, give a disappointing drying

result and cause more creasing.

Do not put soaking wet items into

the tumble dryer. Spin them

thoroughly after washing using the

appropriate spin speed.

Tips on drying

Woollens and wool blends tend to

become matted and shrink if dried in a

tumble dryer. They can, however, be

partially dried using the

Woollens hand

care

programme.

Items filled with down.

The fabric lining on these garments

may shrink depending on the quality.

They can be partially dried using the

Smoothing

programme.

Pure linen should only be machine

dried if specified as suitable by the

manufacturer on the wash care label,

as the surface of the fabric may

otherwise "roughen". These items can

be partially dried using the

Smoothing

programme.

Woven and loopknit materials (e.g.

T-shirts, knitted garments) have a

tendency to shrink, depending on their

quality and this is made worse by over-

drying. When purchasing these

garments it is advisable to take their

shrinkage properties into account.

Minimum iron fabrics and 100% cotton

shirts or blouses tend to crease more,

the larger the load being dried,

particulary when the weave of the

fabric is very fine. Reduce the load or

use the MINIMUM IRON -

Hand iron

programme with a max. load of 1 kg. If

this is unsatisfactory use the Special

care "Smoothing" setting, then hang the

garments on a hanger to dry.

Starched laundry can be dried in the

tumble dryer. In order to achieve the

usual finish, double the amount of

starch should be used.

New dark coloured garments should be

dried separately from light coloured

garments to avoid the danger of col-

ours running.

Notes on laundry care

Inhaltsverzeichnis

Andere Miele Trockner Handbücher

Miele

Miele PDR 908 EL Bedienungsanleitung

Miele

Miele PT 8803 Bedienungsanleitung

Miele

Miele TOUCHTRONIC T 1303 Bedienungsanleitung

Miele

Miele PT 8301 SL Bedienungsanleitung

Miele

Miele T 4882 C Bedienungsanleitung

Miele

Miele PT 5135 C EL Bedienungsanleitung

Miele

Miele PT 7188 EL Gebrauchsanweisung

Miele

Miele TCE530 WP Active Plus Bedienungsanleitung

Miele

Miele T 8626 WP Bedienungsanleitung

Miele

Miele PT 5135 C EL Bedienungsanleitung

Miele

Miele T 650 C Bedienungsanleitung

Miele

Miele PT 7136 Plus Bedienungsanleitung

Miele

Miele T 9822 VENT ED DRYER - OPERATING Bedienungsanleitung

Miele

Miele PT 5136 OS Bedienungsanleitung

Miele

Miele TWV 680 WP Bedienungsanleitung

Miele

Miele T 80 Series Handbuch

Miele

Miele T 8861 WP Edition 111 Bedienungsanleitung

Miele

Miele TKR 450 WP Bedienungsanleitung

Miele

Miele PDR 910 EL Bedienungsanleitung

Miele

Miele TOUCHTRONIC T 9820 Stücklistenhandbuch

Miele

Miele PT 7135 C Bedienungsanleitung

Miele

Miele PT 8807 EL Bedienungsanleitung

Miele

Miele T 8433 C Bedienungsanleitung

Miele

Miele TCH620 WP Eco XL Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung

Frigidaire

Frigidaire CAQE7077KW0 Betriebsanleitung
