Miele T 4123 Bedienungsanleitung

Operating instructions

for vented tumble dryer

T 4123

To avoid the risk of accidents

or damage to the machine

it is essential to read these

Operating instructions before

it is installed or used for the first time.

M.-Nr. 06 067 720

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Disposal of your old machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Energy saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

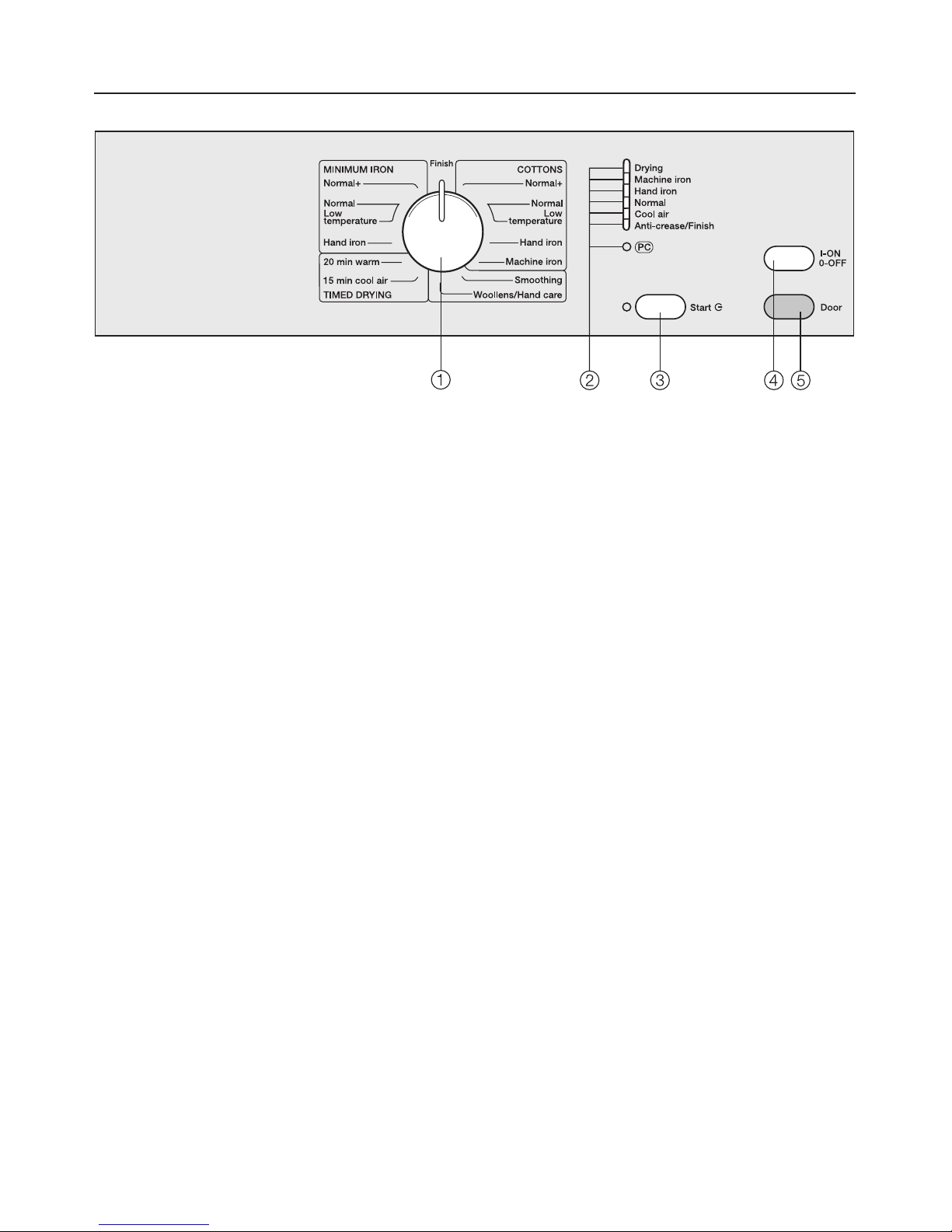

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Notes on laundry care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

How to dry correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

APrepare the laundry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

BLoad the drum and switch on the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

CSelect a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

DStart the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Selecting a different programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Interrupting a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Adding or removing items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

To cancel a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

EAt the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Cleaning the fluff filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

General problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

To change the interior drumlamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

PC indicator lamp (interface for service technicians). . . . . . . . . . . . . . . . . . . . 23

Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Contents

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Front view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Installation site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Transporting the machine to its installation site . . . . . . . . . . . . . . . . . . . . . . . . 25

Building under a continous worktop / in a kitchen run . . . . . . . . . . . . . . . . . . . 25

Aligning the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Washer-dryer stack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Installation - venting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Calculating the effective duct length: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Installation to the left or right side of the machine . . . . . . . . . . . . . . . . . . . . . . . . . 31

Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

aVenting system with flexible ducting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

bVenting system with plastic piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

cConnecting directly to a wall vent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Washer dryer stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

echnical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Increased drying level in the COTTONS programmes . . . . . . . . . . . . . . . . . . . . . 40

Increased drying level in the MINIMUM IRON programmes. . . . . . . . . . . . . . . . . 41

Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Contents

To avoid the risk of accidents and

damage to the machine please read

these instructions carefully before

using it for the first time. They

contain important information on its

safety, use and maintenance.

Keep these operating instructions in

a safe place and ensure that new

users are familiar with the content.

Pass them on to any future owner of

the machine.

Correct use

The tumble dryer is only intended

for drying fabrics which have been

washed in a water solution, marked on

the manufacturer's wash care label as

being suitable for tumble drying.

"Dry Cleaning Kits" for freshening up

garments in a tumble dryer are

increasingly available on the market. If

using, do so at your own risk and follow

the instructions provided on the

packaging.

Any other applications may be

dangerous. The manufacturer is not

liable for damage resulting from

improper use or operation.

This machine is not a toy! To avoid

the risk of injury, do not allow

children to play on or near it, or to

play with the controls. Supervise its

use by the elderly or infirm.

echnical safety

Before setting up the machine

check it for any externally visible

damage. Do not install or use a

damaged machine.

Before connecting the machine,

ensure that the connection data on

the data plate (fusing, voltage and

frequency) matches the mains

electricity supply. If in any doubt,

consult a qualified electrician.

The electrical safety of this

machine can only be guaranteed

when continuity is complete between

the machine and an effective earthing

system which complies with local and

national regulations. It is most important

that this basic safety requirement is

regularly tested, and where there is any

doubt the household wiring system

should be inspected by a qualified

electrician. The manufacturer cannot be

held liable for the consequences of an

inadequate earthing system (e.g.

electric shock).

Do not connect the machine to the

mains electricity supply by an

extension lead. Extension leads do not

guarantee the required safety of the

machine (e.g. danger or overheating).

The machine is built in accordance

with current safety requirements.

Unauthorised repairs could result in

unforeseen dangers for the user, for

which the manufacturer cannot accept

liability. Repairs should only be

undertaken by a Miele approved

technician.

Ensure current is not supplied to the

machine while maintenance or repair

work is being carried out.

Faulty components must only be

exchanged for Miele original spare

parts. Only when these parts are fitted

can the safety standards of the

machine be guaranteed.

Warning and Safety instructions

If the connection cable is faulty it

must only be replaced by a Miele

approved service technician to protect

the user from danger.

In the event of a fault or for

cleaning purposes, the machine is

only completely isolated from the

electricity supply when:

–it is switched off at the wall socket

and the plug is withdrawn, or

–it is switched off at the mains, or

–the mains fuse is withdrawn.

Operation

This equipment is not designed for

maritime use or for use in mobile

installations such as caravans, aircraft

etc. However, it may be suitable for

such usage subject to a risk

assessment of the installation being

carried out by a suitably qualified

engineer.

This dryer must not be:

–connected to a chimney or vent flue

which is in use.

–used without exhaust ducting.

–used without the fluff filter in place or

if the fluff filter is damaged in any

way.

Check all parts of the extraction

system on a regular basis (e.g. wall

vent, external grille, bends in the

ducting etc.) and make sure they are all

free of any hindrance. A build-up of fluff

will prevent a free-flow of air through the

system. If the dryer is to be connected

to an existing ducting system this must

be checked for suitability beforehand.

Adequate ventilation is essential,

especially where another

appliance which also uses the room air

(e.g. gas, oil or coal fired heater,

continuous flow or other water heater) is

installed in the same or an adjacent

room.

To ensure safe operation, and to

prevent gases given off by these

appliances being drawn back into the

room, an underpressure of 0.04 mbar is

the maximum permissible. Ventilation

can be maintained by air inlets which

cannot be blocked, in windows, doors

and outside wall vents, or by an auto-

matic window opening arrangement

when the tumble dryer is switched on. If

in doubt, the advice of a competent

builder, or for gas, a "Corgi" installer (in

UK) must be sought.

The exhaust air must not be vented

into a chimney or vent flue which is

in use, nor should it be connnected to

ducting which ventilates rooms with

fireplaces. It would be dangerous if

smoke or exhaust fumes were drawn

back into the room.

Do not install the machine in a

room where the temperature may

drop down to or below freezing. At very

cold temperatures the machine may be

difficult to start.

Always keep the area around the

machine free of dust and fluff.

Warning and Safety instructions

Always close the door after use.

This way you will avoid the danger

of:

–children climbing onto or into the

dryer or hiding things in it.

–pets or other small animals climbing

into it.

Do not let anyone sit or lean on the

door, as this can cause the

machine to tip up.

There is danger of fire with fabrics

which:

– contain a large proportion of rubber,

foam rubber or rubber like materials.

– have been treated with inflammable

cleaning agents.

– have been splashed with hair

lacquer, hair spray, nail varnish

remover or similar substances.

– contain padding or fillings (e.g.

pillows, jackets). If these were

damaged the filling could leak out

with the risk of igniting in the dryer.

–are soiled with oil or grease.

In countries where there are areas

which may be subject to infestation

by cockroaches or other vermin, pay

particular attention to keeping the

machine and its surroundings in a

clean condition at all times. Any

damage which may be caused by

cockroaches or other vermin will not

be covered by the machine

guarantee.

Using accessories

Accessory parts may only be fitted

when expressly approved by Miele.

If other parts are used, guarantee,

performance and product liability

claims may be invalidated.

The manufacturer cannot be held

liable for damage caused by

non-compliance with these Warning

and Safety instructions.

Warning and Safety instructions

Disposal of the packing

material

The transport and protective packing

has been selected from materials which

are environmentally friendly for disposal

and can normally be recycled.

Ensure that any plastic wrappings,

bags etc. are disposed of safely and

kept out of the reach of babies and

young children. Danger of suffocation!

Rather than just throwing these

materials away, please ensure they are

offered for recycling.

Disposal of your old machine

Old machines contain materials which

can be reclaimed or recycled. Please

contact your dealer, your local waste

collection centre or scrap merchant

about potential recycling schemes.

Ensure that the machine presents no

danger to children while being stored

for disposal.

Before throwing an old machine away

unplug it and render the plug useless.

Cut off the cable directly behind the

machine to prevent misuse. This should

be done by a competent person.

Energy saving tips

^Make sure that your laundry is

thoroughly spun before drying.

The higher the spin, the greater the

savings that can be made in energy

and time during drying.

^Load according to the optimum

amount of laundry recommended for

the programme being used (see

"Programme chart").

Underloading is uneconomical.

Overloading gives a poorer quality of

drying and may cause unnecessary

creasing.

^To avoid unecessarily long drying

times and high consumption of

energy:

– Make sure the room in which the

dryer is located is well ventilated.

– Make sure the fluff filter is clean

before using the dryer.

–Check all parts of the ventilation

system on a regular basis and

remove any build up of fluff etc.

^The vent ducting should be as short,

straight and smooth as possible to

minimise any resistance to the air

throughflow.

This helps to reduce running times

and energy consumption levels.

Caring for the environment

aProgramme selector

The programme selector can be

turned clockwise or anti-clockwise.

bProgramme sequence and check

lamps

cStart button

Press the

Start

button to start a

programme.

The

Start

indicator lamp will flash as

soon as a programme can be

started. It lights up constantly once

the programme has started.

dI-On/0-Off button

To switch the machine on or off / to

interrupt a programme.

eDoor Button

To open the door / to cancel a

programme.

Pressing this button will open the

door even when the machine is

switched off at the mains.

If the machine is switched on at the

mains and the door is opened the

drum lighting will come on. It will go

out a few minutes later to save

energy.

Control panel

Wash care labels

Before drying check the drying

symbol on the wash care label.

Significance of symbols:

qDry at normal temperature

rDry at low temperature

sDo not tumble dry

If no symbol is featured, dry at your

own risk applying the following

principles:

Cotton and minimum iron items should

be dried using the appropriate

programme for the degree of drying

required. See programme chart.

For delicates and fabrics with the

following wash care label rdry using

the

Low temperature

option.

Never overload the drum. Do not

exceed the maximum recommended

loads given in the "Programme

chart". Overloading can cause

unnecessary wear and tear to the

laundry, give a disappointing drying

result and cause more creasing.

Do not put soaking wet items into

the tumble dryer. Spin them

thoroughly after washing using the

appropriate spin speed.

ips on drying

Woollens and wool blends tend to

become matted and shrink if dried in a

tumble dryer. They can, however, be

partially dried using the

Woollens hand

care

programme.

Items filled with down.

The fabric lining on these garments

may shrink depending on the quality.

They can be partially dried using the

Smoothing

programme.

Pure linen should only be machine

dried if specified as suitable by the

manufacturer on the wash care label,

as the surface of the fabric may

otherwise "roughen". These items can

be partially dried using the

Smoothing

programme.

Woven and loopknit materials (e.g.

T-shirts, knitted garments) have a

tendency to shrink, depending on their

quality and this is made worse by

over-drying. When purchasing these

garments it is advisable to take their

shrinkage properties into account.

Minimum iron fabrics and 100% cotton

shirts or blouses tend to crease more,

the larger the load being dried,

particulary when the weave of the

fabric is very fine. Reduce the load or

use the MINIMUM IRON -

Hand iron

programme with a max. load of 1 kg. If

this is unsatisfactory use the Special

care "Smoothing" setting, then hang the

garments on a hanger to dry.

Starched laundry can be dried in the

tumble dryer. In order to achieve the

usual finish, double the amount of

starch should be used.

New dark coloured garments should be

dried separately from light coloured

garments to avoid the danger of col-

ours running.

Notes on laundry care

Programmes Fabric type Special notes

CO ONS

Drying levels

maximum load:

5 kg (1)

Normal+ Single and multi-layered

fabrics, e.g. mixed load of

cotton fabrics (e.g.

towelling, jerseywear).

Normal (2) Load of similar cotton

fabrics (jersey wear,

flannelette sheets,

towelling).

If laundry is still too damp,

then:

- finish drying using Timed

drying

Warm air

- use the

Normal+

programme next time.

Low temperature For drying delicate fabrics

with the symbol r(e.g.

acrylic garments).

Laundry is dried using the

Normal

programme, but at a

lower temperature.

Hand iron (2) Cotton or linen fabrics (e.g.

table linen, bed linen,

starched laundry etc.).

Machine iron Cotton or linen fabrics,

including starched laundry

for machine ironing.

The laundry should be rolled

up to prevent it from drying

out before it can be ironed.

(1) Weight of dry laundry

(2) Note for test institutes: Programme setting for testing according to EN 61121

standard

Programme chart

Inhaltsverzeichnis

Andere Miele Trockner Handbücher

Miele

Miele T 1570C CONDENSER DRYER Bedienungsanleitung

Miele

Miele TWV 680 WP Bedienungsanleitung

Miele

Miele PT 7136 Plus Bedienungsanleitung

Miele

Miele TED 265 WP Bedienungsanleitung

Miele

Miele T 8000 WP SUPERTRONIC Bedienungsanleitung

Miele

Miele T 1515 VENT ED DRYER - OPERATING Bedienungsanleitung

Miele

Miele TOUCHTRONIC T 9820 Stücklistenhandbuch

Miele

Miele PDR 908 EL Bedienungsanleitung

Miele

Miele T 640 Bedienungsanleitung

Miele

Miele T 1036 VENT ED DRYER - OPERATING Bedienungsanleitung

Miele

Miele T 659 C Bedienungsanleitung

Miele

Miele T 7644 C Bedienungsanleitung

Miele

Miele PDR 516 SL EL Bedienungsanleitung

Miele

Miele T 8001 WP SUPERTRONIC Bedienungsanleitung

Miele

Miele TXD 160 WP Bedienungsanleitung

Miele

Miele T 9802 VENT ED DRYER - OPERATING AND Bedienungsanleitung

Miele

Miele PT 8257 WP Bedienungsanleitung

Miele

Miele T 1515 Bedienungsanleitung

Miele

Miele PDR 910 G Bedienungsanleitung

Miele

Miele TXD 160 WP Bedienungsanleitung

Miele

Miele T 1413 T 1415 Bedienungsanleitung

Miele

Miele T 430 Bedienungsanleitung

Miele

Miele PT 7136 Vario OS Bedienungsanleitung

Miele

Miele TWJ 660 WP Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung

Frigidaire

Frigidaire CAQE7077KW0 Betriebsanleitung
