Operating instructions

Cooker Hoods

DA 196, DA 199

It is essential to read these

Operating Instructions before Q\@ä

installing or using the machine,

to avoid the risk of accident,

or damage to the machine. M.-Nr. 04 927 050

Contents

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Description of the functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Guide to the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Operation

Notes on the switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Selecting the power level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

To operate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Switching off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Switching the lighting on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Cleaning and care

Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Active charcoal filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Changing the light tube and / or starter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Electrical connection and Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Appliance dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Installation

Position for the extraction cut-out and electrical socket . . . . . . . . . . . . . . . . . . . . 17

Retaining plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Vapour guide / canopy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Motor unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Extraction connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Recirculation connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Extension piece . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Fitting the tower shaft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Connection for air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Contents

Caring for the environment

Disposal of packing material

The transport and protective packing

has been selected from materials

which are environmentally friendly for

disposal and can normally be recycled.

Rather than just throwing these ma-

terials away, please ensure they are of-

fered for recycling.

Disposal of your old appliance

Old appliances contain materials which

can be reclaimed or recycled. Please

contact your dealer, your waste collec-

tion centre or scrap merchant about

potential recycling schemes.

Ensure that the appliance presents no

danger to children while being stored

for disposal. See the appropriate sec-

tion in the Warning and Safety instruc-

tions.

Caring for the environment

Warning and Safety instructions

This appliance meets statutory

safety requirements. Inappropriate

use could however lead to risk of ac-

cidents to the user and damage to

the appliance.

Read the operating instructions be-

fore using this machine for the first

time. They contain important infor-

mation about the safety, use and

maintenance of the machine. This

will avoid the risk of accidents and

damage to the machine.

Keep these operating instructions in

a safe place and ensure that new

users are familiar with the content.

Pass them on to any future owner of

the machine.

Appropriate use of the cooker

hood

The appliance is intended for do-

mestic use only.

The manufacturer cannot be held re-

sponsible for any damage caused by

improper use or by non-observance of

these instructions.

Technical safety

Before connecting the cooker

hood to the mains supply make

sure that the voltage and frequency de-

tails given on the data plate corre-

spond with the on-site electricity sup-

ply. If in doubt consult a qualified

electrician.

The electrical safety of this ap-

pliance can only be guaranteed

when continuity is complete between

the appliance and an effective earthing

system which complies with local and

national regulations. It is most import-

ant that this basic safety requirement is

tested by a qualified electrician.

The manufacturer cannot be held re-

sponsible for the consequences of an

inadequate earthing system (e.g. elec-

tric shock).

Installation work and repairs may

only be carried out by suitably

qualified and competent persons to en-

sure safety.

Repairs and other work by unqualified

persons could be dangerous.

Warning and Safety instructions

The appliance is only completely

isolated from the electricity supply

when, depending on the type of installa-

tion,

– it is switched off at the wall socket

and the plug removed,

(do not pull on the cable, only on the

plug), or

– the fuse from the fused spur connec-

tion unit (if accessible) is withdrawn, or

– the mains fuse is withdrawn, or

– the screw-out fuse is removed, (in

countries where this is applicable).

Ensure current is not restored to the ap-

pliance while maintenance or repair

work is being carried out.

Do not connect the appliance to

the mains electricity supply by an

extension lead.

Extension leads do not guarantee the

required safety of the appliance.(e.g.

danger of overheating)

Use of the appliance

Never use an open flame beneath

the cooker hood - to avoid the

danger of fire do not flambé or grill

dishes. When switched on the cooker

hood could draw flames into the filter.

Fat particles drawn into the cooker

hood present a fire hazard.

When using the cooker hood over

a gas hob ensure that any burners

in use are covered by a pan. Otherwise

flames could be drawn up by the suc-

tion of the cooker hood, parts of which

could then be damaged.

Always switch the cooker hood on

when a cooking zone is in use,

otherwise condensation may collect in

the hood, which could cause corrosion.

When cooking with oil or fat, chip

pans and deep fat fryers etc, do

not leave the pans unattended.

Overheated oil and fat can ignite and

could set the cooker hood on fire.

Do not use the cooker hood with-

out the grease filter in place.

This way you will avoid the risk of

grease and dirt getting into the ap-

pliance and hindering its smooth oper-

ation.

Warning and Safety instructions

Clean or change the filters regu-

larly.

Over-greasy filters are a fire hazard.

Under no circumstances use a

steam cleaner to clean this ap-

pliance.

Pressurised steam could give rise to a

short circuit, or cause permanent dam-

age to the surface and to components,

for which the manufacturer of the

cooker hood cannot accept any respon-

sibility.

In countries which may be subject

to infestation by cockroaches or

other vermin, pay particular attention to

keeping the appliance and its surround-

ings in a clean condition at all times.

Any damage which might be caused

by cockroaches or other vermin will not

be covered by the appliance guarantee.

Installation

The distance between the top of

the hob and the bottom of the

cooker hood must measure at least:

–45 cm above electric hobs

–65 cm above gas hobs.

Australia / New Zealand:

–60 cm for eletric and gas hobs.

(For U.K. only) - There must be a

minimum distance of 65 cm be-

tween a gas hob and the cooker hood

in order to avoid exceeding the maxi-

mum nominal (heat) ratings.

Gas cooker maximum

nominal rating

one burner 2.7 kW

all burners 7.5 kW

oven 3.5 kW

Gas hob maximum

nominal rating

one burner 3.5 kW

all burners 10.3 kW

Gas hob with ceramic cover plate

The data given for maximum nominal (heat)

ratings do not aply to a gas hob with a ceramic

cover plate. In this case it is essential to refer to

the hob manufacturer’s data.

Safety regulations prohibit the fit-

ting of a cooker hood over solid

fuel stoves.

All ducting, pipework and fittings

must be of non-flammable ma-

terial. These can be obtained from the

Miele Spare Parts department or from

builders’merchants.

The appliance must not be con-

nected to a chimney or vent flue

which is in use. Neither should it be

connected to ducting which ventilates

rooms with fireplaces.

If exhaust air is to be extracted into

a chimney or ventilation duct no

longer used for other purposes, take

professional advice.

Warning and Safety instructions

When using the cooker hood in ex-

traction mode at the same time as

another heating appliance which de-

pends on the air in the room, (e.g. gas,

oil or coal fired heaters, continuous flow

or other water heaters, gas cooker, gas

hob or gas oven) special care must be

taken, as the action of the cooker hood

extracts air from the room, which these

types of heater need for combustion.

In order to ensure safe operation, and

to prevent the gases given off by the

heating appliances from being drawn

back into the room when the extractor

and the heater are in operation simulta-

neously, an underpressure in the room

of 0.04 mbar (4 pa) is the maximum

permissible.

Ventilation can be maintained by air in-

lets which cannot be blocked, in win-

dows, doors and outside wall vents, or

by other techical measures, such as en-

suring that the extractor can only be

switched on when the heating ap-

pliance is switched off or vice-versa.

N.B.: The overall ventilation condition of

the dwelling must be taken into ac-

count.

If in any doubt, the advice of a compe-

tent builder or, for gas, a “Corgi”instal-

ler must be sought.

If the cooker hood is operated in re-

circulation mode (with active char-

coal filter) then the above restrictions

do not apply.

Disposal of an old machine

or appliance

Before discarding an old machine

or appliance render it useless. En-

sure that disconnection from the mains

supply is carried out by a competent

person and that the cable is also

removed from the appliance to prevent

misuse. Render any plug useless.

The manufacturer cannot be held re-

sponsible for any damage caused

by non-observance of these instruc-

tions.

Warning and Safety instructions

Descripton of the functions

The cooker hood works with

. . . Air extraction:

The air is drawn in and cleaned by the

grease filters and directed outside.

The cooker hood is fitted with a

non-return flap.

This flap is closed when the cooker

hood is switched off. No exchange of

room air and outside air can take

place. When the cooker hood is

switched on the non-return flap opens

for the cooking smells to be blown di-

rectly outside.

. . . Air recirculation:

The air is drawn in and cleaned first by

the grease filters. In addition it is then

cleaned by the active charcoal filter.

The cleaned air is then recirculated

back into the kitchen through a vent in

the top of the cooker hood.

Before using the cooker hood for

the first time, ensure that the active

charcoal filter is in place, see sec-

tion on “Cleaning and care”.

Descripton of the functions

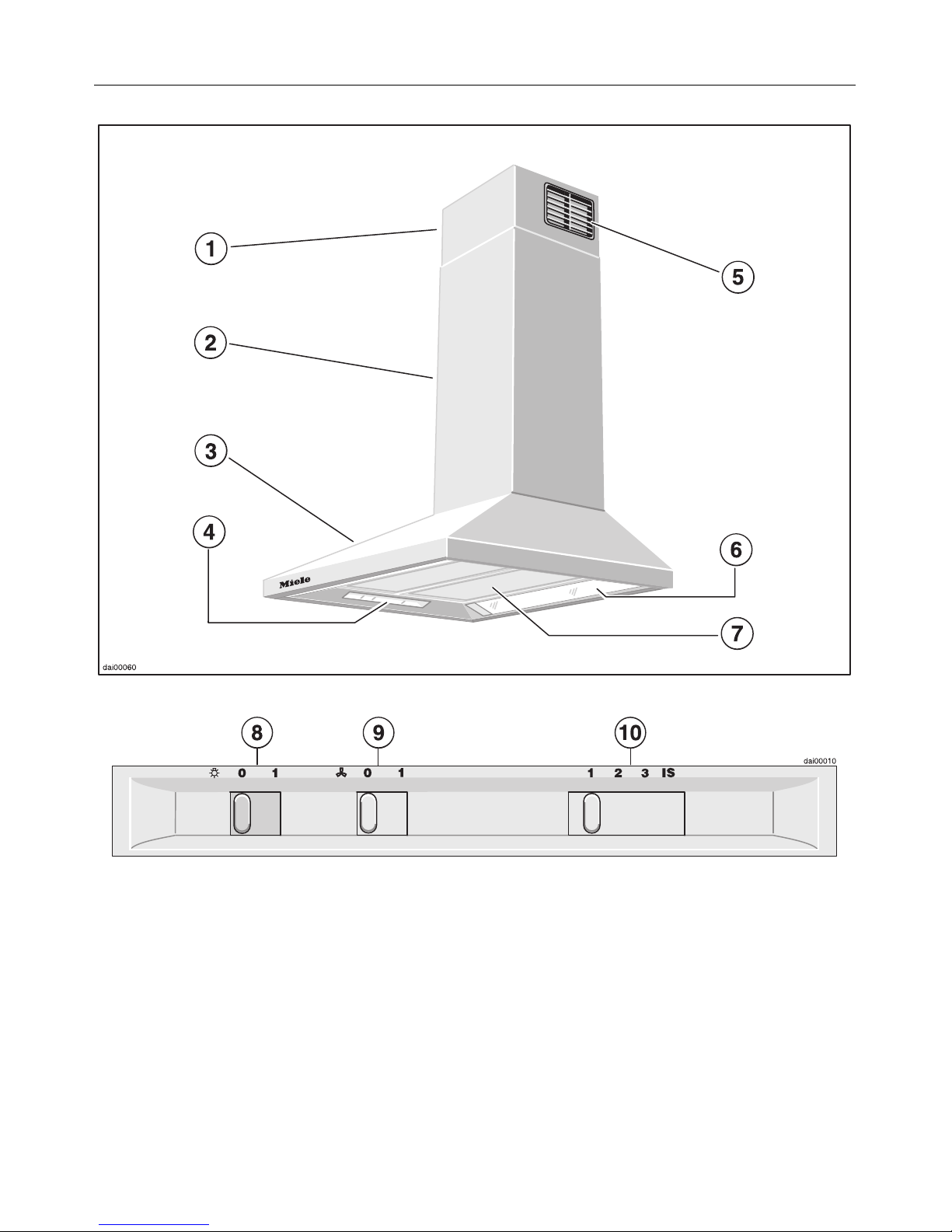

Guide to the appliance

bExtension piece

cShaft

dVapour guide/ canopy

eSliding switches

fRecirculation grille

gLighting for hob

hGrease filter(s)

iSliding switch for hob lighting

jSliding switch for the fan

kSliding switch for the power setting

Guide to the appliance

Operation

Notes on the switches

The sliding switch iturns the hob light-

ing on and off.

The sliding switch jturns the fan on

and off.

The sliding switch kselects one of the

four power settings available (1 = low).

Selecting the power level

The sliding switch kcan be used to se-

lect one of four power levels available

depending on how much the air needs

to be filtered. For normal cooking a low

to medium level is usually enough. For

frying or cooking food with a strong

aroma the "IS" intensive level is recom-

mended.

To operate

Set the sliding switch for the fan jat

“1”.

N.B. The cooker hood will run at the

power setting most recently selected.

Alter the power setting with sliding

switch kif a different power setting

is required.

After cooking

If the air still needs to be cleared after

cooking, we recommend letting the

cooker hood continue to run for a fur-

ther ten minutes.

Switching off

Set the sliding switch for the fan jto

“0”

Switching the lighting on and off

The hob lighting ican be switched on

and off independently of the fan.

"0" - lighting off

"1" - lighting on

Operation

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Miele Dunstabzugshaube Handbücher

Miele

Miele DA 3490 EXT Technisches Datenblatt

Miele

Miele DA 289-4 Technisches Datenblatt

Miele

Miele DA 3190 Benutzerhandbuch

Miele

Miele DA 6890 Bedienungsanleitung

Miele

Miele DA 219-3 Bedienungsanleitung

Miele

Miele DA 402 Bedienungsanleitung

Miele

Miele DA 5190 W Bedienungsanleitung

Miele

Miele DA 1050-55 Bedienungsanleitung

Miele

Miele DA 6708 D Bedienungsanleitung

Miele

Miele DA 2806 EXT Bedienungsanleitung

Miele

Miele DAD 4840 Bedienungsanleitung

Miele

Miele DA 289-4 EXT Bedienungsanleitung

Miele

Miele DA 289-3 Stücklistenhandbuch

Miele

Miele DA 2906 EXT Bedienungsanleitung

Miele

Miele DAW 1620 Active Bedienungsanleitung

Miele

Miele DA 5196 W EXT Bedienungsanleitung

Miele

Miele DA 396-7 Bedienungsanleitung

Miele

Miele DAH 2660 Bedienungsanleitung

Miele

Miele DA 220-4 Gebrauchsanweisung

Miele

Miele DA 5330 D Bedienungsanleitung

Miele

Miele DA 5966 W Bedienungsanleitung

Miele

Miele DA 403 Stücklistenhandbuch

Miele

Miele DA 6708 D Bedienungsanleitung

Miele

Miele Imperial DA 846-1 Technisches Datenblatt

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung

Nibe

Nibe S Series Benutzerhandbuch

Caple

Caple CCH100 Handbuch
