Miele DA 220 Bedienungsanleitung

Operating instructions

for Cooker Hoods

DA 200, DA 200 EXT,

DA 210, DA 210 EXT,

DA 220, DA 220 EXT

It is essential to read these

operating instructions before Q@ä

installing or using the machine,

to avoid the risk of accident

or damage to the machine. M.-Nr. 04 805 250

Contents

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Descripton of the functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Guide to the appliance

DA 200, DA 200 EXT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

DA 210, DA 210 EXT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

DA 220, DA 220 EXT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Operation

Switching on. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Switching the lighting on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Selecting the power level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Run-on option. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Switching off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Filter operating hours counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Reading the filter operating hours counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Altering the filter operating hours counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Cleaning and Care

Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Changing a light bulb. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Electrical connection and Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Appliance dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Connection for extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Connection to an external fan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Contents

Caring for the environment

Disposal of packing

material

The transport and protective packing

has been selected from materials

which are environmentally friendly for

disposal and can normally be recycled.

Rather than just throwing these ma-

terials away, please ensure they are of-

fered for recycling.

Disposal of your old

machine / appliance

Old machines / appliances contain ma-

terials which can be reclaimed or re-

cycled. Please contact your dealer,

your waste collection centre or scrap

merchant about potential recycling

schemes.

Ensure that the machine / appliance

presents no danger to children while

being stored for disposal.

See the appropriate section in the

Warning and Safety instructions.

Caring for the environment

Warning and Safety instructions

This appliance meets statutory

safety requirements. Inappropriate

use could however lead to risk of ac-

cidents to the user and damage to

the appliance.

Read the operating instructions be-

fore using this machine for the first

time. They contain important infor-

mation about the safety, use and

maintenance of the machine. This

will avoid the risk of accidents and

damage to the machine.

Keep these operating instructions in

a safe place and ensure that new

users are familiar with the content.

Pass them on to any future owner of

the machine.

Appropriate use of the cooker

hood

The appliance is intended for do-

mestic use only.

The manufacturer cannot be held re-

sponsible for any damage caused by

improper use or by non-observance of

these instructions.

Technical safety

Before connecting the cooker

hood to the mains supply make

sure that the voltage and frequency de-

tails given on the data plate corre-

spond with the on-site electricity sup-

ply. If in doubt consult a qualified

electrician.

The electrical safety of this ap-

pliance can only be guaranteed

when continuity is complete between

the appliance and an effective earthing

system which complies with local and

national regulations. It is most import-

ant that this basic safety requirement is

tested by a qualified electrician.

The manufacturer cannot be held re-

sponsible for the consequences of an

inadequate earthing system. (e.g. elec-

tric shock).

Installation work and repairs may

only be carried out by suitably

qualified and competent persons to en-

sure safety.

Repairs and other work by unqualified

persons could be dangerous.

Warning and Safety instructions

The appliance is only completely

isolated from the electricity supply

when:

– it is switched off at the wall socket

and the plug removed,

– the mains fuse is withdrawn;

– or the screw-out fuse is removed, (in

countries where this is applicable). En-

sure current is not restored to the ap-

pliance while maintenance or repair

work is being carried out.

Do not connect the appliance to

the mains electricity supply by an

extension lead.

Extension leads do not guarantee the

required safety of the appliance.(e.g.

danger of overheating)

Use of the appliance

Never use an open flame beneath

the cooker hood - to avoid the

danger of fire do not flambé or grill

dishes. When switched on the cooker

hood could draw flames into the filter.

Fat particles drawn into the cooker

hood present a fire hazard.

When using the cooker hood over

a gas hob ensure that any burners

in use are always covered by a pan.

Otherwise flames could be drawn up

by the suction of the cooker hood,

parts of which could then be damaged.

Always switch the cooker hood on

when a cooking zone is in use,

otherwise condensation may collect in

the hood, which could cause corrosion.

When cooking with oil or fat, chip

pans and deep fat fryers etc, do

not leave the pans unattended.

Overheated oil and fat can ignite and

could set the cooker hood on fire.

Do not use the cooker hood with-

out the grease filter in place.

This way you will avoid the risk of

grease and dirt getting into the ap-

pliance and hindering its smooth oper-

ation.

Warning and Safety instructions

The filters should be regularly

cleaned, or changed, as appropri-

ate.

Saturated filters are a fire hazard.

Under no circumstances use a

steam cleaner to clean this ap-

pliance.

Pressurised steam could give rise to a

short circuit, or cause permanent dam-

age to the surface and to components,

for which the manufacturer of the

cooker hood cannot accept any respon-

sibility.

In countries which may be subject

to infestation by cockroaches or

other vermin, pay particular attention to

keeping the appliance and its surround-

ings in a clean condition at all times.

Any damage which might be caused

by cockroaches or other vermin will not

be covered by the appliance guarantee.

Installation

The distance between the top of

the hob and the bottom of the

cooker hood (when the vapour guide is

completely retracted) must measure at

least:

–55 cm above electric hobs

–65 cm above gas hobs.

(Australia: 60 cm for electric and gas

hobs)

Only for U.K.: The distance of

65 cm between the cooker hood

and a gas hob is a minimum, which is

only permissible if the nominal heat

ratings giveb in the table below are not

exceeded:

Gas cooker maximum

nominal rating

one burner 2.7 kW

all burners 7.5 kW

oven 3.5 kW

Gas hob maximum

nominal rating

one burner 3.5 kW

all burners 10.3 kW

Gas hob with ceramic cover plate

The data given for maximum nominal (heat)

ratings do not aply to a gas hob with a ceramic

cover plate. In this case it is essential to refer to

the hob manufacturer’s data.

Safety regulations prohibit the fit-

ting of a cooker hood over solid

fuel stoves.

All ducting, pipework and fittings

must be of non-flammable ma-

terial. These can be obtained from the

Miele Spare Parts department or from

builders’merchants.

The appliance must not be con-

nected to a chimney or vent flue

which is in use. Neither should it be

connected to ducting which ventilates

rooms with fireplaces.

If exhaust air is to be extracted into

a chimney or ventilation duct no

longer used for other purposes, take

professional advice.

Warning and Safety instructions

When using the cooker hood at the

same time as another heating ap-

pliance which depends on the air in the

room, (e.g. gas, oil or coal fired

heaters, continuous flow or other water

heaters, gas cooker, gas hob or gas

oven) special care must be taken, as

the action of the cooker hood extracts

air from the room, which these types of

heater need for combustion.

In order to ensure safe operation, and

to prevent the gases given off by the

heating appliances from being drawn

back into the room when the extractor

and the heater are in operation simulta-

neously, an underpressure in the room

of 0.04 mbar (4 pa) is the maximum

permissible.

Ventilation can be maintained by air in-

lets which cannot be blocked, in win-

dows, doors and outside wall vents, or

by other techical measures, such as en-

suring that the extractor can only be

switched on when the heating ap-

pliance is switched off or vice-versa.

N.B.: The overall ventilation condition of

the dwelling must be taken into ac-

count.

If in any doubt, the advice of a compe-

tent builder or, for gas, a “Corgi”instal-

ler must be sought.

only for appliances with external fans

For appliances with an external fan

motor fitted (EXT models) the con-

nection of the two units must be made

using the connection cable and the

plug connectors. Make sure the correct

combination of the two appliances has

been selected.

Disposal of an old machine /

appliance

Before discarding an old machine

or appliance render it useless.

Ensure that disconnection from the

mains supply is carried out by a com-

petent person and that the cable is

also removed from the appliance to

prevent misuse.

The manufacturer cannot be held re-

sponsible for any damage caused

by non-observance of these instruc-

tions.

Warning and Safety instructions

Descripton of the functions

The cooker hood works with

. . . Air extraction:

The air is drawn in and cleaned by the

grease filters and directed outside.

The cooker hood is fitted with a non-re-

turn flap.

This flap is closed when the cooker

hood is switched off. No exchange of

room air and outside air can take

place. When the cooker hood is

switched on the non-return flap opens

for the cooking smells to be blown di-

rectly outside.

. . . an external fan

The ...EXT models of cooker hoods are

designed to be connected with an ex-

ternal fan.

The external fan is connected to the

cooker hood by means of a control

cable and is operated by the control

panel on the cooker hood.

Descripton of the functions

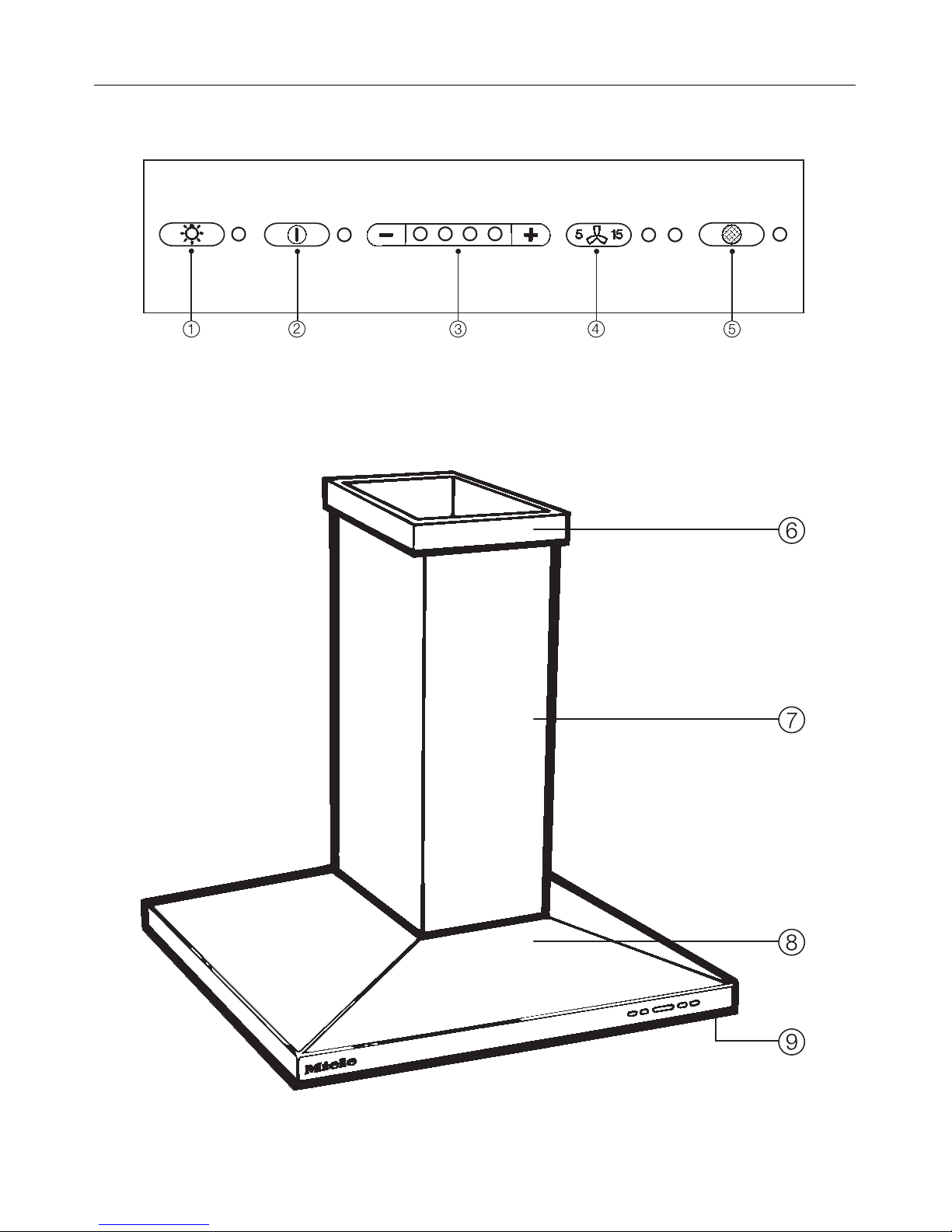

Guide to the appliance

DA 200, DA 200 EXT

bTouch control for hob lighting

cOn/Off touch control

dTouch control - power level

gCover frame

hTower

eTouch control for the run-on option

fTouch control for the grease filter(s)

iVapour guide

jMain switch

Guide to the appliance

DA 210, DA 210 EXT

bTouch control for hob lighting

cOn/Off touch control

dTouch control - power level

gCover frame

hTower

eTouch control for the run-on option

fTouch control for the grease filter(s)

iVapour guide

jMain switch

Guide to the appliance

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Miele Dunstabzugshaube Handbücher

Miele

Miele DA 6296 W EXT Bedienungsanleitung

Miele

Miele DA 7090 W Bedienungsanleitung

Miele

Miele XKM 2000 DA Conn@activity Bedienungsanleitung

Miele

Miele DA 390-6 Bedienungsanleitung

Miele

Miele DA 6798 W Bedienungsanleitung

Miele

Miele Imperial DIF 976-1 Technisches Datenblatt

Miele

Miele DA 3668 Bedienungsanleitung

Miele

Miele DA 2050 Technisches Datenblatt

Miele

Miele DA 5000 D Bedienungsanleitung

Miele

Miele DA 3460 Bedienungsanleitung

Miele

Miele DA 5341 D Bedienungsanleitung

Miele

Miele DA 6796 W Bedienungsanleitung

Miele

Miele DA 3466 Bedienungsanleitung

Miele

Miele DA6596DSS Bedienungsanleitung

Miele

Miele DA 199-2 Technisches Datenblatt

Miele

Miele DA 426-4 Technisches Datenblatt

Miele

Miele DA 6996 W Bedienungsanleitung

Miele

Miele DA 5986 W Bedienungsanleitung

Miele

Miele DA 5106 Bedienungsanleitung

Miele

Miele DA 2360 Bedienungsanleitung

Miele

Miele DA2280 Bedienungsanleitung

Miele

Miele DUU 1000-1 Bedienungsanleitung

Miele

Miele DA 2806 EXT Bedienungsanleitung

Miele

Miele DA 6596 W Bedienungsanleitung

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung

Nibe

Nibe S Series Benutzerhandbuch

Caple

Caple CCH100 Handbuch
