Miele DA 249-3 Bedienungsanleitung

Operating and Installation

Instructions

Ventilation System

DA 249-3

To prevent accidents

and machine damage,

read these instructions

before

installation or use.

M.-Nr. 06 171 760

IMPORTANT SAFETY INSTRUCTIONS

Guide to the hood

Functional descri tion

O eration

Main power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Turning on the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Selecting the power level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Delayed Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Turning off the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Turning the lighting on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Dimming the lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Filter timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Checking the filter timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Reprogramming the timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Cleaning and Care

Cleaning the casing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Grease filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Active charcoal filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Changing the light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

After Sales Service

Installation instructions

Caring for the environment

Installation accessories

Plywood backing

Electrical data

A liance dimensions

Installation

Installation instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Dismantling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Air extraction

Condensate trap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Contents

Read these O erating Instructions carefully before installing or

using the Ventilation System.

This appliance is intended for

residential use only. Use the

appliance only for its intended

purpose. The manufacturer cannot

be held responsible for damages

caused by improper use of the

hood.

This appliance complies with current

safety requirements. Improper use of

the appliance can lead to personal

injury and material damage.

READ AND SAVE THESE

INSTRUCTIONS

CAUTION

For General Ventilating Use Only.

Do Not Use To Exhaust Hazardous

Or Explosive Materials And Vapors.

This appliance is designed to vent

cooking smoke and odors only.

Be certain your appliance is

properly installed and grounded by

a qualified technician.

To guarantee the electrical safety of this

appliance, continuity must exist

between the appliance and an effective

grounding system. It is imperative that

this basic safety requirement be met. If

there is any doubt, have the electrical

system of the house checked by a

qualified electrician. The manufacturer

can not be held responsible for

damages caused by the lack, or

inadequacy of, an effective grounding

system.

Before connecting the appliance to

the power supply make sure that

the voltage and frequency listed on the

data plate correspond with the

household electrical supply. This data

must correspond to prevent machine

damage. Consult a qualified electrician

if in doubt.

Installation work and repairs should

only be performed by a qualified

technician in accordance with all

applicable codes and standards.

Repairs and other work by unqualified

persons could be dangerous and the

manufacturer will not be held

responsible.

IMPORTANT SAFETY INSTRUCTIONS

This equipment is not designed for

maritime use or for use in mobile

installations such as caravans or

aircraft. However, under certain

conditions it may be possible for an

installation in these applications. Please

contact the nearest Miele dealer or the

Technical Service Department with

specific requirements.

Before servicing or cleaning the

unit, switch power off at the service

panel and lock the service

disconnecting means to prevent power

from being switched on accidentally.

When the service disconnecting means

can not be locked, securely fasten a

prominent warning device, such as a

tag, to the service panel.

Before discarding an old

appliance, unplug it from the

power supply and remove the power

cord and any doors to prevent hazards.

Use

Do not allow children to play with

or operate the appliance or its

controls. Supervise its use by the

elderly or infirm.

Be careful when preparing a

flambé beneath the hood.

Flames may be drawn up into the hood

by the suction or grease filters may

catch fire.

Never operate gas burners without

pots.

Do not leave cooking surfaces

unattended while in use.

Overheated food, oil and grease can

catch fire.

Do not use the hood without the

grease filters in place.

Clean the grease filters regularly.

Dirty filters are a fire hazard.

Do not use a steam cleaner to

clean the hood. Steam could

penetrate electrical components and

cause a short circuit.

Always turn on the hood when

using the cooktop to prevent

damage from condensation.

IMPORTANT SAFETY INSTRUCTIONS

,WARNING - TO REDUCE

THE RISK OF A RANGE TOP

GREASE FIRE:

Never leave surface units

unattended at high settings.

Boilovers cause smoking and greasy

spillovers may ignite. Heat oils slowly

on low or medium settings.

Always turn the hood “ON” when

cooking at high heat or when

cooking flaming foods.

Clean ventilating fans frequently.

Grease should not be allowed to

accumulate on the fan or filter.

Use proper pan size. Always use

cookware appropriate for the size

of the surface element.

,WARNING

TO REDUCE THE RISK OF INJURY

TO PERSONS IN THE EVENT OF A

RANGE TOP GREASE FIRE,

OBSERVE THE FOLLOWING:

SMOTHER FLAMES with a close

fitting lid, cookie sheet, or metal

tray, then turn off the burner.

BE CAREFUL TO PREVENT BURNS.

If the flames do not go out immediately,

EVACUATE AND CALL THE FIRE

DEPARTMENT.

NEVER PICK UP A FLAMING

PAN - You may be burned.

DO NOT USE WATER, including

wet dishcloths or towels - a violent

steam explosion will result.

Use an extinguisher

ONLY if:

– You know you have a Class ABC

extinguisher, and you already know

how to operate it.

–The fire is small and contained in the

area where it started.

–The fire department is being called.

–You can fight the fire with your back

to an exit.

IMPORTANT SAFETY INSTRUCTIONS

Installation

,WARNING

To reduce the risk of fire only

use metal ductwork.

When installing the hood, follow the

recommended minimum safety

distances between a Miele cooktop and

the hood:

–22" (55 cm) above electric cooktops,

–26" (65 cm) above gas cooktops,

–26" (65 cm) above an open grill.

If local building codes require a greater

safety distance, follow their

requirement.

For non-Miele cooking appliances

maintain the safety distances

recommended by the appliance

manufacturer in their instructions.

If there is more than one appliance

beneath the hood and they have

different minimum safety distances

always select the greater distance.

Be careful not to damage hidden

electrical wiring or plumbing when

cutting or drilling into the wall or ceiling.

Do not use an extension cord to

connect the appliance to electricity.

Extension cords do not guarantee the

required safety of the appliance, (e.g.

danger of overheating).

Do not install this hood over

cooktops burning solid fuel.

Any fittings, sealant, or materials

used to install the ductwork must

be made of approved non-flammable

materials.

Never connect an exhaust hood to

an active chimney, dryer vent, vent

flue, or room ventilating ductwork. Seek

professional advice before connecting

an exhaust hood vent to an existing,

inactive chimney or vent flue.

Ducted fans must always be

vented outdoors.

Make sure that the airflow in the

room is sufficient for combustion

and exhausting of all non-electric

heating appliances (water heaters, gas

cooktops, gas ovens, etc.), otherwise

backdrafts may occur. Follow the

heating manufacturer’s guidelines and

safety standards or those published by

the National Fire Protection Association

(NFPA), or the American Society for

Heating, Refrigeration and Air

Conditioning Engineers (ASHRAE).

If in doubt, consult an experienced

professional.

IMPORTANT SAFETY INSTRUCTIONS

Guide to the hood

aChimney extension

bRecirculation vent

cChimney

dCano y

eOverhead lighting

fActive Charcoal Filter

Available to purchase, for use in the

recirculation mode.

gGrease filter

hDecor cover

iLight button

This button turns the light on and off

and also dims the light.

The lighting can be used independently

of the fan.

jOn/Off button

kFan ower selection

Four fan speed selection

lDelayed shut down

This button activates the Delayed Shut

Down feature. The fan can be set to

turn off automatically after either 5 or 15

minutes.

mGrease filter button

The indicator next to the grease filter

button lights when the grease filter

need to be cleaned. This button is also

used:

–to reset the grease filter timer after

cleaning the grease filter (see

"Cleaning and Care").

–to show how long the grease filter

have been in use (see "Operation /

Filter timers").

–to change the number of hours

counted by the grease filter timer

(see "Operation / Reprogramming the

filter timers").

nCharcoal filter button

The indicator next to the charcoal filter

button lights when the charcoal filters

need to be replaced.

This button is also used:

–to reset the charcoal filter timer after

changing the filters (see "Cleaning

and care").

–to show how long the charcoal filters

have been in use (see "Operation /

Filter timers")

–to change the number of hours

counted by the charcoal filter timer

(see "Operation / Reprogramming the

timers").

Guide to the hood

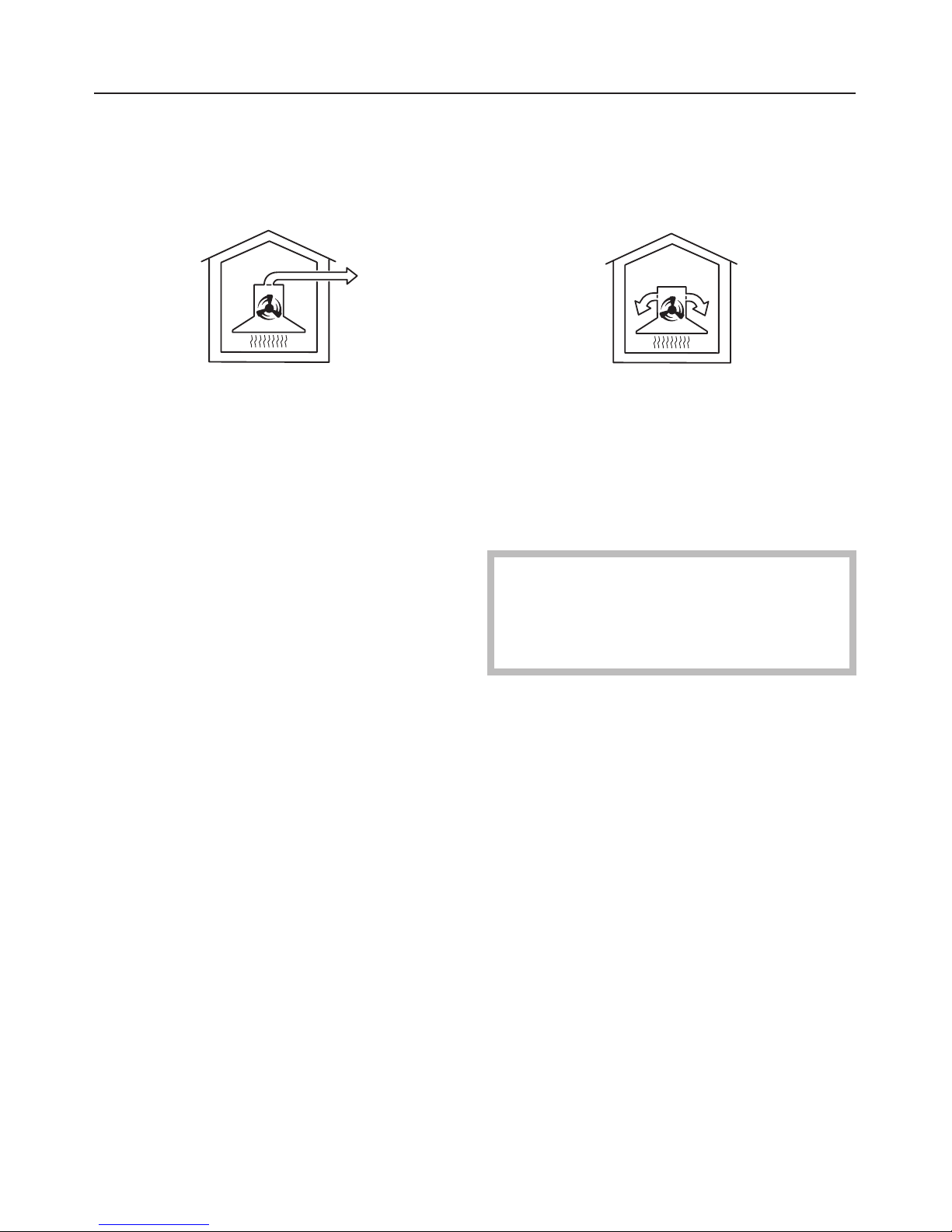

The hood offers two modes of

operation:

Air extraction

The air is drawn in and cleaned by the

decor panel and the grease filter and

directed outside.

The hood comes equipped with a

non-return fla . This flap automatically

closes when the hood is turned off so

that no exchange of outside air and

room air can occur. When the hood is

turned on, the air pressure of the

exhaust fan automatically opens the

flap blowing the inside air and cooking

odors outside.

Recirculation mode

Air is drawn through the grease filter

and an active charcoal filter. The

filtered air is then recirculated back into

the kitchen through a vent at the top of

the hood’s chimney.

Before using the hood in recir-

culation mode, ensure that the active

charcoal filters are in place, see

"Cleaning and Care".

Functional descri tion

Andere Handbücher für DA 249-3

Inhaltsverzeichnis

Andere Miele Dunstabzugshaube Handbücher

Miele

Miele DA 390-5 Bedienungsanleitung

Miele

Miele DA 316 i Technisches Datenblatt

Miele

Miele DA 424-4 Technisches Datenblatt

Miele

Miele DA 270-4 Bedienungsanleitung

Miele

Miele DA 292 i Bedienungsanleitung

Miele

Miele DA 408 Bedienungsanleitung

Miele

Miele DA 1260 Bedienungsanleitung

Miele

Miele DA 3160 EXT Bedienungsanleitung

Miele

Miele DA 2808 Bedienungsanleitung

Miele

Miele DA 210-3 Bedienungsanleitung

Miele

Miele DA 6698 D EXT Bedienungsanleitung

Miele

Miele DA 5966 W Bedienungsanleitung

Miele

Miele DA 5381 W Operating and Stücklistenhandbuch

Miele

Miele DAD 4840 Bedienungsanleitung

Miele

Miele DAR1260 Bedienungsanleitung

Miele

Miele DA 220-3 Bedienungsanleitung

Miele

Miele DA 6690 W Bedienungsanleitung

Miele

Miele DA 5990 W EXT Bedienungsanleitung

Miele

Miele DA 7000 D Bedienungsanleitung

Miele

Miele DA 249-4 Bedienungsanleitung

Miele

Miele DA 403 Technisches Datenblatt

Miele

Miele DA 220-2 Technisches Datenblatt

Miele

Miele DA 289 Bedienungsanleitung

Miele

Miele DA 5196 W EXT Bedienungsanleitung

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung

Nibe

Nibe S Series Benutzerhandbuch

Caple

Caple CCH100 Handbuch
