Operating and installation instructions

Ventilation System

DA 289-3

To prevent accidents

and machine damage,

read these instructions

before installation or use.

05 853 730

M.-Nr.

IMPORTANT SAFETY INSTRUCTIONS

Functional description

Guide to t e ood

Operation

Main power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Turning on the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Selecting the power level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Delayed Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Turning off the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Turning the lighting on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Dimming the lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Grease filter timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Checking the grease filter timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Reprogramming the grease filter timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Cleaning and care

Grease filter and air intake panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Cleaning the casing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Changing the light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

After Sales Service

Installation instructions

Table of contents

Read t ese Operating Instructions carefully before installing or

using t e Ventilation System.

This appliance is intended for

residential use only. Use the

appliance only for its intended

purpose. The manufacturer cannot

be held responsible for damages

caused by improper use of the

hood.

This appliance complies with current

safety requirements. Improper use of

the appliance can lead to personal

injury and material damage.

READ AND SAVE THESE

INSTRUCTIONS

CAUTION

For General Ventilating Use Only.

Do Not Use To Exhaust Hazardous

Or Explosive Materials And Vapors.

This appliance is designed to vent

cooking smoke and odors only.

Be certain your appliance is prop-

erly installed and grounded by a

qualified technician.

To guarantee the electrical safety of this

appliance, continuity must exist

between the appliance and an effective

grounding system. It is imperative that

this basic safety requirement be met. If

there is any doubt, have the electrical

system of the house checked by a

qualified electrician. The manufacturer

can not be held responsible for

damages caused by the lack, or

inadequacy of, an effective grounding

system.

Before connecting the appliance to

the power supply make sure that

the voltage and frequency listed on the

data plate correspond with the house-

hold electrical supply. This data must

correspond to prevent machine

damage. Consult a qualified electrician

if in doubt.

Installation work and repairs should

only be performed by a qualified

technician in accordance with all

applicable codes and standards.

Repairs and other work by unqualified

persons could be dangerous and the

manufacturer will not be held

responsible.

IMPORTANT SAFETY INSTRUCTIONS

This equipment is not designed for

maritime use or for use in mobile

installations such as caravans or air-

craft. However, under certain conditions

it may be possible for an installation in

these applications. Please contact the

nearest Miele dealer or the Miele Tech-

nical Service Department with specific

requirements.

Before servicing or cleaning the

unit, switch power off at the service

panel and lock the service disconnect-

ing means to prevent power from being

switched on accidentally. When the

service disconnecting means can not

be locked, securely fasten a prominent

warning device, such as a tag, to the

service panel.

Before discarding an old

appliance, unplug it from the

power supply and remove the power

cord and any doors to prevent hazards.

Use

Do not allow children to play with

or operate the appliance or its

controls. Supervise its use by the

elderly or infirm.

Be careful when preparing a

flambé beneath the hood.

Flames may be drawn up into the hood

by the suction or grease filters may

catch fire.

Never operate gas burners without

pots.

Do not leave cooking surfaces

unattended while in use. Over-

heated food, oil and grease can catch

fire.

Do not use the hood without the

grease filters in place.

Clean the grease filters regularly.

Dirty filters are a fire hazard.

Do not use a steam cleaner to

clean the hood. Steam could

penetrate electrical components and

cause a short circuit.

In areas subject to infestation by

cockroaches or other pest, keep

the appliance and its surroundings

clean at all times. Any damage caused

by cockroaches or other pest will not

be covered under warranty.

IMPORTANT SAFETY INSTRUCTIONS

,WARNING - TO REDUCE

THE RISK OF A RANGE TOP

GREASE FIRE:

Never leave surface units unat-

tended at high settings. Boilovers

cause smoking and greasy spillovers

may ignite. Heat oils slowly on low or

medium settings.

Always turn hood "ON" when cook-

ing at high heat or when cooking

flaming foods.

Clean ventilating fans frequently.

Grease should not be allowed to

accumulate on fan or filter.

Use proper pan size. Always use

cookware appropriate for the size

of the surface element.

,WARNING

TO REDUCE THE RISK OF INJURY

TO PERSONS IN THE EVENT OF A

RANGE TOP GREASE FIRE,

OBSERVE THE FOLLOWING:

SMOTHER FLAMES with a close

fitting lid, cookie sheet, or metal

tray, then turn off the burner.

BE CAREFUL TO PREVENT BURNS.

If the flames do not go out immediately,

EVACUATE AND CALL THE FIRE

DEPARTMENT.

NEVER PICK UP A FLAMING

PAN - You may be burned.

DO NOT USE WATER, including

wet dishcloths or towels - a violent

steam explosion will result.

Use an extinguisher

ONLY IF:

– You know you have a Class ABC

extinguisher, and you already know

how to operate it.

–The fire is small and contained in the

area where it started.

–The fire department is being called.

–You can fight the fire with your back

to an exit.

IMPORTANT SAFETY INSTRUCTIONS

Installation

,WARNING

To reduce the risk of fire, use

only metal ductwork.

When installing the hood, make

sure that a minimum safety dis-

tances of 14 3/8" is maintained between

a Miele cooktop and the bottom of the

hood.

If local building codes require a greater

safety distance, follow their require-

ment.

For non-Miele cooking appliances

maintain the safety distances recom-

mended by the cooktop manufacturer

in their installation and operating

instructions.

If there is more than one appliance

beneath the hood and they have differ-

ent minimum safety distances always

select the greater distance.

Be careful not to damage hidden

electrical wiring or plumbing when

cutting or drilling into the wall or ceiling.

Do not use an extension cord to

connect the appliance to electricity.

Extension cords do not guarantee the

required safety of the appliance, (e.g.

danger of overheating).

Do not install this hood over

cooktops burning solid fuel.

Any fittings, sealant, or materials

used to install the ductwork must

be made of approved non-flammable

materials.

Never connect an exhaust hood to

an active chimney, dryer vent, vent

flue, or room ventilating ductwork. Seek

professional advice before connecting

an exhaust hood vent to an existing,

inactive chimney or vent flue.

Ducted fans must always be

vented outdoors.

Make sure that the airflow in the

room is sufficient for combustion

and exhausting of all non-electric heat-

ing appliances (water heaters, gas

cooktops, gas ovens, etc.), otherwise

backdrafts may occur. Follow the heat-

ing manufacturer’s guidelines and

safety standards or those published by

the National Fire Protection Association

(NFPA), or the American Society for

Heating, Refrigeration and Air

Conditioning Engineers (ASHRAE).

If in doubt, consult an experienced

professional.

IMPORTANT AFETY IN TRUCTION

The ventilation hood works by air ex-

traction. The air is drawn in through the

air intake panel, cleaned by the grease

filter and directed outside.

The hood comes equipped with a

non-return flap. This flap automatically

closes when the hood is turned off so

that no exchange of outside air and

room air can occur. When the hood is

turned on, the air pressure of the ex-

haust fan automatically opens the flap

blowing the inside air and cooking

odors outside.

Functional description

Guide to t e ood

aC imney extension

bC imney

cCanopy

dControl panel

eOver ead lig ting

fMain power switc

gGrease filter

hAir intake panel

iLig t button

This button turns the light on and off

and also dims the light.

The lighting can be used independently

of the fan.

jOn/Off button

kFan power selection

Four fan speed selection

lDelayed s ut down

This button activates the Delayed Shut

Down feature. The fan can be set to

turn off automatically after either 5 or 15

minutes.

mGrease filter button

The indicator above the grease filter

button lights when the grease filter and

air intake panel need to be cleaned.

This button is also used:

–to reset the grease filter timer after

cleaning the grease filter and air

intake panel (see "Cleaning and

Care").

–to show how long the grease filter

has been in use (see "Operation /

Filter timers").

–to change the number of hours

counted by the grease filter timer

(see "Operation / Reprogramming the

filter timers").

Guide to t e ood

Main power switc

^Remove the air intake panel to ac-

cess the main power switch (see

"Cleaning and Care").

^Press the main power switch to "I".

The fan and lighting are ready to use.

If the appliance is not going to be used

for a long period of time (e.g. while va-

cationing) it should be turned off at the

main power switch to "0".

The next time it is turned on, the hood

will operate at the level previously used.

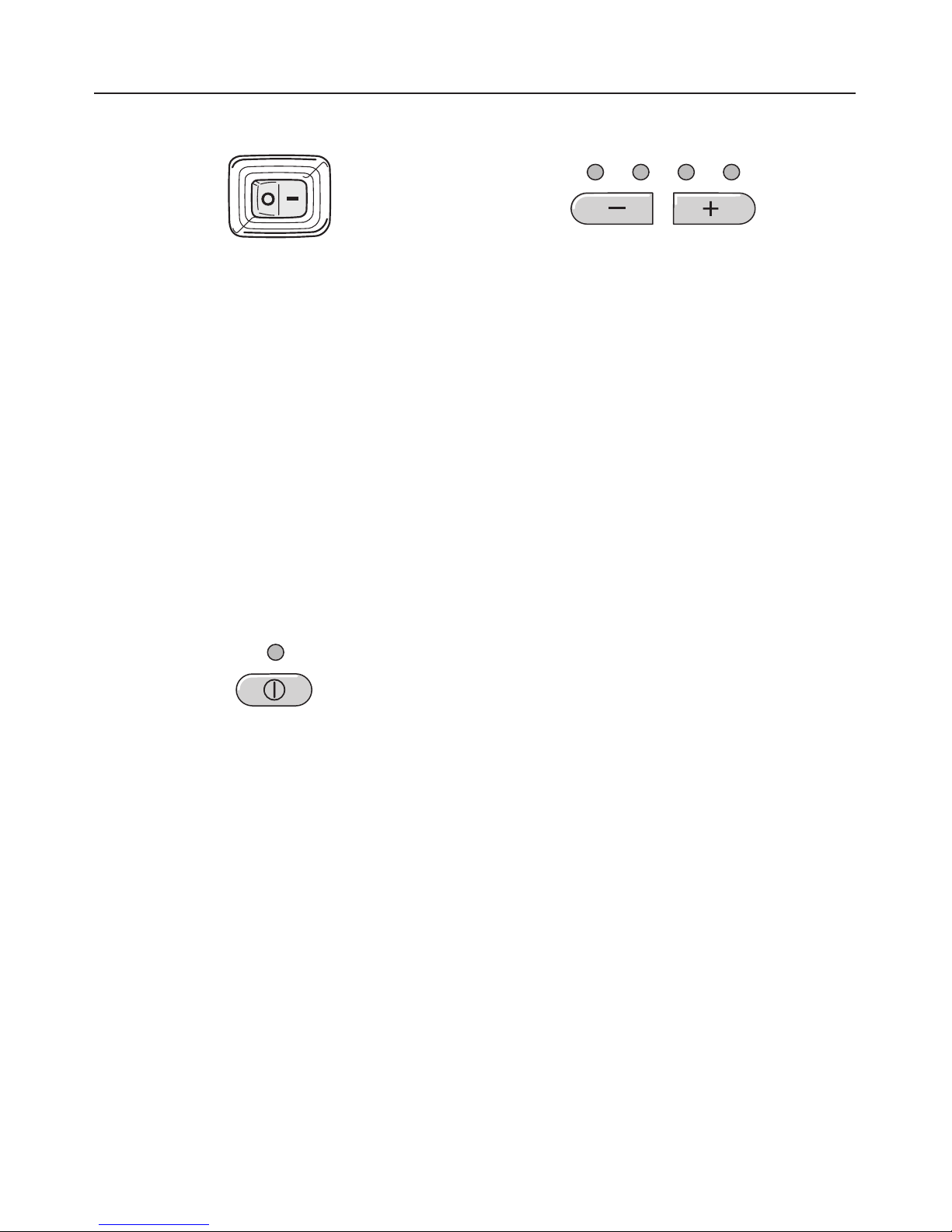

Turning on t e fan

^Press the On/Off button.

Selecting t e power level

^Use the _controls to select the

desired power level.

&=increases the fan speed

$=decreases the fan speed

Level "1" to "3" (green indicators) are

usually sufficient for normal cooking.

Intensive setting

Level "4" (yellow indicator) should be

used for a short period when frying or

cooking food with a strong aroma.

Fan performance

The maximum air flow capacity is

625 cfm. Factors such as narrow duct

diameter and bends will affect this

value.

Level 1 operates at 40% capacity

Level 2 operates at 60% capacity

Level 3 operates at 80% capacity

Level 4 operates at 100% capacity

Operation

Andere Handbücher für DA 289-3

Inhaltsverzeichnis

Andere Miele Dunstabzugshaube Handbücher

Miele

Miele DA 372 Technisches Datenblatt

Miele

Miele DA2210 Bedienungsanleitung

Miele

Miele DA 2906 EXT Bedienungsanleitung

Miele

Miele TX3587 Bedienungsanleitung

Miele

Miele DA5341D Bedienungsanleitung

Miele

Miele DA 230-2 Technisches Datenblatt

Miele

Miele DA 5960 W Bedienungsanleitung

Miele

Miele DA 424 V EXT Technisches Datenblatt

Miele

Miele DA 6881 Bedienungsanleitung

Miele

Miele VENTILATION SYSTEM DA 6290 W Bedienungsanleitung

Miele

Miele PUR 68 W Bedienungsanleitung

Miele

Miele DA 5100 D Bedienungsanleitung

Miele

Miele DA 6290 D U Bedienungsanleitung

Miele

Miele DA 430-4 Montageanleitung

Miele

Miele DA250-4 Bedienungsanleitung

Miele

Miele DA 5990 W EXT Bedienungsanleitung

Miele

Miele DA 5960 W Bedienungsanleitung

Miele

Miele DA1260SS Bedienungsanleitung

Miele

Miele DA 8-2 Bedienungsanleitung

Miele

Miele DAS 4940 Bedienungsanleitung

Miele

Miele DA 2250 EXT Bedienungsanleitung

Miele

Miele DA 1255 Bedienungsanleitung

Miele

Miele DA 3660 Bedienungsanleitung

Miele

Miele Imperial DWF 950 EX Montageanleitung

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung

Nibe

Nibe S Series Benutzerhandbuch

Caple

Caple CCH100 Handbuch
