Miele DA 409 Bedienungsanleitung

Operating and Installation

Instructions

Ventilation System

DA 408

DA 409

To prevent accidents

and machine damage,

read these instructions

before

installation or use.

M.-Nr. 06 241 950

IMPORTANT SAFETY INSTRUCTIONS

Functional description

Guide to t e appliance

Operation

Turning on the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Selecting the power level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Delayed Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Turning off the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Turning the lighting on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Dimming the lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Filter timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Checking the filter timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Reprogramming the timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Cleaning and Care

Cleaning the casing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Active charcoal filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

After Sales Service

Installation instructions

Caring for t e environment

Installation accessories

Plywood backing

Electrical data

Appliance dimensions

Installation

Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Dismantling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Air extraction

Condensate trap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Contents

Read t ese Operating Instructions carefully before installing or

using t e Ventilation System.

This appliance is intended for

residential use only. Use the

appliance only for its intended

purpose. The manufacturer cannot

be held responsible for damages

caused by improper use of the

hood.

This appliance complies with current

safety requirements. Improper use of

the appliance can lead to personal

injury and material damage.

READ AND SAVE THESE

INSTRUCTIONS

,CAUTION

Use only for general ventilation.

Do not use to exhaust hazardous or

explosive materials and vapors.

This appliance is designed to vent

cooking smoke and odors only.

Be certain your appliance is

properly installed and grounded by

a qualified technician.

To guarantee the electrical safety of this

appliance, continuity must exist

between the appliance and an effective

grounding system. It is imperative that

this basic safety requirement be met. If

there is any doubt, have the electrical

system of the house checked by a

qualified electrician. The manufacturer

cannot be held responsible for

damages caused by the lack, or

inadequacy, of an effective grounding

system.

Before connecting the appliance to

the power supply make sure that

the voltage and frequency listed on the

data plate correspond with the

household electrical supply. This data

must correspond to prevent machine

damage. If in doubt consult a qualified

electrician.

Installation work and repairs should

only be performed by a qualified

technician in accordance with all

applicable codes and standards.

Repairs and other work by unqualified

persons could be dangerous and the

manufacturer will not be held

responsible.

IMPORTANT SAFETY INSTRUCTIONS

This equipment is not designed for

maritime use or for use in mobile

installations such as recreational

vehicles or aircraft. However, under

certain conditions it may be possible for

installation in these applications. Please

contact the nearest Miele dealer or the

Technical Service Department with

specific requirements.

Before servicing or cleaning the

unit, switch power off at the service

panel and lock the service

disconnecting means to prevent power

from being switched on accidentally. If

the service disconnecting means

cannot be locked, securely fasten a

prominent warning device, such as a

tag, to the service panel.

Before discarding an old

appliance, unplug it from the

power supply and remove the power

cord and any doors to prevent hazards.

Use

Do not allow children to play with

or operate the appliance or its

controls. Supervise its use by the

elderly or infirm.

Be careful when preparing a

flambé beneath the hood.

Flames may be drawn up into the hood

by the suction and the grease filters

may catch fire.

Do not use the hood without the

grease filters in place.

Clean the grease filters regularly.

Dirty filters are a fire hazard.

Do not use a steam cleaner to

clean the hood. Steam could

penetrate the electrical components

and cause a short circuit.

Always turn on the hood when

using the cooktop to prevent

damage from condensation.

IMPORTANT SAFETY INSTRUCTIONS

,WARNING - TO REDUCE

THE RISK OF A COOKTOP

GREASE FIRE:

Never leave surface units

unattended at high settings.

Boilovers cause smoking and greasy

spillovers may ignite. Heat oils slowly

on low or medium settings.

Always turn the hood on when

cooking at high heat or when

cooking flaming foods.

Clean ventilation fans frequently.

Grease should not be allowed to

accumulate on the fan or filter.

Use the proper pan size. Always

use cookware appropriate for the

size of the surface element.

,WARNING

TO REDUCE THE RISK OF INJURY

TO PERSONS IN THE EVENT OF A

COOKTOP GREASE FIRE, OBSERVE

THE FOLLOWING:

SMOTHER FLAMES with a close

fitting lid, cookie sheet, or metal

tray, then turn off the burner.

BE CAREFUL TO PREVENT BURNS.

If the flames do not go out immediately,

EVACUATE AND CALL THE FIRE

DEPARTMENT.

NEVER PICK UP A FLAMING

PAN - You may be burned.

DO NOT USE WATER, including

wet dishcloths or towels - a violent

steam explosion may result.

Use a fire extinguisher

ONLY if:

– You have a Class ABC extinguisher,

and know how to operate it.

– The fire is small and contained in the

area where it started.

–The fire department has been called.

–You can fight the fire with your back

to an exit.

IMPORTANT SAFETY INSTRUCTIONS

Installation

,WARNING

To reduce t e risk of fire only

use metal ductwork.

When installing the hood, follow the

recommended minimum safety

distances between a Miele cooktop and

the hood:

–22" (55 cm) above electric cooktops,

–26" (65 cm) above gas cooktops,

–26" (65 cm) above an open grill.

If local building codes require a greater

safety distance, follow their

requirement.

For non-Miele cooking appliances

maintain the safety distances

recommended by the appliance

manufacturer.

If there is more than one appliance

beneath the hood and they have

different minimum safety distances

always select the greater distance.

Be careful not to damage hidden

electrical wiring or plumbing when

cutting or drilling into the wall or ceiling.

Do not use an extension cord to

connect the appliance to electricity.

Extension cords do not guarantee the

required safety of the appliance, (e.g.

danger of overheating).

Do not install this hood over

cooktops burning solid fuel.

Any fittings, sealant, or materials

used to install the ductwork must

be made of approved non-flammable

materials.

Never connect an exhaust hood to

an active chimney, dryer vent, vent

flue, or room ventilating ductwork. Seek

professional advice before connecting

an exhaust hood vent to an existing,

inactive chimney or vent flue.

Ducted fans must always be

vented outdoors.

Make sure that the airflow in the

room is sufficient for combustion

and exhausting of all non-electric

heating appliances (water heaters, gas

cooktops, gas ovens, etc.), otherwise

backdrafts may occur. Follow the

heating manufacturer’s guidelines and

safety standards or those published by

the National Fire Protection Association

(NFPA), or the American Society for

Heating, Refrigeration and Air

Conditioning Engineers (ASHRAE).

If in doubt, consult an experienced

professional.

IMPORTANT SAFETY INSTRUCTIONS

The hood offers two modes of

operation:

Air extraction

The air is drawn in and cleaned by the

grease filters and directed outside.

The hood comes equipped with a

non-return flap. This flap automatically

closes when the hood is turned off so

that no exchange of outside air and

room air can occur. When the hood is

turned on, the air pressure of the

exhaust fan automatically opens the

flap blowing the inside air and cooking

odors outside.

Recirculation mode

Air is drawn through the grease filters

and an active c arcoal filter. The

filtered air is then recirculated back into

the kitchen through a vent at the top of

the hood’s chimney.

The recirculation mode requires an

install kit and charcoal filter which are

optional accessories.

Before using the hood in

recirculation mode, ensure that the

active charcoal filter is in place, see

"Cleaning and care".

Functional description

Guide to t e appliance

aC imney extension

bC imney

cCanopy

dControl panel

eGrease filter

fRecirculation vent

gOver ead lig ting

hC arcoal filter

optional accessory

iLig t button

This button turns the light on and off

and also dims the light.

The lighting can be used independently

from the fan.

jOn/Off button

kFan power selection

Four fan speed selection

lDelayed s ut down

This button activates the Delayed Shut

Down feature. The fan can be set to

turn off automatically after either 5 or 15

minutes.

mGrease filter button

The indicator next to the grease filter

button lights when the grease filters

need to be cleaned. This button is also

used:

–to reset the grease filter timer after

cleaning the grease filters (see

"Cleaning and Care").

–to show how long the grease filters

have been in use (see "Operation/

Filter timers").

–to change the number of hours

counted by the grease filter timer

(see "Operation/Reprogramming the

timers").

nC arcoal filter button

The indicator next to the charcoal filter

button lights when the charcoal filter

needs to be replaced.

This button is also used:

–to reset the charcoal filter timer after

changing the filter (see "Cleaning

and care").

–to show how long the charcoal filter

has been in use (see "Operation/

Filter timers")

–to change the number of hours

counted by the charcoal filter timer

(see "Operation/Reprogramming the

timers").

Guide to t e appliance

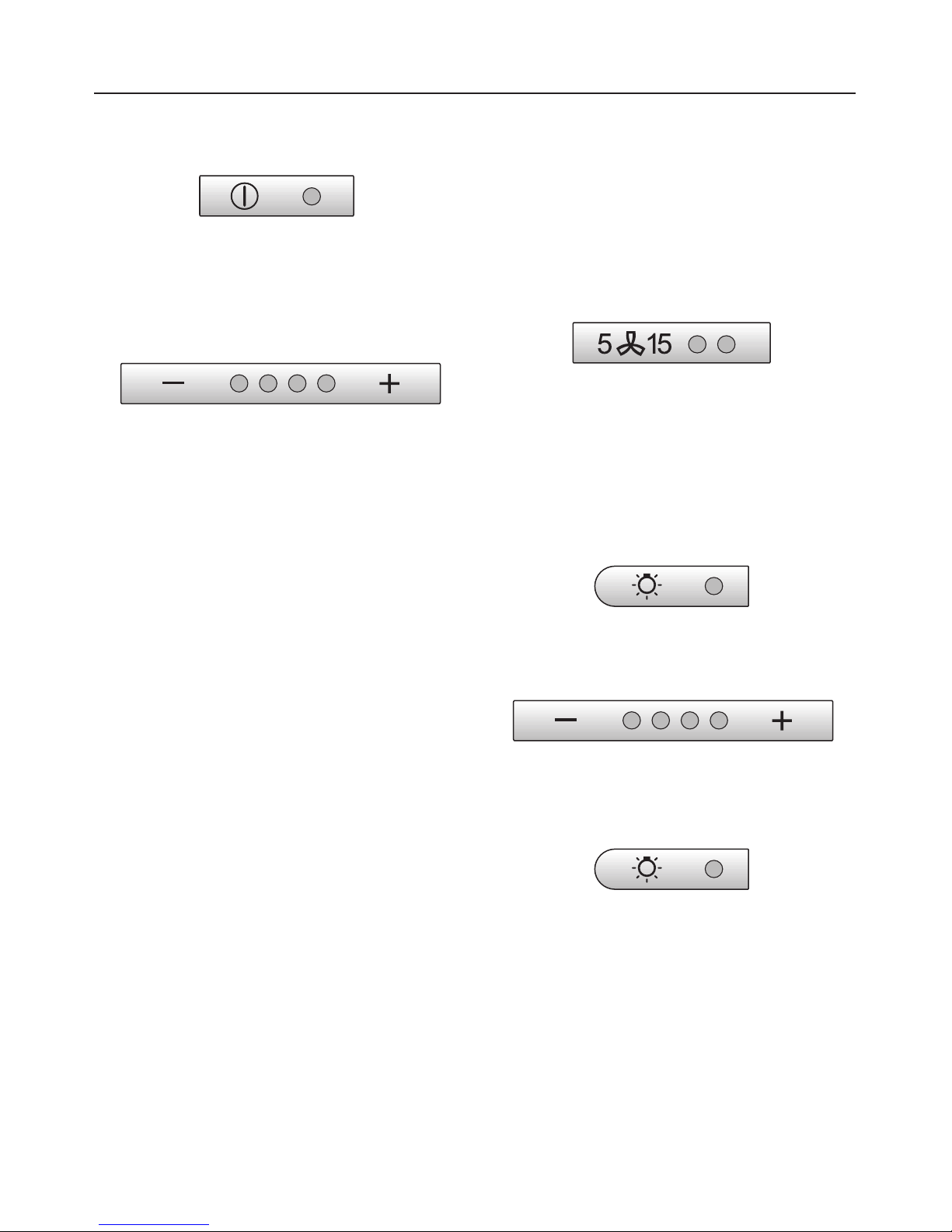

Turning on t e fan

^Press the On/Off button.

Selecting t e power level

^Use the "–/+" controls to select the

desired power level.

&= increases the fan speed

$= decreases the fan speed

Level "1" to "3" (green indicators) are

usually sufficient for normal cooking.

Intensive setting

Level "4" (yellow indicator) should only

be used for short periods of time when

frying or cooking food with a strong

aroma.

Automatically switc ing back t e

Intensive power level

The intensive level "4" can be

programmed to automatically switch

back to level "3" after 10 minutes.

^Turn the fan and the lights off.

^Press and hold the "Delay Shut down"

button for 10 secs. The first indicator

of the fan power levels lights.

^Press the following buttons one after

another,

– light,

–the "-" button, and

–the light button again.

Operation

Andere Handbücher für DA 409

Inhaltsverzeichnis

Andere Miele Dunstabzugshaube Handbücher

Miele

Miele DA 5000 D Technisches Datenblatt

Miele

Miele Ventilation System Bedienungsanleitung

Miele

Miele DA 6796 W Bedienungsanleitung

Miele

Miele DA252-3 Stücklistenhandbuch

Miele

Miele DA 3160 EXT Bedienungsanleitung

Miele

Miele DA 403 EXT Bedienungsanleitung

Miele

Miele DA 3590 EXT Bedienungsanleitung

Miele

Miele DA 186 Bedienungsanleitung

Miele

Miele DAS 4630 Bedienungsanleitung

Miele

Miele DA 6296 W EXT Bedienungsanleitung

Miele

Miele Imperial DIA 1070-2 EX Technisches Datenblatt

Miele

Miele DA 7000 D Bedienungsanleitung

Miele

Miele DA 220-4 Gebrauchsanweisung

Miele

Miele VENTILATION SYSTEM DA 6290 W Bedienungsanleitung

Miele

Miele DA 403 Bedienungsanleitung

Miele

Miele DA 5428 W Bedienungsanleitung

Miele

Miele PUR 68 W Bedienungsanleitung

Miele

Miele DA 398-5 Bedienungsanleitung

Miele

Miele DA2280 Montageanleitung

Miele

Miele DA 210-3 Bedienungsanleitung

Miele

Miele DA 409 Bedienungsanleitung

Miele

Miele DAS 2620 Bedienungsanleitung

Miele

Miele DA 6066 W Bedienungsanleitung

Miele

Miele DA 5391 W Stücklistenhandbuch

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung

Nibe

Nibe S Series Benutzerhandbuch

Caple

Caple CCH100 Handbuch
