Installation Instructions
DA5960 W en-CA
Read these instructions and the "Important Safety Instructions" before installing
this hood.
Installation, repair and maintenance work should be performed by a
Miele authorized service technician in accordance with national and
local safety regulations and the provided installation instructions.
Disposal of packing material
The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Please recycle.
,DANGER
Ensure that any plastic wrappings,
bags, etc., are disposed of safely
and kept out of the reach of babies
and young children. Danger of
suffocation!
Disposal of an old appliance
Old appliances may contain materials
that can be recycled. Please contact
your local recycling center about the
possibility of recycling these materials.
Before discarding an old appliance,
disconnect it from the electrical
supply and cut off the power cord to
prevent it from becoming a hazard.
Caring for the environment
21
Appliance dimensions
22
1) Air extraction mode
2) Recirculation mode
3) Recirculation vent installed upwards
4) and 5) Installation area
Wall/ceiling area respectively for vent
hole and outlet installation.
For recirculation mode only 4)
and only outlet installation.
Ductwork ø 6" (150 mm), with reducing
colla rø4 15/16" (125 mm)
6) If you plan to haveatiled
backsplash or wall panel underneath
the exhaust hood, this may cause
difficulties when changing the filter,
depending on the thickness and height
of the tiles or panel.
If this is the case the filter needs to be
turned 180° and inserted the other way
round.
Appliance dimensions
23
9742iad
Les appareils de Miele peuvent être encastrés à ras ou avec débordement. Discutez
de vos conditions d'installation avec votre architecte, décorateur de l'intérieure et
installateur.
Distance between cooktop and
hood (S)
Do not install this exhaust hood over
cooktops burning solid fuel.
Provided a larger distance is not
given by the manufacturer of the
cooktop, follow the minimum safety
distances between a cooktop and
the bottom of the hood:
Miele cooktops:
- 24" (610 mm) above electric
surfaces,
- 26" (660 mm) above electric
grill/boiler/fryers,
- 24" (610 mm) above gas surfaces
ß25,000 BTU's (7.5 kW) and no
burner greater than 10,250 BTU's
(3 kW) ,
- 30" (762 mm) above gas surfaces
> 25,000 BTU's (7.5 kW),
- 30" (762 mm) above burner heads
> 10,250 BTU's (3 kW). For
example, a Wok used separately
or in combination with a cooktop.
Non-Miele cooktops:
- 24" (610 mm) above all electric
surfaces,
- 30" (762 mm) above all gas
surfaces,
- 26" (660 mm) above electric
grill/boiler/fryers.
If several gas surfaces are installed
under the hood, the total output must
be considered when determining the
minimum safety distance.
Be sure to follow the minimum safety
distances given by the gas cooktop
manufacturer to easily flammable
materials e.g. upper cabinets.
If local building codes require a
greater safety distance, follow their
requirement.
If there is more than one appliance
beneath the hood and they have
different minimum safety distances
always select the greater distance.
See "Important Safety Instructions"
for further information.
The installation procedure differs
depending on the model and venting
method.
Before beginning the installation:
^Read all instructions.
^Determine height (S), regarding the
user’s body height, i.e. a comfortable
height for the user.
However, the greater the distance the
less effectively cooking odors are
drawn in.
^If the hood is fitted flush to the
ceiling, regard the possible unit
height when selecting the installation
height.
Appliance dimensions
24
Use the following distances when
preparing a rear wall (screw ø 5 mm).
*The middle retaining plate can vary in
position, depending on the ventilation
gap and the position of the outlet. It
should be mounted as low as possible.
If the exhaust hood is being mounted
directly on the wall, follow the enclosed
assembly.
Appliance dimensions
25
Installation accessories
26
dai2417
a3 protective shields
to prevent scratches to the chimney
during installation.
b2 hose clips
for securing the ducting.
c1 reducing collar
for use with 5" (125 mm) exhaust
ducting.
d2 protective strips
for chimney mounting
eUpper retaining plate secures the
chimney extension
fMiddle retaining plate for additional
stability of the chimney
gLower retaining plate secures the
canopy and motor assembly.
hInstallation kit for recirculation
mode; contains diverter and hose
(optional accessory)
1 lever for dismantling the chimney
Installation instruction diagram
8 large headed screws5x40mm
for securing the retaining plates and the
canopy
(S8 wall anchors included in the
packaging are not for use in USA)
2 M 6 locking nuts
for securing the unit
1 allen wrench
for adjusting the unit height
,CAUTION
To avoid risk of hand or other injury,
avoid contact with sharp edges
during the assembly and installation
process.
Installation accessories
27
The majority of the weight of the
installed ventilation system will be
supported by the lower retaining
plate. It must be firmly attached to
the stud framing behind the drywall.
If studs are not available in the
required locations, a plywood
backing (min. ½" (13 mm) thick)
spanning at least two studs must be
installed. Failure to adequately
support the weight as stated may
result in the ventilation system falling
off the wall, causing personal injury
and property damage.
(If plywood backing is not needed,
proceed to the included "Installation
diagram".)
To install a plywood backing
^Determine and mark the location of
the retaining plate for the canopy as
outlined on the "Installation diagram".
^Make a cutting line 3" (76 mm) above
and 3" (76 mm) below the outline of
the retaining plate.
^Find the studs to the left and right of
the mounting location by tapping the
wall or using a stud finder.
^Mark a vertical cutting line along the
center of each stud.
,CAUTION
When cutting or drilling into the wall
or ceiling, do not damage electrical
wiring and other hidden utilities.
^Remove the drywall between the
cutting lines and replace it with
plywood of a matching thickness
(min. ½" (13 mm) thick). Tape the
joints and refinish the wall.
^Proceed to the enclosed "Installation
diagram" to complete the installation.
Plywood backing
28
Installation instructions
^See the enclosed installation
instruction diagram.
^Please read the "Important Safety
Instructions" and Installation
instructions before installing this
hood.
Protective film
The casing is covered with a protective
film to prevent scratching during
transport.
^Peel off the film before installing the
casing parts.
Dismantling
If the hood needs to be disassembled,
follow the instructions on the installation
diagram in the reverse order.

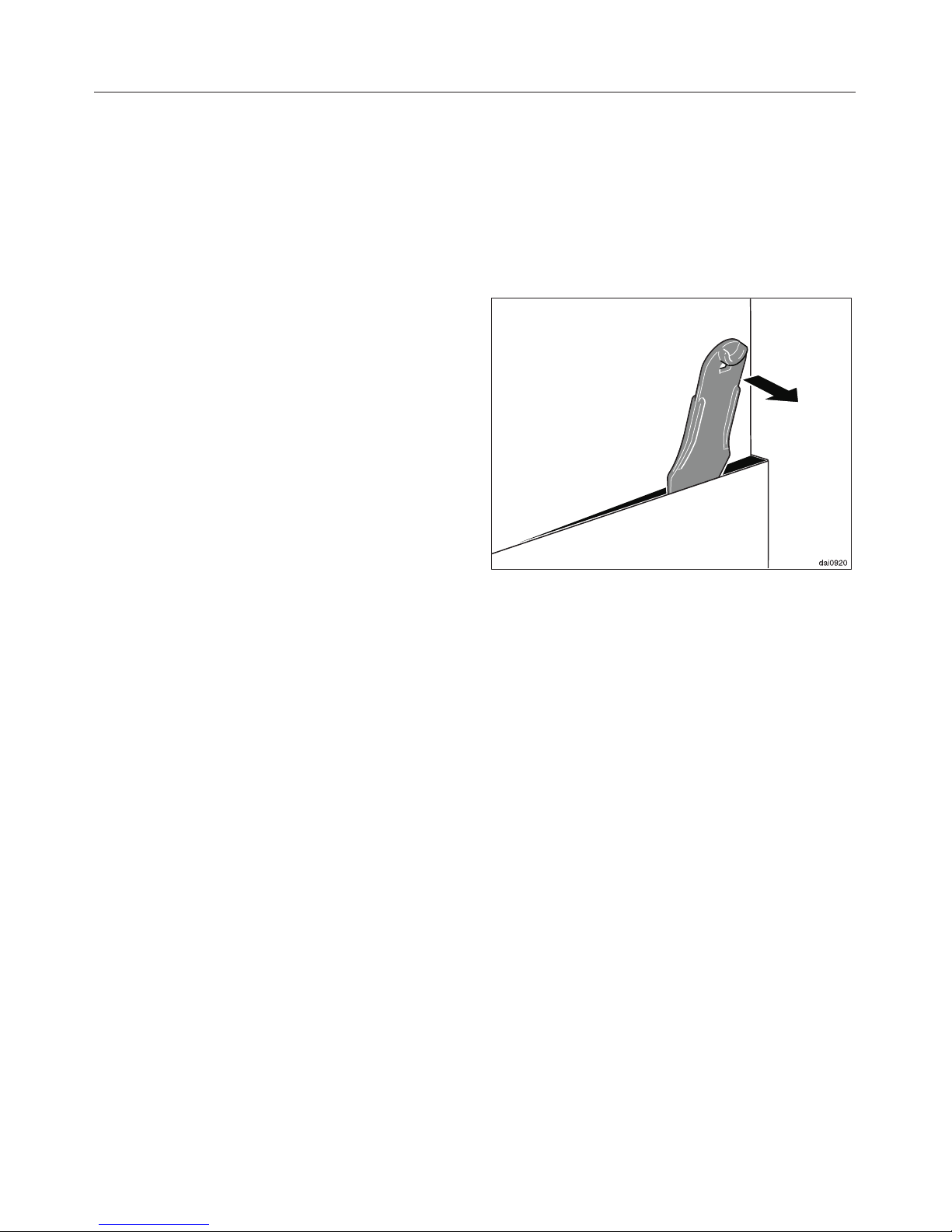

A lever is enclosed for easier removal
of the chimney extension.
^After loosening both of the clamping
screws on the chimney, slide the
lever between the chimney and the
chimney extension and gently apply
pressure to ease the chimney from its
hooks.
Installation
29
