Mieo HA102 Bedienungsanleitung

Energy monitor MIEO HA102 with 3 sensors 60A

User Manual

Model: HA102

Code: 560810

Table of Contents

Introduction---------------------------------------------2

Features--------------------------------------------------2

Overview-------------------------------------------------3

Installation----------------------------------------------5

----System

--- Display

--- Display Details

--- Transmitter and Sensor

--- Sensor

--- Battery

--- Transmitter and Sensor1

Operating Guide----------------------------------------6

--- Display Menu Configuration

--- Display Screens

--- Alarm

--- Miscellaneous Functions

Important Safeguards------------------------------ 13

FAQ------------------------------------------------------14

Specification-------------------------------------------- 17

Packing List---------------------------------------------17

Introduction

Welcome to the world of Wireless Energy Monitor! A world where energy usage is visible and

controllable. Your device d Wireless Energy Monitor elivers this world to you.

The Wireless Energy Monitor is an elegant and simple in-home display that places easy to

understand energy usage information at your fingertips. The Wireless Energy Monitor makes

reducing energy waste, saving money and leading a green lifestyle easy and fun.

For your protection, please read the overview, installation and safety sections before installing the

device. Please carefully observe all warnings, precautions and instructions on the device.

Features

----- Display of current and cumulative energy usage, cost and CO2 emissions

----- Display of hourly, daily, weekly and monthly energy usage data

----- Graphical display of historical energy consumption data

----- Time and date information

----- Alarm to notify high energy use

----- Two years of historical data storage

----- Single and dual tariff rates

----- One, two and three phase support

----- Low battery indicator and backlit display

----- Optional 5V DC adapter input

Overview

The Wireless Energy Monitor consists of an elegant in-home display and a companion transmitter.

The transmitter is a battery operated measurement unit that uses its accompanying sensors to

measure the electricity flowing into the home. The sensors are clipped around the incoming power

wires found on the home circuit panel (This operation should be performed by a licensed electrician

or a professional installer. Consult your retailer for more information).

The transmitter makes continuous measurements of the sensor. These measurements that relate

to the electricity flowing into the home are transmitted periodically to the display.

The sensors are clipped around the insulated incoming power cables. Most household electricity

supplies use single phase. But some use two or three phases. There are typically two cables in a US

home. The sensors are connected to the sockets on the Transmitter as seen in the diagram. This

operation should be done by a licensed electrician or a professional installer. Consult your retailer for

more information.

Installation for example two phases

The following installation instructions are for a licensed electricians or a professional installer.

Please contact your retailer for more information.

1. Remove Circuit Breaker panel cover

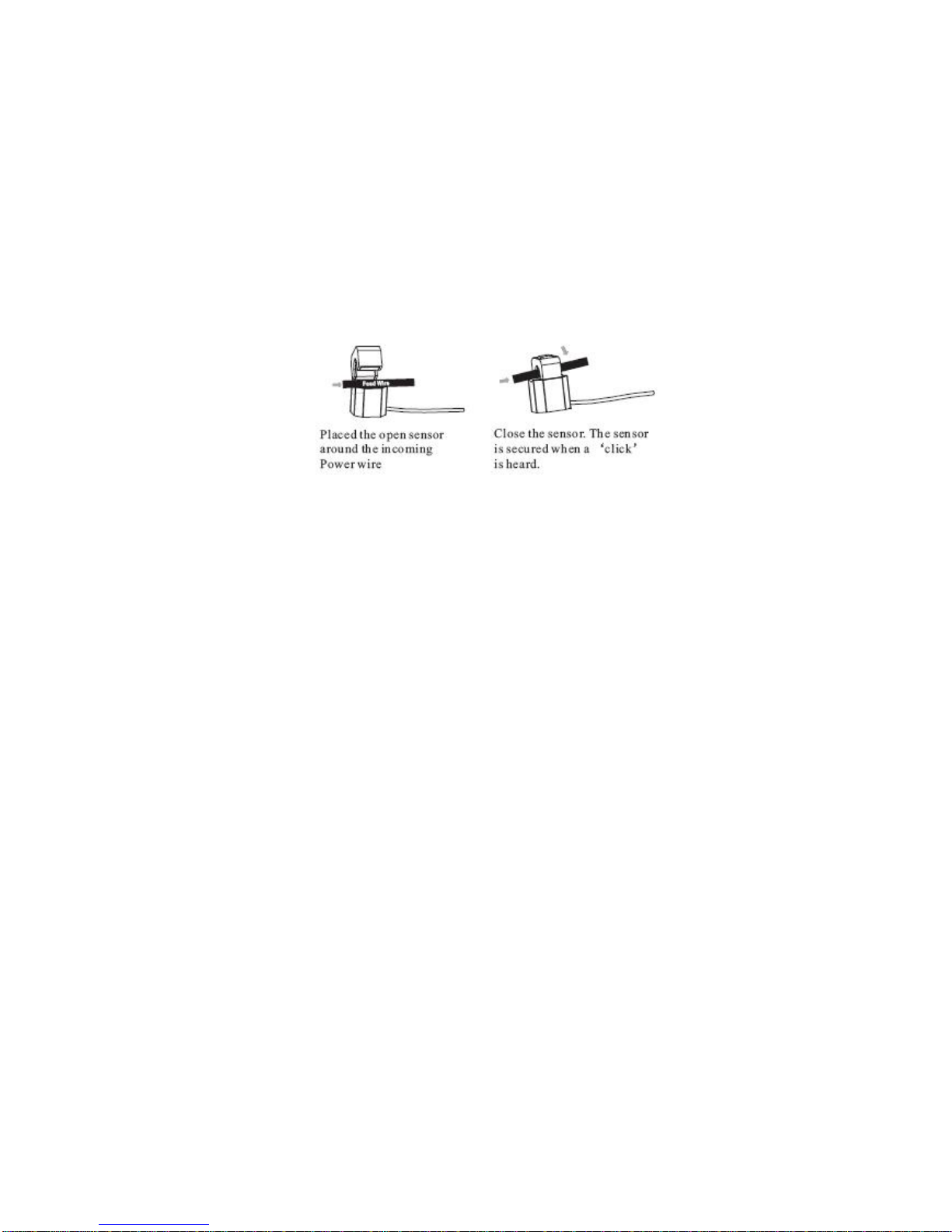

2. A typical home has three lines phase A, phase B, and a neutral. Locate phase A and phase B

lines. Push downwards on the sensor latch to open it. Place the opened sensor around the Phase A

wire. Close the sensor and ensure that the latch is locked. Do the same for the Phase B wire with the

second sensor. Do not place a sensor on the neutral wire. This will cause an incorrect reading.

Ensure that both sensors are locked firmly around the wires.

3.Plug the other end of the sensors from phase A and phase B lines into two consecutive slots on the

transmitter unit.

There will be one empty slot. Place a cap around the empty slot.

4.Hang the transmitter on the wall (use slot at the back) or place it down on a level surface. Make

sure it is secure and not exposed to extreme temperature, rain, snow, high humidity or vibrations.

Replace batteries

・Remove the battery cover from the back of the transmitter and display.

・Insert 3 x AA batteries into the compartment ensuring that the polarities are correct.

・Replace the battery cover of the transmitter and display unit

NOTE

You may also power the display by using the supplied 5V DC adapter.ot

Link display unit and transmitter

Press the “SEARCH” button on display for 2s. The link signal icon will start blinking. Press the

”CHECK” button on the transmitter. The blinking will stop once the connection between the

transmitter and display is established.

This is a secure connection enabling the display to receive

Operating Guide

Setting time and date

・Press the “TIME” button and hold for 2 seconds. The last two digits of year flashes. Press the

FWD/BWD button to set the current year.

・Press “TIME” button again to set the MONTH

Use FWD/BWD button to set the correct month.

・Press “TIME” button again to set the day

Use FWD/BWD button to set the correct day.

・Press “TIME” button again to set the hour

Use FWD/BWD button to set the correct hour in 24 hours format..

・Press “TIME” button again to set the minutes

Use FWD/BWD button to set the correct value.

Press ”TIME” button to get back to the default screen.

Press “ENTER” button at anytime to save settings instantly and return to the default screen. If the

display detects no actions within 60 seconds, the settings will be saved automatically and the default

screen will be shown.

Advanced setting (voltage, currency, tariff, Co2 emission)

・Press “MODE” button and hold for 2 seconds to set the “VOLTAGE”. While “220” flashing,

Use FWD/BWD buttons to adjust the voltage. The voltage should be in the range of 110 --132 Volts

for the US: 200--240 volts for most countries.

・Press “MODE” button again to set the ”currency unit” Default “ε” will be flashing,

Use FWD/BWD buttons to choose the ＄currency symbol

・Press “MODE” button again to set the” current tariff” Default “TARIFF1” will be flashing,

Use FWD/BWD buttons into “TARIFF2” for using two tariff standards.

・If” TARIFF2” is selected in the last step press “MODE” button again to set the start time for

TARIFF2 .

Use FWD/BWD buttons to set the hours and press “MODE” button to save and move to minute set

up. Set minutes using FWD/BWD and press MODE Button to confirm. Repeat the process for setting

·Press “MODE” button again to set tariff2 standard, when numbers 0.145 flashing, use FWD/BWD

button to set, Press and hold FWD/BWD button to increase the number quickly from 0.05 to 9.95.

・If you have not chosen“ TARIFF2” the above step will be skipped.

・Press “MODE” button again to set tariff1 , the number 0.125 flashing, Pressing FWD /BWD button,

the number will increase/reduce .

・Press MODE button again to set CO2 emission.

The number 0.449 (kg/kwh) flashing, Press FWD /BWD button to set.

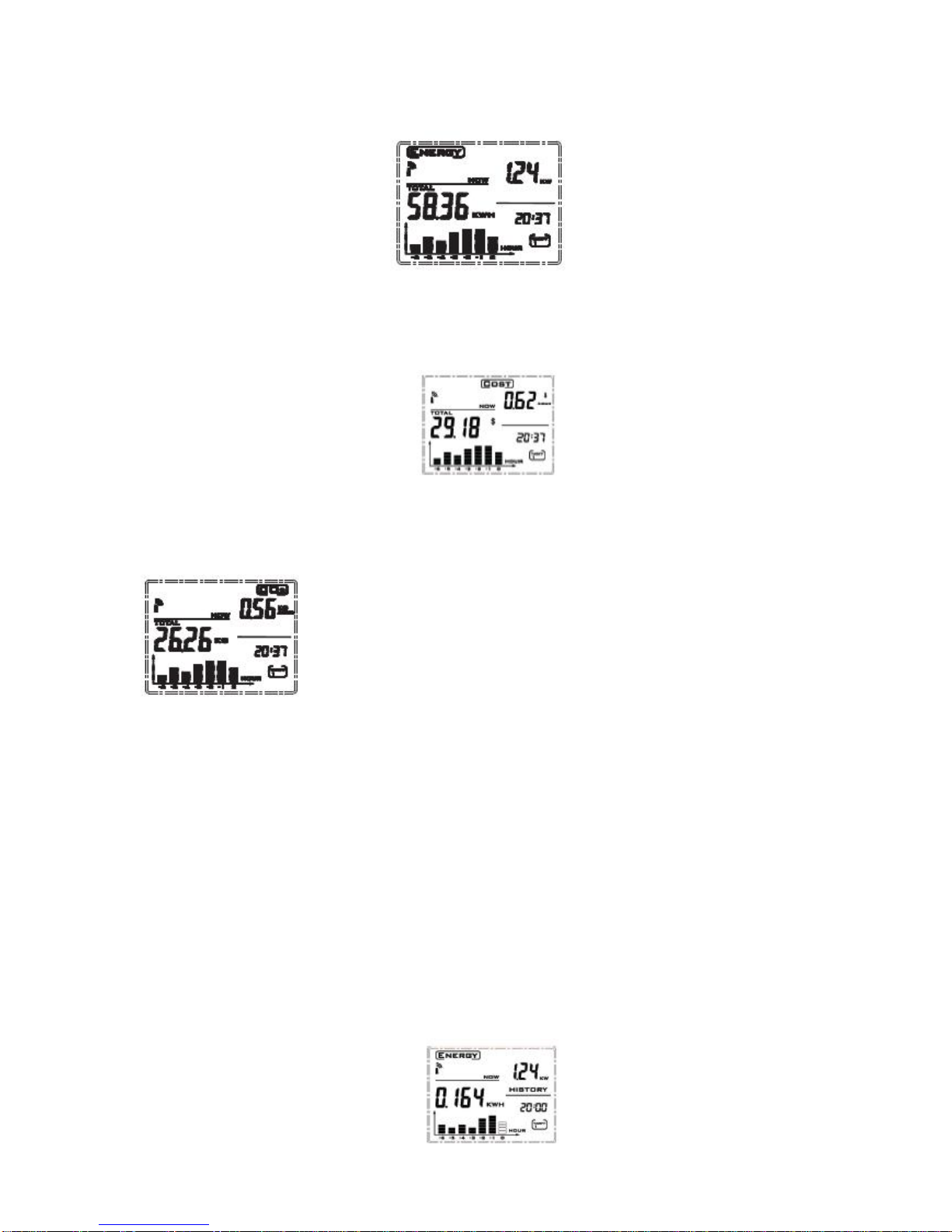

Current and Cumulative Energy Consumption, Cost,CO2

・Default screen shows the current and cumulative usage in Kw and kWh

Press MODE button to see the COST display.

Current and cumulative cost

Press MODE button again to see the CO2 display.

Current and cumulative emissions

・Time and date display (in the lower right screen) toggles every 10 seconds. The histogram in the

left screen indicates the usage of energy in last 7 hours.

・Press “MODE” button once again to return to current ENERGY display.

How to view historical data

・Press HISTORY button to see the hour historical data denoted by “per hour” display. Use

FWD/BWD button to look up the usage of energy for last 7 hours. The corresponding block in

histogram will flash.

・Press HISTORY button to see the day historical data denoted by “per day” display. Use

FWD/BWD button to look up the usage of energy for last 7 hours. The corresponding block in

histogram will flash.

Press HISTORY button again to see the week historical data denoted by “per week” display. Use

FWD/BWD button to look up the usage of energy for last 7 weeks. The corresponding block in

histogram will flash.

・Press HISTORY button again to view the month historical data denoted by “per month” display.

Use FWD/BWD button to look up the usage of energy for last 24 months. The histogram shows the

data for the current and last six months usage and the corresponding block in histogram will flash.

・Press “MODE” button to switch among ENERGY/COST/CO2 modes

・Press HISTORY button once again back to normal display.
