Mikro MK204A Bedienungsanleitung
MK204A IDT Overcurrent Relay User's
Guide
A BRIEF OVERVIEW
a
b
c
d
h
g
f
e
a - Auxiliary power supply indicator
b - High-set start/trip status indicator
c - Low-set start/trip status indicator
d - Overcurrent high-set adjustment
e - Trip reset button
f - Test button
g - Overcurrent low-set adjustment
h - Time multiplier adjustment
TECHNICAL DATA
1. Current and Time Adjustments
Overcurrent Low-set Current (l>) Adjustment
• This adjustment is for setting the minimum overcurrent
for tripping with time delay.
• The setting range is from 2A to 6A.
Overcurrent High-set Current (l>>) Adjustment
• This adjustment is for setting the instantaneous tripping
current due to an overcurrent.
• The setting range is from 1x to 10x of the overcurrent
low-set setting value.
l>> = a x l>, a = 1 to 10
• This high-set feature can be disabled by setting the
tripping current to infinity ( ')
Time Multiplier (IDT) Adjustment
• The delay timing adjustment is for selecting different
delay curve as shown in figure 1.
2. Light Indicators
The light indicators display the status of the system.

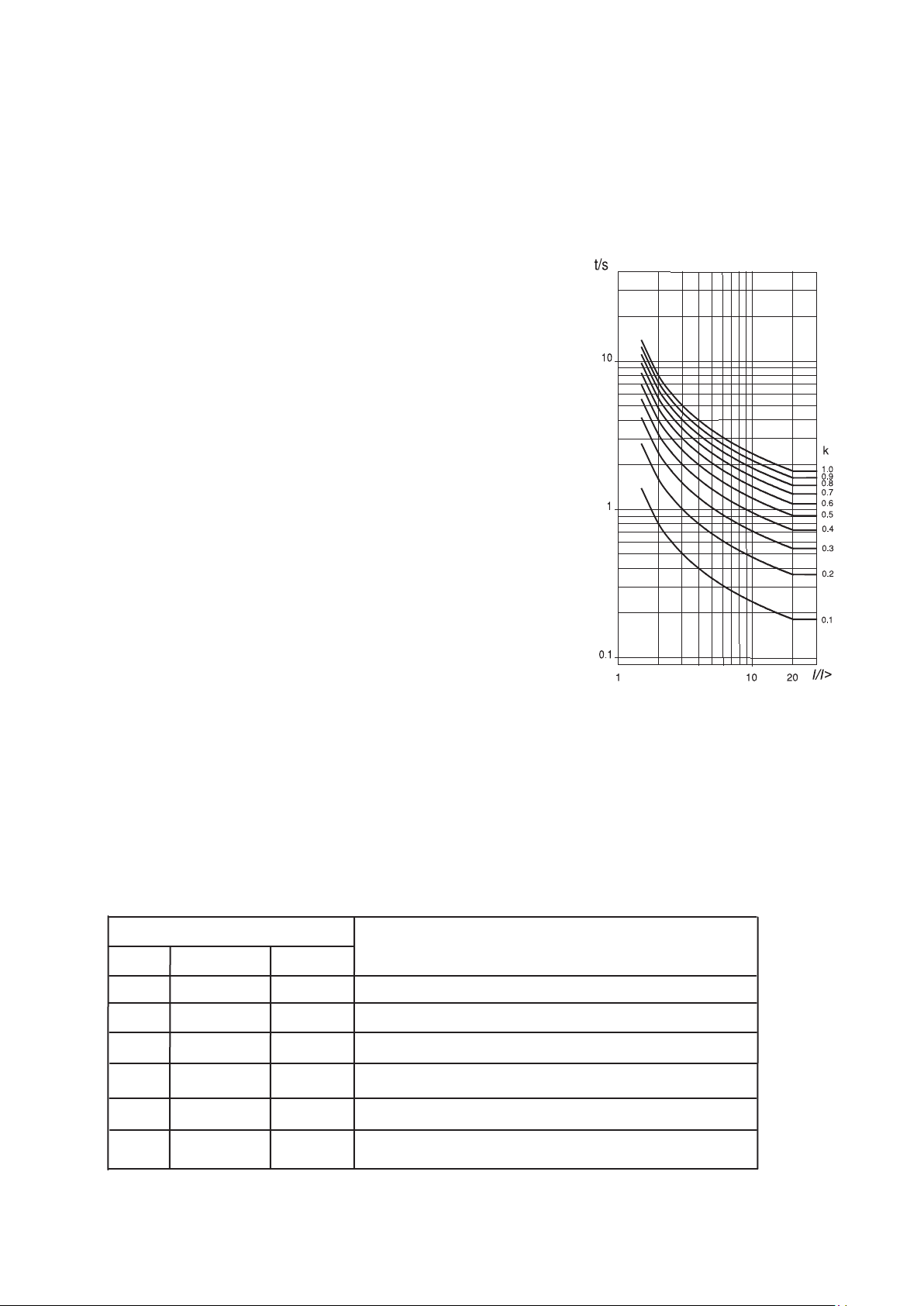

Figure 1: IDT Inverse
• The setting range is from 0.05 to 1.0.
Indicator
AUX l> l>> Status
Off Off Off No auxiliary power supply.
On Off Off System normal mode. No tripping.
On On Off
Overcurrent low-set start.
On
Blink
Off
Overcurrent low-set tripped.
On Off On Overcurrent high-set start.
On Off Blink Overcurrent high-set tripped.
3. Push Buttons
Reset Button
• The reset button is for resetting the light indicators (l> or l>>) after an overcurrent
tripping has occured.
• To reset, press the reset button once.
Test Button
• Test button is for checking the relay operation.
• Push on the test button to simulate an overcurrent low-set and high-set trip condition.
4. Trip Contacts
There is one set of tripping contacts namely, R1.
R 1 - Manual Reset Type
• This contact (R1) is activated during an overcurrent trip. the contacts remain
activated regardless of the removal of fault current. This relay can only be reset
by pressing the “RESET” button.
5. Electrical Specification
Auxiliary Supply
MK204A-240A.......................198~265 VAC
MK204A-110A.......................94~127 VAC
Supply frequency...................50Hz
VA rating................................3 VA typical
Trip Contact
Rated Voltage.......................250 VAC
Continuous carry...................5A (cos ϕ= 1.0)
Expected electrical life..........100,000 operations
Expected mechanical life.......5 million operations
6. Mechanical
Indicators
Auxiliary supply....................Green LED indicator
Pick-up.................................Red LED indicator
Trip.......................................Red LED indicator
Mounting...............................Panel mounting
Front panel...........................Standard DIN 96x96 mm
Approximate weight..............0.7 kg
Setting Ranges
Low-set (I>)...........................Green LED indicator
40% to 120%
Time multiplier(TM)................0.05 to 1.0
High-set (I>>)........................I> to 10 I> or disable
High-set delay time(t>>)........instantaneous

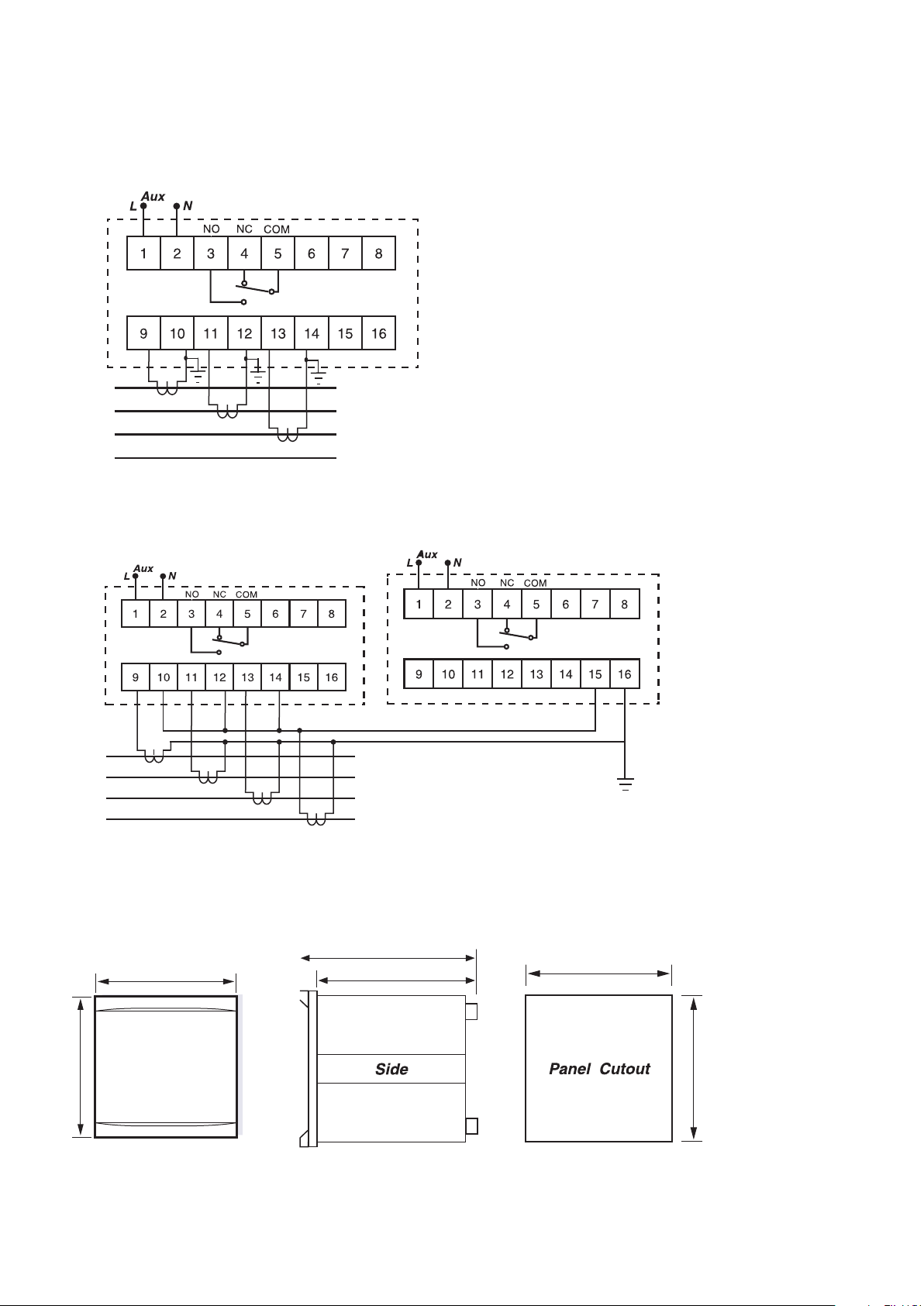

7. Connection Diagram
8. Case Dimensions
a) Overcurrent relay
L1
L2
L3
N
MK204A
R1
MK 201A
R1
a) Combined overcurrent and earth fault relays
9 6 mm
9 6 mm
Fr o n t
110mm
100mm
90mm
90mm
L1
L2
L3
N
MK 204A
R1
