MikroElektronika USB UART click Bedienungsanleitung

1. Introduction

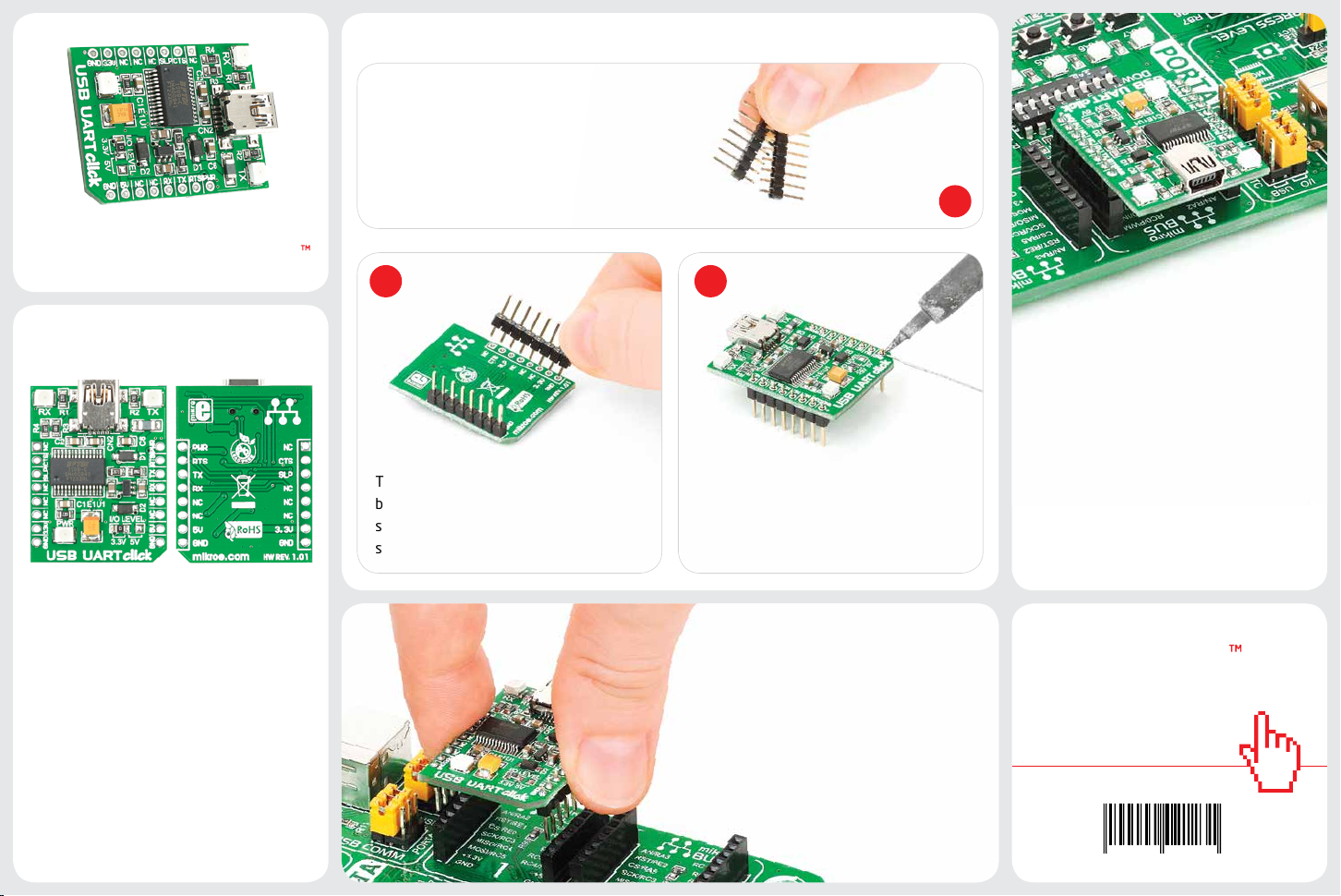

Once you have soldered the headers your

board is ready to be placed into desired

mikroBUS™socket. Make sure to align the

cut in the lower-right part of the board

with the markings on the silkscreen at

the mikroBUS™socket. If all of the pins are

aligned correctly, push the board all

the way into the socket.

3. Plugging the board in

2 3

2. Soldering the headers

4. Essential features

Turn the board upward again. Make sure

to align the headers so that they are

perpendicular to the board, then solder the

pins carefully.

Turn the board upside down so that

bottom side is facing you upwards. Place

shorter parts of the header pins in both

soldering pad locations.

USB UART click

Before using your click board™, make sure

to solder 1x8 male headers to both left

and right side of the board. Two 1x8 male

headers are included with the board in

the package.

click

BOARD

www.mikroe.com

USB UART click Manual

ver. 1.01

0 100000 021231

USB UART Click™with it’s FT232RL IC

gives additional serial UART communication

via USB cable. The FT232RL contains

integrated 1024 bit EEPROM, 128 bytes

long receive buer, 256 bytes long transmit

buer, congurable CBUS I/0 pins and entire

USB protocol handled on the chip. The board

contains RX and TX LED diodes that indicate

the transmit and receive data via USB.

USB UART Click™is an accessory board in

mikroBUS™form factor. It’s a compact

and easy solution for adding serial UART

communication via USB cable. It features

FT232RL USB-to-UART interface module

as well as USB MINI B connector. USB UART

Click™communicates with target board via

UART interface. The board is designed to

use 3.3V or 5V I/O level. It has a LED diode

(GREEN) that indicates the presence of

power supply.

8. Support

MikroElektronika oers Free Tech Support

(www.mikroe.com/esupport) until the

end of product lifetime, so if something goes

wrong, we are ready and willing to help!

7. Code Examples

.com

Once you have done all the necessary

preparations, it’s time to get your click

board up and running. We have provided

the examples for mikroC, mikroBasic and

mikroPascal compilers on our Libstock

website. Just download them and you are

ready to start.

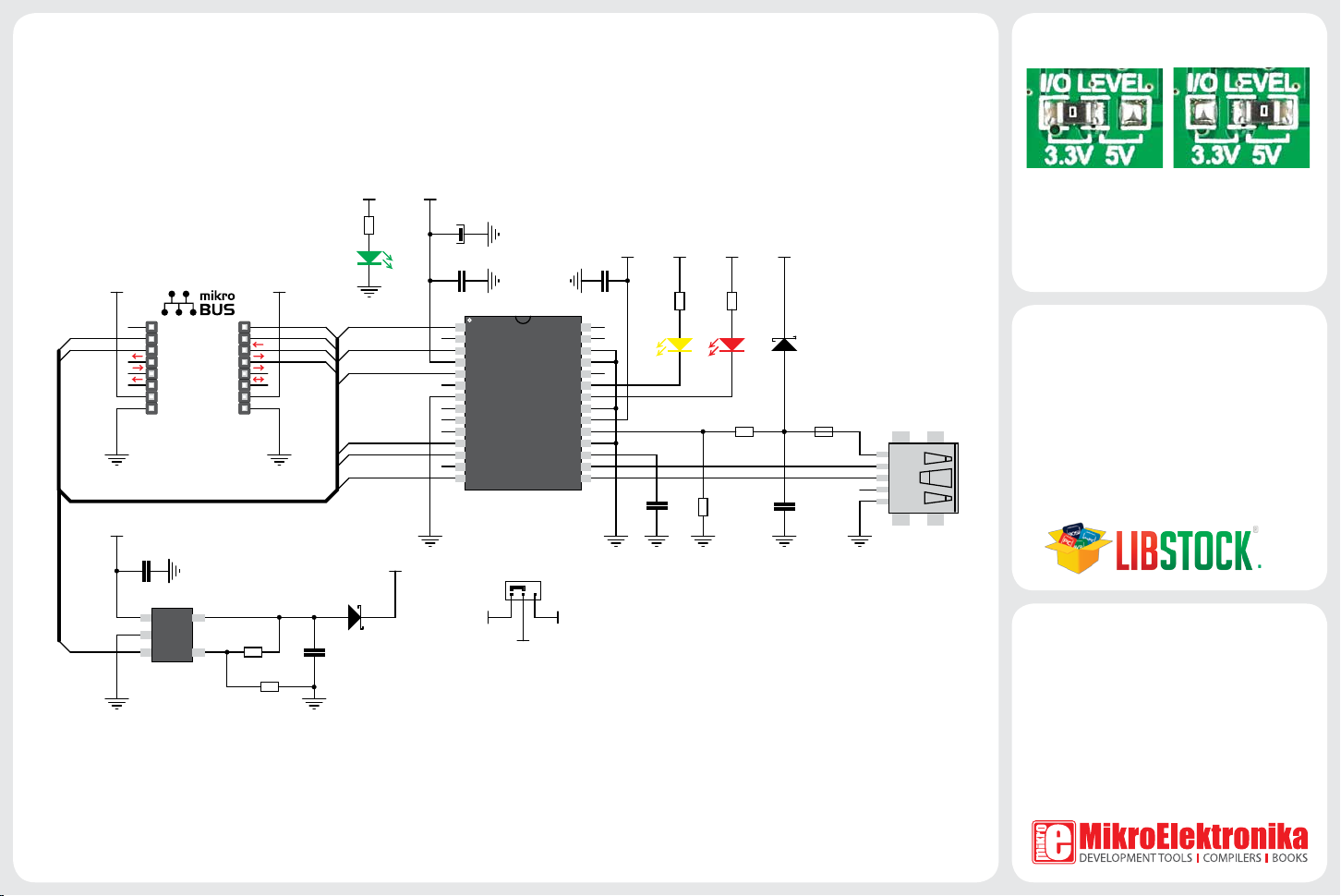

5. USB UART Click™Board Schematic

VCC3V3

14 15

TXD

DTR#

RTS#

VCCIO

RXD

RI#

GND

DSR#

DCD#

CTS#

CBUS4

CBUS2

CBUS3

CBUS0

CBUS1

OSCO

OSCI

TEST

AGND

GND

VCC

RESET#

3V3OUT

USBDM

USBDP

FT232RL

VCCIO

VCC5

100nF

LD1 LD2

RX-LED

TX-LED

4K7

2K2

VCCIOVCCIO

2K2

100nF

RXD

TXD

D_N

D_P

RX TX

VCC5

CTS

RTS

RXD

TXD

CTS RTS

10uF

VCC5VCC3V3

2.2uF

GND

OUT5

EN ADJ

AP7331-ADJ

287K

39K

2K2

VCCIO

LD3

POWER

VCC5

VCC3V3

VCCIO

CBUS4

CBUS3

FP1

FERRITE

100nF

5GND

D+

D-

VBUS

CN2

USB MINIB

PMEG3010ER

RST/EN

RST

SCK

MOSI

MISO

+3.3V

GND

PWM

INT

SCL

SDA

+5V

GND

MIKROBUS DEVICE CONN.

MikroElektronika assumes no responsibility or liability for any errors or inaccuracies that may appear in the present document.

6. SMD Jumper

There is one zero-ohm SMD jumper J1 which

is used to select whether 3.3V or 5V I/O level

is used. Jumper J1 is soldered in 3.3V position

by default.
