Mikrofill ETHOS 70 Bedienungsanleitung
ETHOS 70, 90, 110 & 130
Wall mounted gas fired
condensing boilers
INSPIRED EFFICIENCY
USER MANUAL
Issue 05/08
Project2:Layout 1 5/1/09 10:43 Page 2
USER MANUAL |Ethos 70 - 130
Introduction
The Mikrofill Ethos Boiler you have purchased has been designed and manufactured in Britain and represents the
very best in quality and performance,
This User Manual is designed to Guide you through the many user settings available to ensure optimum operating
conditions. Please read this manual thoroughly, careful use of the controls will result in lower greenhouse gas
emissions and reduced operating cost.
The Ethos range of boilers incorporate a fully integrated microprocessor control system
that offers the following user settings
Heating Time Control
Domestic Hot water Time Control (optional HWS sensor required)
Weather Compensation (optional outside sensor required)
Holiday period programming
Night Set Back
The Optimised start facility is pre programmed and requires no user adjustment., all other settings and adjustments
will have been factory set.
Any procedures not described in this user manual should only be undertaken by a competent qualified person,
if in doubt contact Mikrofill technical dept. on 08452 606020
We recommend a regular maintenance regime that should include at least one annual service. Extended warranties
inclusive of annual service are available from Mikrofill Systems Ltd. For further details please contact the
HELPLINE on 08452 606020.
2 User Manual
Project2:Layout 1 5/1/09 10:43 Page 3
3 User Manual
BOILER MODULE
DHW selection button
Heating selection button
Show information
Settings accept
Chimney sweep function
STB test
Manual mode
Adjust room comfort setpoint
Navigation and settings
Service plug (BSB)
Quit setting
Heating to Comfort setpoint
Heating to Reduced setpoint
Heating to frost protection setpoint
Process running - please wait
Change battery
Burner operating
Info level activated
Programming activated
Heating temporarily
switched off
ECO function active
Holiday function active
Reference to heating circuit
Maintenance / special operation
Error messages
Project2:Layout 1 5/1/09 10:43 Page 4
BOILER OPERATION
4 User Manual
Selecting heating module
This setting is used to switch between the different operating modes.
The selection made is indicated by a bar which appears below the
respective symbol.
Automatic mode
Automatic mode controls the room temperature according to the time program.
Characteristics of automatic mode:
Heating mode according to the time program
Temperature setpoints according to heating program “Comfort setpoint“ or “Reduced setpoint“
Protective functions active
Automatic summer / winter changeover (ECO functions)
Continuous operation or
Continuous operation or Continuous operation maintains the room temperature at the selected operating level.
Heating to Comfort setpoint
Heating to Reduced setpoint
Characteristics of continuous operation:
Heating mode with no time program
Protective functions active
Automatic summer / winter changeover (ECO functions)
Project2:Layout 1 5/1/09 10:43 Page 5
5 User Manual
BOILER OPERATION
Protection
When using protection, the heating system is off. But it remains protected against frost
(frost protection temperature) provided there is no power failure.
Characteristics of Protection:
Heating off
Temperature according to frost protection
Protective functions active
Automatic summer / winter changeover (ECO functions) and automatic 24-hour heating limit active
Selecting DHW heating mode
The button is used to switch DHW heating mode on and off.The selection made is
indicated by a bar which appears below the respective symbol.
DHW heating
On
The DHW is heated according to the selected switching program.
Off
No DHW heating, the protective function is active.
Triggering is effected by keeping the DHW operating mode button on the
operator or room unit depressed for at least 3 seconds.
It can also be started when:
The operating mode is “Off“
Operating mode changeover acts via H1 or centrally (LPB)
All heating circuits use the holiday function
Adjusting the room temperature setpoint
Turn the setting knob to increase or decrease the Comfort setpoint
For the Reduced setpoint
Press OK
Select operating page “Heating circuit“ and
Adjust the “Reduced setpoint“
If no external sensors are connected, the boiler flow temperature will be determined by using the heating
curve with an external temperature of 0°C. Please see following graph for equivalent temperatures.
After each re-adjustment, wait at least 2 hours, allowing the room temperature to
adapt.
Project2:Layout 1 5/1/09 10:43 Page 6
BOILER OPERATION
6 User Manual
Heating curve
The rate of change, with respect to weather compensation, is adjusted by the heating curve setpoint,
selection of a higher setpoint will result in a higher rate of temperature gain. Reducing the setpoint
will result in a lower rate of temperature gain.
Increase adjustment: Raises the flow temperature, especially when outside temperatures are low.
Decrease adjustment: Lowers the flow temperature, especially when outside temperatures are low.
Displacement of heating curve
Parallel displacement of the heating curve is used to change the flow temperature evenly across the entire outside
temperature range or, in other words, if the room temperature is always too high or too low, a readjustment must
be made with the help of parallel displacement.
Adaptation of the heating curve
Adaptation of the heating curve is used by the controller to automatically adapt the heating curve to the prevailing
conditions. In that case, a readjustment of the heating curve slope and parallel displacement is not required.
It can only be switched on or off.
Boiler Temperature setting
Comfort
Setpoint
Boiler
Temperature
Comfort
Setpoint
Boiler
Temperature
Above table based on a heat slope of 2.0 at 0°c outside air temperature
Project2:Layout 1 5/1/09 10:43 Page 7
7 User Manual
BOILER OPERATION
Displaying information
Various data can be displayed by pressing the info button.
Possible displays
Depending on the type of unit, configuration and operating state, some of the info lines
listed below may not appear.
Display:
Possible error messages
Possible service messages
Possible special mode messages
Other displays:
Room temperature
State of DHW
State of boiler
Boiler temperature
Outside temperature
Date and time of day
DHW temp 1
State of heating circuit 1
Exception
In exceptional cases, the basic display shows one of the following symbols:
Maintenance or special operation
If this symbol appears, a maintenance
alarm is delivered or the plant has
changed to special mode. Press the
info button and read further
information.
Error messages
If this symbol appears, an error in
the plant has occurred. Press the
info button and read further
information
Project2:Layout 1 5/1/09 10:43 Page 8
BOILER OPERATION
Manual operation
When manual operation is active, the relays are no longer energized and deenergized according to the control state,
but are set to a predefined manual operation state depending on their function.
The burner relay energized in manual control can be deenergized by the electronic temperature controller (TR).
Setpoint adjustment in Manual control
After manual control has been activated, a change to the basic display must be made.
There, the maintenance / special mode symbol appears.
Press the info button to switch to info display “Manual mode“, where the setpoint can be adjusted.
Chimney sweep function
The chimney sweep function is activated by a short press (maximum 3 seconds) on the chimney sweep button.
This function produces the operating state required to make emission measurements (flue gas, maximum load only).
8 User Manual
Project2:Layout 1 5/1/09 10:43 Page 9
9 User Manual
PROGRAMMING
Setting principle
Settings that cannot be made directly with the operating elements are made in the form of programming.
For this purpose, the individual settings are structured in the form of operating pages and operating lines, thus
forming practical groups of settings.The following example shows how to set the time of day and the date.
Example:“Setting the time of day“
Press ESC to go one step back at a time, readjusted values are not be adopted.
If no setting is made for 8 minutes, the display returns automatically to the basic display.
Operating lines may be hidden, depending on the type of controller, the configuration made
and the user level.
Basic display.
If the basic display is not shown,
press the ESC button to return to it.
Press OK.
The bottom section of the display
shows a number of operating pages.
Turn the setting knob until
operating page Time of day and
date appears.
Press OK to confirm.
In the bottom section of the display, the
first operating line of operating page
Time of day and date appears.
Turn the setting knob until operating line
Hours / minutes appears.
To confirm, press OK.
Project2:Layout 1 5/1/09 10:43 Page 10
PROGRAMMING
10 User Manual

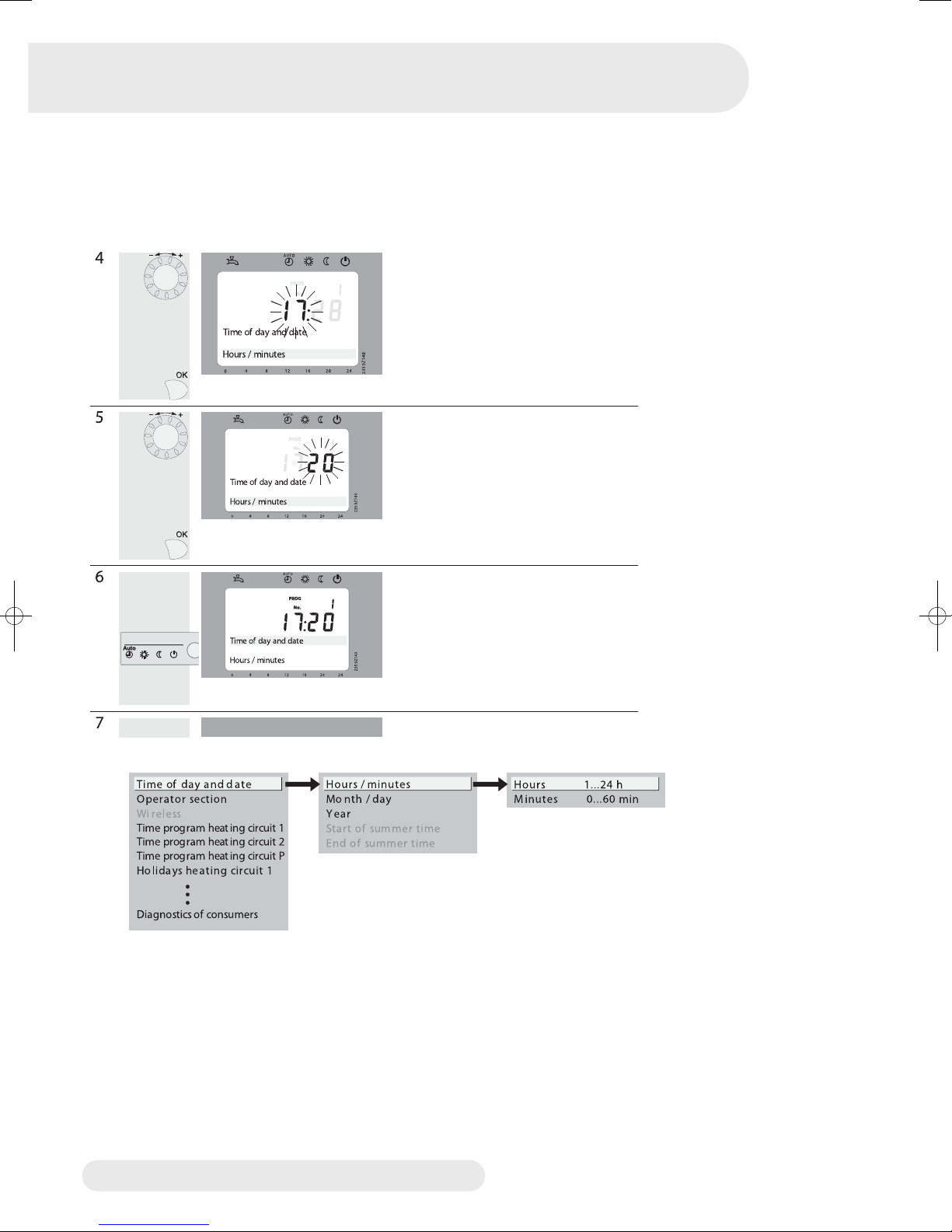

The display shows the hours
flashing .
Turn the setting knob until the
hours of the time of day are
correct.
To confirm, press OK.
The display shows the minutes
flashing.
Turn the setting knob until the
minutes of the time of day are
correct.
To confirm, press OK.
The settings are saved and the
displays stops flashing.
Now, you can make further settings
or you press the operating mode
button to return to the basic
display.
Now, you see the basic display again.
Project2:Layout 1 5/1/09 10:43 Page 11
