MiLAN Raven MIL-RCM16A Bedienungsanleitung

Raven Series Modular Media

Converter System

MIL-RCM16A and MIL-RCM16D 16 Slot Raven

Conversion Modules Managed Chassis with

AC or DC Power Source

USER GUIDE

Regulatory Approval

- FCC Class A

- UL 1950

- CSA C22.2 No. 950

- EN60950

- CE

- EN55022 Class A

- EN55024

Canadian EMI Notice

This Class A digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numerique de la classe A respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada.

European Notice

Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC)

issued by the Commission of the European Community Compliance with these directives imply conformity to the following

European Norms:

- EN55022 (CISPR 22) - Radio Frequency Interference

- EN61000-X - Electromagnetic Immunity

- EN60950 (IEC950) - Product Safety

Five-Year Limited Warranty

MiLAN Technology warrants to the original consumer or purchaser that each of it's products, and

all components thereof, will be free from defects in material and/or workmanship for a

period of five years from the original factory shipment date. Any warranty hereunder is

extended to the original consumer or purchaser and is not assignable.

MiLAN Technology makes no express or implied warranties including, but not limited to, any

implied warranty of merchantability or fitness for a particular purpose, except as expressly set

forth in this warranty. In no event shall MiLAN Technology be liable for incidental or

consequential damages, costs, or expenses arising out of or in connection with the

performance of the product delivered hereunder. MiLAN Technology will in no case cover damages

arising out of the product being used in a negligent fashion or manner.

Trademarks

The MiLAN logo and MiLAN Technology trademarks are registered trademarks of MiLAN Technology in the

United States and/or other countries.

To Contact MiLAN Technology

For prompt response when calling for service information, have the following information ready:

- Product serial number and revision

- Date of purchase

- Vendor or place of purchase

You can reach MiLAN Technology technical support at:

E-mail: [email protected]

Telephone: +1.408.744.2751

Fax: +1.408.744.2771

MiLAN Technology

1329 Moffett Park Drive

Sunnyvale, CA 94089

United States of America

Telephone: +1.408.744.2775

Fax: +1.408.744.2793

http://www.milan.com

[email protected]

Table of Contents

1. Introduction

Features

Intelligent Features

Management Methods

Console and Telnet Management

Web-based Management

SNMP Network Management

Package Contents

2. Hardware Description

Front Panel

Rear Panel

LED Indicators

RS-232 Console

3. Connecting to the Network

Pre-Installation Requirements

Mounting the Device

Desktop Installation

Rack-mounted Installation

Power On

Diagnostic Test

4. Network Configuration

Connecting a Terminal or PC to the Console Port

4-1. Main Menu

4-1-1. Device Settings

4-1-2. Modules Settings

4-1-3. Redundant Power Status

4-1-4. Events Log

4-1-5. SNMP Trap

4-1-6. Secure IP for Telnet, HTTP, and SNMP

4-1-7. Save Current Settings

4-1-8. Factory Default Settings & Reboot System

4-1-9. Reboot System

5. Web-Based Management

5-1. System Login

5-2. System Configuration

5-2-1. Home Page

5-2-2. Modules Settings

5-2-3. IP Configuration

5-2-4. SNMP

5-2-5. Save and Reboot

5-2-5-1. Save Settings

5-2-5-2. Reboot System

5-2-6. Upgrade Firmware

6. SNMP Management

6-1. SNMP Management

7. Technical Specifications

Appendix A. Internet Explorer Setting

Introduction

The Raven Series Modular Media Converter System is a combination of

16-slot host cabinet and various optional media converter modules. A

maximum of sixteen modules can be installed in the cabinet. The power

supply will support AC or DC, with an optional matching power supply for

load sharing and redundancy.

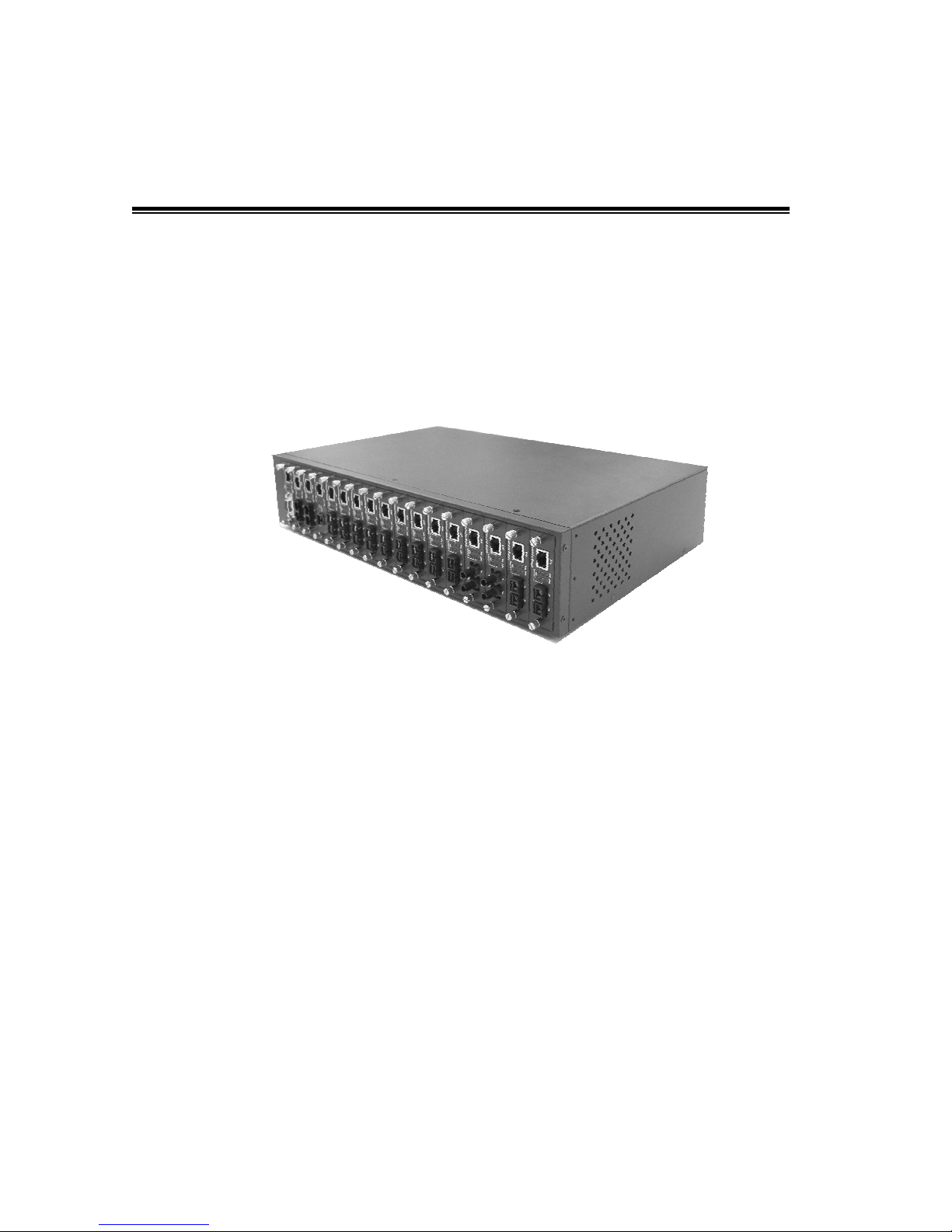

Figure 1-1. The Raven Series Media Converter System

With built-in web-based Management, managing and configuring the

conversion system is simplified. The web browser may be used to

configure and manage the network, from cabinet level management to port

level control and monitoring. Use of a mouse replaces typing of command

strings. The switch can also be managed via Telnet, Console, or SNMP

Management.

Features

 Cabinet conforms to IEEE 802.3 and IEEE802.3u

 Sixteen Converter Module slots

 One built-in module with a RS-232 console port and a Fast

Ethernet RJ-45 port for In-band management

 Half-duplex mode for backpressure, and full-duplex for

flow-control in management Ethernet port.

 System LED indicators: Power Good (A, B), Power Fail (A,

B), System power, CPU Ready, Ethernet port link/activity,

Full duplex

 Hot swappable bracket module design

 Converter module options:

10/100TX to 100FX single mode with SC connector (30 KM),

10/100TX to 100FX multi-mode with ST/SC/MT-RJ connector

(2 KM), 10/100TX to VDSL

Intelligent Features

 Web-based management

 SNMP network management

 Console and Telnet management

 Module-specific configuration by Web Browser, Telnet or

Console

 Automatic module type display

Management Methods

The Raven Series Modular Media Converter System supports the following

management methods:

 Console and Telnet Management

 Web-based Management

 SNMP Network Management

Console and Telnet Management

Console Management is done through the RS-232 Console Port.

Managing the conversion system in this method requires a direct

connection between a PC and the built-in management module. Telnet

management requires a network connection. The default IP address is

192.168.1.77 with a subnet mask of 255.255.255.0. This default address

can be used to login and change the configuration using Telnet.

Web-based Management

The conversion system provides an embedded HTML web server residing

in flash memory. It offers advanced management features and allows

users to manage the conversion system from anywhere on the network

through a standard browser such as Microsoft Internet Explorer or

Netscape.

SNMP Network Management

SNMP (Simple Network Management Protocol) provides a means to

monitor and control network devices, and to manage configurations,

statistic collection, performance, and security.

Data is passed from SNMP agents, which are hardware & software

processes reporting activity in each network device, to the workstation

console used to oversee the network. The SNMP agents return information

contained in a MIB (Management Information Base), which is a data

structure that defines what is obtainable from the device and what can be

controlled.

Package Contents

Unpack the contents of the package and verify them against the checklist

below.

 Raven Series Chassis (Conversion Modules ship separately)

 Power Cord

 Four Rubber Feet

 RS-232 cable

 CD ROM containing Users Guide

 Warranty Card

If any item is missing or damaged, please contact your local dealer for

service.

Hardware Description

Front Panel

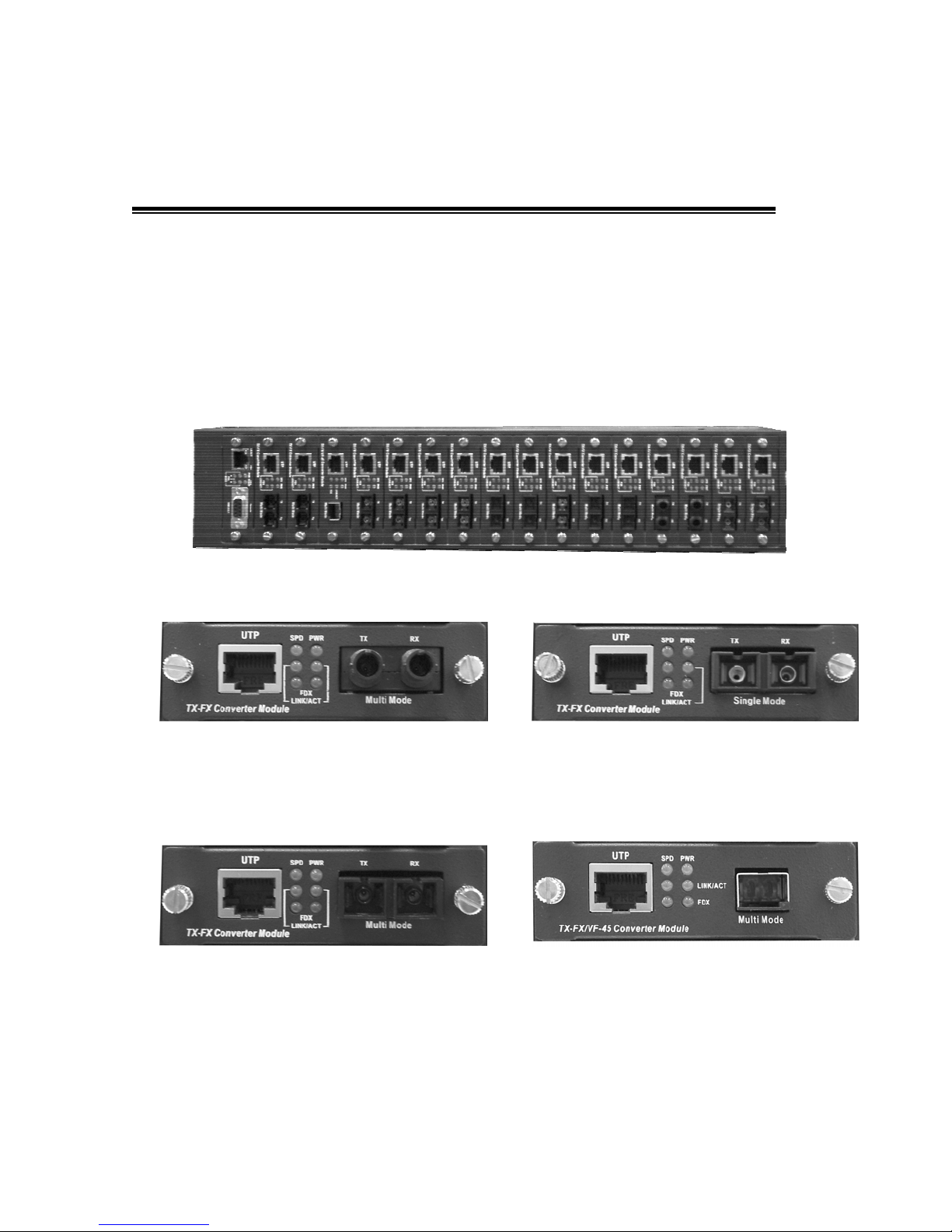

Figure 2.1 below shows the Raven Series Media Converter Chassis fully

populated with sixteen Raven Series Media Converter Modules and one

RS232/Fast Ethernet RJ-45 Management Module.

Figure 2-1. Front Panel for Raven Series Modular Media Converter System

Figure 2-2. Front Panel for Raven

Series Multi-mode ST Module

Figure 2-4. Front Panel for Raven

Series Multi-mode SC module

Figure 2-3. Front Panel for Raven

Series Single Mode SC module

Figure 2-5. Front Panel for Raven

Series Multi-mode VF-45 module

Rear Panel

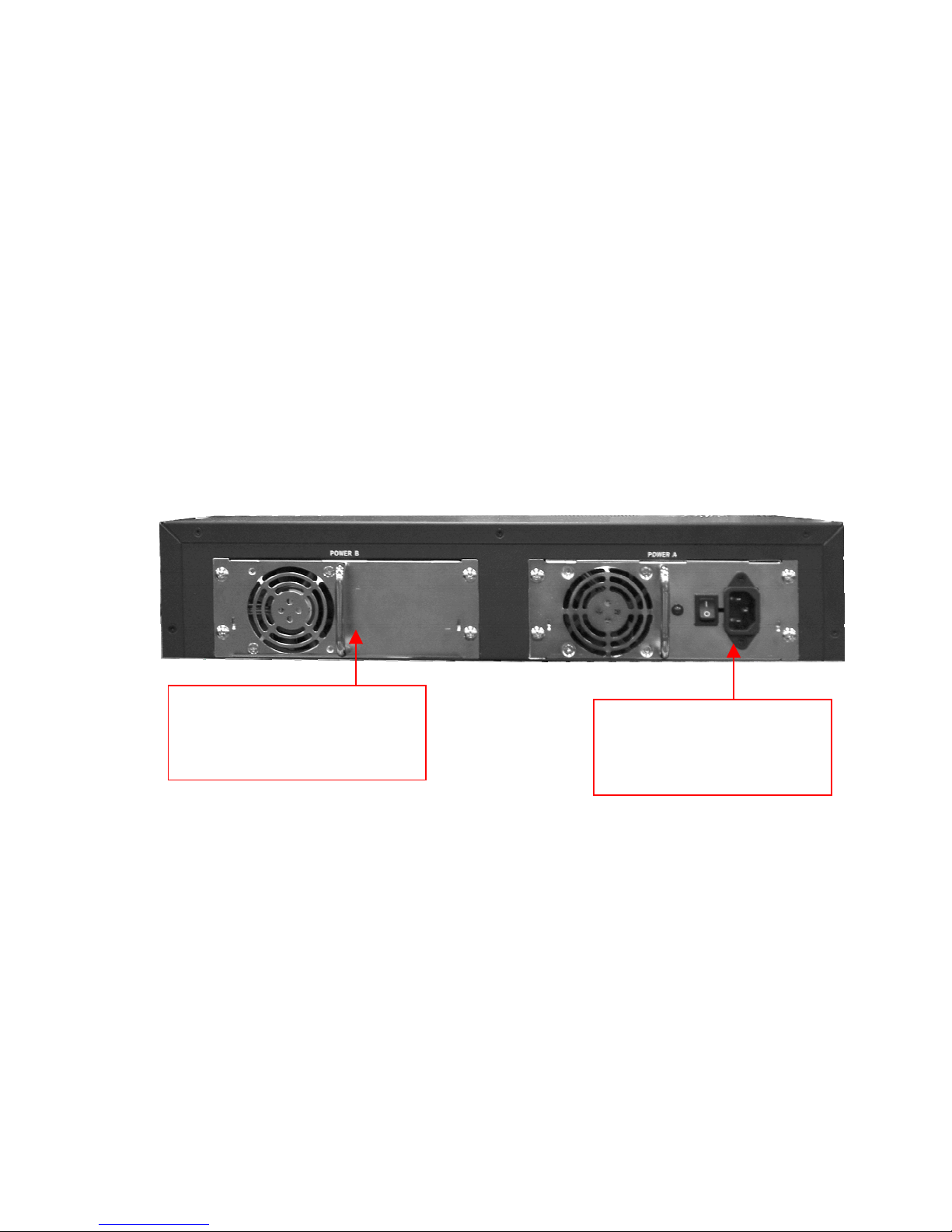

The 3-pronged power plug and power on/off switch are located at the Rear

Panel of the Raven Series chassis, as shown in Figure 2-6. The equipment

will work with AC in the range 100-240VAC, 50-60Hz (AC type power

supply) or DC power in the range 40.5 ~57.0 @ 20A (DC type power

supply).

The conversion system ships standard with one power module and one fan

module. An additional power module unit is optional for load sharing and

redundancy.

Note: Redundant power modules must be the same type power supply.

AC power and DC power are not available in a single system.

igure 2-6.

ear Pane

Power Slot A ships with

either an AC or DC power

module.

Power Slot B ships with a fan

module standard or an optional

redundant power module.
