Miller Electric Maxstar 150 S Bedienungsanleitung

Process

Stick (SMAW)

Input Power 1-Phase Power

Amperage Range 115 VAC: 20 – 100 A (DC)

230 VAC: 20 – 150 A (DC)

Max. Open-Circuit Voltage

Weight 13.2 lb (6.0 kg)

Light Industrial Applications

Maintenance Repair

Shipboard Installation/Repair

Farm/Ranch

Hobbyist

Maxstar®150 S Stick Welding

Power Source

Issued Feb. 2008 • Index No. DC/27.0

The Power of Blue®

Portable in the shop or at the job

site — at 13.2 lb the shoulder strap

allows the end user to easily move

from location to location.

Best in class Stick arc

characteristics for those

demanding jobs.

Power Factor Corrected (PFC)

for optimum performance

especially on 115 V — reduces

nuisance breaker tripping.

Fan-On-Demand™power source

cooling system operates only when

needed, reducing noise, energy use

and the amount of contaminants

pulled through the machine.

Thermal overload protection with

indicator light helps prevent

machine damage if the duty cycle is

exceeded or airflow is blocked.

Single amperage range allows

operator to accurately set amperage

on both 115 or 230 V primary power.

Inverter-based, DC power

source has a simple-to-use

operator interface providing

only the necessary controls in

a compact machine.

Quick

Specs

Maxstar®150 S with X-CASE™(#907 134-01-2) comes complete with:

Maxstar 150 S (Stick only)

10 ft (3 m) MVP power cord

MVP™plugs 5-15P (115 V, 15 A) and 6-50P (230 V, 50 A)

X-CASE™provides protection in transport and storage

13 ft (4 m) Stick electrode holder with 25 mm Dinse connector

10 ft (3 m) work clamp with 25 mm Dinse connector

Shoulder strap

Miller Electric Mfg. Co.

An Illinois Tool Works Company

1635 West Spencer Street

Appleton, WI 54914 USA

Web Site

www.MillerWelds.com

International Headquarters

Phone: 920-735-4505

USA FAX: 920-735-4134

Canadian FAX: 920-735-4169

International FAX: 920-735-4125

Power source is warranted for 3 years, parts and labor.

Original main power rectifiers are warranted for 5 years.

Auto-Line™provides state-of-the-art

flexibility to the end user. The

Auto-Line circuitry automatically

connects to 115–230 VAC, single-

phase power without removing the

covers to relink the power source.

No longer is there a concern if you

have the correct machine for the

shop or job site.

Adaptive Hot Start™for Stick arc

starts automatically increases the

output amperage at the start of a

weld should the start require it.

Prevents the electrode from

sticking and creating an inclusion.

Low OCV Stick is a simple design

that reduces the open-circuit

voltage to 12–16 volts when the

welding power source is not in use.

This circuit design is now built into

the Maxstar 150 S eliminating the

need for add-on voltage reducers.

Miller’s exclusive

multi-voltage

plug (MVP™)

allows connection

to 115 or 230 V

receptacles

without tools —

choose the plug that fits the receptacle

and connect it to the power cord.

Improved!

New Case and

MVP Plugs!

Designed Exclusively for

STICK WELDING

Power Source and Options Stock No. Description Qty. Price

Maxstar®150 S (only) #907 134 Single-phase, 115–230 VAC, 50/60 Hz, includes 13 ft (4 m) electrode holder,

10 ft (3 m) work clamp, shoulder strap, primary cord and MVP plugs

Maxstar®150 S with X-CASE™#907 134-01-2 Includes #907 134 plus carrying case

Accessories

X-CASE™(only) #300 184 Carrying case for Maxstar 150

Date: Total Quoted Price:

Ordering Information

Input

Power

115 VAC

15 A

115 VAC

20 A

230 VAC

Rated Output

70 A at 22.8 VDC,

100% Duty Cycle

70 A at 22.8 VDC,

100% Duty Cycle

100 A at 24.0 VDC,

35% Duty Cycle

100 A at 24.0 VDC,

100% Duty Cycle

150 A at 26.0 VDC,

30% Duty Cycle

Welding Amperage

Range

20–70 A

20–100 A

20–150 A

Max. Open-

Circuit Voltage

90, 12–16 V*

Weight

13.2 lb

(6.0 kg)

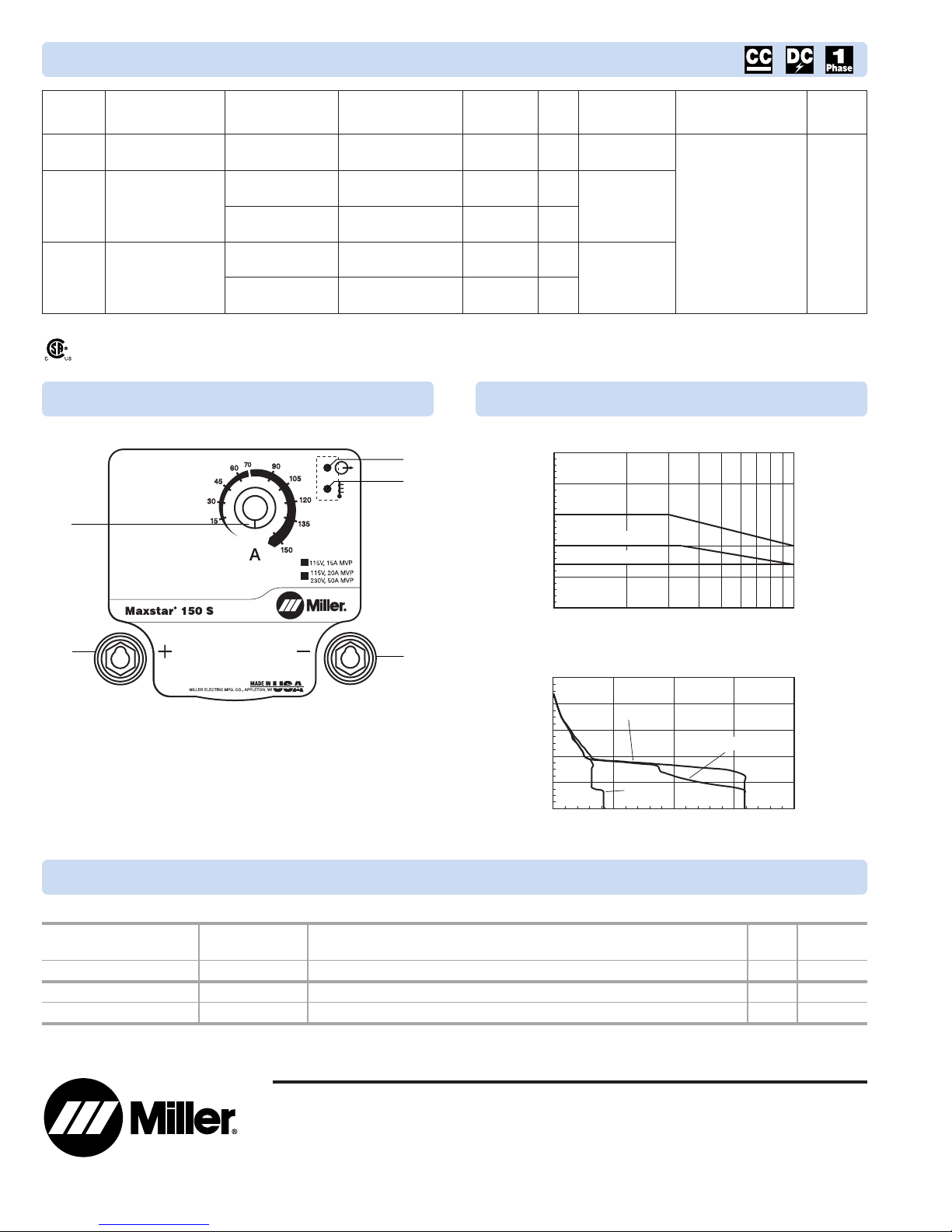

Specifications (Subject to change without notice.)

Control Panel

Amps Input at Rated

Output, 50/60 Hz

17.4

26.4

13.1

21.6

KVA at

Duty Cycle

2.0

3.0

4.9

1.9

3.0

2.8

4.7

Dimensions

H: 9 in (229 mm)

W: 5-1/2 in (140 mm)

D: 13-1/4 in (337 mm)

Certified by Canadian Standards Association to both Canadian and U.S. Standards.

1. Amperage Adjustment Control

2. Positive Weld Output Receptacle

3. Ready Light

4. Overtemperature Light

5. Negative Weld Output Receptacle

Performance Data

DUTY CYCLE CHART

VOLT/AMP CURVES

AMPS

VOLTS

10 20 30 40 50 60 70 80 90 100

0 50 100 150 200

100

230 V Stick

Max

115/230 V

Stick Min

115 V Stick Max

% DUTY CYCLE

OUTPUT AMPERES

100

150

200

250

Stick (230 V)

Stick (115 V 20 A)

Stick (115 V 15 A)

Litho in USA

Distributed by:

*Sense voltage for Stick.
