Processes

Lift-Arc™TIG (GTAW)

Stick (SMAW)

Input Power

1-Phase Power

Amperage Range 115 VAC: 5 – 150 A (DC TIG)

20 – 100 A (DC Stick)

230 VAC: 5 – 150 A (DC TIG)

20 – 150 A (DC Stick)

Max. Open-Circuit Voltage

Weight 13.7 lb (6.2 kg)

Light Industrial Applications

Process Piping

Dairy Industry

Food/Beverage Industry

Restaurant/Kitchen Repair

Experimental Aircraft

Shipboard Installation/Repair

Maintenance Repair

Maxstar®150 STL TIG/Stick Welding

Power Source

Issued February 2008 • Index No. DC/27.1

The Power of Blue®

Portable in the shop or at the job

site — at 13.7 lb the shoulder strap

allows the end user to easily move

from location to location.

Full function remote control for

precise amperage control for critical

welds on thin materials (6-pin fingertip

or foot control available.) Fan-On-Demand™power source

cooling system operates only when

needed, reducing noise, energy use

and the amount of contaminants

pulled through the machine.

Inverter-based, DC power source has

a simple-to-use operator interface

providing only the necessary

controls in a compact machine.

Lift-Arc™start provides TIG arc starting

without the use of high frequency.

Thermal overload protection with

indicator light helps prevent machine

damage if the duty cycle is exceeded

or airflow is blocked.

Single amperage range allows

operator to accurately set amperage

on both 115 or 230 V primary power.

Quick

Specs

Miller Electric Mfg. Co.

An Illinois Tool Works Company

1635 West Spencer Street

Appleton, WI 54914 USA

Web Site

www.MillerWelds.com

International Headquarters

Phone: 920-735-4505

USA FAX: 920-735-4134

Canadian FAX: 920-735-4169

International FAX: 920-735-4125

Power source is warranted for 3 years, parts and labor.

Original main power rectifiers are warranted for 5 years.

Adaptive Hot Start™for Stick arc

starts automatically increases the

output amperage at the start of a

weld should the start require it.

Prevents the electrode from

sticking and creating an inclusion.

Low OCV Stick is a simple design

that reduces the open-circuit

voltage to 12–16 V when the

welding power source is not in use.

This circuit design is now built into

the Maxstar 150 STL eliminating

the need for add-on voltage reducers.

Built-in gas solenoid eliminates the

need for bulky torch with a gas valve.

Auto-Line™provides state-of-the-art

flexibility to the end user. The Auto-

Line circuitry automatically connects

to 115–230 VAC, single-phase power

without removing the covers to relink

the power source. No longer is there

a concern if you have the correct

machine for the shop or job site.

Miller’s exclusive

multi-voltage plug

(MVP™) allows

connection to 115

or 230 V receptacles

without tools —

choose the plug that fits the receptacle

and connect it to the power cord.

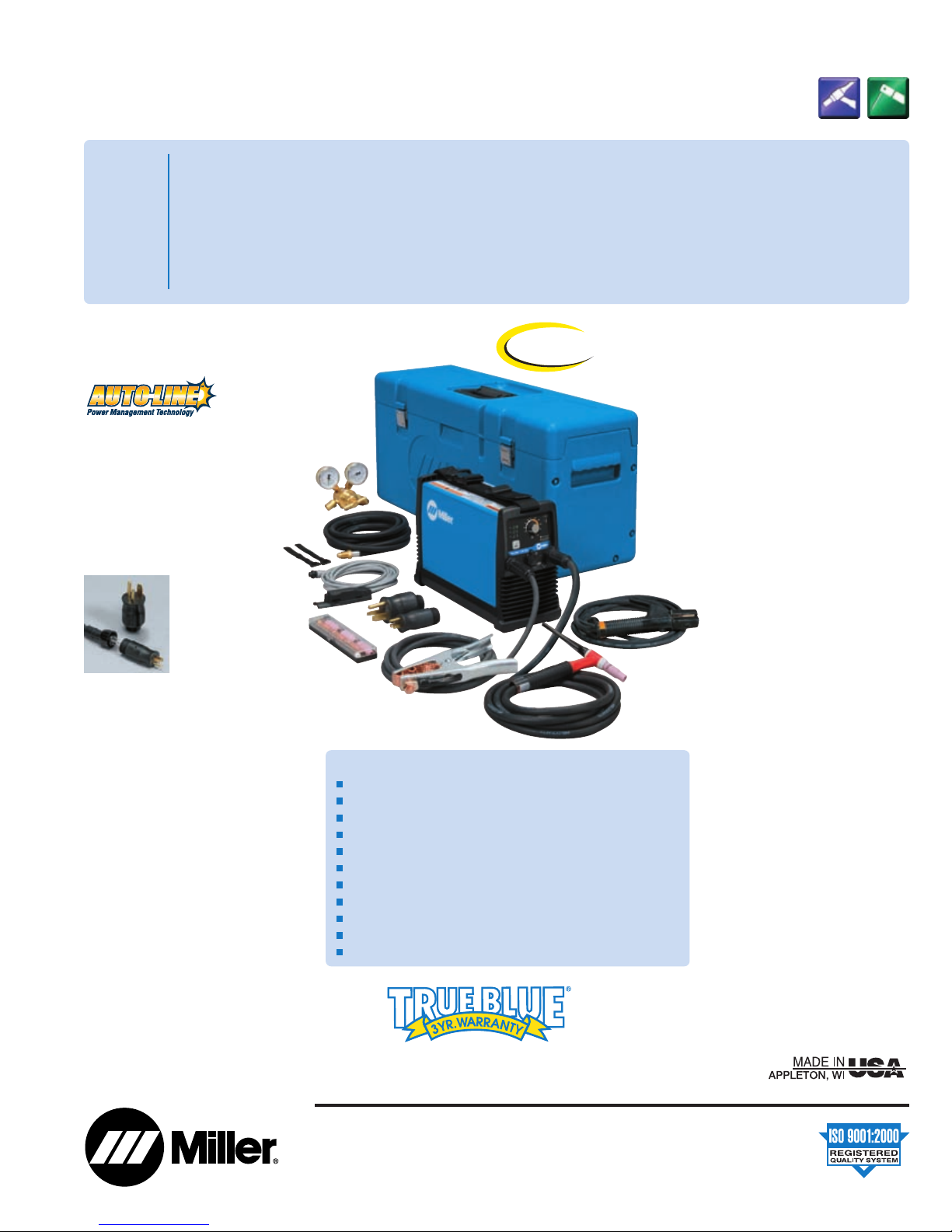

TIG/Stick Package (#907 135-01-7) comes complete with:

Maxstar 150 STL

10 ft (3 m) MVP™power cord

MVP™plugs 5-15P (115 V, 15 A) and 6-50P (230 V, 50 A)

X-CASE™provides protection in transport and storage

Remote fingertip control

Weldcraft®WP1712RD125 TIG torch with adapter

13 ft (4 m) Stick electrode holder with 25 mm Dinse connector

10 ft (3 m) work clamp with 25 mm Dinse connector

Smith®regulator with gas hose

AK-2C accessory kit

Shoulder strap

Best in class Stick arc character-

istics for those demanding jobs.

Power Factor Corrected (PFC) for

optimum performance especially

on 115 V — reduces nuisance

breaker tripping.

Improved!

New Case and

MVP Plugs!

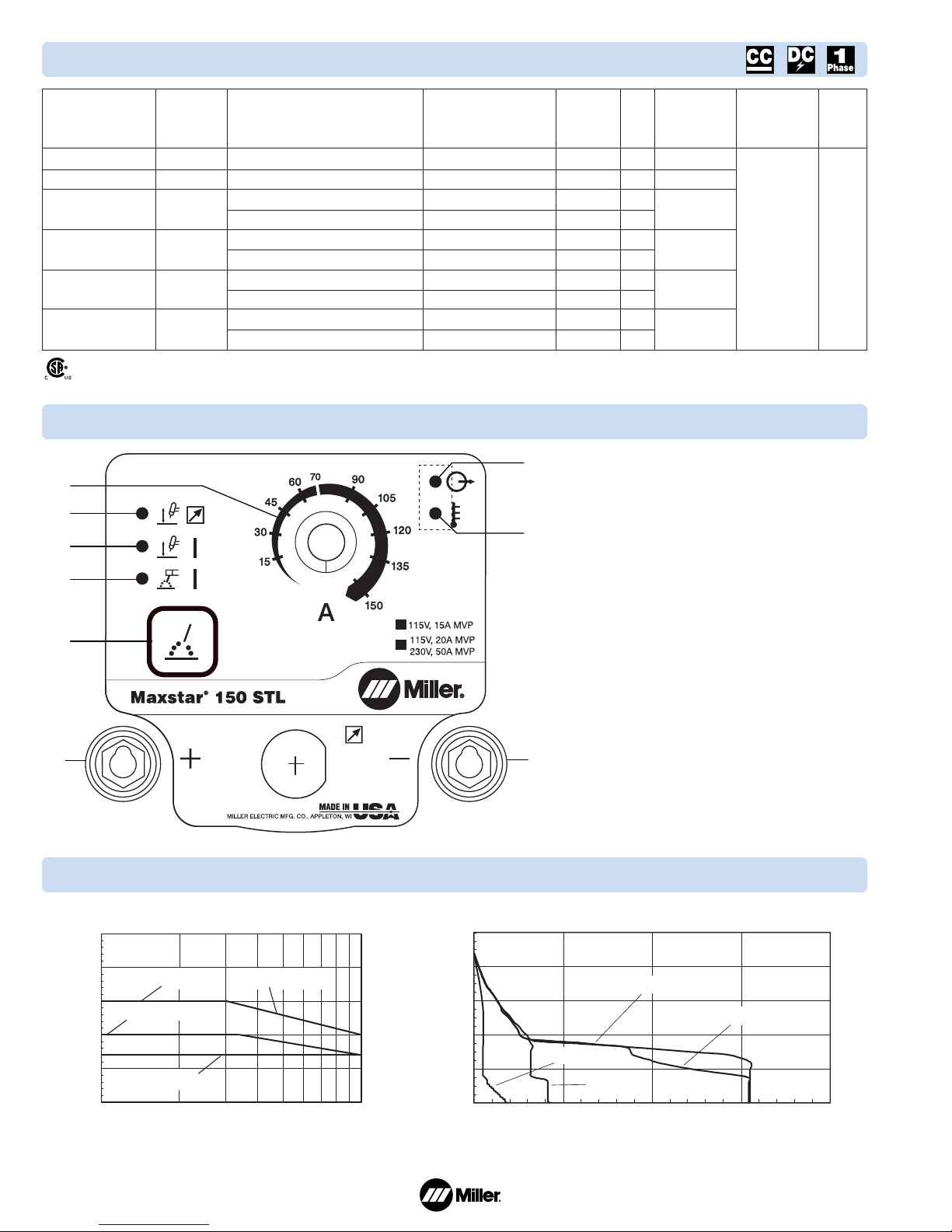

1. Amperage Adjustment Control

2. Remote TIG Selector Light

3. TIG Selector Light

4. Stick Selector Light

5. Process Selector Touch Pad

6. Positive Weld Output Receptacle

7. Ready Light

8. Overtemperature Light

9. Negative Weld Output Receptacle

with Flow Thru

Control Panel

Performance Data

Specifications (Subject to change without notice.)

*Sense voltage for Stick and Lift-Arc TIG.

Certified by Canadian Standards Association to both Canadian and U.S. Standards.

VOLT/AMP CURVES

AMPS

VOLTS

100

0 50 100 150 200

115 V TIG/Stick Max

230 V TIG/Stick Max

TIG Min

Stick Min

DUTY CYCLE CHART

10 20 40 60 80 100

% DUTY CYCLE

OUTPUT AMPERES

100

150

200

250

Stick (230 V)

Stick (115 V 20 A)

TIG/Stick (115 V 15 A)

TIG (115 V 20 A & 230 V)

Input Power

115 VAC Stick 15 A

115 VAC TIG 15 A

115 VAC Stick 20 A

115 VAC TIG 20 A

230 VAC Stick

230 VAC TIG

Rated Welding Output

70 A at 22.8 VDC, 100% Duty Cycle

100 A at 14.0 VDC, 100% Duty Cycle

70 A at 22.8 VDC, 100% Duty Cycle

100 A at 24.0 VDC, 35% Duty Cycle

100 A at 14.0 VDC, 100% Duty Cycle

150 A at 16.0 VDC, 30% Duty Cycle

100 A at 24.0 VDC, 100% Duty Cycle

150 A at 26.0 VDC, 30% Duty Cycle

100 A at 14.0 VDC, 100% Duty Cycle

150 A at 16.0 VDC, 30% Duty Cycle

Welding

Amperage

Range

20 –70 A

5–100 A

20–100 A

5–150 A

20–150 A

5–150 A

Max. Open-

Circuit Voltage

90, 12–16 V*

Weight

13.7 lb

(6.2 kg)

Amps Input at

Rated Output, 50/60 Hz

17.4

18.4

17.4

26.4

18.4

28.0

13.1

21.6

8.3

14.2

KVA at

Duty Cycle

2.0

2.1

2.0

3.0

2.1

3.4

3.0

4.9

2.0

3.2

1.9

2.1

1.9

3.0

2.1

3.1

2.8

4.7

1.9

3.1

Dimensions

H: 9 in

(229 mm)

W: 5-1/2 in

(140 mm)

D: 13-1/4 in

(337 mm)

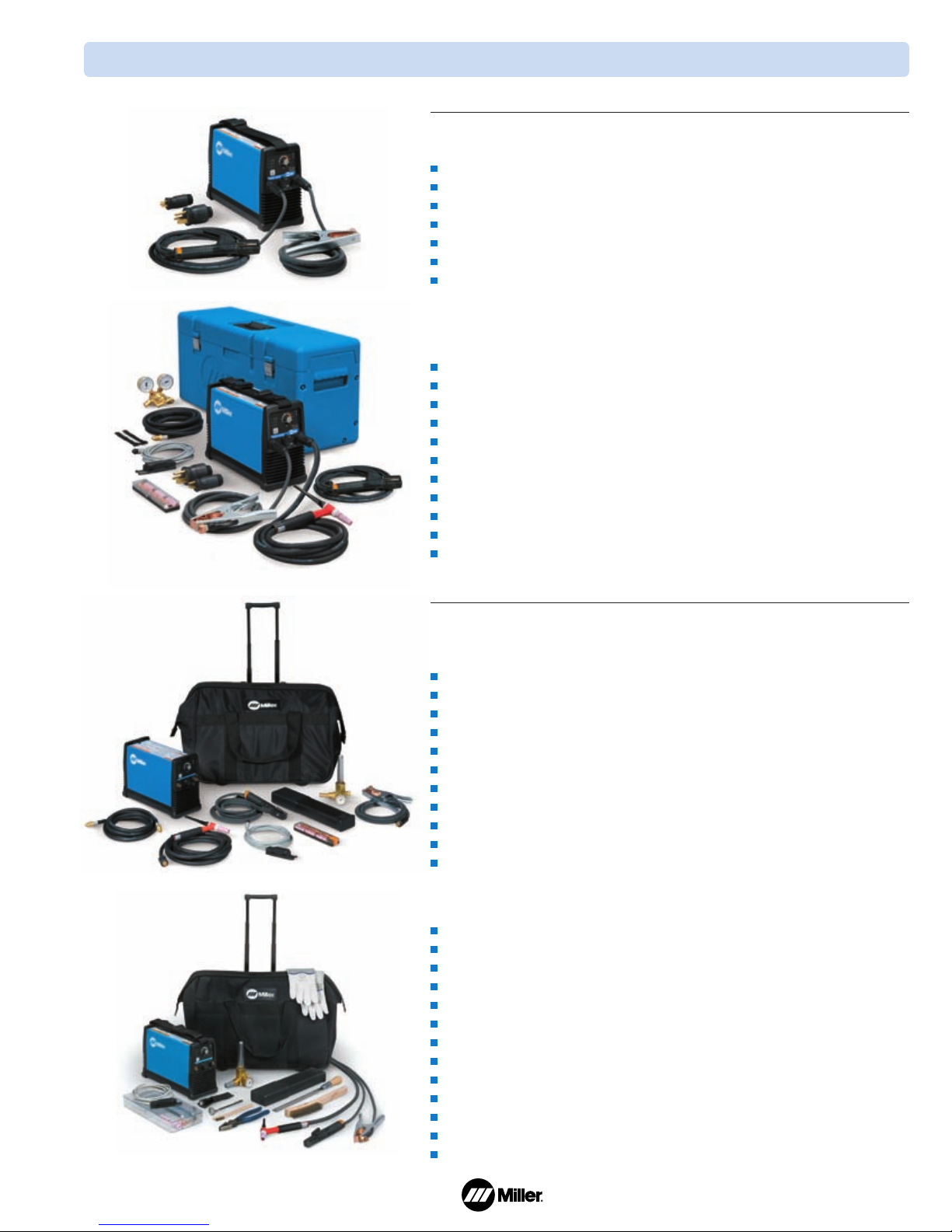

Maxstar®150 STL Packages

Packages

Standard Package #907 135

Package includes:

Maxstar 150 STL

10 ft (3 m) MVP™power cord

MVP™plugs 5-15P (115 V, 15 A) and 6-50P (230 V, 50 A)

13 ft (4 m) Stick electrode holder with 25 mm Dinse connector

10 ft (3 m) work clamp with 25 mm Dinse connector

International flow-thru adapter

Shoulder strap

TIG/Stick Package #907 135-01-6

TIG/Stick Package with Remote Fingertip Control #907 135-01-7

Package includes:

Maxstar 150 STL

Remote fingertip control (#195 184) (#907 135-01-7 Package only)

10 ft (3 m) MVP™power cord

MVP™plugs 5-15P (115 V, 15 A) and 6-50P (230 V, 50 A)

X-CASE™— provides protection in transport and storage

Weldcraft®WP1712RD125 TIG torch with adapter

13 ft (4 m) Stick electrode holder with 25 mm Dinse connector

10 ft (3 m) work clamp with 25 mm Dinse connector

Smith®regulator with gas hose

AK-2C accessory kit

Shoulder strap

Maxstar Travel Paks™

Travel Pak™with Accessories #907 135-01-5

Travel Pak™with Remote Control and Accessories #907 135-01-4

Package includes:

Maxstar 150 STL

Remote fingertip control (#195 184) (#907 135-01-4 Package only)

10 ft (3 m) MVP™power cord

MVP™plugs 5-15P (115 V, 15 A) and 6-50P (230 V, 50 A)

Softside travel case with wheels, telescoping handle and carrying straps

Weldcraft®WP1712RD125 TIG torch with adapter

13 ft (4 m) Stick electrode holder with 25 mm Dinse connector

10 ft (3 m) work clamp with 25 mm Dinse connector

Smith®regulator with gas hose

AK-2C accessory kit and Stick electrode box

Shoulder strap

Travel Pak™with Remote Control, Accessories and Hand Tools #907 135-01-3

Package includes:

Maxstar 150 STL

Remote fingertip control (#195 184)

10 ft (3 m) MVP™power cord

MVP™plugs 5-15P (115 V, 15 A) and 6-50P (230 V, 50 A)

Softside travel case with wheels, telescoping handle and carrying straps

Weldcraft®WP1712RD125 TIG torch with adapter

13 ft (4 m) Stick electrode holder with 25 mm Dinse connector

10 ft (3 m) work clamp with 25 mm Dinse connector

Smith®regulator with gas hose

AK-2C accessory kit and stick electrode box

Shoulder strap

Kline 9-in side cutter, Nicholson 10-in half-round file, and Weiler SS brushes

Mini MagLite flashlight, and 1-in diameter inspection mirror

Litho in USA

Distributed by:

Ordering Information

Power Source and Options Stock No. Description Qty. Price

Maxstar®150 STL Standard Package #907 135 Maxstar 150 STL with electrode holder, work clamp, and MVP cord and plugs

Maxstar®STL TIG/Stick Package #907 135-01-6 Includes #907 135 PLUS X-CASE™, TIG torch, gas regulator with hose, and

AK-2C accessory kit

#907 135-01-7 Includes #907 135-01-6 PLUS remote fingertip control

Maxstar®150 STL Travel Pak™#907 135-01-5 Includes #907 135 PLUS Travel Pak™case, TIG torch, gas regulator with hose,

and AK-2C accessory kit

#907 135-01-4 Includes #907 135-01-5 PLUS remote fingertip control

#907 135-01-3 Includes #907 135-01-4 PLUS side cutter, file, brushes, and flashlight

Accessories

X-CASE™(only) #300 184 Carrying case for Maxstar 150 STL

Travel Pak™Case (only) #300 249 Softside travel case with wheels, telescoping handle and carrying straps

RCCS-6M #195 184 13.25 ft (4 m) remote fingertip control

#195 503 26.5 ft (8 m), remote fingertip control

RMS-6M #195 269 26.5 ft (8 m) remote on/off control

RFCS-6M #195 183 13.25 ft (4 m) remote foot control

#195 504 20 ft (6 m) remote foot control

Weldcraft TIG Torch See Accessories section above

International-Style Flow Thru Adapter #195 234 25 mm adapter for TIG torch connection

Adapter Cord, Full KVA #300 158 Adapts engine drive 120/240 V plug to Maxstar 240 V plug

MVP™Adapter Plugs See Accessories section above

Date: Total Quoted Price:

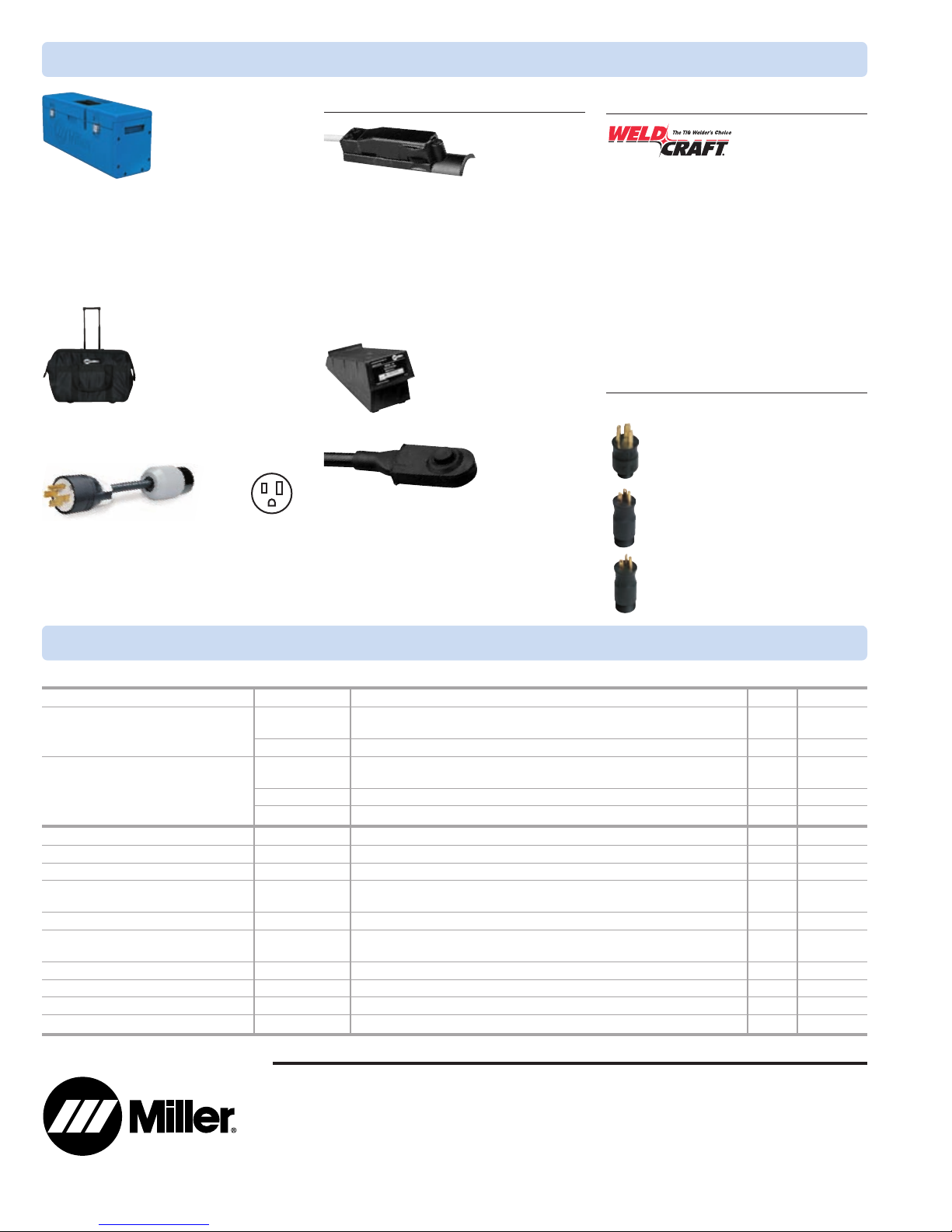

X-CASE™#300 184

Sturdy case provides

ultimate protection for

transport and storage.

Also features

convenient top carrying handle and side

recessed hand grips. Store the Maxstar 150,

accessories and gear in this generous case

to be ready to go at any time. Dimensions:

13 in H x 10-1/2 in W x 30-5/8 in D

(330 x 267 x 778 mm).

Travel Pak™Case

#300 249

If you are already using

the Maxstar 150 and

want the portability and

convenience to take

everything you need — purchase the bag

and customize with your own tools.

Adapter Cord, Full KVA #300 158 Field

NEMA 14-50P to NEMA 6-50R. Adapts

engine drive 120/240 V plug to Maxstar

240 V plug.

Remote Controls

RCCS-6M (6-pin plug)

#195 184 13.25 ft (4 m) cord

#195 503 26.5 ft (8 m) cord

North/south rotary-motion fingertip

current/contactor control fastens to TIG

torch using two Velcro®straps. Great for

applications that require a finer amperage

control. Includes cord and plug.

RFCS-6M (6-pin plug)

#195 183 13.25 ft (4 m) cord

#195 504 20 ft (6 m) cord

Foot pedal current/contactor

control. Includes cord and plug.

RMS-6M (6-pin plug) #195 269

Momentary-contact switch for contactor

control. Rubber-covered pushbutton

dome switch ideal for repetitive on-off

applications. Includes 26.5 ft (8 m) cord

and plug.

TIG (GTAW) Torch Packages

The Weldcraft line

of TIG torches

complements the most popular TIG power

source line available today. The Weldcraft

torch line includes both air-cooled and

water-cooled models. Available with genuine

Weldcraft parts.

Air-Cooled Torches

#WP1712RDI25

150 A, 12 ft (3.7 m)

air-cooled torch with flow-thru adapter

#WP1725RDI25

150 A, 25 ft (7.6 m)

air-cooled torch with flow-thru adapter

MVP™Adapter Plugs

Order from Miller Service Parts.

#219 258 For Power Cable 6-50P

(230 V/50 A). Included with machine.

#219 261 For Power Cable 5-15P

(115 V/15 A). Included with machine.

#219 259 For Power Cable 5-20P

(115 V/20 A). Optional.

Genuine Miller Accessories

Female

Receptacle

Inhaltsverzeichnis

Andere Miller Electric Schweißsystem Handbücher

Miller Electric

Miller Electric Digi-Meter RMS (AC-DC) Bedienungsanleitung

Miller Electric

Miller Electric DS-75D16 Swingarc Bedienungsanleitung

Miller Electric

Miller Electric MT-18-12 Bedienungsanleitung

Miller Electric

Miller Electric DU-OP Bedienungsanleitung

Miller Electric

Miller Electric GPS-1000 Bedienungsanleitung

Miller Electric

Miller Electric Big 40 WG Bedienungsanleitung

Miller Electric

Miller Electric Dynasty 700 Bedienungsanleitung

Miller Electric

Miller Electric Maxstar 200 STR Bedienungsanleitung

Miller Electric

Miller Electric Legend 301 G Bedienungsanleitung

Miller Electric

Miller Electric Spectrum 875 Auto-Line Bedienungsanleitung

Miller Electric

Miller Electric RCCS-RJ Bedienungsanleitung

Miller Electric

Miller Electric MT-24-12-1 Bedienungsanleitung

Miller Electric

Miller Electric 456 CC Bedienungsanleitung

Miller Electric

Miller Electric STARFIRE 1 Bedienungsanleitung

Miller Electric

Miller Electric SuitCase X-TREME 8VS WCC Bedienungsanleitung

Miller Electric

Miller Electric SuitCase X-TREME 8 OS Bedienungsanleitung

Miller Electric

Miller Electric Legend AEAD-200LE Bedienungsanleitung

Miller Electric

Miller Electric Millermatic Premium Running Gear 300 416 Bedienungsanleitung

Miller Electric

Miller Electric AUTO ARC MW 4230 Bedienungsanleitung

Miller Electric

Miller Electric MARK VI Bedienungsanleitung

Miller Electric

Miller Electric Delta-Fab Bedienungsanleitung

Miller Electric

Miller Electric PRO 300 CAT Bedienungsanleitung

Miller Electric

Miller Electric MOG-300 Bedienungsanleitung

Miller Electric

Miller Electric Coolmate Coolmate 4 Bedienungsanleitung

Beliebte Schweißsystem Handbücher anderer Marken

Berner

Berner PLASMACUT 54 Bedienungsanleitung

Pro Spot

Pro Spot PR-155 Bedienungsanleitung

Forney

Forney 210 Bedienungsanleitung

Thermal Arc

Thermal Arc 400S Bedienungsanleitung

Lincoln Electric

Lincoln Electric HANDYMIG 170I Bedienungsanleitung

GYS

GYS PROTIG 201 AC/DC Bedienungsanleitung

TAFA

TAFA 30*8B35 Bedienungsanleitung

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Bedienungsanleitung

ESAB

ESAB Buddy Arc 145 Bedienungsanleitung

CIGWELD

CIGWELD 636804 Kurzanleitung

Red-D-Arc

Red-D-Arc DC-400 Bedienungsanleitung

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Bedienungsanleitung

Elettro

Elettro HI-MIG 3000 SYNERGIC Bedienungsanleitung

WIA

WIA Weldmatic 270 CP132-2 Bedienungsanleitung

Sonics

Sonics H520T Bedienungsanleitung

Miller

Miller Big Blue 400D Bedienungsanleitung

NewArc

NewArc RT2000 Kurzanleitung

Hypertherm

Hypertherm powermax1000 Bedienungsanleitung
