Metal detecting is a fascinating and

rewarding activity enjoyed by people

all over the world. By getting to know

your CTX 3030 you can become one of

the many successful detectorists who

combine their passion for the outdoors

with the excitement of discovering

valuable coins, relics, gold and jewellery

on a regular basis.

CTX 3030 is Minelab’s most

technologically advanced detector,

incorporating the unique Full Band

Spectrum 2 (FBS 2) Technology. Its sleek,

sturdy design, innovative control panel,

clear LCD, robust lightweight coil and

comprehensive targeting options set it

apart from any other detector available

today. The Wireless Audio Receiver

Module (WARM) facilitates the use of

wireless speaker or headphones.

Congratulations on purchasing

your Minelab

metal detector!

CTX 3030 also allows you to download

and upload CTX 3030 settings, User

Modes and Discrimination Patterns using

your own Personal Computer (PC).

CTX 3030 will locate valuable metal

objects in a variety of mineralized ground

conditions, including extremely salty

soils, sea water, wet beach sand and

highly magnetic ground conditions. New

functionality allows you to customise your

CTX 3030 to your specic requirements.

This manual is designed to help both

the beginner and expert treasure hunter

obtain the best performance with their

CTX 3030.

Minelab wishes you every success with

your CTX 3030!

2Contents

Item Number: 4901-xxxx

Revision: 0.1

Contents ................................................................................................2

Detector Parts .......................................................................................4

Assembly ...............................................................................................5

Attach the Coil to the Lower Shaft ....................................................................5

Attach the Lower Shaft to the Chassis .............................................................6

Attach the Control Box ...........................................................................................6

Attach the Armrest ...................................................................................................7

Attach the Headphones .........................................................................................7

Disconnect the Coil ..................................................................................................7

Adjust the Detector for Comfortable Detecting ............................8

Holding the Detector ..............................................................................................8

Adjust the Armrest Strap........................................................................................8

Adjust the Position of the Armrest .....................................................................8

Adjust the Length of the Shafts ..........................................................................9

Adjust the Angle of the Coil ..............................................................................10

Battery Packs ..................................................................................... 11

Insert the Battery Pack into the Battery Compartment .........................11

Remove the Battery Pack from the Battery Compartment ..................12

Recharge the Li-Ion Battery Pack with the BC 10 Battery Charger ...12

Recharge the Li-ion Battery Pack with the Car Charger ........................13

Replace the ‘AA’ Batteries .................................................................................... 14

Turn On and Go ................................................................................. 15

Power Button ...........................................................................................................15

Compliance Information .................................................................. 16

Information to the User

(FCC Part 15.105) ................................................................................................... 16

Detector Parts

Headphones Module

Velcro Strap

Armrest

Armrest Lock

Handle

Control Pod

USB Connector

Lower Shaft

Yoke

Coil

Battery Cover/

Compartment

Latches

Control Box

Bulkhead

Control Box

WARM

Chassis

Chassis Cam Lock

Coil Connector

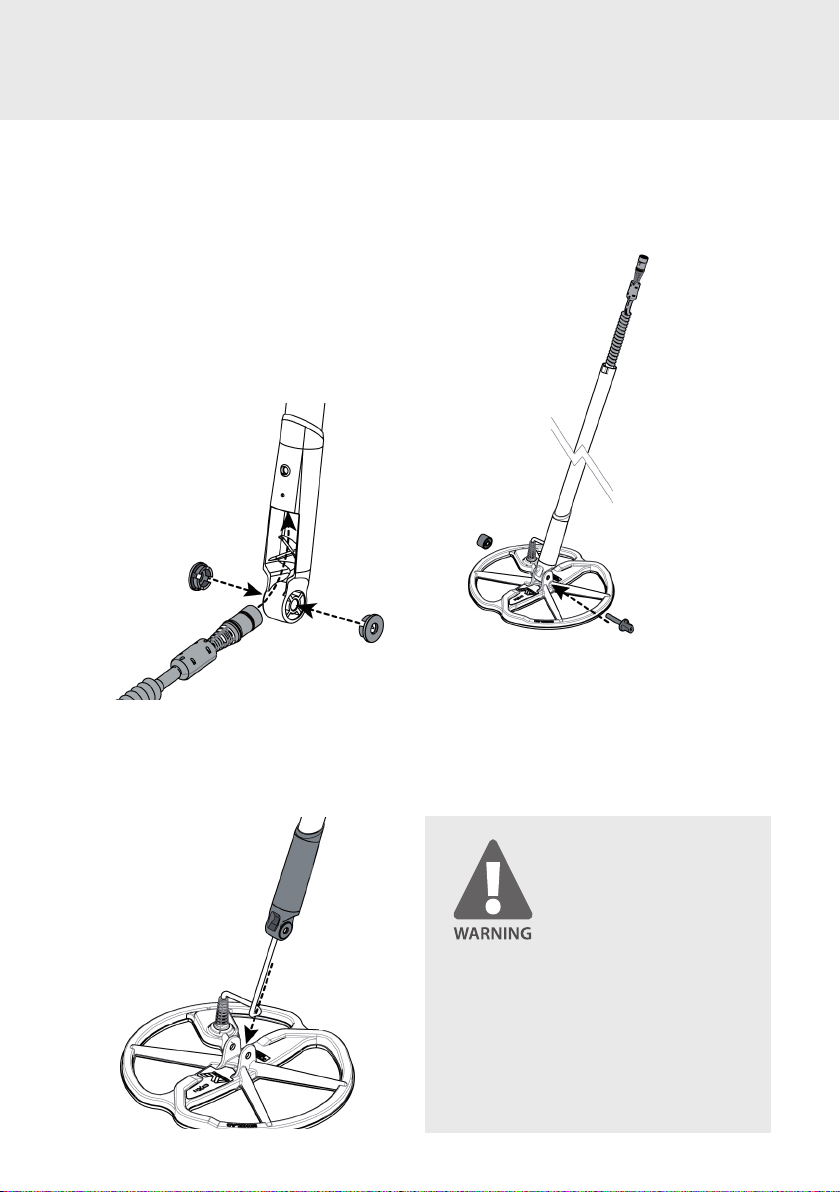

Attach the Coil to the Lower Shaft

1. Remove the nut, bolt and washers from

the coil.

2. Plug the two rubber washers into the

holes on either side of the lower shaft.

3. Feed the coil cable up through the inside

of the lower shaft until it appears at the

top of the lower shaft.

4. Place the coil on a at surface and slide

the lower shaft into the bracket on top of

the coil. Ensure that the open side of the

lower shaft faces the ground.

Assembly

5. Insert the bolt through the lower shaft

and the bracket on top of the coil.

6. Fasten with the nut provided, taking

care not to damage the thread of the

nut by over-tightening. This will need to

be loosened later to adjust the coil to a

comfortable detecting angle (x-ref ).

PINCH POINTS - CONTROL BOX. Take

care when sliding the control box onto

the chassis and when operating the

control box clip.

The coil cable is directly wired into the

coil and is not removable.

Attach the Lower Shaft to the

Chassis

1. Release the chassis cam lock by pulling

the lever away from the shaft.

2. Feed the coil cable up through the inside

of the chassis ensuring the cam lock side

of the shaft is facing the ground and that

the key stop on the lower shaft is rotated

90° to the chassis.

3. Slide the chassis over the lower shaft

until the coil cable and key stop appear

at the top. Rotate the lower shaft 90°

so that the key stop points downwards.

4. Lock the chassis cam lock by pushing the

lever towards the shaft

Attach the Control Box

1. Ensure the latches on the control box are

released and place the battery pack into

the cover. Position the battery cover onto

the control box and lock the latches to

secure.

2. Fit the headphone module onto the

control box. Use a screwdriver or coin

to tighten the bolt taking care not to

damage the thread by over-tightening.

3. Slide the control box partly onto the

chassis. Attach the coil cable and user

interface (UI) cable to their respective

connectors, and rmly tighten the

retaining rings.

4. Slide the control box further along the

chassis until it locks into place. Beware of

pinch points when sliding the control box

into place.

Attach the Armrest

1. Thread the Velcro strap through the

armrest, with the Velcro side facing up.

2. Slide the armrest onto the rail on top of

the chassis. Ensure that the sloping sides

of the armrest face toward the control

panel.

3. Turn the armrest lock clockwise to fasten

the armrest in the desired position.

NOTE

To t a smaller arm, the Velcro strap can be

tted upside down and passed through the

armrest three times.

Attach the Headphones

1. Plug the headphone jack into the

headphone module located above the

battery compartment. The headphones

may be plugged or unplugged at any

time.

Disconnect the Coil

1. Reverse the steps in ‘Attach the Control

Box’, ‘Attach the Lower Shaft to the

Chassis’ and ‘Attach the Coil to the Lower

Shaft’.

2. Pull the coil cable out from inside the

lower shaft.

Do not attempt to completely remove

the shaft assembly while the coil cable is

still connected to the control box.

Adjust the Detector for

Comfortable Detecting

For comfortable detecting it is important

to take the time to adjust the detector

correctly.

Holding the Detector

Thread your arm through the armrest and

strap. Grasp the handle of the detector

and rest your forearm in the armrest.

The correct position of the armrest should

allow you to comfortably grip the handle.

Your elbow should sit just above the back

of the armrest and the detector should

feel like an extension of your forearm.

Adjust the Armrest Strap

1. Loosen the Velcro strap by lifting the top

edge.

2. Tighten the strap until your arm is secure

in the armrest.

3. Re-attach the Velcro.

Adjust the Position of the Armrest

1. Turn the armrest lock counter-clockwise

to realease the armrest.

2. Hold the detector and slide the armrest

up or down the rail until it is positioned

just below your elbow.

3. Remove your arm from and turn the

armrest lock clockwise to lock it into

position.

Adjust the Length of the Shafts

The lower shaft can be adjusted to any

length between fully extended and fully

retracted.

1. Adjust the lower shaft to the correct

length and secure the cam lock to hold it

in place.

A correct shaft length will allow you to

swing the coil over the ground without

uncomfortably stretching or stooping.

If the coil is too far from your body it will

be dicult to balance and manoeuvre

while detecting.

If the coil is too close to your body it may

detect your digging tools or any other

metal which you are carrying, causing

confusing sounds.

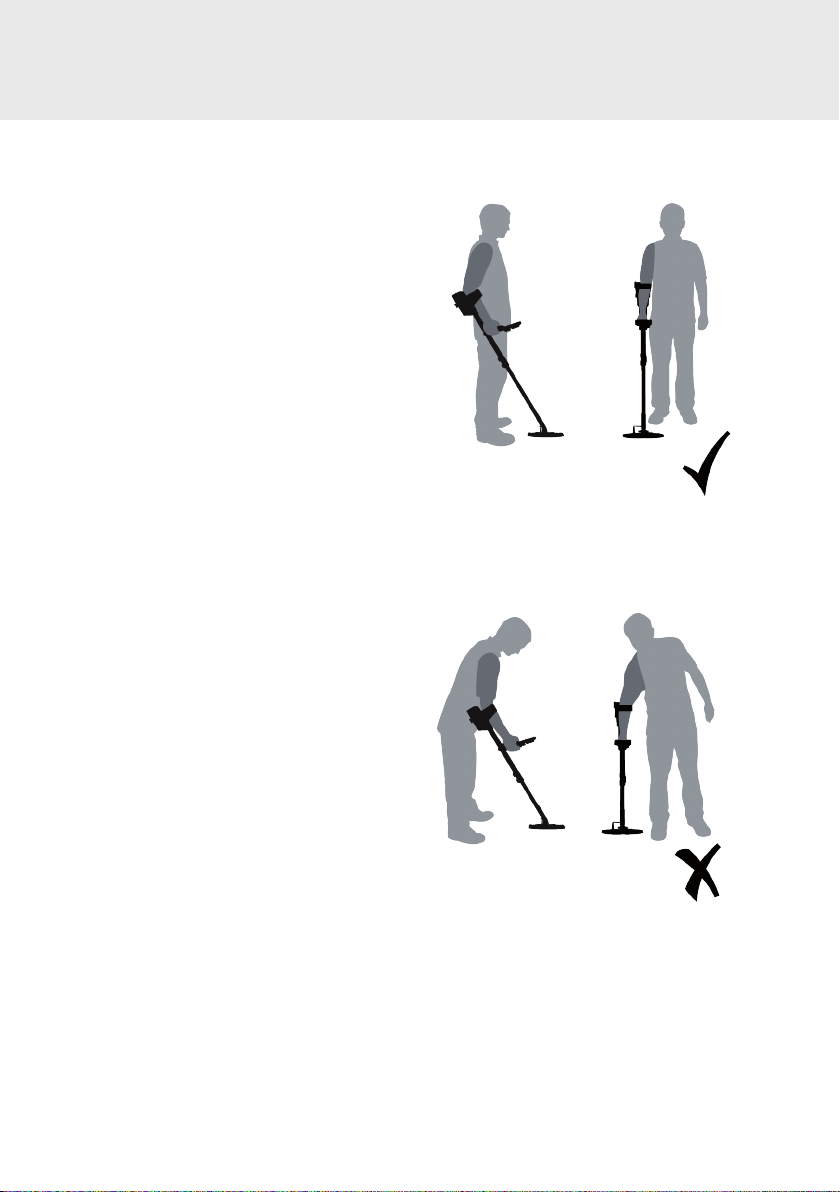

Shaft is the correct

length

Shaft is too short

Adjust the Angle of the Coil

1. Loosen the bolt that connects the lower

shaft to the coil. It should be loose

enough to allow the coil to be moved for

adjustment, but tight enough that the

coil can hold its position.

2. While holding the detector as if detecting,

lightly press the coil to the ground until it

sits at/parallel with the ground. The coil

should remain parallel when lifting to the

sweep height, approximately 25mm (1”)

above the ground.

3. Tighten the bolt, taking care not over-

tighten it.

The CTX 3030 is supplied with two types

of battery pack:

1. A replaceable cell pack, which accepts

eight AA batteries including alkaline

and rechargeable NiCd or NiMH

batteries. The batteries are packed

into a cage, which is inserted into

the battery cover. The detector will

operate for a minimum of seven hours

using an alkaline battery pack.

2. A sealed rechargeable Li-Ion smart

battery, which comes with a charger

that plugs into a conventional wall

socket. This battery pack is supplied

discharged and needs to be charged

for 18 hours before operating the

detector. The detector will operate for

a minimum of eight hours using the

Li-Ion battery pack.

NOTE

Since there may be a variety of options

available for this detector, equipment

may vary according to the model or

items ordered with your detector. Certain

descriptions and illustrations may also dier

(in this manual) from the exact model you

purchased.

Battery Packs

Insert the Battery Pack into the

Battery Compartment

1. Ensure latches on the control box

bulkhead are released and clear of the

battery slot.

2. Insert the battery pack into the battery

cover.

3. Gently push the battery cover onto

the control box bulkhead and close

the latches to secure the battery

compartment.

NOTE

Batteries are NOT waterproof except when

fully attached to the detector.

Do not attempt to disassemble the NiMH

or Li-ion battery packs.

If disposing of battery pack, do not

incinerate. Contact your local authorities

to enquire about disposal or recycling

facilities.

Andere Handbücher für CTX3030

Inhaltsverzeichnis

Andere Minelab Metalldetektor Handbücher

Minelab

Minelab Gold Monster 1000 Bedienungsanleitung

Minelab

Minelab EXPLORER II Bedienungsanleitung

Minelab

Minelab SD2100v2 Bedienungsanleitung

Minelab

Minelab Sovereign Elite Bedienungsanleitung

Minelab

Minelab GPX5000 Bedienungsanleitung

Minelab

Minelab Explorer SE Bedienungsanleitung

Minelab

Minelab Musketeer ADVANTAGE Bedienungsanleitung

Minelab

Minelab Excalibur 800 Bedienungsanleitung

Minelab

Minelab SD2200V2 Bedienungsanleitung

Minelab

Minelab Explorer SE Bedienungsanleitung

Minelab

Minelab X-Terra 70 Bedienungsanleitung

Minelab

Minelab X-Terra 305 Bedienungsanleitung

Minelab

Minelab GPX5000 Bedienungsanleitung

Minelab

Minelab Musketeer ADVANTAGE Bedienungsanleitung

Minelab

Minelab F3 COMPACT Metal Mine Bedienungsanleitung

Minelab

Minelab GP 3000 Bedienungsanleitung

Minelab

Minelab PRO-FIND Series Bedienungsanleitung

Minelab

Minelab GPX 6000 Bedienungsanleitung

Minelab

Minelab Quattro MP Bedienungsanleitung

Minelab

Minelab SDC 2300 Bedienungsanleitung

Minelab

Minelab GPX-4000 Bedienungsanleitung

Minelab

Minelab F1A4 Technische Daten

Minelab

Minelab Safari Bedienungsanleitung

Minelab

Minelab Explorer Bedienungsanleitung

Beliebte Metalldetektor Handbücher anderer Marken

Garrett

Garrett MAGNASCANNER CS 5000 Bedienungsanleitung

Valex

Valex 1800200 Bedienungsanleitung

Gauss

Gauss MIL MD Bedienungsanleitung

Velleman

Velleman CS130 Bedienungsanleitung

Sears

Sears 321.596370 Bedienungsanleitung

Eriez

Eriez X8 Bedienungsanleitung

Steinberg Systems

Steinberg Systems SBS-MD-22 Bedienungsanleitung

Zircon

Zircon MetalliScanner m60c Bedienungsanleitung

nalanda

nalanda MD027 Bedienungsanleitung

REV Ritter

REV Ritter CB-7005 Bedienungsanleitung

Fisher Research Labs

Fisher Research Labs F70 Bedienungsanleitung

Steinberg Systems

Steinberg Systems SBS-MD-12 Bedienungsanleitung

GOLDEN MASK

GOLDEN MASK 5 Bedienungsanleitung

Grizzly

Grizzly YM 203 Bedienungsanleitung

Fisher Research Labs

Fisher Research Labs 1280-X Aquanaut Bedienungsanleitung

Treasure Cove

Treasure Cove Vibra-Probe 560 Bedienungsanleitung

Accurate Locators

Accurate Locators XL16 IMAGER Bedienungsanleitung

Teknetics

Teknetics G2 Bedienungsanleitung
