3
1. Introduction
The RPM is an SNMP/Internet ready device designed to allow administrators to
remotely and locally control the AC power for up to eight connected devices, such as:
servers, routers, modems and telephone networks. With the expandable function of
allowing daisy chaining (cascading) of up to 16 client units, administrators can control a
total of 128 devices.
The RPM offers easy set up and user-friendly communication and control methods.
Most common connection of all is via the LAN using normal Ethernet connection. The
other option is to connect an external modem to the built in RS 232 port to allow dialing
up of the Internet. Once connected and properly set up, the administrator will be
notified of a web IP address and the administrator can manage the power of the
devices from anywhere in the world via the web browser.
The superiority of the RPM over other power management products is RPM gives you
control through a telephone (tone signals) with no need of a modem connection. Even
if the network locks up or Internet crashes, there is always a back up telephone control
option for administrators to control devices. With such powerful features,
administrators can be sure that they will always gain access to their devices no matter
where they are in the world.
4
2. RPM Package
The standard RPM package contains a Remote Power Manager Unit with supporting
hardware and software.
The contents of your package are:
Remote Power Manager Unit.
Rack mount Brackets.
1-AC Power Cord.
8-RJ-11 to RS232 NT Server Cables (RPM1609 only): For PC communication.
1-RJ-11 Cascade Cable: For RPM daisy chain and UPS connection.
1-CD.
The contents of the CD:
Quick Install Procedure.
SNMP Utility: Configure SNMP card’s IP address and upgrade firmware.
MIB files: dgpups.mib supports UPS, dgprpm.mib supports RPM, ENV, CPS and ATS.
Adobe Acrobat Reader.
User’s Manual for RPM and SNMP card.
5
3. Features
• Turn ON/OFF any AC powered device via network, phone or the front panel
control buttons.
• Integral 10/100Base-T Ethernet port for connection to your TCP/IP network.
• Support dial in by modem to control the AC power outlets.
• Address-Specific IP security masks prevent unauthorized source from
accessing the RPM menu through the network.
• Support NMS to control RPM by MIB. User also can use MIB to develop their
application interface.
• Download data and events log list to server.
• Daisy Chain expandable up to 16 units.
• Available in 115VAC and 230VAC models.
• When events occur, the RPM can notify user by email and trap according to
the pre-set conditions.
• Allows the user to configure the sequence in which power is turned on or off
for each outlet. This helps prevent in-rush currents at start-up, which can
cause overload conditions. Sequencing also allows the user to predetermine
which piece of equipment is turned on first, so that other equipment that is
dependant on that unit will function properly.
• Support Windows NT/2000 and XP to execute safe shutdown and reboot.
• Customize and schedule shutdowns and reboots.
• Supports temperature and humidity probe to monitor environmental
conditions.
6
4. Installation
Procedure
1. Install the mounting brackets.

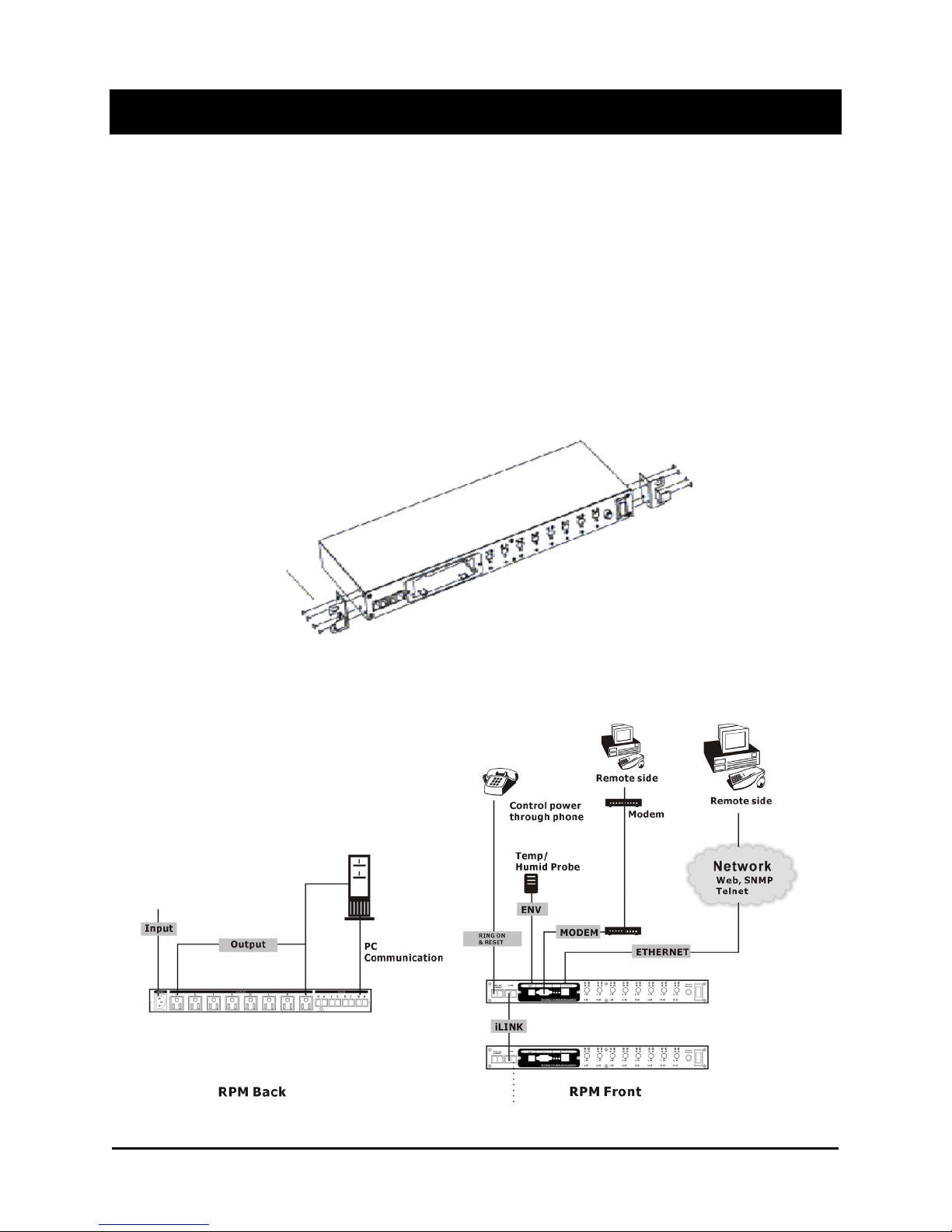

The RPM comes with brackets for mounting in a standard 19-inch rack. To
mount the RPM into a rack perform the following procedure:
• Attach the mounting brackets to the unit as shown, using the four
retaining screws provided for each of the brackets.
• Choose a location for the brackets. A notched hole on the vertical rail
denotes the middle of a U slot.
• Align the mounting holes of brackets with the notched hole on the vertical
rail and attach with the retaining screws.
2. Connect all input and output connectors.
3. Connect Ethernet cable to RPM.
7
4. Program the IP address. (See the SNMP-32 User’s Manual).
5. Set RPM’s front control buttons for Internet ready. (See the Outlook section for
the correct operation)
6. Use a browser to monitor and control the RPM.
7. For NT shutdown setup, use the RJ11 to RS322 NT Server cable to connect with
server and use the following instruction to configure control panel /UPS in
Windows OS.

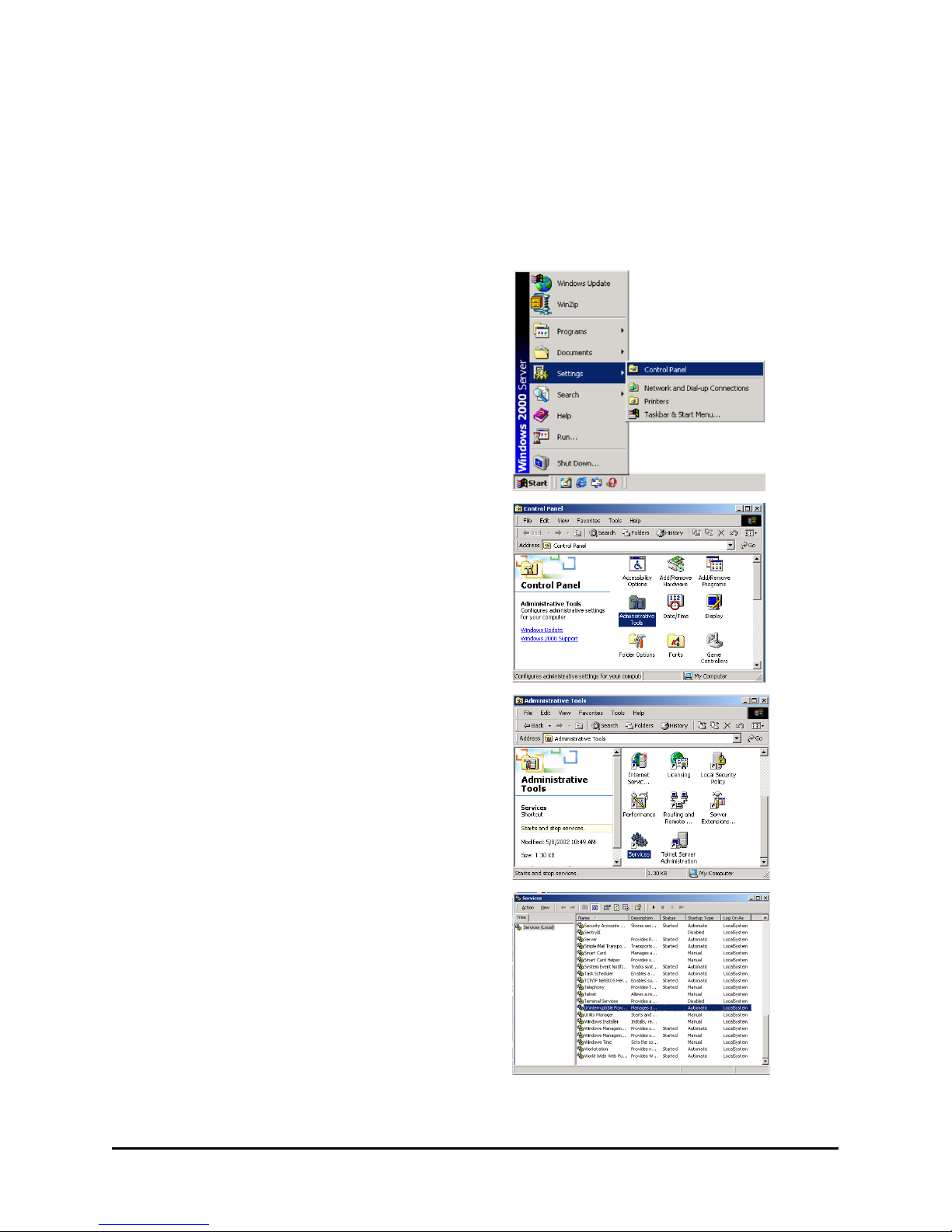

1. Open your Windows 2000 Control
Panel by clicking on “Start”, “Setting”,
“Control Panel”.
2. Double-click on the Control Panel’s
“Administrative Tools” icon.
3. Double-click the “Services” icon.
4. Double-click on the Uninterruptible
Power Supply service.
8

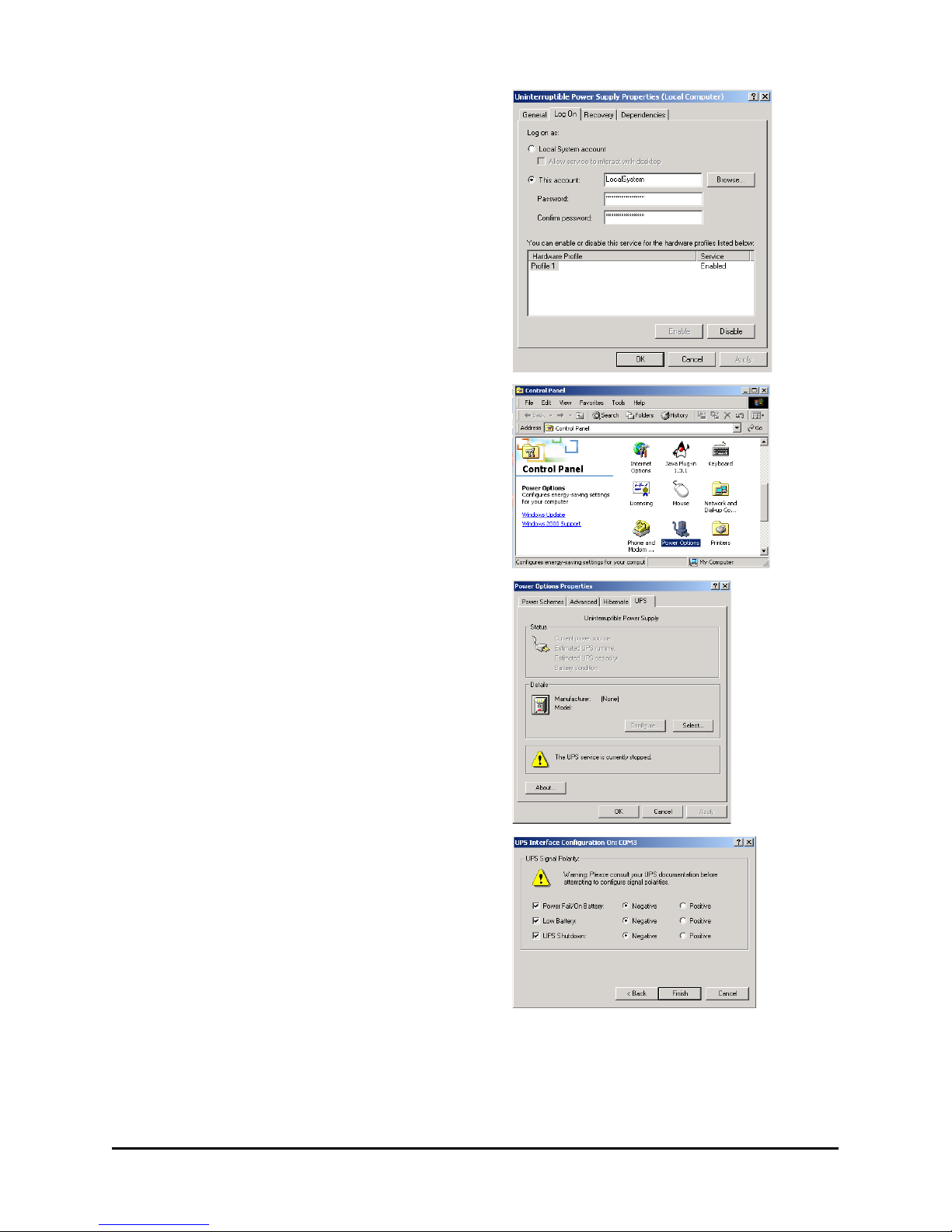

5. Select the “Log On As: This Account”
button, input the appropriate account
information, and then click “OK”.
6. Double-click on the Control Panel’s
“Power Options” icon.
7. Select the UPS page, and then click on
“Select”.

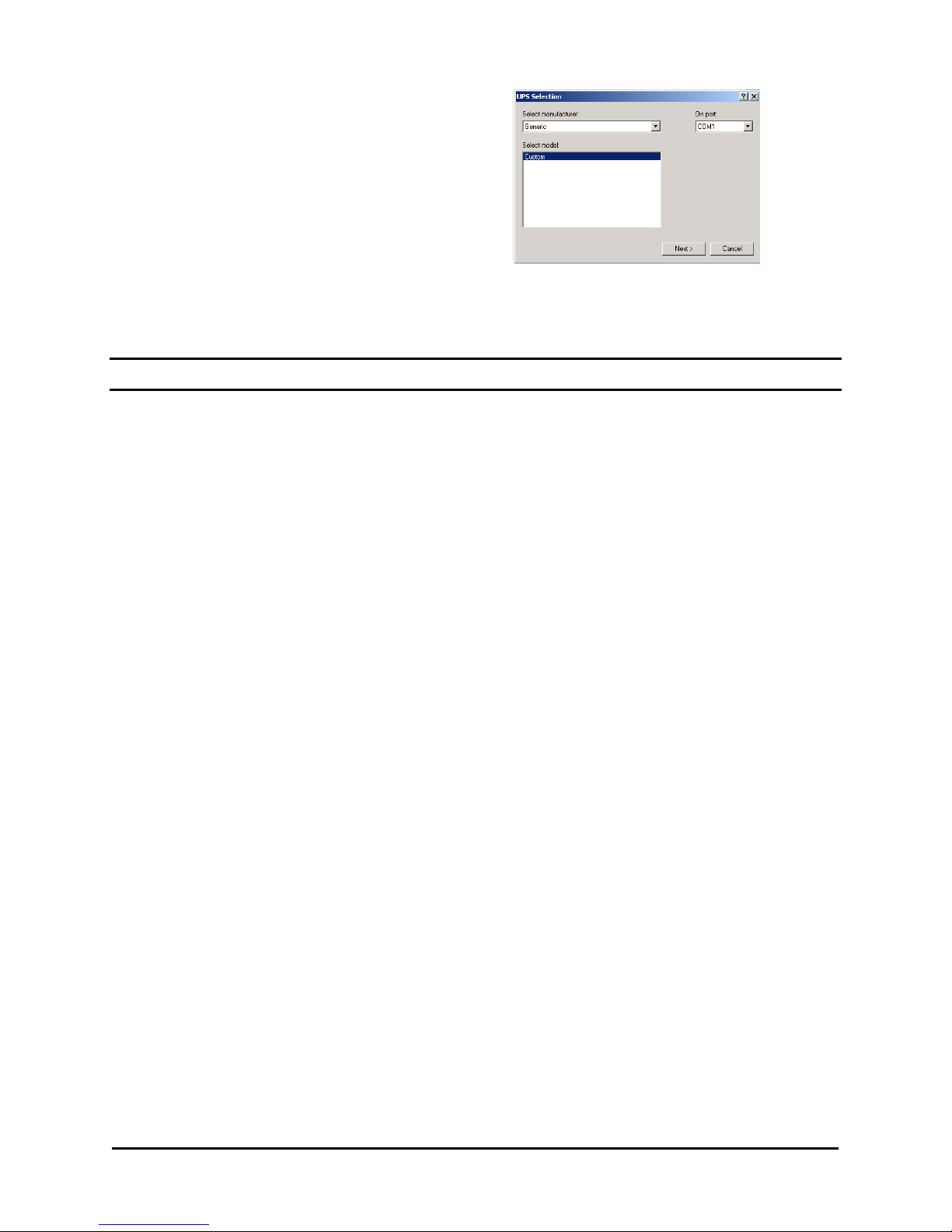

8. Choose the correct manufacturer from
the “Select manufacturer” pull-down
list, choose the correct COM port, and
then click on “Next”.
9
9. Click on the boxes, as shown, and then
choose “Negative” for the three voltage
settings. Click on “Finish” to keep
these settings.
Click “OK” at bottom of the “Power Options Properties” window to finish.
Note: See the SNMP-32 Series User’s manual for the other functions.
10
5. Outlook
RPM-Rear Panel
NT SERVER PORTS A-H: Provides controlled shutdown for NT server. Port A
controls receptacle A; Port B controls receptacle B, etc.
RPM-LED Table
RPM LED Table
LED ON OFF Flashing
Green
The momentary
switch is disabled
and the output
receptacle is set
for remote control.
The momentary
switch is active
and the receptacle
may be turned on
or off by pressing
and releasing the
switch
Pressing and holding
the momentary switch
for three seconds will
change the state from
remote to local control.
Red
The receptacle is
on and providing
power to devices.
The receptacle is
off.
The receptacle has an
internal fault.
Yellow
Indicates the RPM
ID number. The
RPM master (the
RPM with the
SNMP card) will
display all the
connected RPMs.
It means the RPM
ID is RPM00.
