1. About this document

This guide describes how to set up MiR Fleet PC and get started with the MiR Fleet interface.

MiR Fleet is used to orchestrate the operations of multiple robots, ensuring that they are all

executing missions. As a MiR Fleet PC user, you have received the following information to

get started:

•License ID and password

•USBpen with MiR Fleet software and this getting started guide.

•An Intel® NUC Kit

NOTICE

Save this manual. It contains important safety and operating instructions.

1.1 Where to find more information

At the MiR website, you can find the following resources under the Manuals tab on each

product page:

•Quick starts describe how you start operating MiR robots quickly. This document is in

print in the box with the robots. Quick starts are available in multiple languages.

•User guides provide all the information you need to operate and maintain MiR robots.

User guides are available in multiple languages.

1. About this document

•Risk Analysis Guides include guidelines on how to create a risk assessment of your robot

solution.

•Commissioning guides describe how to commission your robot safely and prepare it to

operate in the workplace.

•Operating guides describe how to set up and use top modules and accessories, such as

charging stations, hooks, shelf lifts, and pallet lifts.

•Getting started guides describe how to set up products that are mainly software-based,

such as MiR Fleet.

•Reference guides contain descriptions of all the elements of the robot interface and MiR

Fleet interface. Reference guides are available in multiple languages.

•REST API references for MiR robots, MiR hooks, and MiR Fleet.

•The MiR network and WiFi guide specifies the performance requirements of your

network and how you must configure it for MiR robots and MiR Fleet to operate

successfully.

1.2 Version history

This table shows current and previous versions of this document and their interrelations with

software releases.

Revision Release Date Description SW

1.0 2019-30-07 First edition 2.5.0 and

higher

1.1 2019-20-12 Second edition 2.7.9 and

higher

1.2 2020-01-12 Small corrections and modifications 2.8.0 and

higher

1.3 2020-01-31 New network requirements section and small

corrections

2.8.0 and

higher

1.4 2020-08-05 Updated for 2.10.0 2.10.0 and

higher

2. Host and network requirements

The specifications and requirements for running MiR Fleet PC are:

•Installation file size: 3 GB

•MiR Fleet update file size:~300 MB

•Server requirements: Dual core processor with minimum 2.1 GHz clock

•RAM: Minimum 8 GB

•HDD: 80 GB

•Virtualization software: Docker CE/EE 18.09.01

2.1 Network architecture

MiR Fleet is able to communicate with MiR robots and with existing computer devices once

connected to the network. Within the network it is also possible for other computer devices

to connect directly to the MiR robots through their robot interface. All devices that need to

communicate with MiR Fleet must be on the same network and subnet as MiR Fleet.

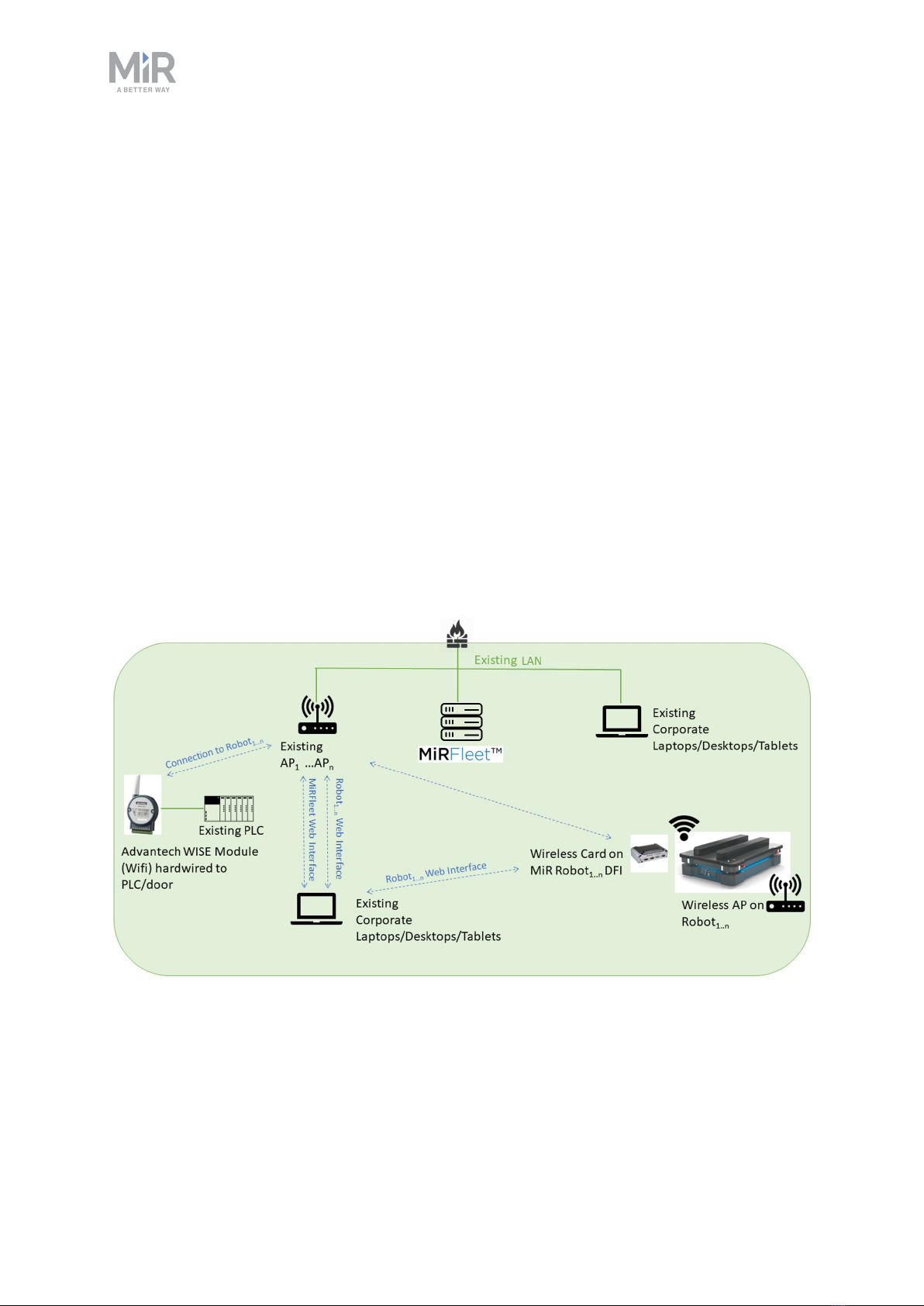

Figure 2.1. MiR Fleet network architecture

2. Host and network requirements

NOTICE

We discourage using the robot interface to control robots connected to MiR

Fleet. You should only use the robot interface in the following situations:

•The first time you add the robot to MiR Fleet. Use the robot interface to

activate the correct site and to position the robot correctly on the map.

•When adding markers or mapping. Use the robot interface to generate new

maps or to detect markers.

2.2 Network requirements

This section describes the network requirements for MiR Fleet PC.

See the MiR Network and WiFi Guide on the distributor site for more details on

network requirements.

MiR robots require a constant, stable network connection for MiR Fleet PC to function. An

unstable connection can lead to missions and resources not being assigned to robots, causing

deadlocks and idle robots.

MiR Fleet PC must be connected to the network through Ethernet and must be in the same

physical location as the robot. Geographical distance will cause delay between the fleet and

the robots.

The network should be capable of containing all robots, the fleet, and required devices on

the same subnet. If there are enough IP addresses available for all devices, the network can

be used.

Wireless LAN

The requirements for the WLAN are:

•Minimum bandwidth of 1 Mbit per robot with a maximum latency of 150 mS. The

network should be monitored over time to see how the bandwidth is affected during

normal working hours.

2. Host and network requirements

•Signal strength not less than -75 dBm. Signal to noise level 20 dB. measured from the

robot's perspective. If you experience issues, the signal strength can be measured using

specialized instruments. Any network consultant company will be able to help with this.

•Full coverage of WiFi signal throughout the traveling path of the robot.

•Roaming happening at the correct time and without any authentication errors. Make sure

that the company network access points are controlled by the same controller.

•Access points set up to communicate and share roaming information.

The robots are able to perform some tasks under worse network conditions

than those specified in this manual. However, key features such as collision

detection, auto charging and staging, Limit-robots zones, data synchronization

between robots, and fleet mission execution will not work fully.

Antenna

The small antenna shipped with the MiR robots is used for connecting the robots to your in-

house wireless network. It is designed for 2.4 GHz, and it does not have a powerful gain. If

you experience issues, consider replacing it with an antenna that suits your network.

The placement of the antenna is very important. If you put a metal case on top of the robot,

you must relocate the antenna.

Which WiFi band?

Both 2.4 GHz and 5 GHz have advantages and disadvantages, but we recommend using 5

GHz if possible.

2.4 GHz: Has longer range and is better at penetrating metal and concrete, but it is limited

to three main channels. Fewer channels result in signal noise, and most production

environments have a very high noise floor on the 2.4 GHz band. Many technologies can

create noise on the 2.4 GHz band, such as USB and Bluetooth.

5.0 GHz: Has shorter range and not as good performance in penetrating metal and concrete

as 2.4 GHz, but there are 25 main channels available. 5 GHz is always preferred if the signal

can reach the robot.

It is not possible for the robot to select either 2.4 or 5 GHz. This selection is done on the

network side by creating a robot specific SSID with the desired frequency.

3. Getting Started

This section describes how to prepare your robots to join the fleet, start up your MiR Fleet

PC for the first time, and activate your license.

Before activating MiR Fleet, you must complete the following actions:

1. Update the fleet robots to software version 2.7.9 or newer. All robots in the fleet must

run the same software version as MiR Fleet.

2. Select one robot to be a model robot. After updating the robot, use it to create the entire

site setup you want MiR Fleet to use. The model robot must contain all the site data you

need for MiR Fleet to run the robots as intended, and all procedures you intend to use the

robots for should be tested on this robot before adding any robots to MiR Fleet.

3. Once you have used the model robot to create a complete site, export the site, and save

it on a PC. This site file acts as a backup in case you lose any data when starting up your

MiR Fleet.

The following sections describe in greater detail how to update the robot software and

export a site file. For more details on how to create a new site including elements such as

maps, missions, and dashboards, see your robot's user guide and the robot interface

reference guide.

NOTICE

It is important to test your site and all intended uses on a single robot before

integrating it in MiR Fleet. It is significantly easier to determine the cause of

any issues before the robot is connected to a fleet.
