RTI-265 RemoteTrouble Unit
RAM-265 Remote Trouble & Alarm Unit
The RTI-265 Remote Trouble Unit provides remote trouble annunciation for the FA-
262/265 fire alarm control panels. The RAM-265 Remote Trouble and Alarm Unit
provides remote trouble annunciation for the FA-262/265 series fire alarm control
panels. A maximum of four RTI-265 and four RAM-265 units can be connected to each
control panel.
SPECIFICATIONS
• Green AC ON indicator
• Yellow Common Trouble
indicator
• Trouble Silence pushbutton
• Lamp Test function
• Communications: DAT & CLK
from control panel
• Standby current: 15 mA
• Voltage: 24 VDC
• Up to 8 addressable units
(4 of each type)
• Supervised
• Power: AUX & COM from control
panel
NOTE: This component must be included in the control panel battery
calculation. Refer to the Standby Battery Calculation Sheet included
with the control panel.

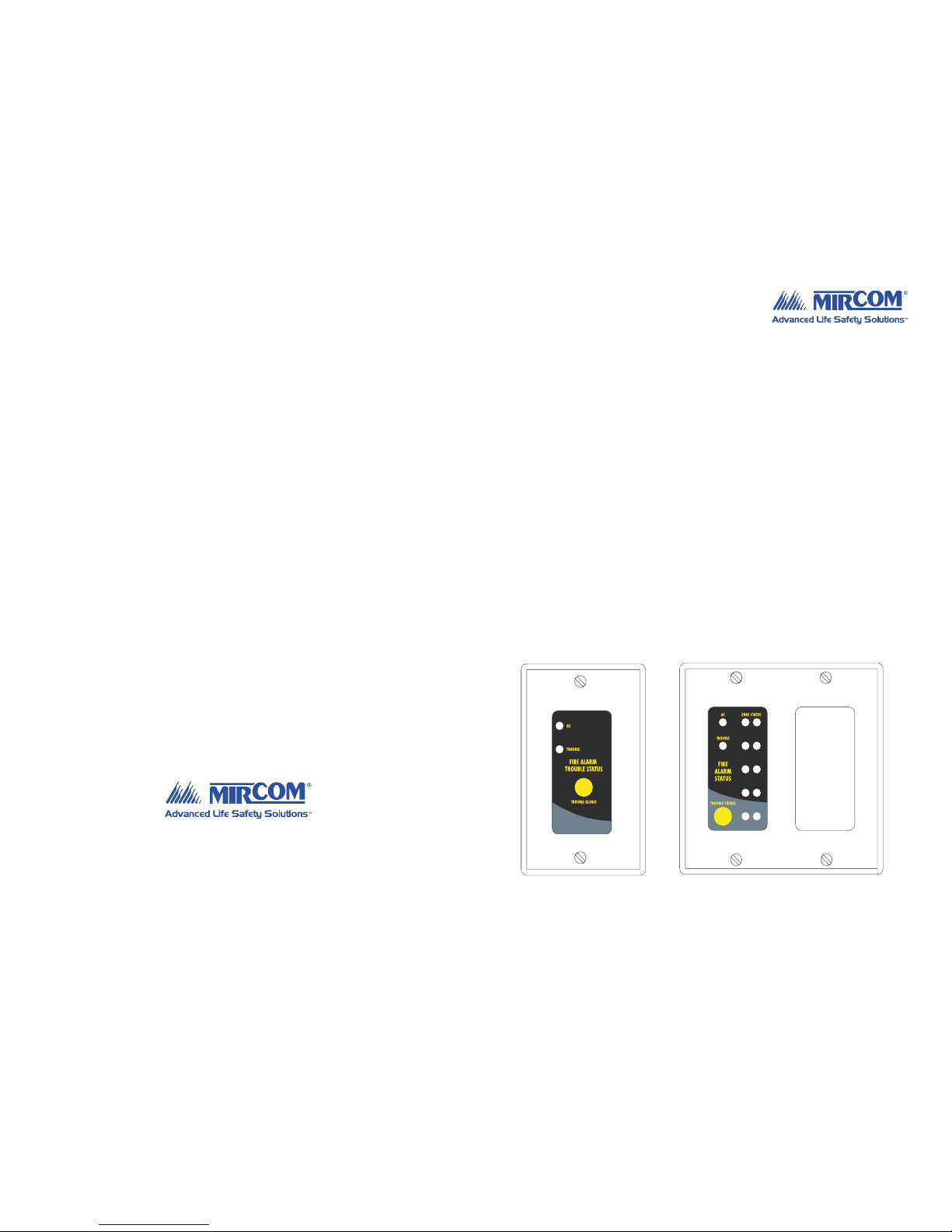

RTI-265 RAM-265
• Alarm current: 25 mA max.
• Single gang mounting
• 2 3/4 x 4 1/2” (70 mm x 115 mm)
• Alarm current: 40 mA max.
• Double gang mounting
• 4 1/2 x 4 1/2” (115 mm x 115 mm)
• Alarm & Supervisiory LED/Zone
Zone 1
Zone 2
Zone 3
Zone 4
Zone 5
In no event shall Mircom be liable for any direct, indirect or consequential damages,
loss of anticipated profits, loss of time or any other losses incurred by the buyer in
connection with the purchase, installation or operation or failure of this product.
Important!
Mircom recommends that the entire system be completely tested on a regular basis.
However, despite frequent testing, and due to but not limited to criminal tampering or
electrical disruption, it is possible for this product to fail to perform as expected.
LT-2030MIR Rev. 1
Canada
25 Interchange Way
Vaughan, ON, L4K 5W3
Tel: (905) 695-3545
Fax: (905) 660-4113
www.mircom.com
USA
60 Industrial Parkway PMB 278
Cheektowaga, NY, 14227
Tel: 1-888-MIRCOM5
Fax: 888-660-4113
T
AD
K
LC
tr
a
h
C
nu
R
er
i
WsuB-ruce
S
2e
l
ba
T
GWA61GWA81tnerruC
sreteMteeFsreteMteeFAm
gnimmargorPsserddA
1elbaT 8903061014591014651
sser
ddA2
J
1J 9451
0805679
0
02303
230158331565312541FF
O
FFO
4
770
4
52
8
840061062FFONO
91603020930821573NOFFO
51509615235601094NONO

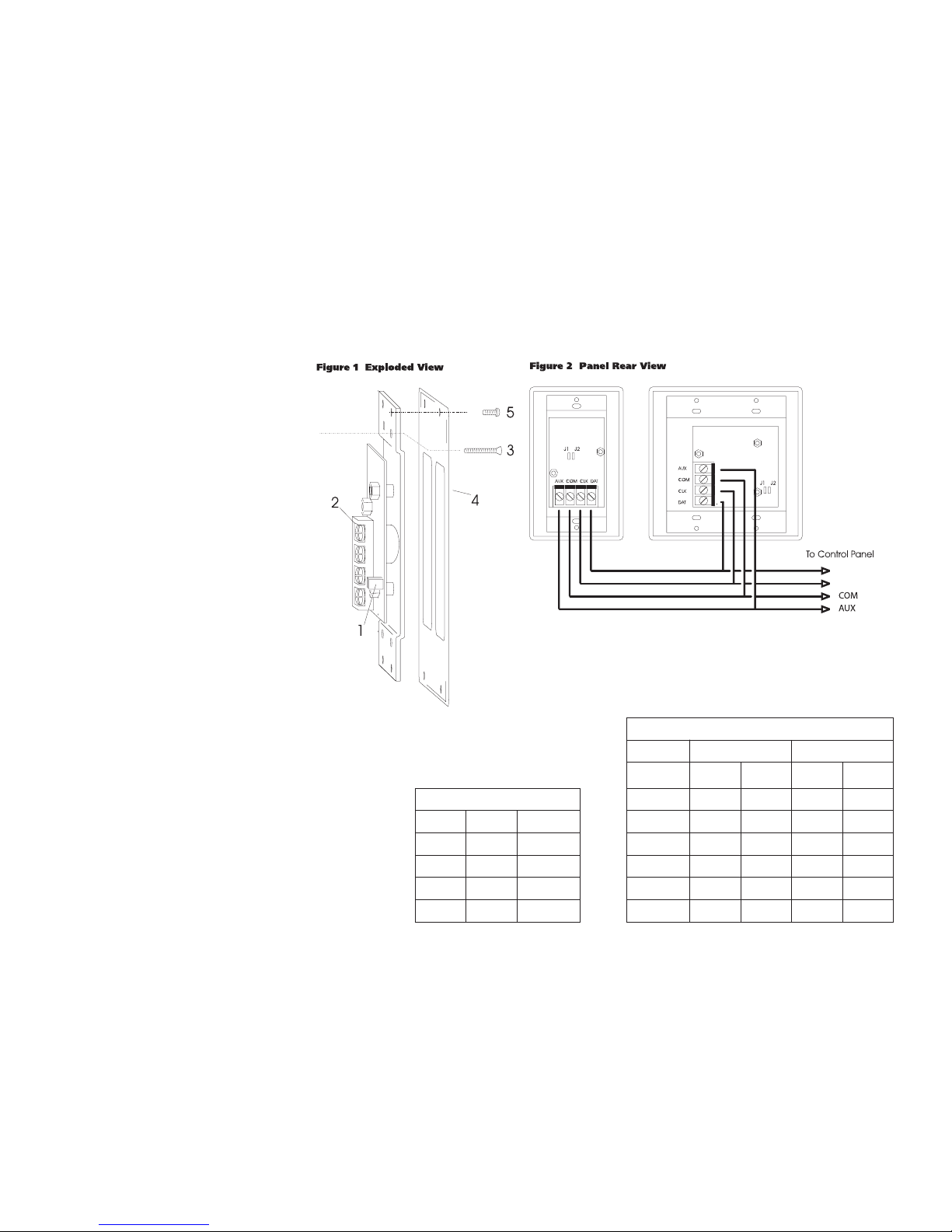

Typical wiring connections. Refer to the FA-262/265 Series
Control Panel Installation Manual for Secur-Bus wiring details.
INSTALLATION
The RTI-265 module mounts in a single gang
outlet box. The RAM-265 mounts in a double
gang outlet box. Refer to Figures 1 & 2 and
Tables 1 & 2.
1. Configure jumpers (item 1) for desired
operating address.
2. Affix zone identification labels, if
required, on the label aligned with the
LED indicators (RAM-265 Only).
3. Route Secur-Bus™ wiring through the
outlet box. Connect the 4 wires to the ter-
minals (item 2) on the PC board.
4. Position the module in the outlet box and
secure with the screws (item 3) pro-
vided (2 screws for the RTI-265, 4
screws for the RAM-265).
5. Secure the front panel (item 4) to module
with the screws provided (item 5).
OPERATION
The AC and Trouble LEDs on the remote
units follow the control panel AC and Trouble
LEDs. Pressing the Trouble Silence switch at
the panel or at any remote unit will silence
the trouble buzzer at the panel and all
remote units.
Zone indicators on the remote units follow
the zone indicators of the control panel. The
red LED will operate if the panel zone is pro-
grammed for ‘ALARM’ and the yellow LED
will operate if the panel zone is programmed
for ‘SUPERVISORY’.
The Lamp Test is initiated by pressing and
holding the Trouble Silence pushbutton for 1/
2 second. The LEDs will flash until the button
is released.
