Miromico FMLR Bedienungsanleitung

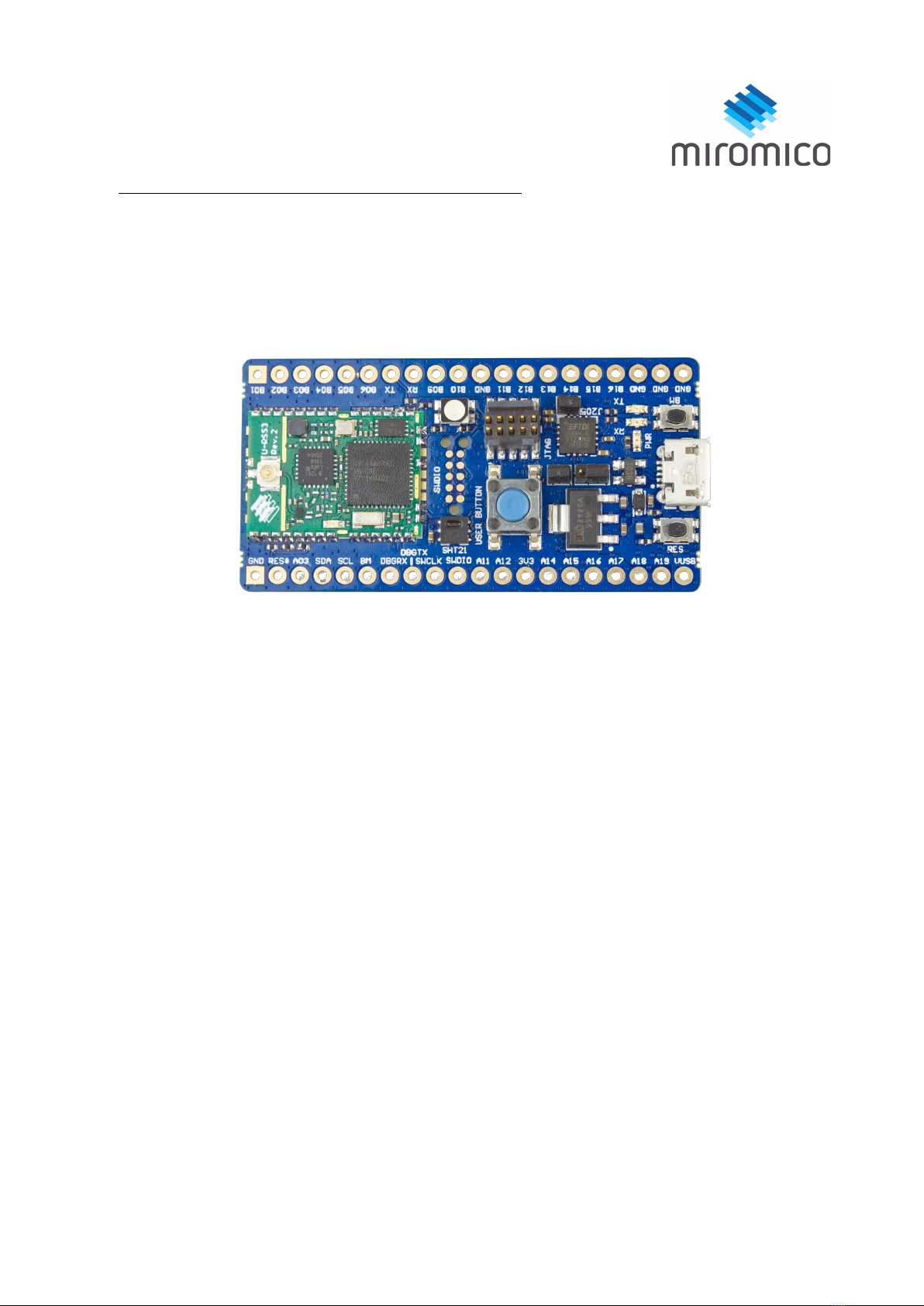

FMLR Development Board
RSS3
Versatile LoRaWAN® Development Board
Quickstart uide RSS3
Version 1.2
Miromico A - allusstrasse 4 - CH-8006 Zurich – Switzerland
Revision 1.21
1/17
About this Document
Title FMLR Development Board RSS3
Subtitle Versatile LoRaWAN® Development Board
Document Type Quickstart uide
Revision 1.21
Date 07.08.20
Document Status Preliminary
Contents
1 Overview.................................................................................................................................................. 3
1.1 Connectors and UI................................................................................................................................ 3
1.2 Pin-out................................................................................................................................................... 4
2 First steps................................................................................................................................................. 5
2.1 Powering on the Device........................................................................................................................5
2.2 Programming the Device......................................................................................................................5
2.3 Access Seria Port of the Device by USB (UART)...................................................................................7
3 Application Development and Debugging..............................................................................................8
3.1 Prerequisites.......................................................................................................................................... 8
3.2 Connecting the Deve opment Board using SWD Programmer............................................................8
3.3 Getting the Sources.............................................................................................................................. 8
3.4 Copying the .pack Fi es......................................................................................................................... 9
3.5 Opening the project.............................................................................................................................. 9
3.6 Setting LoRaWAN Configuration........................................................................................................10
3.7 Setting the Synergy Configuration......................................................................................................11
3.8 Down oad and Debugging.................................................................................................................. 11
3.9 Connection to a LoRaWAN Network Server.......................................................................................13
4 Additional Information........................................................................................................................... 18
We reserve the right to make technical changes, which serve to improve the product, without prior notification.
SAFETY-CRITICAL, MILITARY, AND AUTOMOTIVE APPLICATIONS DISCLAIMER: Miromico products are not designed for and
will not be used in connection with any applications where the failure of such products would reasonably be expected to result in
significant personal injury or death (“Safety-Critical Applications”) without an Miromico officer's specific written consent. Safety-
Critical Applications include, without limitation, life support devices and systems, equipment or systems for the operation of
nuclear facilities and weapons systems. Miromico products are not designed nor intended for use in military or aerospace
applications or environments. Miromico products are not designed nor intended for use in automotive applications unless
specifically designated by Miromico as automotive-grade.
Miromico A - allusstrasse 4 - CH-8006 Zurich – Switzerland
Revision 1.21
2/17
1 Overview

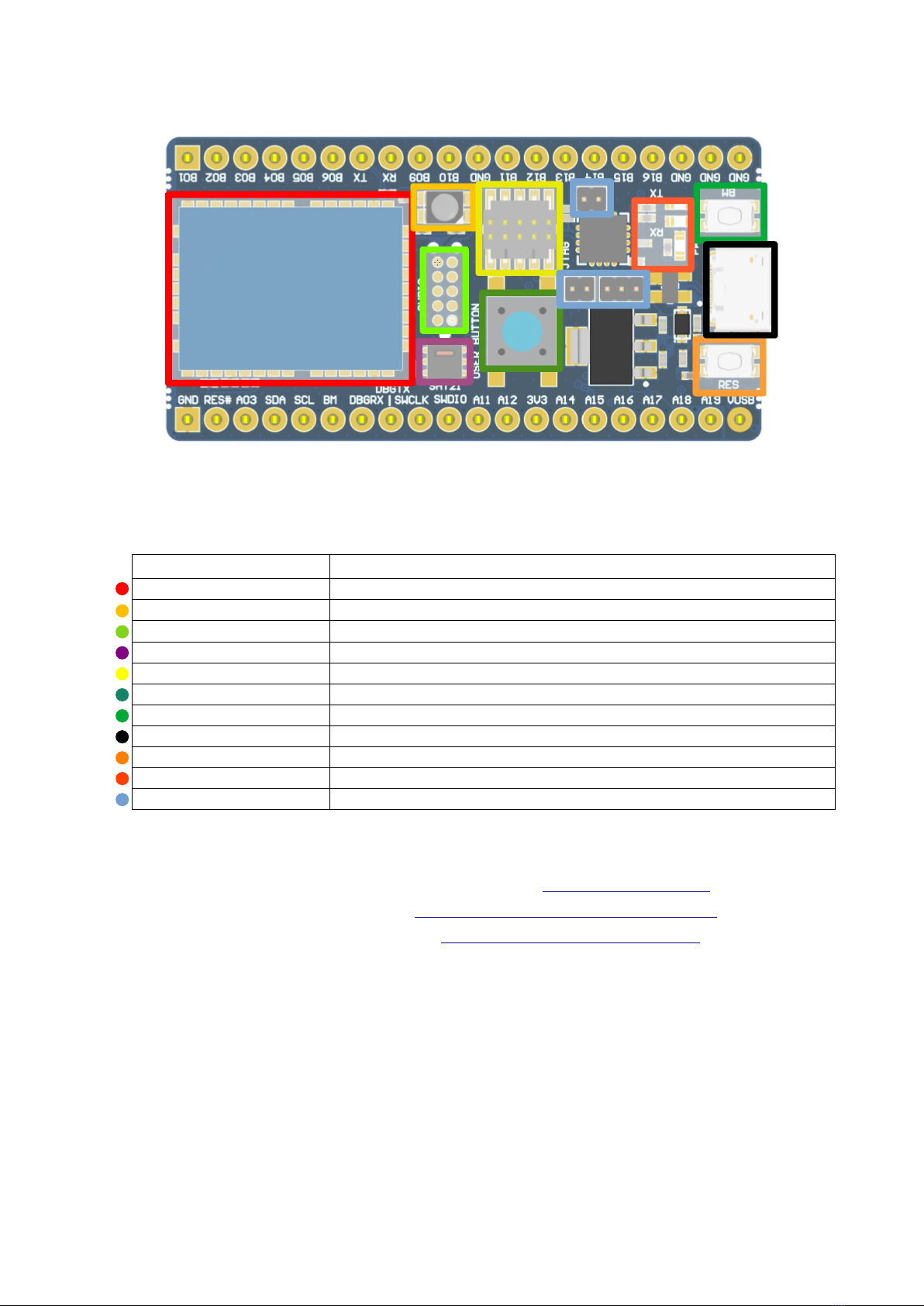

1.1 Connectors and UI
Function Description
FMLR Module FMLR Module
LED User R B LED for debugging or user purpose
TA Connect Programming Interface for Tag Connect and Miromico programming adapter
Sensor SHT21 I2C environmental sensor
JTA Connector Programming Interface for JTA programmer
User Button For debugging or user purpose connected to PA0 of the MCU
Boot Mode Button Sets the Boot Mode of the FMLR Module
Micro-USB Port DC Input and debugging interface
Reset Button Resets and restarts the FMLR Module
LEDs Power and UART RX / TX LED
Jumper Positions Positions to place jumpers for potentially needed connections on the board
For more information on the FMLR Module please refer the the respective data sheets found on the
Miromico website:
•eneral information about modules and products: https://miromico.ch/iot/
•FMLR-61-X-RSS3 product page: https://miromico.ch/portfolio/fmlr_renesas/
•FMLR-61-X-RSS3 source repository: https://gitlab.com/fmlr/fmlr-61-x-rss3
Miromico A - allusstrasse 4 - CH-8006 Zurich – Switzerland
Revision 1.21
3/17

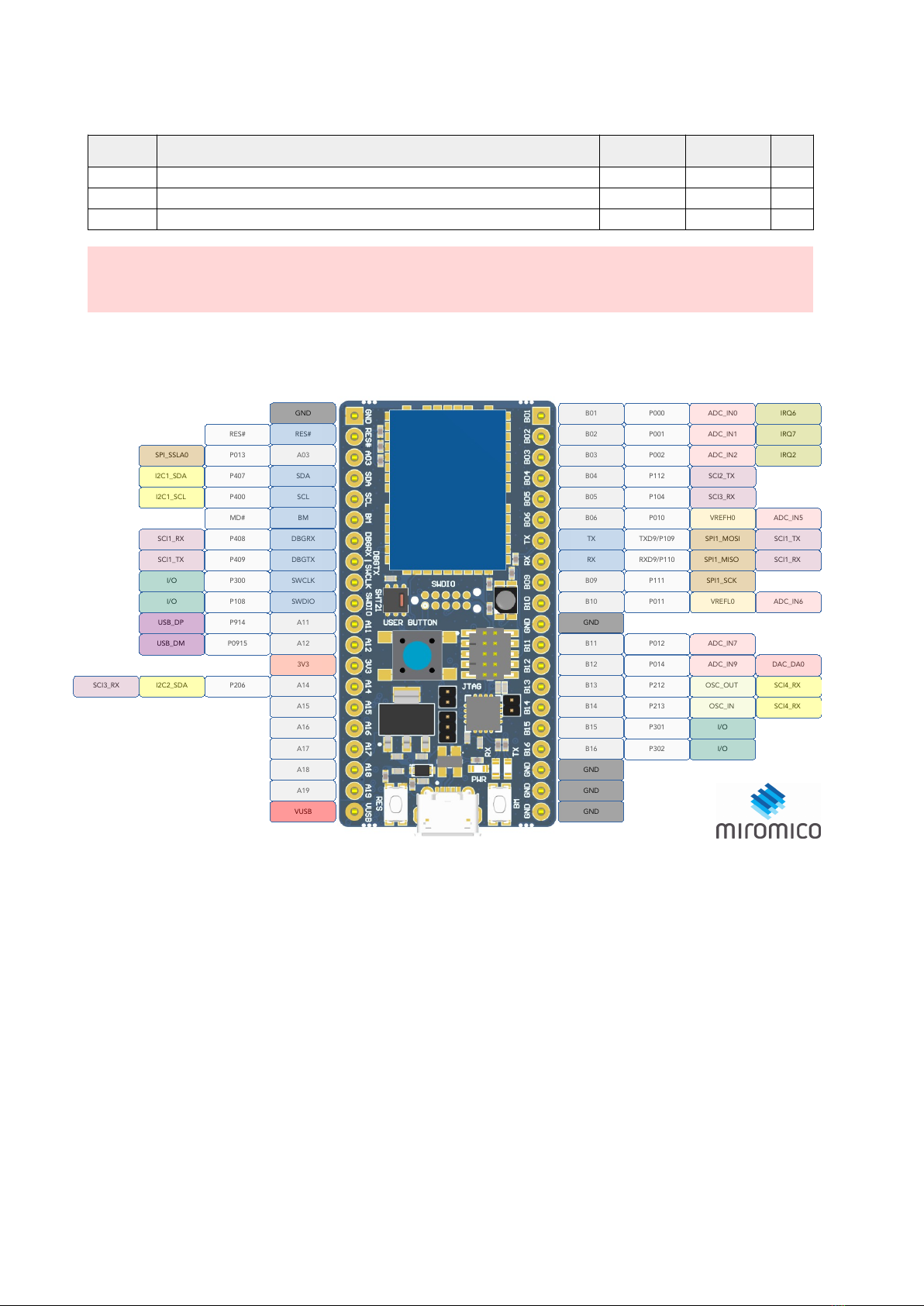

1.2 Pin-out
Pin Details in ax Unit
All Min / Max Voltage on All Pins -0.3 3.6 V
3V3 Input / Output Voltage Pin -0.3 3.6 V
VBUS Input / Output Voltage Pin -0.3 5.5 V
Warning:
Do not exceed the above mentioned maximum voltage values!
Miromico A - allusstrasse 4 - CH-8006 Zurich – Switzerland
Revision 1.21
4/17
Alternate Function Function MCU Pad Pin FMLR-xx-Rsx-xx Development Board – Pinout Pin MCU Pad Function Alternate Function
GND B01 P000 ADC_IN0 IRQ6
RES RES B02 P001 ADC_IN1 IRQ7
SPI_SSLA0 P013 A03 B03 P002 ADC_IN2 IRQ2
I2C1_SDA P407 SDA B04 P112 SCI2_TX
I2C1_SCL P400 SCL B05 P104 SCI3_RX
MD BM B06 P010 VREFH0 ADC_IN5
SCI1_RX P408 DBGRX TX TXD9/P109 SPI1_MOSI SCI1_TX
SCI1_TX P409 DBGTX RX RXD9/P110 SPI1_MISO SCI1_RX
I/O P300 SWCLK B09 P111 SPI1_SCK
I/O P108 SWDIO B10 P011 VREFL0 ADC_IN6
USB_DP P914 A11 GND
USB_DM P0915 A12 B11 P012 ADC_IN7
3V3 B12 P014 ADC_IN9 DAC_DA0
SCI3_RX I2C2_SDA P206 A14 B13 P212 OSC_OUT SCI4_RX
A15 B14 P213 OSC_IN SCI4_RX
A16 B15 P301 I/O
A17 B16 P302 I/O
A18 GND
A19 GND
VUSB GND
2 First steps
This section will guide you through the initial setup of the FMLR Development Board. You only need a
Micro-USB cable to power and load pre-compiled binaries. Using more advanced tools, you can directly
develop, download and debug your own application on the development board

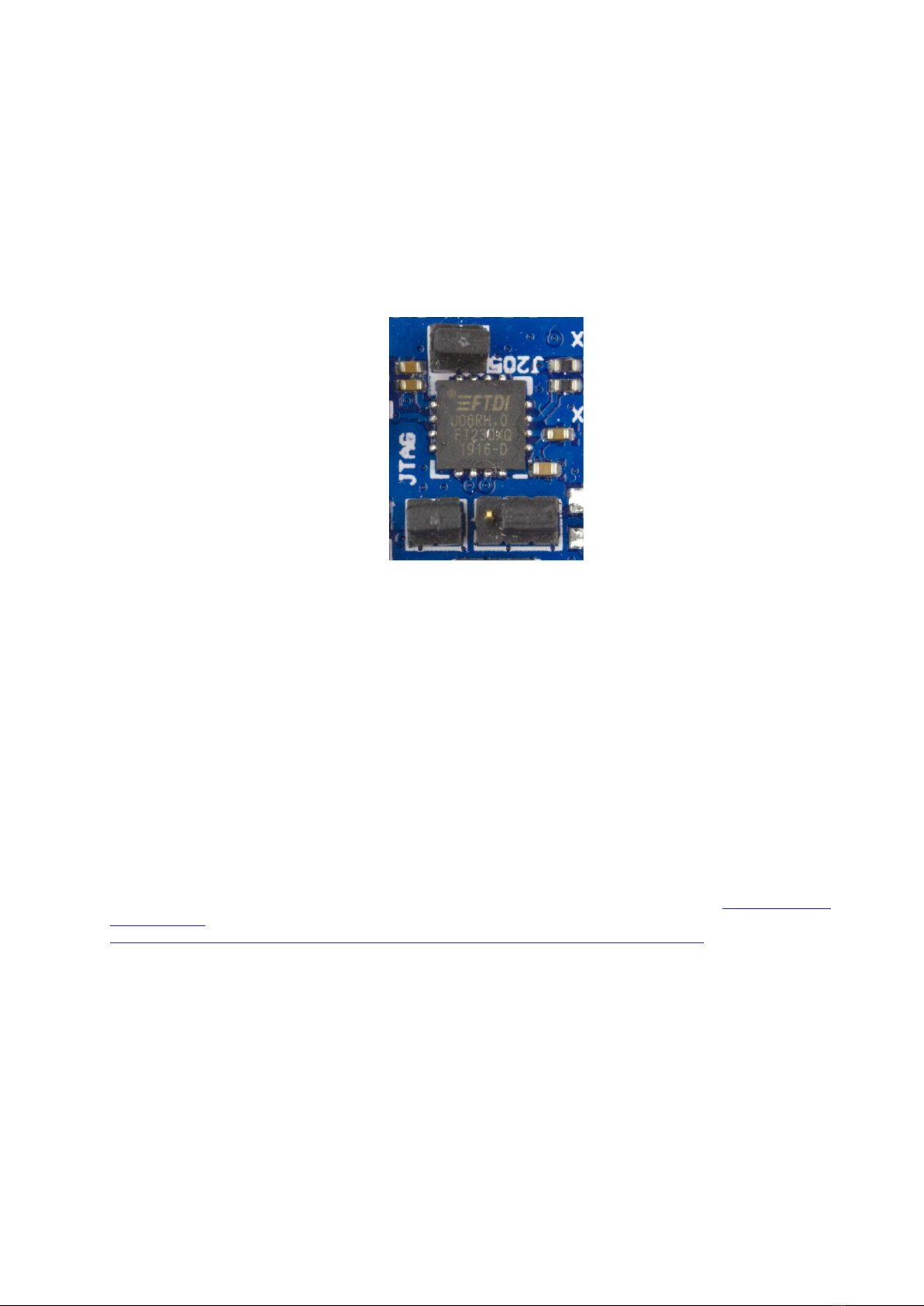

2.1 Jumper Configuration
In this configuration the development board is powered by its own USB connector. It will allow
programming the module using SWD or UART (USB).
•Set the jumpers properly:
•Power the development board by its own USB connector.
•Connect the mini J-Link’s programming cable to the JTA connector
2.2 Powering on the Device
The FMLR Development Board uses a standard Micro-USB connection to power and provide access to
the serial port of the MCU.
1. Plug the USB cable to Micro-USB connector.
2. Plug the other end of the Micro-USB cable to the USB port of your computer.
3. The green power LED comes up. – you are ready to go
2.3 Programming the Device
Over the USB serial connection the development board provides access to the on-chip boot loader of
the S3A678 on the FMLR module. Using tools from Renesas you can upload precompiled “ready-to-go”
firmware (intel-hex files) into the module.
To program the device using the on-chip boot-loader you need to download and install “ Renesas Flash
Programmer” Software from the Renesas website and consult the documentnation
https://www.renesas.com/us/en/doc/products/tool/doc/016/r20ut4307ej0300-rfp.pdf
1. Plug in the USB cable
2. Press and hold the Bootmode button (BM) until the end of the procedure
3. Press and release the Reset button (RES)
4. Start the “Renesas Flash Programmer” software as administrator

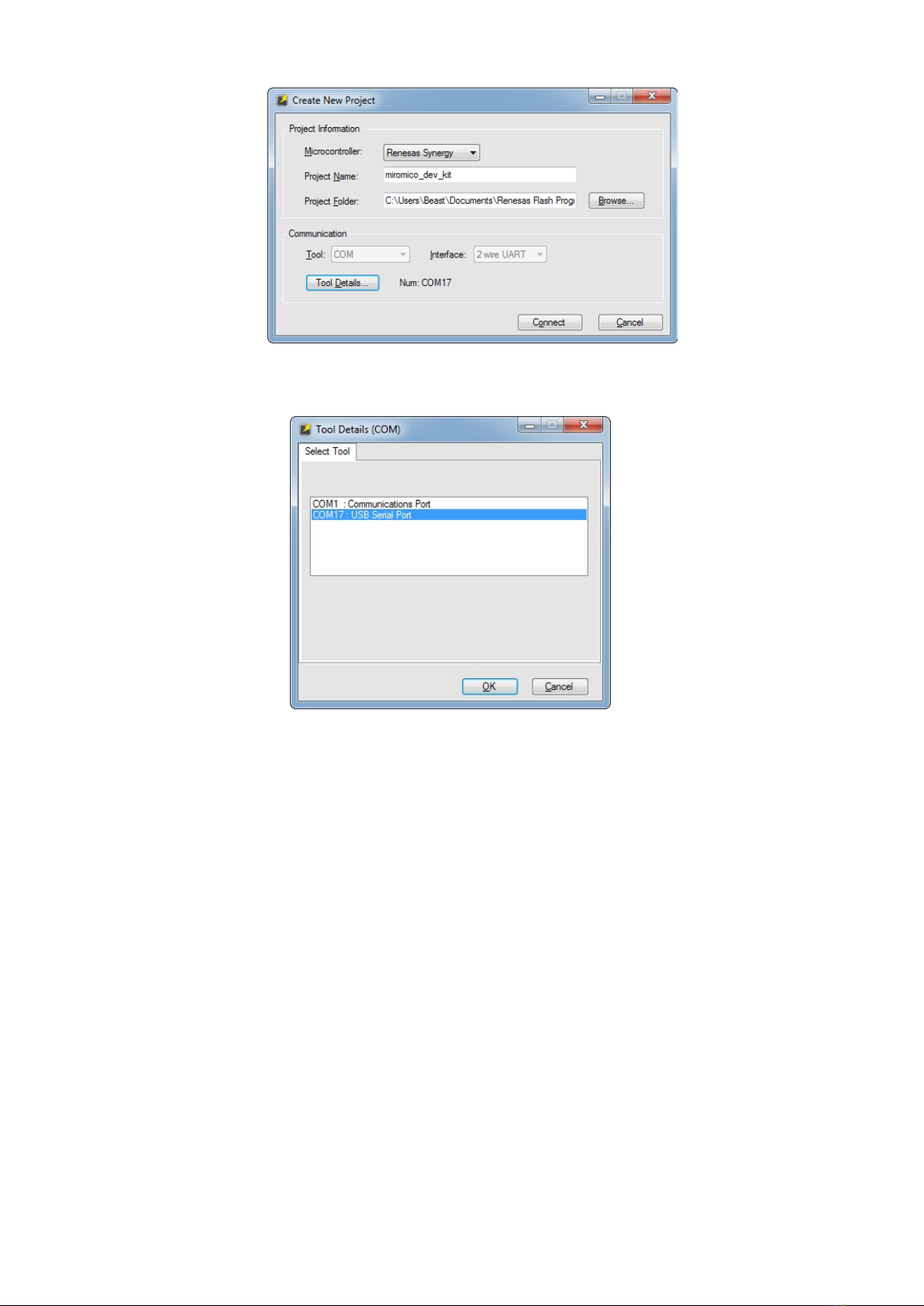

5. Create a new project: Choose “Renesas Synergy” as the microcontroller, enter a name and
choose the location of the project
Miromico A - allusstrasse 4 - CH-8006 Zurich – Switzerland
Revision 1.21
5/17
6. Press “Connect”
7. Set the serial port name for your device
8. Click “OK”
Miromico A - allusstrasse 4 - CH-8006 Zurich – Switzerland
Revision 1.21
6/17

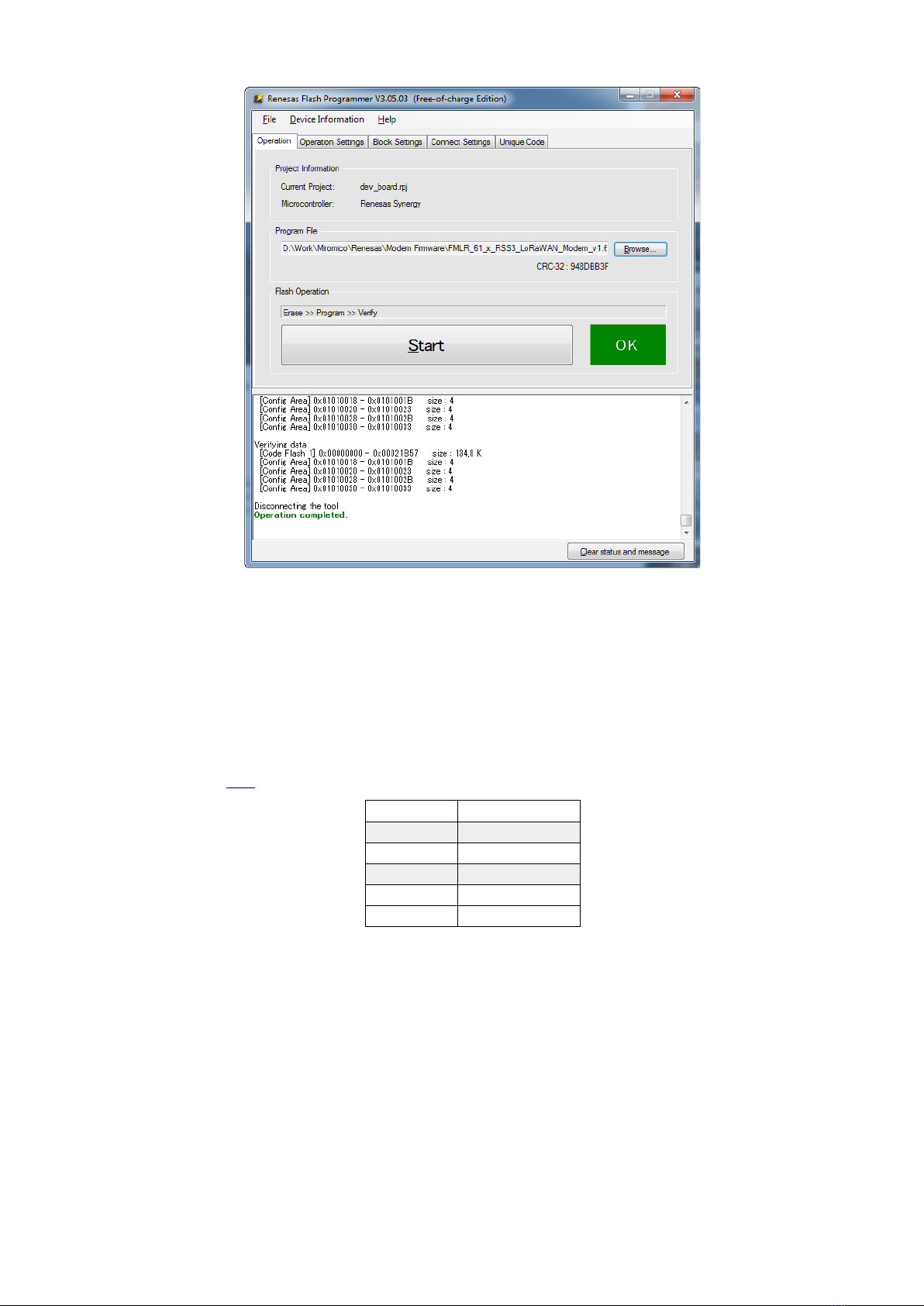

9. You should now see a window similar to this:Choose the firmware .hex file you want to flash
10. Press “Start” to program the microcontroller
11. The flash process is finished once the message “Operation completed” appears in the
console log.
12. Release the Bootmode Button
2.4 Access Serial Port of the Device by USB (UART)
In order to view the debugging output of the FMLR Module, you need a suitable terminal application.
We recommend YAT. Connect to the device using your terminal program using the following settings:
Baud-rate 115200
Data-bits 8
Parity None
Stop-bits 1
Flow Control None
Line Ending <LF> (0x0A)
Note that the line ending character has to be set to <LF> (0x0A), else the incoming AT commands will
not get executed.
You should now be able to see the debug output of the FMLR Module.
Miromico A - allusstrasse 4 - CH-8006 Zurich – Switzerland
Revision 1.21
7/17
3 Application Development and Debugging
3.1 Prerequisites
You can use the development board to develop and debug your own application. You will need the
following prerequisites to do so:
•Download and install e 2
studio
•Download and install Renesas SSP 1.7.0
•A SE ER mini J-Link
•Two micro-USB cables
•it version control
To successfully run the example LoRaWAN sensor application, you will also need a LoRaWAN gateway
connected to a LoRaWAN network server.
3.2 Getting the Sources
Clone the sources of the fmlr-61-x-rss3 project from itlab into a directory on your hard-disk. It is
accessible on https://gitlab.com/fmlr/fmlr-61-x-rss3
3.3 Copying the .pack Files
Locate the .pack files in the repository, and move them to your Renesas .pack directory.
•miromico.LoRa.1.7.0.pack
•miromico.Board_FMLR_61_U_RSS3_S3A6.1.7.0.pack
Possible target directory – yours may be different, though
•D:\Renesas\e2_studio\internal\projectgen\arm\packs
These resources are required to build the application later on
3.4 Opening the project
Miromico A - allusstrasse 4 - CH-8006 Zurich – Switzerland
Revision 1.21
8/17

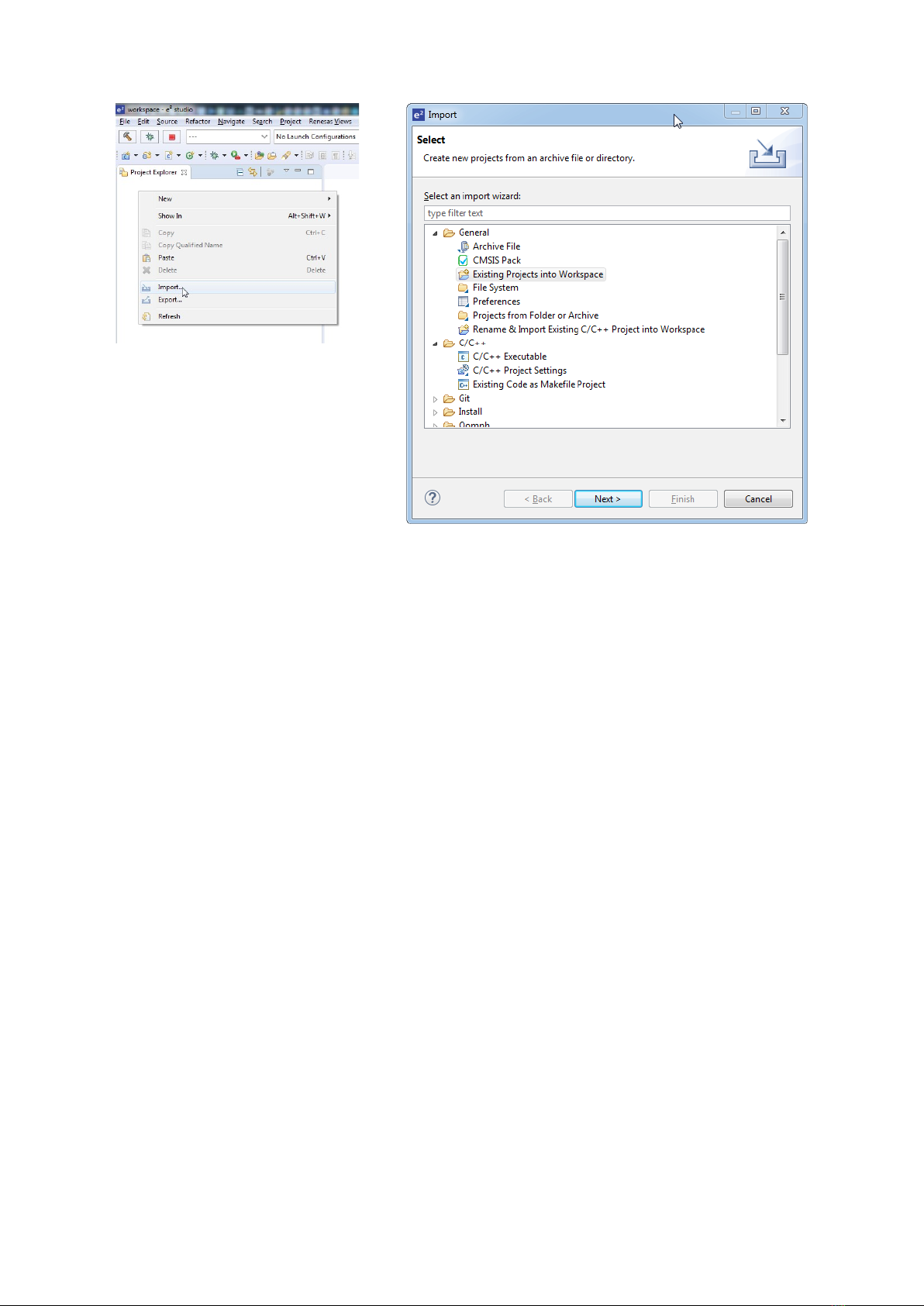

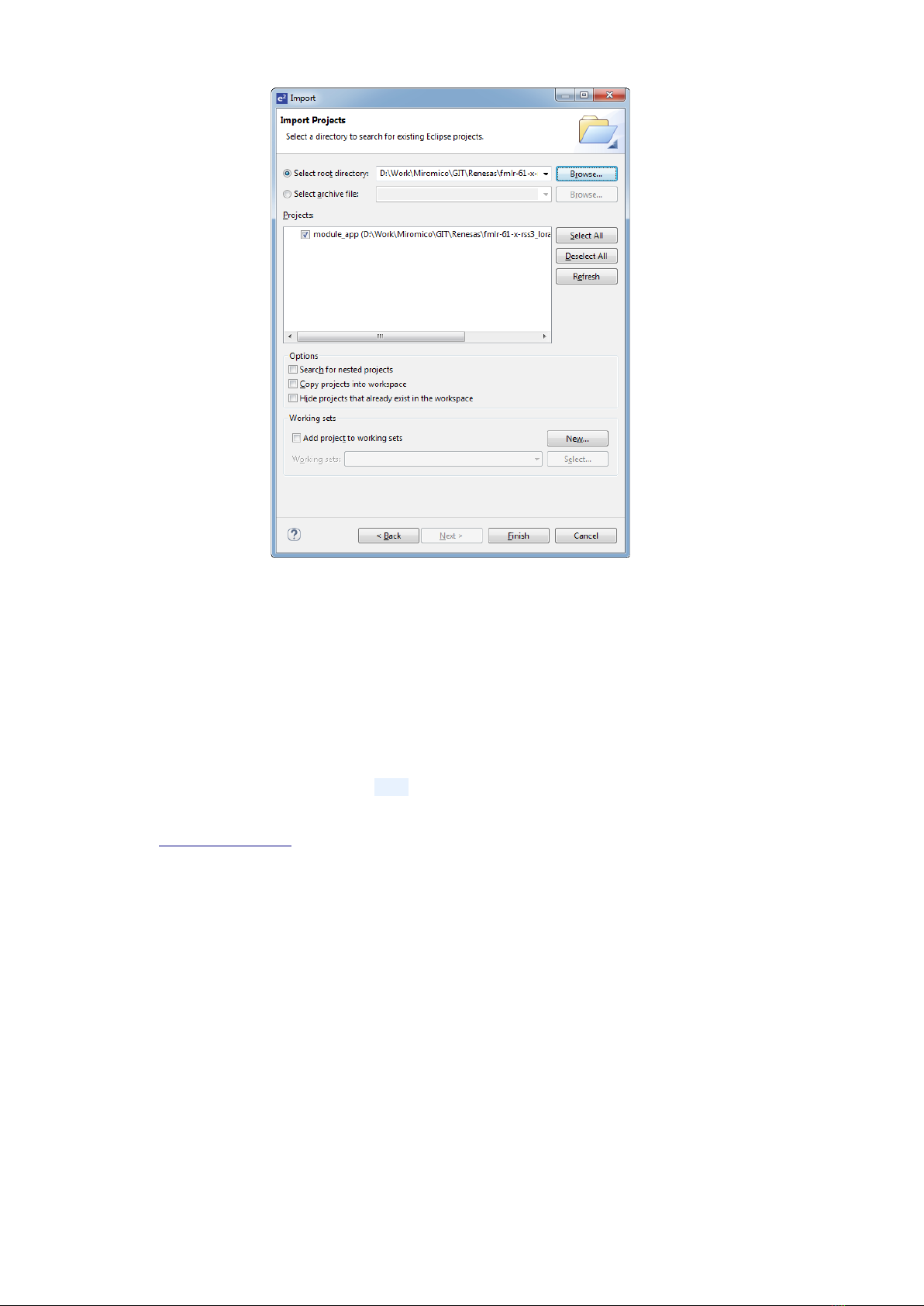

In e2 studio navigate to Fi e Import and select «Existing Projects into Workspace»
On the next screen click on «Browse» and navigate to the directory where you checked out your
sources. e2studio will find your project. Click «Finish» to import the project into your workspace.
Miromico A - allusstrasse 4 - CH-8006 Zurich – Switzerland
Revision 1.21
9/17
3.5 Setting LoRaWAN Configuration
Once the application is loaded into the workspace, you need to set your LoRaWAN DevEUI, AppEUI
and AppKey configuration in the program. In the project tree navigate to lora_thread_entry.c and open
the file in e2 studio. You will find a struct keys. Set your network configuration within the struct.
If you use TheThingsNetwork LoRaWAN (TTN) to join your device as recommended below, you need to
acquire a unique DevEUI first. The AppEUI and the AppKey will be created in a random way by the TTN
Web Application. The DevEUI, AppEUI and AppKey need to be configured in you LoRaWAN
networkserver backend before you can configure them in the application. See chapter “Connection to a
LoRaWAN Network Server” to learn how to register a device with TTN. Please note the AppEUI is
sometimes also called JoinEUI. EUIs are 8 bytes long whereas the AppKey is 16 bytes long.
Once the EUIs and KEY are set, your application is ready to build. Select Project Bui d Project to
compile the project.
Miromico A - allusstrasse 4 - CH-8006 Zurich – Switzerland
Revision 1.21
10/17
