Mitsubishi Electric AE-200A Bedienungsanleitung

Contents

1. Safety precautions..............................................................4

1-1. General precautions..............................................................4

1-2. Precautions for relocating or repairing the unit .....................5

1-3. Additional precautions...........................................................5

2. Introduction.........................................................................6

2-1. Terms used in this manual ....................................................6

2-2. Required licenses..................................................................6

2-3. “Group”, “Block”, and “EM block” definitions.........................6

2-4. Main and Sub system controllers (M-NET)...........................7

2-5. Controller interface................................................................8

2-6. Number of connectable units ................................................9

2-7. Product features....................................................................9

3. Basic operations...............................................................11

3-1. Monitor/Operation ...............................................................11

3-2. Energy Management...........................................................29

3-3. Schedule.............................................................................47

3-4. Status List ...........................................................................58

3-5. Malfunction Log...................................................................61

3-6. Error code list......................................................................62

4. Practical operations..........................................................66

4-1. Maintenance........................................................................66

5. Maintenance.....................................................................74

5-1. Backing up settings data.....................................................74

5-2. Importing settings data........................................................75

5-3. CSV output..........................................................................76

5-4. Touch Panel Calibration......................................................83

5-5. Software information...........................................................83

5-6. Cleaning the touch panel ....................................................84

6. Specifications....................................................................85

Appendix: Added functions.....................................................86

Air Conditioning Control System

Centralized Controller

AE-200A/AE-50A

AE-200E/AE-50E

Before using the controller, please read this Instruction Book carefully to ensure proper operation.

Retain this manual for future reference.

Ver. 7.3

Instruction Book

–Detailed operations–

WT07992X02

Contents

1. Safety precautions ..............................................................................................4

1-1. General precautions................................................................................................4

1-2. Precautions for relocating or repairing the unit.......................................................5

1-3. Additional precautions.............................................................................................5

2. Introduction .........................................................................................................6

2-1. Terms used in this manual......................................................................................6

2-2. Required licenses ...................................................................................................6

2-3. “Group”, “Block”, and “EM block” definitions...........................................................6

2-4. Main and Sub system controllers (M-NET).............................................................7

2-5. Controller interface..................................................................................................8

2-6. Number of connectable units..................................................................................9

2-7. Product features......................................................................................................9

3. Basic operations................................................................................................11

3-1. Monitor/Operation................................................................................................. 11

3-1-1. Screen sequence........................................................................................11

3-1-2. Group icons................................................................................................12

3-1-3. Checking the operation conditions .............................................................14

3-1-4. Selecting the icons of the groups to be operated.......................................22

3-1-5. Operation settings screen...........................................................................24

3-1-6. Operation setting items...............................................................................27

3-2. Energy Management.............................................................................................29

3-2-1. Energy Use Status......................................................................................29

3-2-2. Ranking ......................................................................................................37

3-2-3. Target value................................................................................................41

3-2-4. Peak Cut.....................................................................................................45

3-3. Schedule...............................................................................................................47

3-3-1. Weekly Schedule........................................................................................49

3-3-2. Annual Schedule.........................................................................................54

3-3-3. Today’s Schedule .......................................................................................57

3-4. Status List.............................................................................................................58

3-4-1. Malfunction List...........................................................................................58

3-4-2. Filter Sign List.............................................................................................60

3-5. Malfunction Log.....................................................................................................61

3-5-1. Unit Error/Communication Error.................................................................61

3-6. Error code list........................................................................................................62

3-6-1. M-NET errors..............................................................................................62

3-6-2. Errors between AE-200 and AE-50 (EW-50)..............................................65

WT07992X02

4. Practical operations...........................................................................................66

4-1. Maintenance .........................................................................................................66

4-1-1. Energy data output.....................................................................................66

5. Maintenance......................................................................................................74

5-1. Backing up settings data.......................................................................................74

5-2. Importing settings data..........................................................................................75

5-3. CSV output............................................................................................................76

5-4. Touch Panel Calibration........................................................................................83

5-5. Software information.............................................................................................83

5-6. Cleaning the touch panel......................................................................................84

6. Specifications....................................................................................................85

Appendix: Added functions......................................................................................86

WT07992X02

1. Safety precautions

►Observe these precautions carefully to ensure safety.

►After reading this manual, pass the manual on to the end user to retain for future

reference.

►The user should keep this manual for future reference and refer to it as necessary. This

manual should be made available to those who repair or relocate the units. Make sure

that the manual is passed on to any future air conditioning system user.

: indicates a hazardous situation which, if not avoided, could result in

death or serious injury.

: indicates a hazardous situation which, if not avoided, could result in

minor or moderate injury.

: addresses practices not related to personal injury, such as product

and/or property damage.

1-1. General precautions

Do not install the controller in areas where large amounts of oil, steam, organic solvents,

or corrosive gases (such as ammonia, sulfuric compounds, or acids), or areas where

acidic/alkaline solutions or special chemical sprays are used frequently. These substances

may significantly reduce the performance and corrode the internal parts, resulting in

electric shock, malfunction, smoke, or fire.

To reduce the risk of short circuits, current leakage, electric shock, malfunction, smoke, or

fire, do not wash the controller with water or any other liquid.

To reduce the risk of electric shock, malfunction, smoke, or fire, do not touch the electrical

parts, USB memory, or touch panel with wet fingers.

To reduce the risk of injury or electric shock, before spraying a chemical around the

controller, stop the operation and cover the controller.

To reduce the risk of injury, keep children away while installing, inspecting, or repairing the

controller.

If you notice any abnormality (e.g., burning smell), stop the operation, turn off the

controller, and consult your dealer. Continuing the operation may result in electric shock,

malfunction, or fire.

Properly install all required covers to keep moisture and dust out of the controller. Dust

accumulation and the presence of water may result in electric shock, smoke, or fire.

To reduce the risk of fire or explosion, do not place flammable materials or use flammable

sprays around the controller.

To reduce the risk of electric shock or malfunction, do not touch the touch panel, switches,

or buttons with a sharp object.

To avoid injury from broken glass, do not apply excessive force to the glass parts.

To reduce the risk of injury, electric shock, or malfunction, avoid contact with the sharp

edges of certain parts.

WT07992X02

Consult your dealer for the proper disposal of the controller. Improper disposal will pose a

risk of environmental pollution.

1-2. Precautions for relocating or repairing the unit

The controller must be repaired or moved only by qualified personnel. Do not disassemble

or modify the controller. Improper installation or repair may result in injury, electric shock,

or fire.

1-3. Additional precautions

To avoid discoloration, do not use benzene, thinner, or chemical rag to clean the controller.

When the controller is heavily soiled, wipe the controller with a well-wrung cloth that has

been soaked in water with mild detergent, and then wipe off with a dry cloth.

This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of the appliance by a person

responsible for their safety. Children should be supervised to ensure that they do not play

with the appliance.

WT07992X02

2. Introduction

AE-200A/AE-50A/AE-200E/AE-50E is a centralized controller.

EW-50A/EW-50E is an LCD-less total management system.

Any connected air conditioning systems can be operated or monitored on the AE-200A/AE-50A/AE-200E/AE-50E’s

LCD or the Web browser.

By using a PI controller that is built-in on the AE-200A/AE-50A/EW-50A/AE-200E/AE-50E/EW-50E, the energy-

control-related status can be displayed and Peak Cut control can be performed without a use of a PI controller

(PAC-YG60MCA).

Each AE-200A/AE-50A/AE-200E/AE-50E can control up to a total of 50 indoor units and other equipment. By

connecting AE-200A/AE-200E (main controller) andAE-50A/AE-50E/EW-50A/EW-50E (sub controllers), up to 200

indoor units and other equipment can be controlled.

2-1. Terms used in this manual

- “Centralized Controller AE-200A/AE-200E” is referred to as “AE-200.”

- “Centralized Controller AE-50A/AE-50E” is referred to as “AE-50.”

- “Centralized Controller EW-50A/EW-50E” is referred to as “EW-50.”

- “Booster unit” and “Water HEX unit” are referred to as “Air To Water (PWFY) unit.”

- “Advanced HVAC CONTROLLER” is referred to as “AHC.”

- “Hot Water Heat Pump unit” is referred to as “HWHP (CAHV, CRHV) unit.”

2-2. Required licenses

The required licenses vary, depending on the functions to be used. Refer to the License Classification List for

details. Purchase the required licenses from your dealer. Refer to the Instruction Book (Initial Settings) for how to

2-3. “Group”, “Block”, and “EM block” definitions

The terms “Group” and “Block” used in this manual are defined as follows.

Group: Group is a group of air conditioning units and controllers and is the smallest unit that the AE-200/AE-50

can control. The maximum number of units that each group can contain is 16.

Block: Each block consists of one or more groups. Multiple groups of units in a given block can be monitored

or operated collectively.

EM block:EM block stands for Energy management block, and this groups multiple blocks. Use for charge

apportioning units and for settings of blocks spanning AE-200 andAE-50/EW-50.

WT07992X02

2-4. Main and Sub system controllers (M-NET)

Each group can be controlled by a Main system controller or a Sub system controller.

AE-200/AE-50 is exclusively for use as a Main system controller and cannot be used as a Sub system controller.

Main system controller

Main system controller refers to a system controller that controls all other system controllers including the units

they control. If a given system has only one system controller, that controller becomes a Main system controller.

Group settings and interlock settings can be made only from a Main system controller.

Sub system controller

Sub system controller refers to a system controller that is controlled by a Main system controller.

The system cannot be configured as shown in the examples below.

●Groups that are not under the control of a Main system controller cannot be controlled from a Sub system controller.

●Each group cannot be placed under the control of two or more Main system controllers.

●Sub system controllers cannot be placed under the control of two or more Main system controllers.

Sub system controller's

control range

Main system controller's

(AE-200/AE-50's) control range

Group Group Group

Group

Main system

controller

Group

Sub system

controller

Group

Main system

controller 1

Group

Main system

controller 2

Group

Main system

controller 1

Group

Sub system

controller

Group

Main system

controller 2

Group

WT07992X02

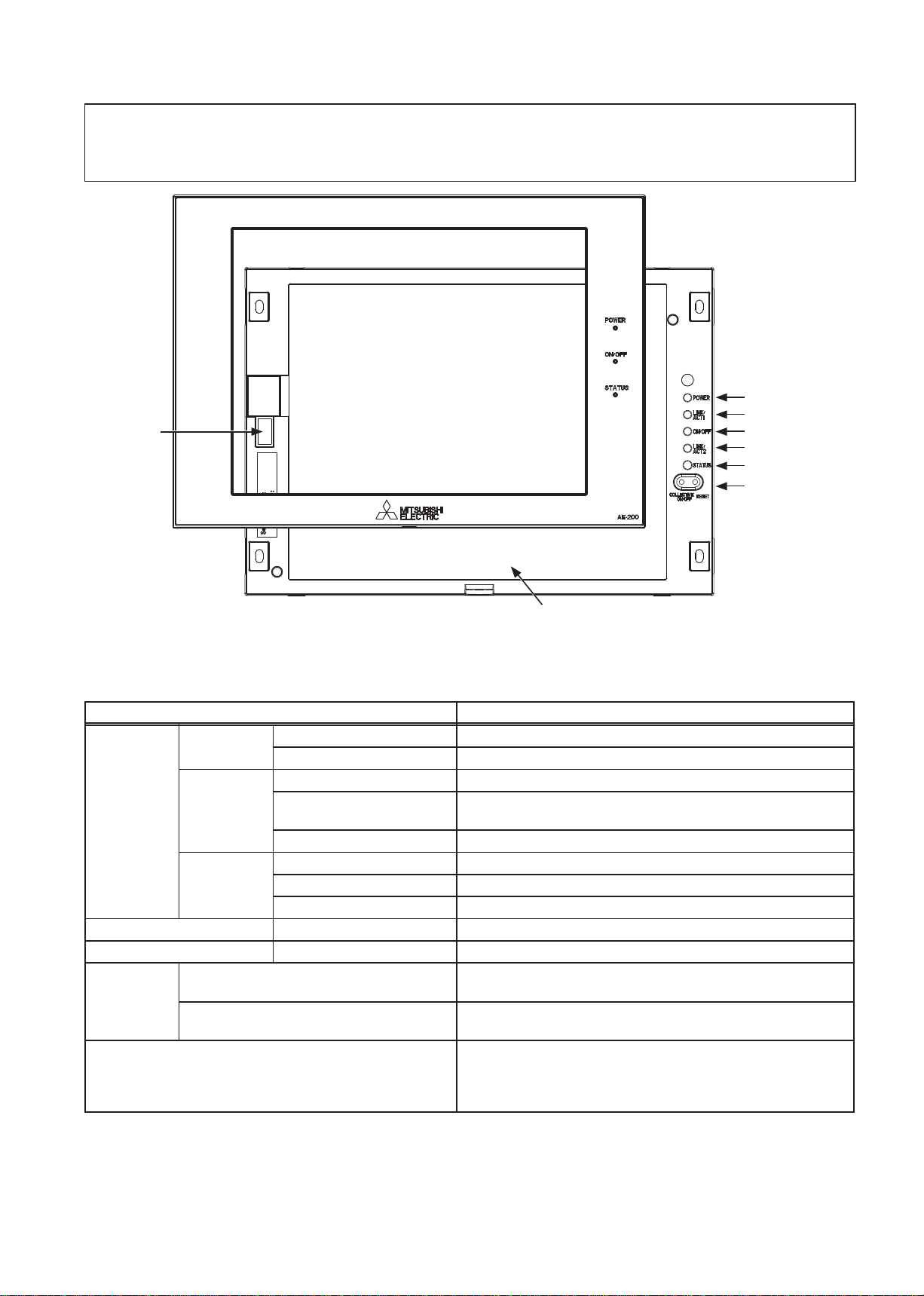

2-5. Controller interface

Important

●Before using the controller, remove the protective sheet on the cover to avoid the sheet from sticking to the touch panel and

causing malfunctions.

●Use the supplied L-shaped driver to remove or attach the cover.

Item Description

LED

Power Lit in green Power ON

Unlit Power OFF

ON/OFF

Lit in green One or more air conditioning units are ON.

Blink in green One or more air conditioning units or other related equipment

are in error.

Unlit All air conditioning units are OFF.

Status Blink in orange Startup failed

Blink in blue Software update in progress

Blink in pink Software update failed

LINK/ACT1 Blink in orange Data transmission in progress (LAN1)

LINK/ACT2 Blink in orange BACnet®data transmission in progress (LAN2)

Push switch ON/OFF Used to turn the connected air conditioning units and the other

related equipment ON and OFF all at once.

Reset Used to reboot the AE-200/AE-50. (This will not affect the

operation status of the air conditioning units.)

USB port

Used when the settings data is backed up to or imported from

a USB memory device, when the energy management data is

output in a CSV format to a USB memory device, and when the

software needs to be updated.

USB port

Power

LINK/ACT1

ON/OFF

LINK/ACT2

Status

Display/Touch panel

When the backlight is off, touching the panel turns the backlight on,

and it will stay lit for three minutes. The backlight stays lit while an

error is occurring.

Push switch

WT07992X02

2-6. Number of connectable units

The table below summarizes the number of connectable units in an AE-200/AE-50/EW-50 M-NET system.

Unit type Number of connectable units

Indoor units, independent OA processing units, LOSSNAY units,

DIDO controllers (PAC-YG66DCA), Air To Water (PWFY) units,

Advanced HVAC CONTROLLERs, HWHP (CAHV, CRHV) units, AI

controllers (PAC-YG63MCA), PI controllers (PAC-YG60MCA)

Up to 50 units (including the interlocked LOSSNAY

units)*1*2*3*4

Indoor units, independent OA processing units, LOSSNAY units,

DIDO controllers (PAC-YG66DCA), Air To Water (PWFY) units,

HWHP (CAHV, CRHV) units in a group

1–16 units

(Indoor units, independent OA processing units,

LOSSNAY units, DIDO controllers (PAC-YG66DCA),

Air To Water (PWFY) units, and HWHP (CAHV,

CRHV) units cannot be combined in one group.)

Remote controllers in a group 0–2 units

System controllers in a group (AE-200/AE-50/EW-50 excluded) 0–4 units (Up to four remote and system controllers

combined can be assigned to each group.)

Advanced HVAC CONTROLLER in a group 0–1 unit

LOSSNAY unit that can be interlocked with each indoor unit 1 unit

Indoor units that can be interlocked with each LOSSNAY unit 1–16 units

*1 The maximum number of controllable units varies, depending on the number of channels used for the DIDO controller. In a system with

connection to Advanced HVAC CONTROLLERs, the number of connectable units is 60 units when using the monitoring function on the

Maintenance Tool, and 70 units when not using the monitoring function on the Maintenance Tool.

*2 By connecting AE-50/EW-50 controllers to anAE-200, up to 200 units can be controlled.

*3 Each contact of DIDO controller (PAC-YG66DCA) counts as one unit.

*4 Although the maximum settable total number of built-in Pulse Input (PI) and PI controllers (PAC-YG60MCA) for each AE-200/AE-50/EW-50

is 15, the number of them in a system with connection to one or more AE-50/EW-50 controllers must be 20 or less. (Each built-in Pulse Input

(PI) counts as one unit.)

2-7. Product features

The table below summarizes the items that can be displayed or set on the AE-200/AE-50.

Note: The items may not be displayed, depending on the model of the connected units.

Function Description

Operation

ON/OFF The ON/OFF operation can be performed for units in a given group.

Operation mode The operation mode can be switched.

Ventilation mode (LOSSNAY

unit) The ventilation mode can be switched.

Fan speed The fan speed (2 to 4 speeds and Auto) can be changed.

Fan speed (LOSSNAY unit) The fan speed (4 speeds and Auto) can be changed.

Set temperature The set temperature can be set.

Air direction The air direction (5 directions, Swing, and Auto) can be changed.

ON/OFF/Fan speed (LOSSNAY

unit) Interlocked LOSSNAY units can be operated or stopped. The fan

speed (2 speeds) can be changed.

Schedule (Available/Not Avail.) The scheduled operations can be enabled or disabled.

Hold (AE-200A/AE-50A only) The Hold function can be enabled or disabled.

Prohibition of local remote

controller operation Some operations or settings from the local remote controllers can be

prohibited.

Filter sign reset Filter sign can be reset.

Schedule Settings Weekly, annual, and today’s schedules can be set.

Malfunction reset Displayed errors can be reset.

Clear malfunction log Displayed unit errors and communication errors can be cleared.

External input

Using external contact signals, the following collective operations

can be controlled: Demand level, Emergency stop, ON/OFF

operation, and Prohibit/Permit local remote controller operation. (An

external input/output adapter is required.)

WT07992X02

Function Description

Monitor

ON/OFF/Blink (LED on the

controller)

ON: One or more units are in operation.

OFF: All units are stopped.

Blink: One or more units are in error.

Operation status of each group The operation status of each group can be displayed.

Filter sign The filter sign indicates that the filter is due for cleaning.

Prohibition of local remote

controller operation The icon to indicate that the operation is prohibited by the

AE-200/AE-50 can be displayed.

Measurement List The readings of the temperature sensor, humidity sensor, and

metering device can be displayed.

AHC List The input and output status of Advanced HVAC CONTROLLERs

can be displayed.

Malfunction List The address of the unit in error and the error code can be displayed.

Malfunction Log Up to the latest 128 errors can be displayed for each

AE-200/AE-50/EW-50.

External output The ON/OFF and Error signals can be output to an external device.

(An external input/output adapter is required.)

Energy Use Status The energy consumption data and comparison data can be

displayed in a graph, and be output in a CSV format to a USB

memory device.

Ranking The rankings in electric energy consumption and the fan operation

time of given indoor units can be displayed in a bar graph, and be

output in a CSV format to a USB memory device.

Target Value Setting The target electric energy consumption values for the entire system

can be set.

Peakcut Control Status The Peakcut control status can be checked, and be output in a CSV

format to a USB memory device.

Energy data output Energy management data can be displayed, and be output in a CSV

format to a USB memory device.

Maintenance

Backing up settings data The settings data can be stored to a USB memory device.

Importing settings data Backed-up settings data can be restored from a USB memory

device.

Energy data output Energy management data can be output in a CSV format to a USB

memory device.

CSV output

The operation data, such as apportioning parameters and metering

device data, can be output to a USB memory device. (Each file

contains the data of up to 62 days (or 4 days when the data type is

30-minute intervals).)

Touch Panel Calibration The touch panel can be calibrated.

Data back-up

Group setting information/

Interlocked LOSSNAY

information

The group setting information and interlocked LOSSNAY information

are retained in the hardware, even if power is turned off.

Malfunction log The malfunction log is retained in the hardware, even if power is

turned off.

Scheduled operations The scheduled operations set for each group are retained in the

hardware, even if power is turned off.

Current date and time The current date and time are retained by the built-in capacitor when

power is turned off.

Maintenance

Screen lock function The touch panel operation can be locked.

Touch panel cleaning The touch panel can be locked when it needs to be cleaned.

Time synchronization Clocks on the controllers and the units that are under the control of

the main system controller are synchronized once a day.

Andere Handbücher für AE-200A

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Mitsubishi Electric Controller Handbücher

Mitsubishi Electric

Mitsubishi Electric MELCEC Q Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Melservo-J3 Series MR-J3-B Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-F Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric FX Series Installationsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSERVO EMC Merkblatt

Mitsubishi Electric

Mitsubishi Electric AJ65DBTB1-32T1 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Melsec A Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric NZ2EX2B-60AD4 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric FX3U-128ASL-M Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric CR800 Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC Q Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC-F FX2NC-1HC Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Q170MSCPU Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC Q Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric FX3U-1PG Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric FX3U-4DA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC-F FX-16E-TB Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-F FX5U Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-R RJ71LP21-25 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric FX3U-4DA-ADP Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MELSEC-A0J2H Series Bedienungsanleitung

Beliebte Controller Handbücher anderer Marken

Digiplex

Digiplex DGP-848 Betriebsanleitung

YASKAWA

YASKAWA SGM series Bedienungsanleitung

Sinope

Sinope Calypso RM3500ZB Bedienungsanleitung

Isimet

Isimet DLA Series Style 2 Installationshandbuch

LSIS

LSIS sv-ip5a Bedienungsanleitung

Rockwell Automation

Rockwell Automation 1769-L31 Bedienungsanleitung

Airflow

Airflow Uno hab Bedienungsanleitung

ABB

ABB ACS580-01 drives Bedienungsanleitung

Panasonic

Panasonic GM1 Series Bedienungsanleitung

Emerson

Emerson SW93 Bedienungsanleitung

AutoAqua

AutoAqua Smart ATO micro SATO-120P Bedienungsanleitung

Panasonic

Panasonic FP? Positioning Unit RTEX Bedienungsanleitung

Samson

Samson Type 5824 Service-Handbuch

Alpha IP

Alpha IP MIOB 21001 Bedienungsanleitung

Siemens

Siemens OpenAir GMA 1 Series Bedienungsanleitung

Surecom

Surecom SR-629 Bedienungsanleitung

Fishman

Fishman TriplePlay Bedienungsanleitung

Regulus

Regulus SRS1 T Bedienungsanleitung
