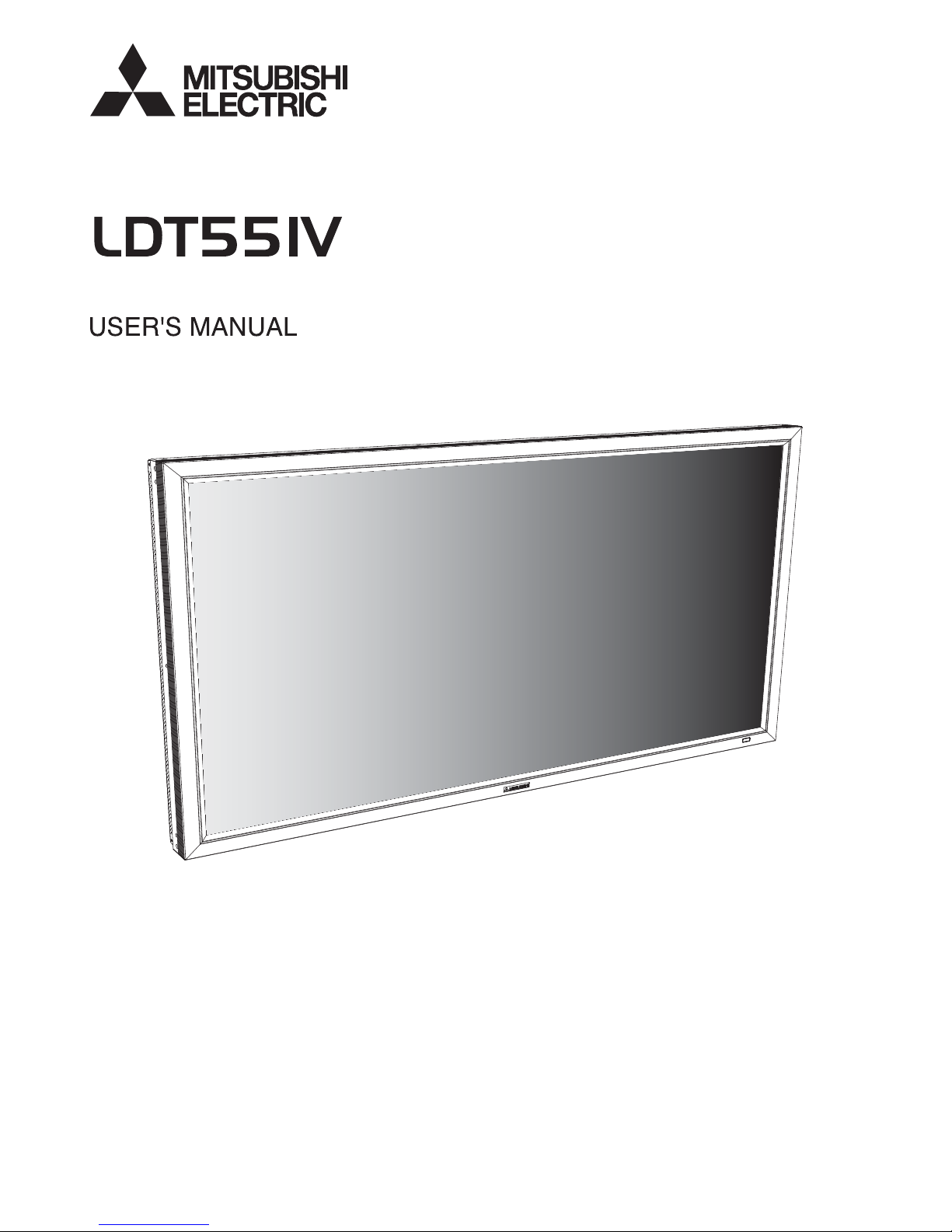

Mitsubishi Electric LDT55IV Bedienungsanleitung

54.6" LCD Display Monitor

MODEL

English-1

English

Features ................................................................................................................................................................................... English-2

Important Information .............................................................................................................................................................. English-3

Declaration ............................................................................................................................................................................... English-5

Safety Precautions, Maintenance & Recommended Use ....................................................................................................... English-6

Contents ................................................................................................................................................................................... English-7

Parts Name and Functions ....................................................................................................................................................... English-8

Buttons, Switch, and Indicator .................................................................................................................................. English-8

Connectors and Terminals ........................................................................................................................................ English-9

Wireless Remote Control .......................................................................................................................................... English-10

How to Use the Wireless Remote Control ................................................................................................................ English-11

Preparation for use .................................................................................................................................................................. English-12

Flow of preparation ................................................................................................................................................... English-12

[P-1] Preparation for installation ............................................................................................................................................ English-13

Determine the installation location ............................................................................................................................ English-13

Ventilation requirements for enclosure mounting ..................................................................................................... English-13

[P-2] Installing the monitor ..................................................................................................................................................... English-14

Installing and removing the stands ........................................................................................................................... English-14

Using the wall mount or ceiling mount ...................................................................................................................... English-14

Installing in the portrait position ................................................................................................................................English-15

[P-3] Installing the optional speakers .................................................................................................................................... English-16

[P-4] Connection procedure .................................................................................................................................................. English-17

Wiring diagram .......................................................................................................................................................... English-17

Prevention of disconnection of HDMI cable ............................................................................................................. English-17

Connecting with a computer (analog connection) .................................................................................................... English-18

Connecting with a computer (digital connection) .....................................................................................................English-19

Connecting a video device (component video/HDMI device) .................................................................................. English-20

Connecting a video device (composite video/S video device)/stereo ampliﬁer ...................................................... English-21

[P-5] Installing the optional module ....................................................................................................................................... English-22

Installation of the optional module ............................................................................................................................ English-22

CAT5 for long-distance connection or multiple-monitor connection........................................................................ English-22

[P-6] Connecting RS-232C .................................................................................................................................................... English-24

Monitor control via RS-232C ..................................................................................................................................... English-24

[P-7] Connecting LAN ............................................................................................................................................................ English-25

Monitor connection using LAN ................................................................................................................................. English-25

[P-8] Connecting a USB device ............................................................................................................................................. English-26

Connecting multiple USB devices using the USB hub function .............................................................................. English-26

[P-9] Connecting the power cord to the monitor .................................................................................................................. English-27

Connecting the power source ................................................................................................................................... English-27

How to Use ............................................................................................................................................................................... English-28

Flow of How to Using ................................................................................................................................................ English-28

[U-1] Turning on all the connected devices ........................................................................................................................... English-29

Turning on external devices ...................................................................................................................................... English-29

Turning on the monitor .............................................................................................................................................. English-29

Power Management Function ................................................................................................................................... English-29

[U-2] Selecting the video input .............................................................................................................................................. English-30

[U-3] Controlling the external devices ................................................................................................................................... English-31

[U-4] Selecting the OSD language ......................................................................................................................................... English-31

[U-5] Auto-setup .................................................................................................................................................................... English-32

[U-6] Selecting the picture mode ........................................................................................................................................... English-32

[U-7] Screen adjustment ........................................................................................................................................................ English-33

[U-8] Picture adjustment ........................................................................................................................................................ English-33

[U-9] Setting the speakers ...................................................................................................................................................... English-34

[U-10] Volume control .............................................................................................................................................................. English-34

[U-11] Schedule setting ........................................................................................................................................................... English-35

How to set up schedule ............................................................................................................................................. English-36

[U-12] Remote control .............................................................................................................................................................. English-37

RS-232C/RS-485 Remote control ............................................................................................................................ English-37

LAN Remote control ..................................................................................................................................................English-39

Conﬁguration and basic operation of OSD screen ................................................................................................................. English-40

Conﬁguration of OSD screen .................................................................................................................................... English-40

Basic operation of OSD ............................................................................................................................................. English-41

OSD screen functions .............................................................................................................................................................. English-42

Other functions ........................................................................................................................................................................ English-52

Picture size ................................................................................................................................................................ English-52

Picture mode ............................................................................................................................................................. English-52

Audio input change ................................................................................................................................................... English-52

OSD information ........................................................................................................................................................ English-52

Control Lock mode .................................................................................................................................................... English-52

PIP, POP function ...................................................................................................................................................... English-53

Remote control numbering function ......................................................................................................................... English-54

Troubleshooting ....................................................................................................................................................................... English-55

Speciﬁcations .......................................................................................................................................................................... English-56

Pin Assignment ........................................................................................................................................................................ English-57

Index

English-2

Features

High-quality LCD panel which provides a wide variety of

contents and messages clearly

Full HD panel Page 56

The LDT551V panel reproduces images from video and

computer signals with precision and clarity, delivering full

1920 x 1080 high-deﬁnition resolution. The high-durability

panel reduces the risk of image persistence in commercial

applications.

Enhanced Display Functionality for Various Commercial

Use/

Support for System Conﬁguration Suitable for

Diversiﬁed Applications

Digital Zoom Page 44

Zoom mode for expanding 4:3 image to 16:9.

Various zoom modes are provided and it is possible to expand

4:3 aspect ratio images to 16:9. In addition, you can select the

dynamic display mode to display naturally widened images

with different zooming rates around the screen center and

screen edges. You can also optimally change the image size

diagonally, horizontally, and vertically.

Tiling Capability with Frame compensation Page 50

Up to 25 panels (5 wide x 5 high) can be combined to create

a single large image (i.e., video wall) or other high-impact

signage. A frame compensation function is incorporated to

compensate the width of panel bezels so that images are

displayed with the utmost accuracy.

PiP, PoP and Side-by-side Pages 10, 46, and 53

Picture-in-Picture and Picture-out-of-Picture are available when

you want to display video content from a video input source

in the sub picture and display the PC input source in the main

picture, and vice versa.

The native resolution as high as 1920 x 1080 can display

these two input sources in the Side-by-side mode, ideal for

broadcasting and video-conferencing applications.

Equipped with CAT5 Analog Signal Transmission Function/

Supports Max. 150-meter Cable

CAT5 Video Connection (option) Page 22

Transmitting analog video signal and control signal over a

single CAT5 cable.

You can transmit analog RGB video signal and display control

signal over a single CAT5 cable up to 150 meters at the

maximum. Furthermore, you can connect up to 4 monitors in a

daisy-chain conﬁguration using CAT5 cable (max. 200 meters).

Variable Management Functions Supporting Efﬁcient

Operation and Management

Programmable Scheduling Function Pages 35, 36, and 49

The monitor’s operating schedule can be programmed for

up to seven different scheduled time intervals by time, day

of the week and input port. This allows video content from

different inputs to be displayed on certain monitors within the

same installation according to the schedule, and extends the

monitor’s life and saves the power by turning it off during those

hours or days it is not in use.

Screen-saver Functions Page 47

To reduce image persistence and maximize the panel life in

demanding signage applications, this product is equipped with

four screen-saver functions.

• GAMMA

• COOLING FAN

• BRIGHTNESS

• MOTION

Power-on Delay Page 51

For installations employing numerous monitors, the power-

on delay function can power up the monitors sequentially with

delay between 2-50 seconds after the power is applied. Using

this function can prevent inrush current problems and reduce

the overall electrical load requirements when a single power

supply is used.

Others

DisplayPort Pages 9 and 19

DisplayPort-compliant terminal is provided.

The monitor is equipped with a terminal supporting DisplayPort,

the digital interface standard. You can transmit video signals

over a single cable of max. 15 meters long.

Built-in Speakers Pages 8, 16, and 34

Speakers inside the display unit create stereo sounds and used

to communicate voice messages. External special optional

speakers can be connected, so that the built-in and external

speakers can be switched for use.

Remote Control Pages 10 and 11

Special wireless remote control supports major operations and

settings.

The special wireless remote control is supplied for major

controls such as power-on/off, video source switching, and

various settings.

Closed Caption Page 51

You can display captions.

When closed-caption video signals are input, you can select to

display or hide the captions on the screen.

This monitor is compliant with EIA-608-A.

USB hub function Pages 9 and 26

Multiple USB devices can be connected to the computer.

The monitor is equipped with the USB hub having four self-

powered downstream ports, where the USB devices can be

connected.

English-3

English

DECLARATION OF CONFORMITY

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not

cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation.

U.S. Responsible Party: Mitsubishi Digital Electronics America, Inc.

Address: 9351JeronimoRoad,

Irvine,California92618U.S.A.

Tel. No.: +1 - (949) 465-6000

Type of Product: Computer Monitor

EquipmentClassiﬁcation: Class B Peripheral

Model: LDT551V(D2010)

We hereby declare that the equipment speciﬁed above

conforms to the technical standards as speciﬁed in the FCC Rules.

Windows is a registered trademark of Microsoft Corporation.

HDMI, the HDMI logo, and High-Deﬁnition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing

LLC in the United States and other countries.

The DisplayPort Icon is a trademark of the Video Electronics Standards Association, registered in the U.S. and other

countries.

All other brands and product names are trademarks or registered trademarks of their respective owners.

Canadian Department of Communications Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2

No. 60950-1.

FCC Information

1. Use the attached speciﬁed cables with this equipment so as not to interfere with radio and television reception.

(1) The power supply cord you use must have been approved by and comply with the safety standards of U.S.A.,

(2) Please use the supplied shielded video signal cable. Use of other cables and adapters may cause interference with radio and

television reception.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult your dealer or an experienced radio/TV technician for help.

You are cautioned that changes or modiﬁcations not expressly approved by the party responsible for compliance could void

your authority to operate the equipment.

Important Information

English-4

Important Information (continued)

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S

POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM WALL SOCKET. TO

FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET. DO

NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have sufﬁcient magnitude to cause electric shock.

Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been

included. Therefore, it should be read carefully in order to avoid any problems.

WARNING

CAUTION

CAUTION:

This LCD Monitor uses a lamp that contains mercury. Disposal of the lamp or the LCD Monitor with the lamp may be

regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or

the Electronic Industries Alliance: www.eiae.org. (For US only).

CAUTION

English-5

English

We hereby certify that the color monitor LDT551V (D2010)

is in compliance with

Council Directive 2006/95/EC:

— EN 60950-1

Council Directive 2004/108/EC:

— EN 55022

— EN 61000-3-2

— EN 61000-3-3

— EN 55024

and marked with

Mitsubishi Electric Corporation

2-7-3, Marunouchi,

Chiyoda-Ku

Tokyo 100-8310, Japan

Declaration

Declaration of the Manufacturer

Note: This symbol mark is for EU countries only.

This symbol mark is according to the directive 2002/96/EC Article 10 Information for users and

Annex IV, and/or to the directive 2006/66/EC Article 20 Information for end-users and Annex II.

Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality materials and

components which can be recycled and/or reused.

This symbol means that electrical and electronic equipment, batteries and accumulators, at their end-of-life,

should be disposed of separately from your household waste.

If a chemical symbol is printed beneath the symbol shown above, this chemical symbol means that the

battery or accumulator contains a heavy metal at a certain concentration. This will be indicated as follows:

Hg: mercury (0,0005%), Cd: cadmium (0,002%), Pb: lead (0,004%)

In the European Union there are separate collection systems for used electrical and electronic products,

batteries and accumulators.

Please, dispose of this equipment, batteries and accumulators correctly at your local community waste

collection/recycling centre.

Please, help us to conserve the environment we live in!

Warning

This is a Class A product. In a domestic environment this product may cause radio interference, in which case the

user may be required to take adequate measures.

English-6

FOR OPTIMUM PERFORMANCE, PLEASE NOTE

THE FOLLOWING WHEN SETTING UP AND USING

THE LCD COLOR MONITOR:

• DO NOT REMOVE MONITOR BACK COVER. There are

no user serviceable parts inside and opening or removing

covers may expose you to dangerous shock hazards or

other risks.

Refer all servicing to qualiﬁed service personnel.

• Do not spill any liquids into the cabinet or use your monitor

near water.

• Do not insert objects of any kind into the cabinet slots,

as they may touch dangerous voltage points, which can

be harmful or fatal or may cause electric shock, ﬁre or

equipment failure.

• Do not place any heavy objects on the power cord.

Damage to the cord may cause shock or ﬁre.

• Do not place this product on a sloping or unstable cart,

stand or table, as the monitor may fall, causing serious

damage to the monitor.

• When operating the LCD monitor with its AC 100-120 V

power supply in North America, use a power supply cord

provided with the monitor.

If a power cord is not supplied with this monitor, please

contact your supplier.

• When operating the LCD monitor with its AC 220-240 V

power supply in Europe, use a power supply cord provided

with the monitor.

If a power cord is not supplied with this monitor, please

contact your supplier.

• In UK, use a BS-approved power cord with molded plug

having a black (10 A) fuse installed for use with this monitor.

• When operating the LCD Monitor with a 220-240 V AC

power supply in Australia, use the power cord provided with

the monitor.

If a power cord is not supplied with this equipment, please

contact your supplier.

• For all other cases, use a power cord that matches the AC

voltage of the power outlet and has been approved by and

complies with the safety standard of your particular country.

• Do not place any objects onto the monitor and do not use

the monitor outdoors.

• The inside of the ﬂuorescent tube located within the LCD

monitor contains mercury. Please follow the bylaws or rules

of your municipality to dispose of the tube properly.

• Do not bend power cord.

• Do not use monitor in high temperature, humid, dusty, or

oily areas.

• If monitor or glass is broken, do not come in contact with

the liquid crystal and handle with care.

• If the LCD monitor is damaged and the liquid crystal leaks

out, do not inhale or swallow it.

• Allow adequate ventilation around the monitor, so that heat

can properly dissipate. Do not block ventilated openings or

place the monitor near a radiator or other heat sources.

Do not put anything on top of the monitor.

• The power cable connector is the primary means of

detaching the system from the power supply. The monitor

should be installed close to a power outlet, which is easily

accessible.

• Handle with care when transporting. Save packaging for

transporting.

• Please clean the holes of back cabinet to reject dirt and

dust at least once a year because of set reliability.

• If using the cooling fan continuously, it’s recommended to

wipe holes a minimum of once a month.

• When installing the remote control batteries;

- Align the batteries according to the (+) and (-) indications

inside the case.

- Align the (-) indication of the batteries ﬁrst inside the

case.

CAUTION:

Immediately unplug your monitor from the wall outlet and refer

servicing to qualiﬁed service personnel under the following

conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the

monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following

operating instructions.

Recommend Use

CAUTION:

• For optimum performance, allow 20 minutes for warm-up.

• Rest your eyes periodically by focusing on an object at least

5 feet away. Blink often.

• Position the monitor at a 90° angle to windows and other

light sources to minimize glare and reﬂections.

• Clean the LCD monitor surface with a lint-free, non-abrasive

cloth. Avoid using any cleaning solution or glass cleaner!

• Adjust the monitor’s brightness, contrast, and sharpness

controls to enhance readability.

• Avoid displaying ﬁxed patterns on the monitor for long

periods of time to avoid image persistence (after image

effects).

• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomic beneﬁts, we recommend

the following:

• Use the preset Size and Position controls with standard

signals.

• Use the preset Color Setting.

• Use non-interlaced signals.

• Do not use primary color blue on a dark background, as

it is difﬁcult to see and may produce eye fatigue due to

insufﬁcient contrast.

Safety Precautions, Maintenance & Recommended Use

English-7

English

54.6" LCD Display Monitor

MODEL

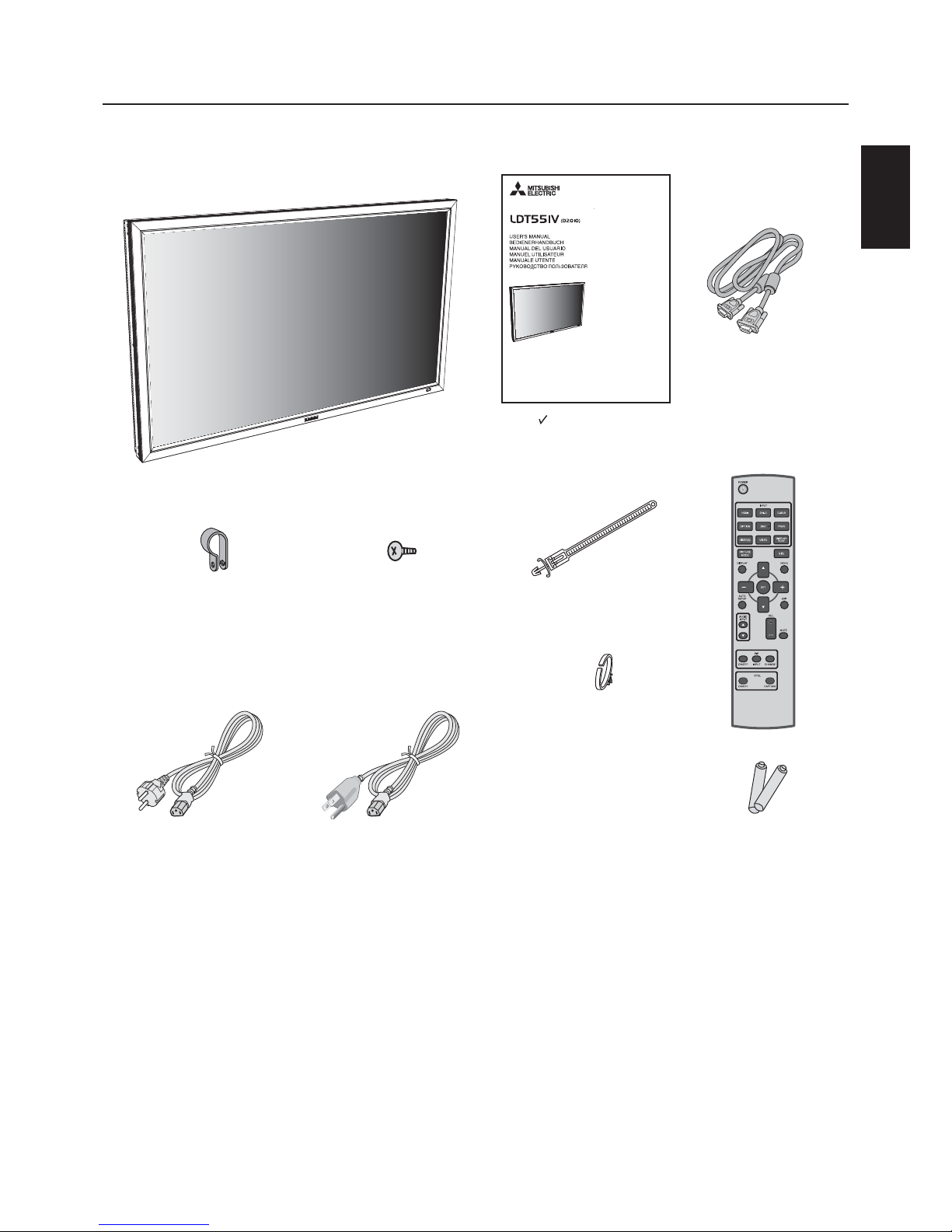

Contents

Power Cord

For EU

Video Signal Cable

(Mini D-SUB 15-pin to

Mini D-SUB 15-pin Cable)

Clamper x 3

(For securing the cables)

Wireless Remote

Control and AAA

Batteries

Your LCD monitor (LDT551V) comes with the following:

* For the use in the other regions, use a power cord that

matches the AC voltage of the power outlet and has been

approved by and complies with the safety standard of those

regions or countries.

The following components are supplied as option.

• External Speakers

• Stands

• CAT5 Tx BOX

• CAT5 Rx BOX

Clamper x 2

(To prevent from falling)

Screw for Clamper

(M4) x 2

Clamper x 2

(For preventing disconnection of

the power cord and HDMI cable)

LCD Monitor

Power Cord

For North America

* The supplied power cord varies depending on destination.

User’s Manual

English-8

6PLUS (+) button

Acts as (+) button to increase the adjustment in the OSD menu.

Increases the audio output level when the OSD menu is off.

7MINUS (-) button

Acts as (-) button to decrease the adjustment in the OSD menu.

Decreases the audio output level when the OSD menu is off.

8UP ( ) button

Acts as button to move the highlighted area up to select an

adjustment item in the OSD menu.

9DOWN ( ) button

Acts as button to move the highlighted area down to select

an adjustment item in the OSD menu.

10 EXIT button

Activates the OSD menu when the OSD menu is off.

Acts as EXIT button to go back to the previous OSD menu.

11 Speakers

Audio sound is output from the built-in speakers.

(Reference) Control Lock mode

You can lock the operation buttons. See page 52.

1Main Power Switch

Switches the main power on/off.

2Remote control sensor and Power indicator

Remote control sensor: Receives the signal from the wireless

remote control.

Power indicator: Indicates the state of the LCD monitor.

• Steady green: The power is on.

• Steady red: The power is off.

Some operations such as power-on

are possible.

• Steady green and red: The LCD monitor is in the sleep

mode.

• Off: The main power is off.

• Steady red and blinking green: The LCD monitor is in the

schedule standby mode.

• Blinking red: The LCD monitor has an error

(detected by the self-diagnostic

function).

3POWER button ( )

Switches the power on/off.

This button doesn’t work when the power indicator is off. Turn

on the main power. (See page 29.)

4MUTE button

Switches the audio mute on/off.

5INPUT button

Displays the OSD menu to switch the video input.

You can select [RGB1], [RGB2], [RGB3], [RGB4], [OPTION]*,

[RGB6], [DVD/HD], [VIDEO<S>], or [VIDEO] using the UP ( ) or

DOWN ( ) button.

* OPTION can be used when an optional module is mounted

on the option slot.

Buttons, Switch, and Indicator

OFF

Parts Name and Functions

NOTE:

For details about the OSD menu operation using the buttons, see “Basic operation of OSD.” (See page 41.)

Front

Control buttons

Rear

Andere Handbücher für LDT55IV

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Mitsubishi Electric Monitor Handbücher

Mitsubishi Electric

Mitsubishi Electric MLM300 Stücklistenhandbuch

Mitsubishi Electric

Mitsubishi Electric RS232/485/LAN Serial Communication Control Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MLM300 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MDT5525 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric LDT422V (BR931) Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric LDT421V Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric DT1151 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MDT321S Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PD-5010 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MDT652S Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric LDT322V Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Diamond View DV153 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric LDT321V Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Diamond View DV180 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MDT42IS Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric 56P-QF60LCU Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric EMU4-D65 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PH50 series Bedienungs- und Sicherheitshinweise

Mitsubishi Electric

Mitsubishi Electric LDT42IV Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric LDT32IV Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PD-4225S Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MLM400 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric LDT321V Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric LDT55IV Bedienungsanleitung

Beliebte Monitor Handbücher anderer Marken

Linear Acoustic

Linear Acoustic LQ-1000 Bedienungsanleitung

AOC

AOC I2579V Bedienungsanleitung

Gateway

Gateway FPD1520 Bedienungsanleitung

Furuno

Furuno Mu 120c Bedienungsanleitung

Asus

Asus VB171D - 17" LCD Monitor Bedienungsanleitung

Dell

Dell S2230MX Gebrauchsanweisung

Philips

Philips 107C64 Bedienungsanleitung

Dell

Dell S2409WFP Bedienungsanleitung

EverFocus

EverFocus EN-7517E Bedienungsanleitung

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Bedienungsanleitung

Dell

Dell Precision 7680 Bedienungsanleitung

LG 50PM1M - - 50" Plasma Panel Bedienungsanleitung

Bosch

Bosch DDU 9 Bedienungsanleitung

Acer

Acer A231HL Bedienungsanleitung

Philips

Philips 86BDL4152T Bedienungsanleitung

NEC

NEC AccuSync LCD5V Bedienungsanleitung

Emay

Emay SleepO2 Bedienungsanleitung

IBM

IBM 6360 Montageanleitung
