MITSUBISHI HOME THEATRE PROJECTOR

HC3900

A fixed iris has been utilised for both enhanced brightness and contrast

with images. Even in a relatively bright living room with the curtains

closed, movies, sports and other programs from high-definition

broadcasts and Blu-ray players can be enjoyed to the fullest.

R (red), G (green), B (blue), C (cyan), M (magenta), and Y (yellow)

can each be adjusted individually with the built-in colour management

function to best suit your personal tastes.

Digital Micro-Mirror Device

DMD Pixel Composition Map

Before adjustment After adjustment

The latest 0.65 DLPTM chip

Colour Management for Preferred Colour Adjustment

3000lm brightness, 2000:1 native contrast

1.5x Short-throw HD Zoom Lens

A newly developed short-throw zoom

lens has been adopted. The 4-cluster,

13-piece all-glass lens provides

excellent focusing performance with

1.5x magnification of high-definition

images. Improvements in image depth

and the lens aperture make it possible

for deep blacks to be expressed.

1000lm 3000lm

Note:

Photos are

brightness

impressions

Note:

Photos are

colour adjustment

impressions

A key feature of the HC3900 is the latest Digital Light Processing

(DLP

)

chip incorporating a new digital micromirror

device

(DMD) comprised of densely embedded

micromirrors.

A smaller mirror cavity diameter and

narrower gaps between the mirrors improve the

aperture ratio of this innovative chip, and reflective

light diffusion has been greatly reduced by

improving the wiring below the mirror section. The

mirrors are controlled to tilt repeatedly several

thousand times per second,

enabling smooth, true

reproduction of the digital source

for finely detailed

images with no noise or deterioration.

HOME THEATRE PROJECTOR

New publication eective Dec. 2010

Specications are subject to change without notice.

Top View Bottom View

Front View Side View

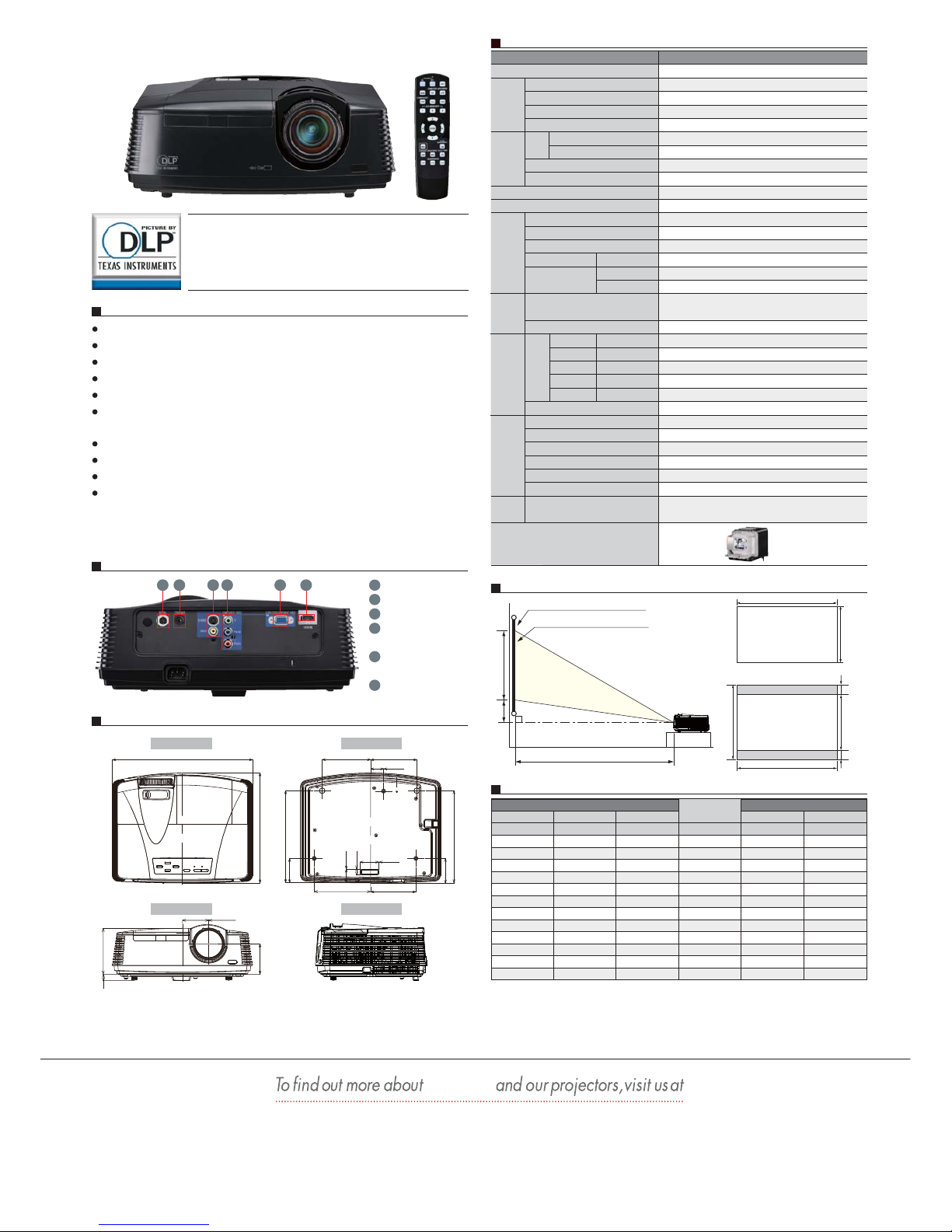

HC3900

PC input

Horizontal (kHz)

Vertical (Hz)

Mini D-Sub 15 pin

HDMI terminal

RCA terminal

S-Video terminal

RCA terminal

PC input

HDMI input

Composites

Components

Model HC3900

Projection system

Panel

specs

Optical

specs

Colour wheel

Projection screen size (inches)

Images

Input

signal

system

Input

Functions

Other

Panel size

Number of pixels

Drive system

Array

Lens Zoom / focus operation

Light source lamp

Optical system

Brightness (maximum)

Contrast ratio

Resolution

Scan frequency

Video

Serial / RS-232C standard

Gamma mode

Digital keystone (Vertical)

Power source voltage

Power consumption

Weight

f (mm)

Main unit dimensions (W x H x D)

Supplied accessories

Option lens VLT-HC3800LP

DLPTM system

0.65 DMD, Aspect ratio 16:9

1920 x 1080

DMD reflection system

Stripe pattern

1.5x zoom / manual operation

20.6-30.1

230W (at Standard Mode), 190W (at Low Mode)

Time-division colour separation / composition system

5 segment (RGBWY) x 2

50-300

3000 lumens

ANSI Contrast ratio 500:1

2000:1

NTSC, NTSC4.43, PAL (including PAL-M and N), SECAM, PAL-60

Video input: 480i/p, 576i/p, 1080i 60/50, 1080p 60/50/24, 720p

VGA 640x480 - 1600x1200

15 - 80

50 - 85

PC/AT compatibles, Mac

1 terminal

1 terminal (Ver.1.3)

1 terminal (component can be also input to Mini D-Sub 15 pin)

1 terminal (Mini DIN 8 pin)

330W (0.5W in standby mode)

3.6kg

345 x 129 x 270mm (excluding height adjustment)

Power source cord (1.8m), Remote control, AA batteries (x2),

RGB signal cable, Lens cap, Lamp replacement attachment

AUTO/SPORTS/VIDEO/CINEMA/USER1/USER2

±15 steps

*All brand and product names are trademarks or registered trademarks of their respective companies.

Specifications

AC100-240V 50/60Hz

74.6

113 13

64.2

270

345

225.6

226.1

60.1

59.6

14.6

33.6

118.8

138.3 111.1

46.9

113.2

31.7

Illuminated

remote control unit

348 Victoria Rd Rydalmere, NSW 2116 Phone: (02) 9684 7777 Fax: (02) 9684 7208

www.MitsubishiElectric.com.au

MITSUBISHI ELECTRIC AUSTRALIA PTY LTD

Unit:mm

Lw-Lt

Projection Distance

105

126

100

110

120

150

200

250

300

111

133

155

177

199

221

244

266

332

443

553

664

100

112

125

137

149

187

249

311

374

1.5

1.8

2.1

2.4

2.7

3.1

3.4

3.7

4.6

6.2

7.7

9.3

2.3

2.7

3.2

3.6

4.1

4.6

5.0

5.5

6.9

9.2

11. 5

–

Diagonal

inch

Screen size (16:9) Projection distance

W (width)

H (height)

Shortest (Wide)

Longest (Tele)

Projection Installation

Other Feautures

Input aud Output Terminals

Dimensions

Relationship between 16:9 screen

and projected images

Relationship between 4:3 screen

and projected images

Screen

Projected image area

Floor mounted W (Screen width identical)

Screen height

Serial RS-232C

Trigger

S-Video/Video

Component

video input

PC/Component

video input

HDMI

1 2 3 4 5 6

Long-life Lamp of 5,000 hours*1

*1; When used in low lamp mode. Maximum lamp life in standard mode use is 3,000 hours. Lamp life refers to

the average time required for brightness to be reduced by half, and not the time specified in the warranty.

Lamp service life may vary widely depending on the environment and conditions, and whether or not cleaning and

other maintenance procedures are followed.

*2; BrilliantColor is a trademark of Texas Instruments.

HC3900

Low noise operation of 25dBA (in low mode)

DDP3021 Full 10-bit Panel Driver

Blu-ray 24P direct output compatible

Richer, More True-to-life Colours (at colour temperature of D65)

Anamorphic Lens Compatibility − Choose Setting

Based on Media Played

BrilliantColorTM*2(5 segment colour wheel)

Adjustable Overscan

One-touch projection – Trigger terminal

Vertical Distortion Correction

HOME THEATRE PROJECTOR
