Mitsubishi Electric MRCH1 Bedienungsanleitung

Operating

Manual

MRCH1 Remote Controller

Operating Manual

69-2427EFS-01

M28450A

Read and save these instructions.

Need Help?

For assistance with this product please visit http://controls.mehvac.com

or call Mitsubishi Electric toll-free at 888-990-7546

The three diamond logo is a registered trademark of Mitsubishi Electric Corporation

www.mitsubishipro.com

Battery Holder

Press down and pull to

remove batteries.

Batteries should be

replaced once a year

(see page 28).

Quick Reference

Card

Grasp and pull to

see basic operating

instructions at a glance.

CAUTION: EQUIPMENT DAMAGE HAZARD. Please refer to the equipment Operating

Manual for recommended operating temperatures.

Français : voir la page 34 • Español: vea la página 68

1 69-2427EFS—01

Contents

About your new remote controller

Programming at a glance.................. 2

Quick reference to controls .............. 3

Quick reference to display screen.... 4

Programming & Operation

Set the time and day......................... 5

Select the fan setting ........................ 6

Select the system setting.................. 7

Multi-zone configurations ................. 8

Drying mode ...................................... 9

Program schedules ......................... 10

Program schedule overrides........... 13

System changeover......................... 17

Portable Central Controller ............. 18

Outdoor air sensor .......................... 19

Additional features .......................... 20

Appendices

Advanced functions......................... 24

Battery replacement........................ 28

In case of difficulty .......................... 31

Regulatory information.................... 32

Limited warranty.............................. 33

Operating Manual

69-2427EFS—01 2

About your remote controller

Your new remote controller is pre-programmed and ready to go. All you have to do is

set the time and day. Then check the settings below and change if needed:

Set time and day (required for proper operation)1. .......................... See page 5

Select fan setting2. ................................................................................. See page 6

Select system setting3. .......................................................................... See page 7

Program schedules:4. Preset to energy-saving levels

while space is occupied (assumes arrival at 8 am

and departure at 10 pm)................................................................ See pages 10-11

ONE TOUCH TEMP CONTROL: You can override the program schedule at any time,

and manually adjust the temperature (see pages 13-16).

Français : voir la page 34 • Español: vea la página 68

3 69-2427EFS—01

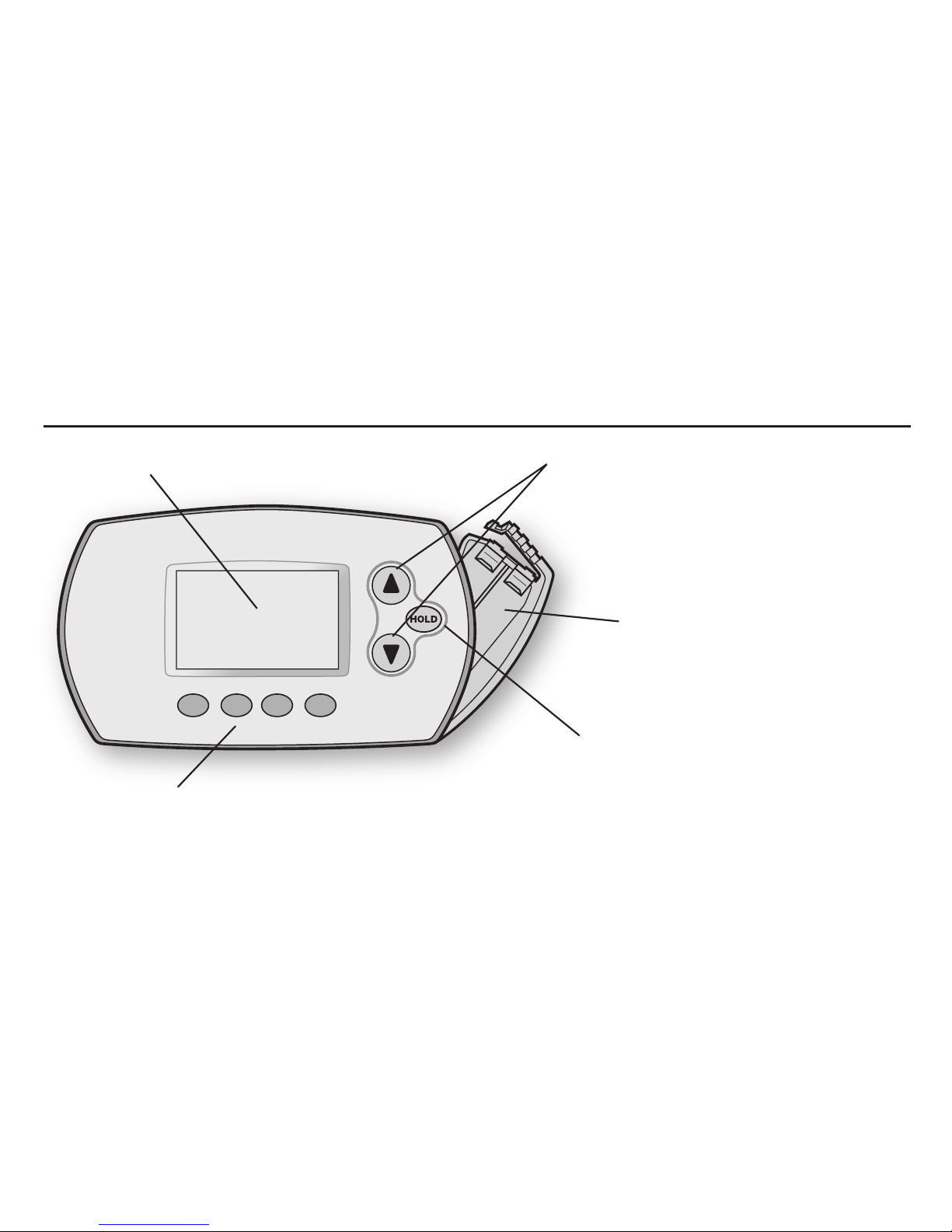

Quick reference to controls

M28451A

Digital display (see page 4)

Battery holder (see page 28)

Temperature buttons

Press to adjust temperature

settings

Hold button

Press to override programmed

temperature control (see page 16)

Function buttons

Press to select the function displayed just above each button.

(Functions change depending on the task.)

Operating Manual

69-2427EFS—01 4

M32209

Indoor Setting

Heat

Auto System

Fan

Set

Clock/Day

Schedule

ReplaceBattery

occupied1

Locked

Recovery

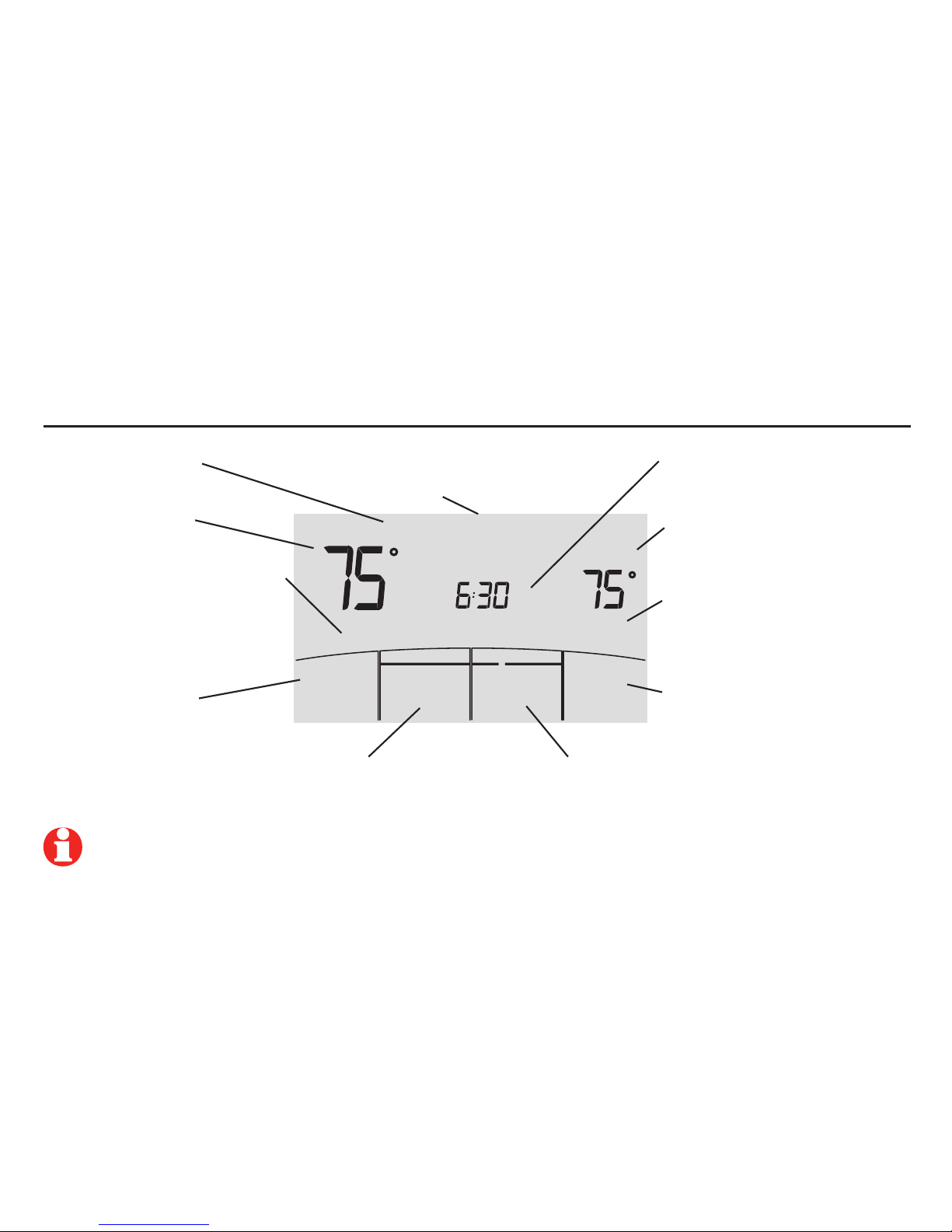

Quick reference to display screen

Current inside

temperature

Low battery warnings

(see page 28)

Temperature setting

(see pages 12–16)

Current time

(see page 5)

Optimal Start

(see page 23)

Current program period

occupied/unoccupied or

Wake/Leave/Return/Sleep

(see pages 10-11)

Set Clock/Day/

Schedule

(see pages 5 and 12)

System setting

Cool/Heat/Drying/Auto/Off (see page 7)

Fan Setting

Auto/On/Selectable

(see page 6)

(see pages 20–23)

Locked

(see page 23)

Note: Options may vary depending on your equipment.

Français : voir la page 34 • Español: vea la página 68

5 69-2427EFS—01

Set the time and day

Press1. SET CLOCK/DAY/SCHEDULE, then

press sor tto set clock.

Press2. SET DAY, then press sor tto

select the day of week.

Press3. DONE to save.

M32211

Set

Schedule

Set

Day

Done

DaySet

Note: If the SET CLOCK/DAY/SCHEDULE

option is not displayed, press DONE or

CANCEL.

Note: If the display flashes “Set

Clock,” the remote controller will

follow your settings for the weekday

“occupied1” (or “Wake”) time period

until you reset the time and day.

Press SET DAY, then select current day

Press SET CLOCK/DAY/SCHEDULE, then adjust time

M32218

Heat

Auto System

Fan

Set

Clock/Day

Schedule

Operating Manual

69-2427EFS—01 6

Select the fan setting

Press FAN to select Auto or selectable fan

speed.

In “Auto” fan mode the equipment deter-

mines the optimal fan speed to meet the

set temperature.

When system switch is “Off”, press FAN to

circulate air. The fan will run at the user’s

selected fan speed.

M32212

Heat

System

Fan

Set

Clock/Day

Schedule

Auto

M32213

Heat

Lo Hi

System

Fan

Set

Clock/Day

Schedule

Note: Selectable fan speed

options may vary depending on

your equipment.

Français : voir la page 34 • Español: vea la página 68

7 69-2427EFS—01

Select the system setting

M32214

Cool

Auto System

Fan

Set

Clock/Day

Schedule

M32300

Drying

Auto System

Fan

Set

Clock/Day

Schedule

M32215

Heat

Auto System

Fan

Set

Clock/Day

Schedule

M32301

Auto

Auto System

Fan

Set

Clock/Day

Schedule

• Cool: Remote controller controls only

in the cooling mode.

• Heat: Remote controller controls only

in the heating mode.

• Drying: Remote controller directs

indoor unit to remove moisture out

of the air. May result in temperatures

below your cool setting.

• Auto: Remote controller automatically

selects heating or cooling depending

on the indoor temperature.

• Off: Indoor unit is off.

Press SYSTEM to select:

Note: Options may vary depending on your equipment.

Operating Manual

69-2427EFS—01 8

Multi-zone configurations

In multi-zone configurations, each zone

is typically set to the same mode (Cool,

Heat, or Drying).

If zones are set to different modes, the first

indoor unit to call for heat or cool will take

priority. Other zones go into standby, and

“Wait” will be displayed on the screen.

M28946

Indoor Setting

Heat

Auto System

Fan

Set

Clock/Day

Schedule

occupied1

Wait
