Mitsubishi Electric PAR-31MAA Bedienungsanleitung

Prior to use, thoroughly read the instructions in this manual to use the product correctly.

Retain for future reference.

Make sure that this CD-ROM and the Installation Manual are passed on to any future users.

To ensure safety and proper operation of the remote controller, the remote controller should

only be installed by qualified personnel.

CITY MULTI Control System

and Mitsubishi Mr. Slim Air Conditioners

MA Remote Controller PAR-31MAA

Instruction Book

English

Deutsch

Français

Español

Italiano

Nederlands

Português

Ελληνικά

Русский

Türkçe

Český

Slovenský

Magyar

Polski

Slovenščina

Svenska

Hrvatski

Български

Română

Dansk

Mode Temp.

Cool Set temp.

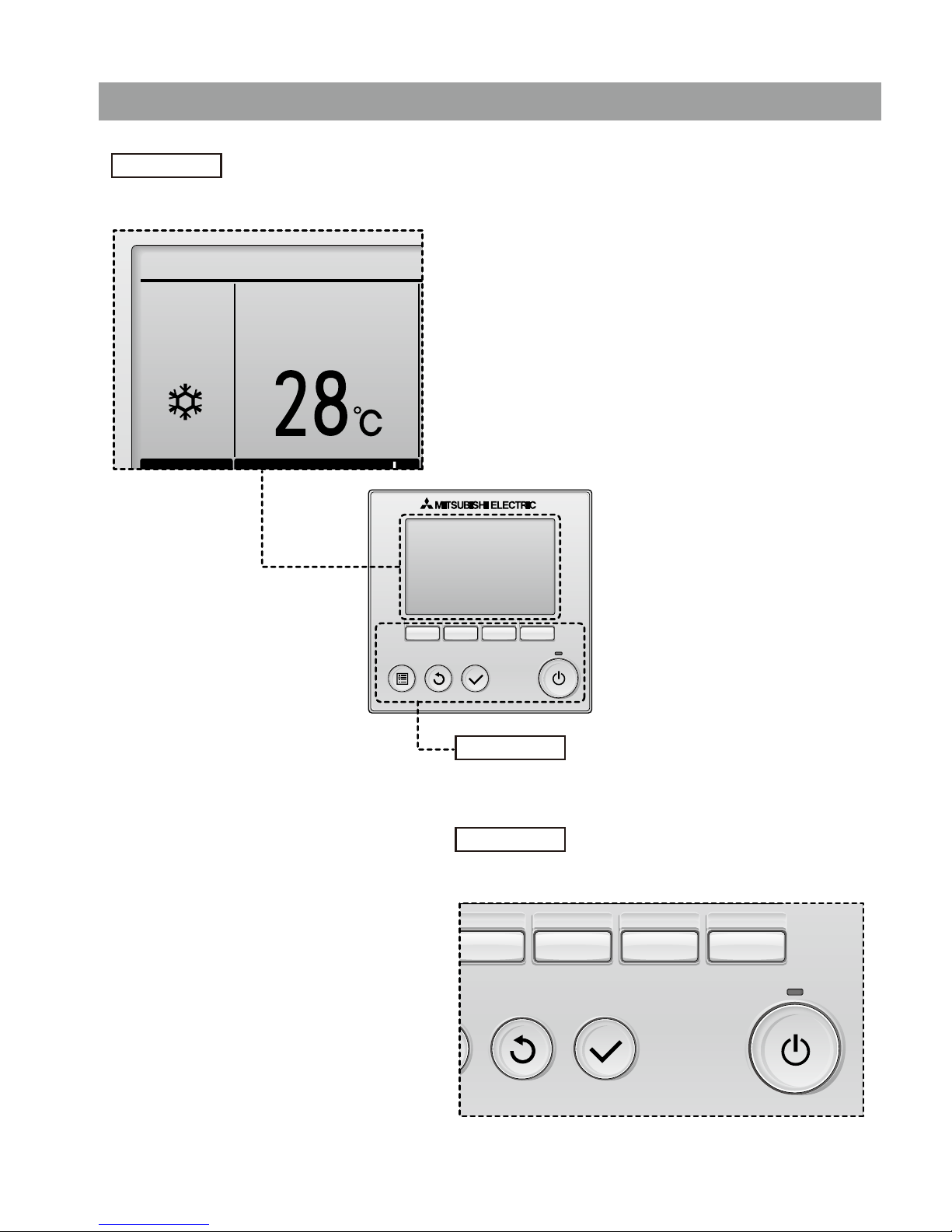

Product features

Feature 1

Large, easy-to-see display

Full-dot LCD display with large characters

for easy viewing

Feature 2

Simple button arrangement

Feature 3

Large, easy-to-press buttons

Buttons are arranged according

to usage to allow for intuitive

navigation.

Frequently used buttons are larger

than other buttons to prevent

unintended pressing of other

buttons.

Contents

Safety precautions

.................................... 4

Names and functions of controller components

......... 6

Controller interface ....................................................6

Display.......................................................................8

Basic operations

.......................................... 12

Power ON/OFF........................................................12

Operation mode, temperature, and fan speed settings

..........14

Maintenance

.................................................52

Troubleshooting

............................................ 54

Specifications

................................................ 56

Filter information......................................................52

Error information......................................................54

Read before operating the controller

......... 10

Menu structure.........................................................10

Icon explanations..................................................... 11

Main menu list .........................................................18

Restrictions for the sub remote controller................19

Navigating through the Main menu..........................20

Vane•Louver•Vent. (Lossnay)..................................22

High power ..............................................................24

Clock........................................................................25

Timer (On/Off timer).................................................26

(Auto-Off timer)..............................................28

Weekly timer............................................................30

OU silent mode........................................................32

Restriction................................................................34

Energy saving..........................................................38

Night setback...........................................................42

Manual vane angle ..................................................44

Main display.............................................................46

Contrast...................................................................47

Language selection .................................................48

Function setting .......................................................50

Navigating through the menu

......................18

Controller operation-Function settings

.......22

WARNING

• Thoroughly read the following safety precautions before using the unit.

• Observe these precautions carefully to ensure safety.

CAUTION

Indicates a risk of death or serious injury.

Indicates a risk of serious injury or structural damage.

WARNING

Safety precautions

• After reading this manual, pass it on to the end user to retain for future reference.

• Keep this manual for future reference and refer to it as necessary. This manual should be made available

to those who repair or relocate the controller. Make sure that the manual is passed on to any future

users.

General precautions

To reduce the risk of electric shock, malfunctions,

smoke or fire, do not operate the switches/buttons or

touch other electrical parts with wet hands.

To reduce the risk of shorting, current leakage,

electric shock, malfunctions, smoke, or fire, do not

wash the controller with water or any other liquid.

Do not install the unit in a place where large

amounts of oil, steam, organic solvents, or corrosive

gases, such as sulfuric gas, are present or where

acidic/alkaline solutions or sprays are used

frequently. These substances can compromise

the performance of the unit or cause certain

components of the unit to corrode, which can result

in electric shock, malfunctions, smoke, or fire.

When disinfecting the unit using alcohol, ventilate

the room adequately. The fumes of the alcohol

around the unit may cause a fire or explosion when

the unit is turned on.

To reduce the risk of injury or electric shock, before

spraying a chemical around the controller, stop the

operation and cover the controller.

To reduce the risk of injury or electric shock, stop

the operation and switch off the power supply before

cleaning, maintaining, or inspecting the controller.

If any abnormality (e.g., burning smell) is noticed,

stop the operation, turn off the power switch, and

consult your dealer. Continued use of the product

may result in electric shock, malfunctions, or fire.

Properly install all required covers to keep moisture

and dust out of the controller. Dust accumulation and

water can cause electric shock, smoke, or fire.

CAUTION

To reduce the risk of fire or explosion, do not place

flammable materials or use flammable sprays

around the controller.

To reduce the risk of damage to the controller, do not

directly spray insecticide or other flammable sprays

on the controller.

To reduce the risk of environmental pollution, consult

an authorized agency for proper disposal of remote

controller.

To reduce the risk of electric shock or malfunctions,

do not touch the touch panel, switches, or buttons

with a pointy or sharp object.

To reduce the risk of injury and electric shock, avoid

contact with sharp edges of certain parts.

To avoid injury from broken glass, do not apply

excessive force on the glass parts.

To reduce the risk of injury, wear protective gear

when working on the controller.

Precautions for moving or repairing the controller

WARNING CAUTION

The controller should be repaired or moved only by

qualified personnel. Do not disassemble or modify

the controller.

Improper installation or repair may cause injury,

electric shock, or fire.

To reduce the risk of shorting, electric shock, fire,

or malfunction, do not touch the circuit board with

tools or with your hands, and do not allow dust to

accumulate on the circuit board.

Additional precautions

To avoid damage to the controller, use appropriate

tools to install, inspect, or repair the controller.

To avoid discoloration, do not use benzene, thinner,

or chemical rag to clean the controller. To clean the

controller, wipe with a soft cloth soaked in water with

mild detergent, wipe off the detergent with a wet

cloth, and wipe off water with a dry cloth.

This controller is designed for exclusive use with the

Building Management System by Mitsubishi Electric.

The use of this controller for with other systems or

for other purposes may cause malfunctions. To avoid damage to the controller, provide protection

against static electricity.

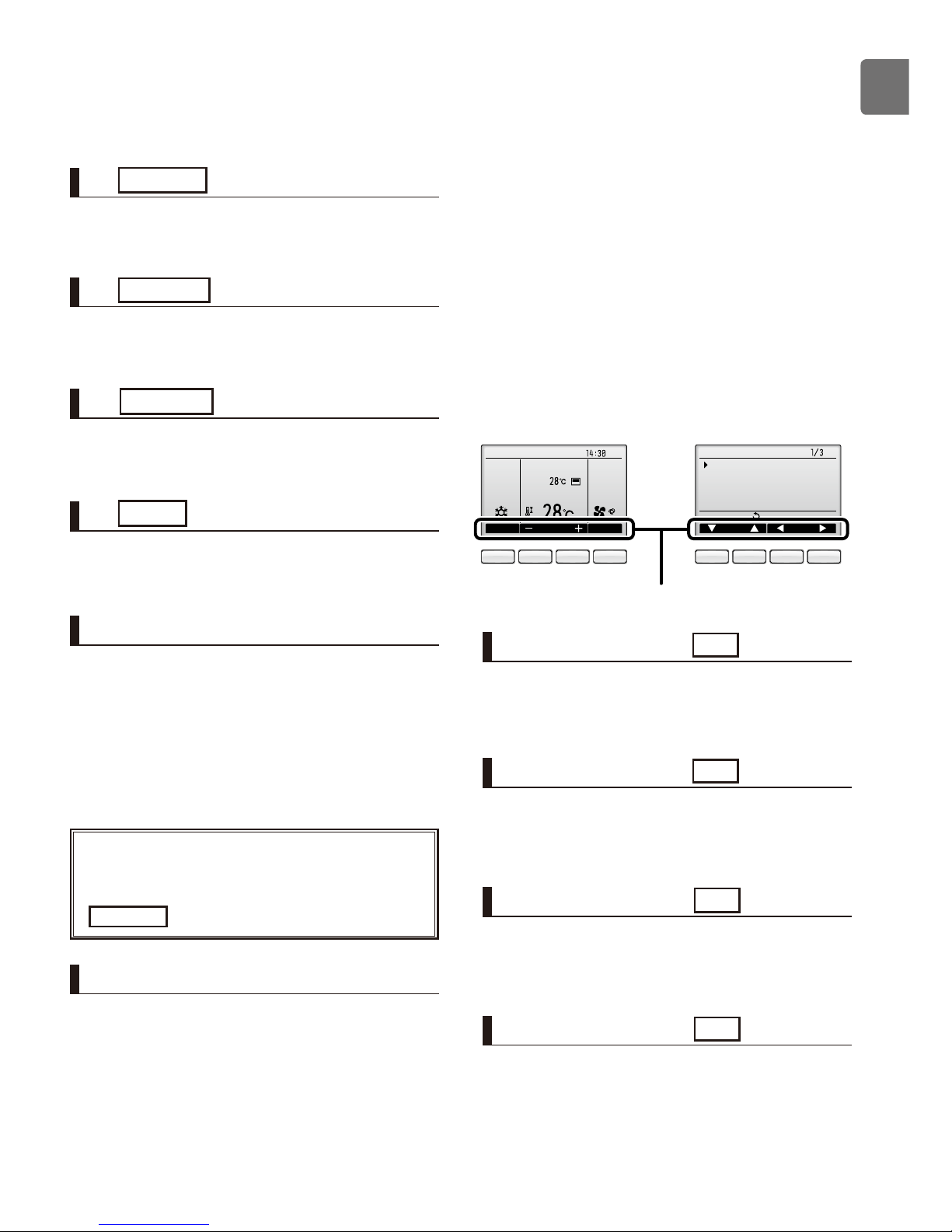

Names and functions of controller components

Controller interface

Function buttons

1234

7890

Press to turn ON/OFF the indoor unit.

1ON/OFF button

This lamp lights up in green while the unit

is in operation. It blinks while the remote

controller is starting up or when there is

an error.

Press to save the setting.

Main display: Press to change the operation

mode.

Main menu: Press to move the cursor down.

Press to return to the previous screen.

Main

display

: Press to decrease temperature.

Main menu: Press to move the cursor up.

Press to bring up the Main menu.

Main

display

: Press to increase temperature.

Main menu: Press to go to the previous page.

Operation settings will appear.

When the backlight is off, pressing any

button turns the backlight on and it

will stay lit for a certain period of time

depending on the screen.

Main

display

: Press to change the fan speed.

Main menu: Press to go to the next page.

6ON/OFF lamp

2SELECT button

7Function button F1

3RETURN button

8Function button F2

4MENU button Page 20

9Function button F3

5Backlit LCD

0Function button F4

When the backlight is off, pressing any

button turns the backlight on and does

not perform its function. (except for the

ON/OFF button)

Fri

Room

Set temp.

Mode Temp. Fan

Cool Auto

Main

Main display:

Cursor Page

Main menu

Vane·Louver·Vent. (Lossnay)

High power

Timer

Weekly timer

OU silent mode

The functions of the function buttons

change depending on the screen.

Refer to the button function guide that

appears at the bottom of the LCD for

the functions they serve on a given

screen.

When the system is centrally

controlled, the button function guide

that corresponds to the locked button

will not appear.

Main display Main menu

Function guide

7890 7890

Fri

Mode Temp. Fan

Room

Cool Auto

Set temp.

Fri

Cool

Mode Temp. Fan

AutoSet temp.

Names and functions of controller components

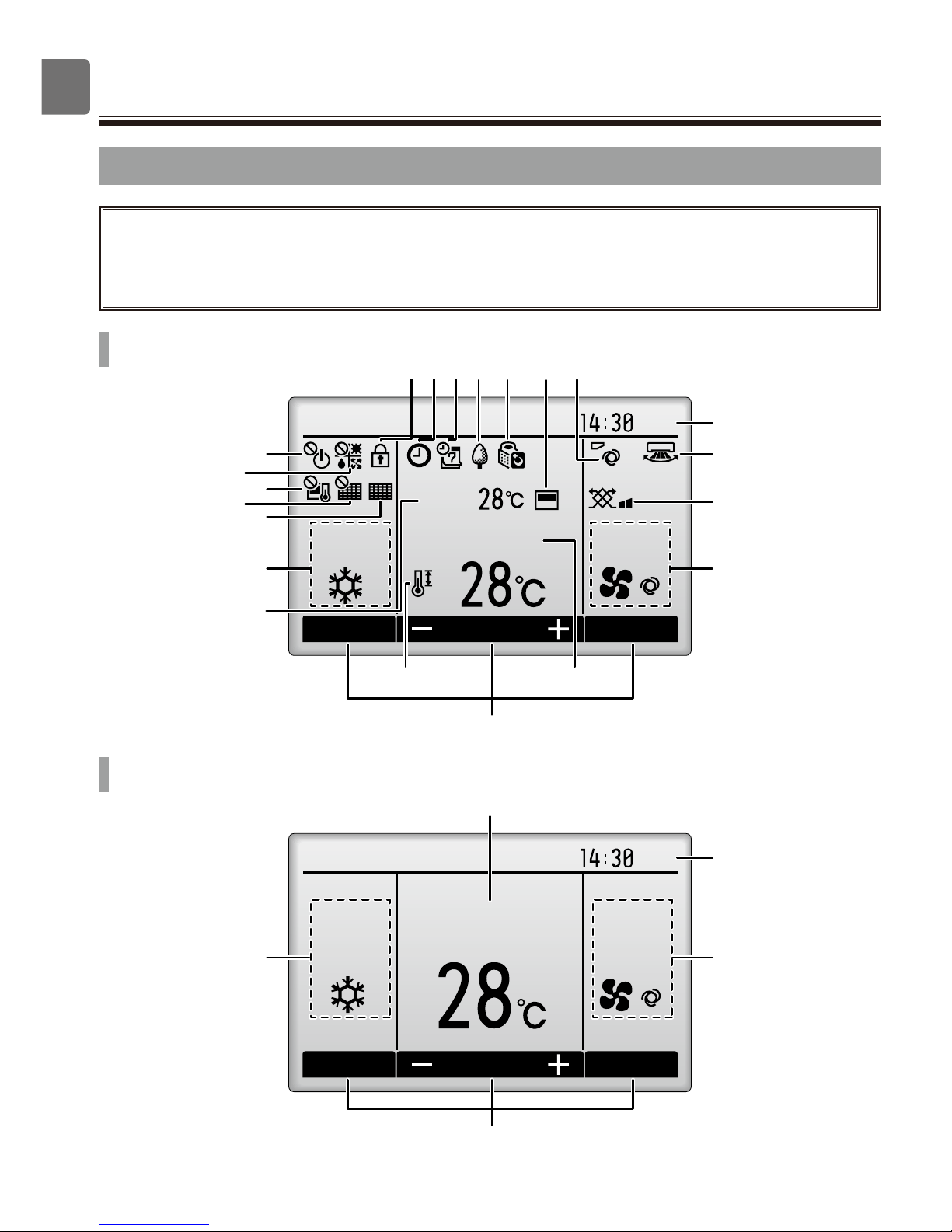

Display

The main display can be displayed in two different modes: "Full" and "Basic."

The factory setting is "Full." To switch to the "Basic" mode, change the setting

on the Main display setting. (Refer to page 46.)

Full mode

Basic mode

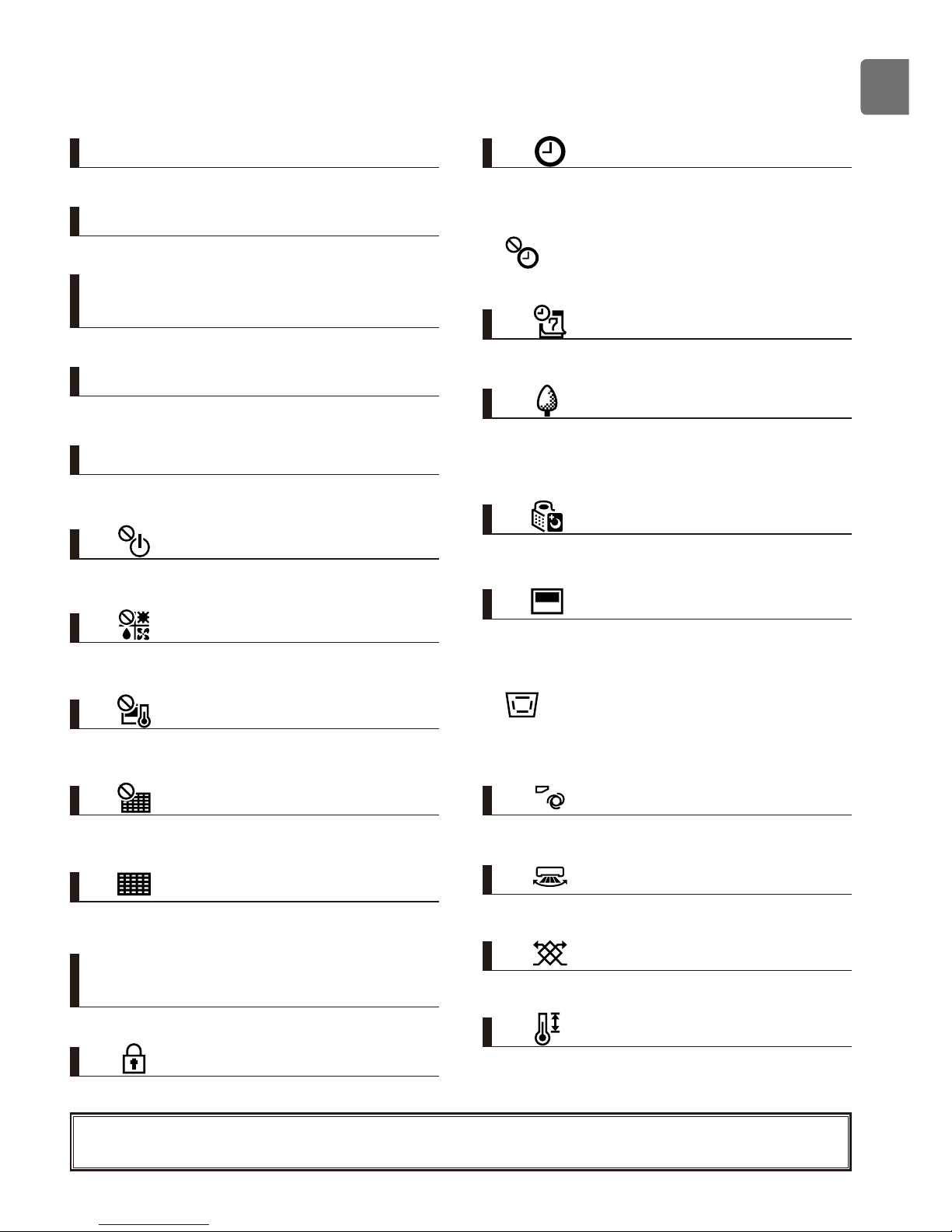

* All icons are displayed for

explanation.

hgfedcb

Fan speed setting appears here.

4Fan speed Page 16

Appears while the units are operated in the

energy-save mode. (Will not appear on some

models of indoor units)

Appears while the outdoor units are operated in

the silent mode.

Preset temperature appears here.

Appears when the ON/OFF operation is centrally

controlled.

Current time appears here.

Appears when the buttons are locked.

Indoor unit operation mode appears here.

Appears when the operation mode is centrally

controlled.

ePage 40

fPage 32

2Preset temperature Page 15

bPage 36

1Operation mode Page 14

Indicates the vane setting.

hPage 22

Indicates the louver setting.

Indicates the ventilation setting.

Appears when the On/Off timer (Page 26), Night

setback (Page 42), or Auto-off timer (Page 28)

function is enabled.

appears when the timer is disabled by the

centralized control system.

iPage 23

jPage 23

cPage 26, 28, 42

Indicates when filter needs maintenance.

Appears when the filter reset function is centrally

controlled.

Appears when the preset temperature is centrally

controlled.

0Page 52

Appears when the Weekly timer is enabled.

dPage 30

Appears when the preset temperature range is

restricted.

kPage 34

Functions of the corresponding buttons appear

here.

5Button function guide

Appears when the built-in thermistor on the

remote controller is activated to monitor the

room temperature (a).

appears when the thermistor on the

indoor unit is activated to monitor the room

temperature.

Most settings (except ON/OFF, mode, fan speed, temperature) can be made from the Menu

screen. (Refer to page 20.)

3Clock

(See the Installation Manual.)

Current room temperature appears here.

aRoom temperature

(See the Installation Manual.)

Page 22

Page 24

Page 26

Page 28

Page 30

Page 32

Page 34

Page 36

Page 38

Page 40

Page 42

Page 52

Page 54

Refer to the Instructions Manual that

came with the automatic elevating panel.

Page 44

Refer to the Installation Manual.

Page 25

Page 46

Page 47

Refer to the Installation Manual.

Page 48

Read before operating the controller

Menu structure

Main menu

Press the

MENU button.

Move the cursor

to the desired

item with

the F1 and

F2 buttons,

and press

the SELECT

button.

Vane•Louver•Vent. (Lossnay)

High power

Timer

Weekly timer

OU silent mode

Night setback

Restriction

Energy saving

Filter information

Error information

Maintenance

Initial setting

On/Off timer

Auto-Off timer

Temp. range

Operation lock

Auto return

Schedule

Auto descending panel

Manual vane angle

Main/Sub

Clock

Main display

Contrast

Display details

Auto mode

Administrator password

Language selection

Andere Handbücher für PAR-31MAA

Inhaltsverzeichnis

Andere Mitsubishi Electric Fernbedienung Handbücher

Mitsubishi Electric

Mitsubishi Electric MELRemo PAR-CT0 Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-30MAOA Technisches Datenblatt

Mitsubishi Electric

Mitsubishi Electric PAR-SL100A-E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-21MAA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Lossnay Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-SL94B-E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAC-SC30GRA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAC-SE51CRA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PAR-30MAA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-21MAA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-FL32MA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-FL32MA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-30MAOA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-F27MEA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-21MAA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAC-YT53CRAU-J Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-W21MAA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Lossnay LGH-RX5-E Series Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-21MAA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-SL100A-E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-31MAA Handbuch

Mitsubishi Electric

Mitsubishi Electric Lossnay PZ-41SLB-E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PAR-30MAA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-21MAA-J Bedienungsanleitung

Beliebte Fernbedienung Handbücher anderer Marken

Panasonic

Panasonic EUR7622KB0 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen Beo4 Bedienungsanleitung

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Bedienungsanleitung

Multiplex

Multiplex PROFI TX 9 Bedienungsanleitung

One Remote

One Remote RMB4 Bedienungsanleitung

FUTABA

FUTABA 9ZAP - PART2 Bedienungsanleitung

HR Matic

HR Matic HR MULTI 3 Bedienungsanleitung

Yamaha

Yamaha ACC-GNRST-30-20 Bedienungsanleitung

EisSound

EisSound KBSOUND Bedienungsanleitung

Marantz

Marantz RC101 Bedienungsanleitung

Conrad

Conrad FS20 TC6 Bedienungsanleitung

Anritsu

Anritsu MP1777A Bedienungsanleitung

Niles

Niles WVC100 Fehlerbehebungshandbuch

RCA

RCA RCU1300 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen BEO6 Bedienungsanleitung

GE 94901 Bedienungsanleitung

Onbon

Onbon YQ1-75 Bedienungsanleitung

FUTABA

FUTABA R7108SB Montageanleitung
