Mitsubishi MELSEC-A A1SD61 Bedienungsanleitung

Mitsubishi Programmable Logic Controller

High Speed Counter Module Type A1SD61

User,s Manual

MODEL

MODEL

CODE

A1SD61-USERS-E

13J674

IB(NA)-66337-B(0411)MEE

High Speed Counter Module Type A1SD61

User,s Manual

Specifications subject to change without notice.

When exported from Japan, this manual does not require application to the

Ministry of Economy, Trade and Industry for service transaction permission.

HEAD OFFICE : 1-8-12, OFFICE TOWER Z 14F HARUMI CHUO-KU 104-6212,JAPAN

NAGOYA WORKS : 1-14 , YADA-MINAMI 5-CHOME , HIGASHI-KU, NAGOYA , JAPAN

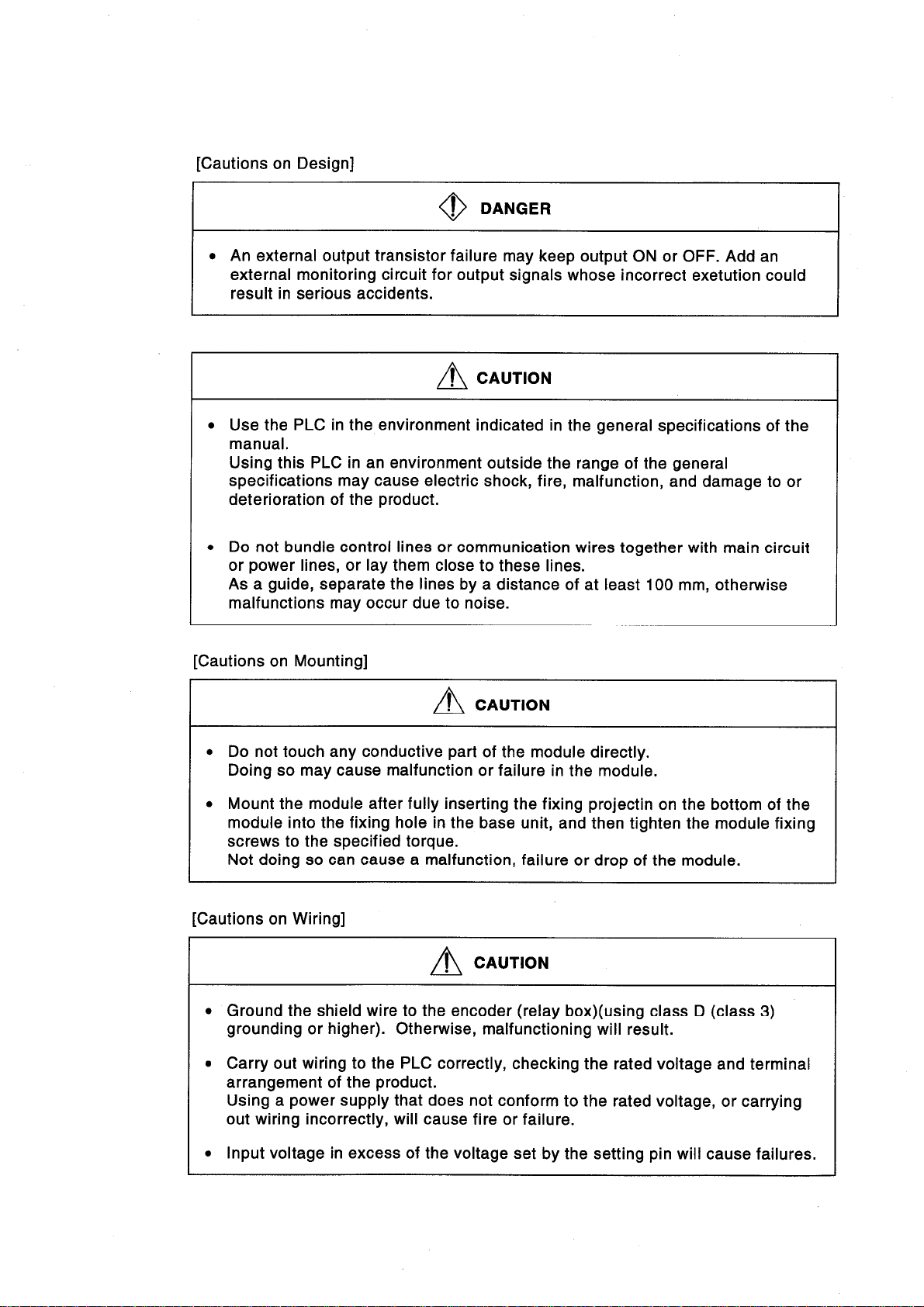

[Cautions on Wiring]

CAUTION

•Tighten the terminal screws to the stipulated torque.

Loose screws will cause short circuits, fire, or malfunctions.

Overtightening may cause a short circuit or malfunctions due to a damaged

screw.

•Make sure that no foreign matter such as chips or wiring offcuts gets inside the

module. It will cause fire, failure or malfunction.

[Cautions on Startup and Maintenance]

DANGER

•Do not touch terminals while the power is ON.

Doing so may result in an electric shock or malfunction.

•Do not install/remove the terminal block more than 50 times after the first use

of the product. (IEC 61131-2 compliant)

•Be sure to shut off all phases of the external power supply before cleaning or

retightening the terminal screws.

Carrying out this work while the power is ON will cause failure or malfunction

of the module.

CAUTION

•Do not disassemble or modify any module.

This will cause failure, malfunction, injuries, or fire.

•Be sure to shut off all phases of the external power supply used by the system

before mounting or removing the module.

Mounting or removing it with the power ON can cause failure or malfunction of

the module.

•Before handling the module, always touch grounded metal, etc. to discharge

static electricity from the human body.

Failure to do so can cause the module to fail or malfunction.

[Cautions on Disposal]

CAUTION

•Dispose of this product as industrial waste.

REVISIONS

*The manual number is given on the bottom left of the back cover.

Print Date *Manual Number Revision

Sep., 1991 IB (NA) 66337-A First edition

Oct., 2002 IB (NA) 66337-B Partial correction

CONTENTS, Chapter 2, Section 3.1, 3.2, 3.4, 3.5,

3.6, 4.2, 4.4.2, 4.4.3, 4.4.4, 5.1, 5.1.1, 5.1.2, 5.3,

7.1.1, 8.1.1, 9.1, 9.3, 9.4, 9.5

Addition

SAFETY PRECAUTIONS

Nov., 2004 IB (NA) 66337-C Partial correction

SAFETY PRECAUTIONS, Section 3.1, 9.1, 9.1.2,

9.2, 9.3, 9.4

Sep., 2006 IB (NA) 66337-D Partial correction

SAFETY PRECAUTIONS

This manual confers no industrial property rights or any rights of any other kind, nor does it confer any patent

licenses. Mitsubishi Electric Corporation cannot be held responsible for any problems involving industrial

property rights which may occur as a result of using the contents noted in this manual.

1991 MITSUBISHI ELECTRIC CORPORATION

c

Japanese Manual Version SH-3519-G
