TRANSISTORIZED INVERTER

Thank you for purchasing the control panel rear cover and adapter set. This instruction manual

describes handling and considerations for using this product. As errors in handling will cause

unforeseen trouble, before using the product be sure to read this instruction manual thoroughly, so that

the product may be used correctly.

Please ensure that this instruction manual is delivered to the end user of the product.

Safety precautions

Do not touch the inverter when the power is ON, during operation, and for some time

after the power has been turned O , as the inverter will be very hot. ailure to observe

this could lead to burns.

Do not drop the control panel rear cover and adapter set or subject it to a strong impact.

This control panel rear cover and adapter set is used when the control panel is removed from the

inverter main unit and installed on the panel face of another storage panel.

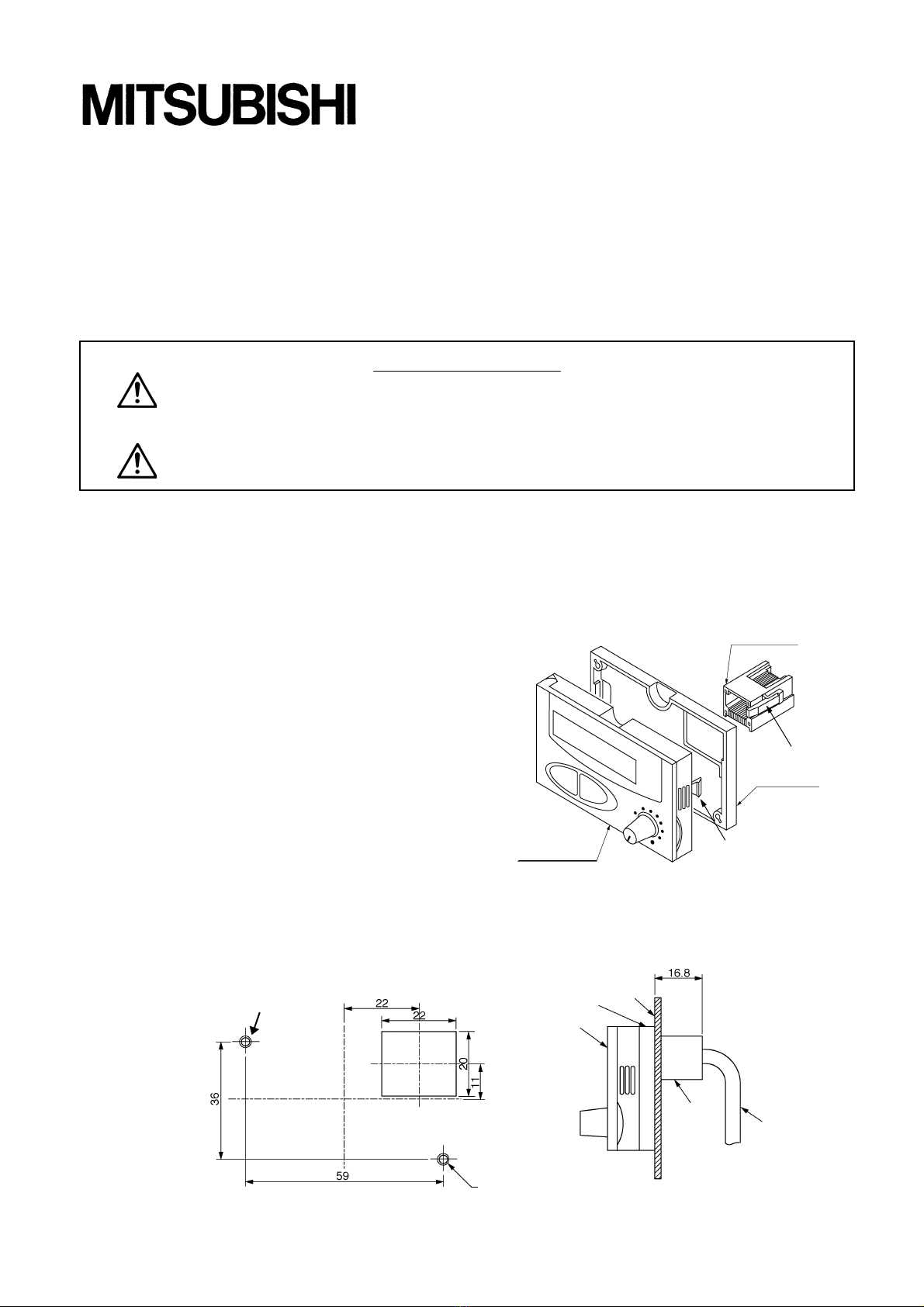

1. Installation

1.1 Installing and remo ing the control panel co er and adapter set

(1) ix by inserting the claws of the control panel

into the control panel rear cover.

To remove, press in on the sides of the

control panel to release the claws.

(2) Insert the adapter into the control panel until

a "click" is heard.

To remove, press in on the claws of the

adapter and pull off.

1.2 Installing the control panel unit on a single panel

Panel cut dimensions drawing

Control

panel

Adapter

Rear cover

M3 screw

Cable

Panel

Hole

M3 screw

Front iew

Control

panel

Adapter

Claw

Rear cover

Control Panel Rear Co er and Adapter Set

<FR-E5P>

(Unit: mm)

Note) The installation holes of the control panel are blocked. Open by pressing with the

installation screws when installing onto the panel face. Use installation screws with a head

size of 5.5mm (outside diameter)×2mm (height) or less. Do not insert washers.

Installation hole

2. Specifications

(1) Applicable in erter

R-E500 series

(2) Applicable control panel

R-E500 series control panel

(3) Working en ironment

Ambient temperature : －10°C to 50°C (No freezing)

Ambient humidity : 90%RH or less (No dew condensation)

Storage temperature : －20°C to +65°C

(Applicable temperature for short periods such as transportation)

Environment : Indoors (No corrosive gases, inflammable gases, oil mist, or dust)

Altitude and vibration : Less than 1000m above sea level, 5.9m/s2 {0.6G} or less

(Conforms to JIS C 0911)

IB(NA)-66814-A (9709)ROD This document was published in September 1997. The specifications are subject to change without notice.

Model

R-E5P

EIBUN

TORISETSU

Model

code 1A2H38
