MJ LED LIGHTNING MJ-1027A Bedienungsanleitung

LED MATRIX MOVING HEAD LIGHT

MJ-1027A

User Manual

======PROFESSIONAL STAGE LIGHTING ========

Thank you for choosing our LED matrix moving head light. For the sake of your safety, Please

read and follow these instructions carefully and keep this manual in a safe place for future

reference.

Catalogue

Chapter Page

Safe Usage Of The Product -----------------------------------------------------------------------------------------3

Install The Equipment ------------------------------------------------------------------------------------------------4

Power Code Connection ---------------------------------------------------------------------------------------------4

DMX Connection ------------------------------------------------------------------------------------------------------5

DMX Terminator -------------------------------------------------------------------------------------------------------5

Function Set --------------------------------------------------------------------------------------------------------------6

Operation Menu ---------------------------------------------------------------------------------------------------------6

Maintenance --------------------------------------------------------------------------------------------------------------7

Keeping The Product Clean ------------------------------------------------------------------------------------------7

Trouble Shooting---------------------------------------------------------------------------------------------------------7

Equipment and Appendix----------------------------------------------------------------------------------------------7

Channel List---------------------------------------------------------------------------------------------------------------8

Technical Parameters---------------------------------------------------------------------------------------------------11

☆Important notice:

·In this instruction for use contains about the installment and the use aspect important information of the LED moving

head. When installing and using, you need to look this usage instruction strictly.

·Before open the LED moving head and if you want to do the repair work, please make sure the power source is at the

separation condition.

·Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and the unit are

in good condition before installation and use. Should there be any damage caused by transportation, consult your dealer

and do not use the unit. Any damage caused by improper use will not be assumed by the manufacturer or dealer.

Attention: Unceasingly carries on the product improvement about our company the policy, in this instruction booklet

carries the data will have the possibility to be able to change in the future, when no longer separate notice change matters

concerned. Our company retains when the product improvement changes the related specification the authority. This

instruction booklet publisher cannot be responsible regarding this instruction booklet in information accuracy, also cannot

the related consequence which causes regarding these information be responsible.

SAFE USAGE OFTHE PRODUCT

When unpacking and before disposing of the carton, check there is no transportation damage before

using the product. Should there be any damage caused by transportation, consult your dealer and do

not use the apparatus.

The product is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain

and moisture, excessive heat, humidity and dust. Do not allow contact with water or any other

liquids.

The product is not designed or intended to be mounted directly on to inflammable surfaces

The product is only intended for installation, operation and maintenance by professional person.

The product must be installed in a location with adequate ventilation, at least 50cm from adjacent

wall surfaces. Be sure that no ventilation slots are blocked.

Do not product the beam onto inflammable surfaces, minimum distance is 5m.

Avoid direct exposure to the light from the lamp. The light is harmful to the eye.

Do not attempt to dismantle or modify the projector in any way.

Electrical connection must only be carried out by qualified personnel.

Before installation, ensure that the voltage and frequency of power supply match the power

requirements of the projector.

It is essential that each projector is correctly earthed and that electrical installation conforms to all

relevant standards.

Do not connect this device to any other types of dimmer apparatus.

Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the

power-cord come into contact with other cables. Only handle the power-cord by the plug. Never pull

out the plug by tugging the power-cord.

Keep the optical system clean. Do not touch the LED lens with bare hands.

The product should always be installed with a secondary safety fixing. On the projector base brink,

there is a hole for the safety cord provided. It should be attached as shown in “installing the projector”

section.

LED lens shall be changed if they have become visibly damaged to such an extent that their

effectiveness is impaired, for example by cracks or deep scratches.

Exterior surface temperatures of the luminaire after 5 minutes operation is 40°C，when steady state is

achieved 50°C.

There is no user serviceable parts inside the projector, do not open the housing and never operate the

product with the covers removed.

If you have any questions, don’t hesitate to consult your dealer or manufacturer.

★Always disconnect from the mains, when the device is not in use or before cleaning it or

before attempting any maintenance work !

Install The Equipment:

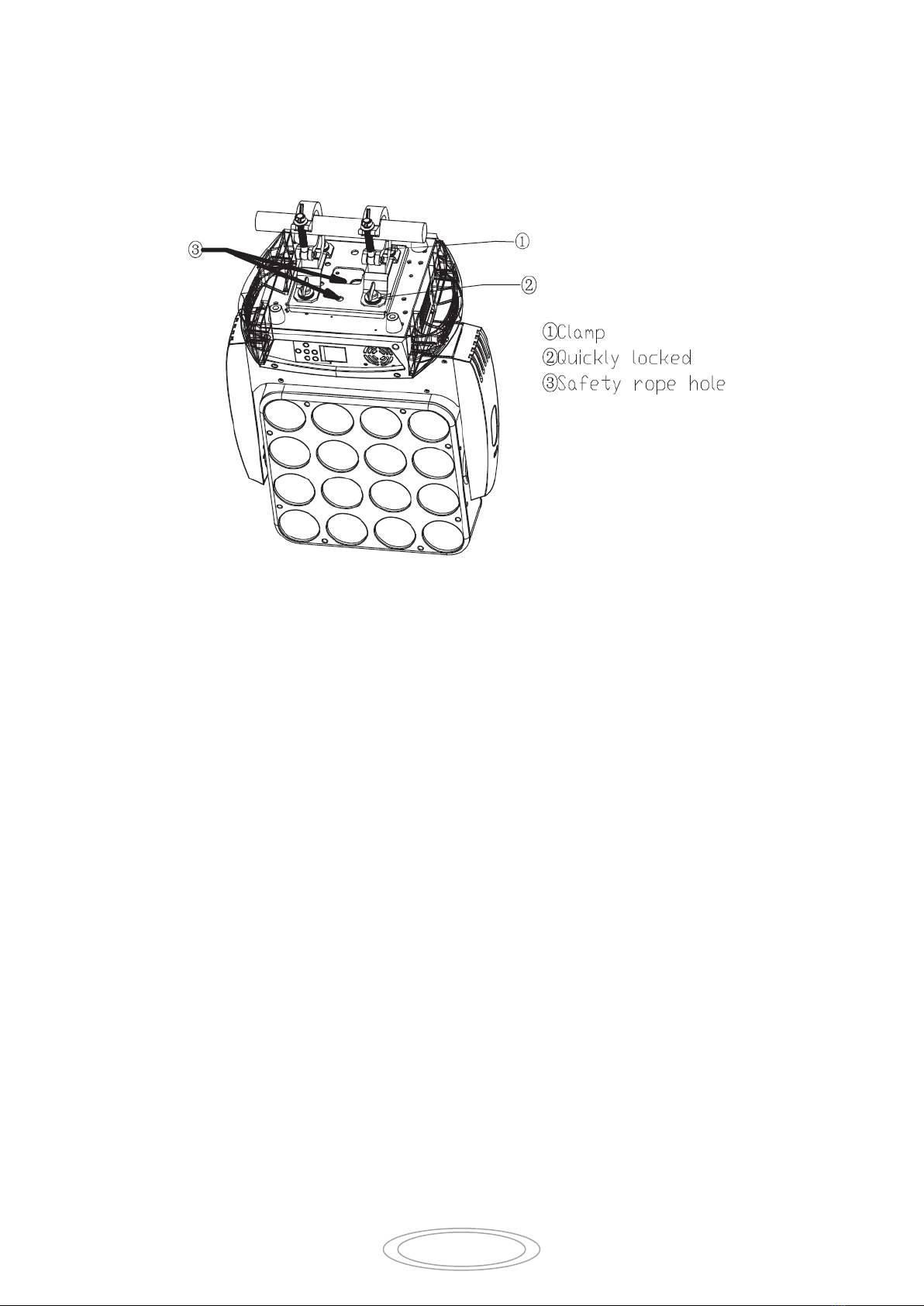

Use 2pcs clamp and safety cord(need to purchase).Use clamp fix with light hook which in the

packing box with light, then use screw install to the bottom of lamp. Hang the fixture on the structure

and fasten the screws attached to each clamp. Make sure the light is installed reliable, and confirm

the light which you fixed is strong enough for hanging the light. Base on safety reason, please

according to the above picture using safety wire cross the light to make it strong enough again.

Warning!

1．Hook and clamp only use for hanging the light. Do not use clamp as a tool to move fixtures.

2．Base on safety reason, please use the safety cord which can afford the weight ten times of lamp

through Insurance hole for auxiliary hanging.

3．Don't use the handle of the moving head light to fixed or lift!

Power Code Connection:

Connect the power cord as follows:

L (live) =brown

E (earth) =yellow/green

N (neutral) =blue

Use the plug provided to connect the mains power to the projector paying attention to the voltage and

frequency marked on the panel of the projector. It is recommended that each projector be supplied

separately so that they may be individually switched on and off.

★It is essential that each projector is correctly earthed and the electrical installation conforms

to all relevant standards.

DMX Connection:

Connection between the controller and a projector and between one projector and another must be

made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Connection to

and from the projector is via cannon 3 pin (which are included with the projector) XLR plugs and

sockets. The XLR's are connected as shown in the figure above.

Note: Care should be taken to ensure that none of the pins touch the metallic body of the plug or each

other. The body of the plug is not connected in any way. The XLED 590 accepts digital control

signals in protocol DMX512 (1990).

Connect the controller’s output to the first fixture’s input, and connect the first fixture’s output to the

second fixture’s input and connect the rest fixtures in the same way. Eventually connect the last

fixture’s output to a DMX terminator.

DMX Terminator:

In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a

DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control

signals.

The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins

2 and 3, which is then plugged into the output socket on the last projector in the chain. The

connections are illustrated below.

Function Set:

A．MENUs

B．UP

C．DOWN

D．ENTER

A B C D

Instructions: Press the function key A will cycle out of different functional effects, digital tube in

which the first two digits represent the current function (see Menu). After two figures represent the

kinds of functions are located. Address code. Or speed parameters. Press B or C keys to modify its

parameters. Press D to confirm.

Operation Menu:（All the functions are according to the selected and then press the D key to confirm）

Maintenance:

To prolong the life of the projector, some maintenance work has to be done to ensure the LED

optical system in good condition. If the projector does not function, check the fuses on the power

socket of the projector, they should only be replaced by fuses of the same specification. Should

these be damaged, call a qualified technician before replacement. The projector has thermal

protection device that will switch off the projector in case of overheating. Should either of these

operate, check that the fans are not blocked, and if they are dirty, clean them before switching on the

projector again. Check that the fans are operational, if not, call a qualified technician.

☆Any maintenance work should only be carried out by qualified technicians.

Keeping The Product Clean:

To ensure the reliability of the projector, it should be kept clean. It is recommended that the fans

should be cleaned every 15 days. LED lens should also be regularly cleaned to maintain an optimum

light output.

Cleaning frequency depends on the environment in which the fixture operates: damp, smoke or

particularly dirty surroundings can cause greater accumulation of dirt on the unit's optics. Asoft cloth

and typical glass cleaning products should be used for cleaning. It is recommended to clean the

external optics at least once every 15 days.

☆Do not use any organic solvent, e.g. alcohol, to clean housing of the apparatus.

Trouble Shooting:

Problem

Answer

The LED moving head light doesn’t switch on.

Check the fuse the power socket

Although shines, but the LED moving head

lamp doesn’t accept the instruction of the

controller.

Check the digital start address and also check the

connection situation of the communication control

line

LED moving head lamp only can work

intermittently.

Inspect the power supply and voltage is whether

normal.

Do not receive the DMX512 signal.

Whether the signal lines do contact well or broken.

The light beam appears gloomily.

Check that the heat dissipation system is running

normally or Inspect the optics part is whether clean.

☆Other maintain work should by the specialist which has the experience to carry on.

Equipment and Appendix:

The packing list of this light as follows:

☆Led moving head light 1pcs

☆Power Cable 1pcs

☆XLR connector 1unit

☆Light Hook 2pcs

☆The Product of Instruction 1pcs

Channel List:

19CH MODE

Channel Function value Details

CH1

Pan movement

0-255

0-540 degree

CH2 Unlimited Pan

movement

0-55

Pan non movement

56-155

Pan unlimited clockwise rotate slow to fast

156-255

Pan unlimited reversely rotate slow to fast

CH3

Tilt movement

0-255

0-270 degree

CH4 Unlimited Tilt

movement

0-55

Tilt non movement

56-155

Tilt unlimited clockwise rotate slow to fast

156-255

Tilt unlimited reversely rotate slow to fast

CH5

Pan/Tilt speed

0-255

From fast to slow

CH6

Dimmer

0-255

Linear dimmer from dark to bright

CH7 Strobe

0-3

No function

4-95

Strobe with the same step from slow to fast

96-176

Random strobe

177-255

Thunder strobe

CH8

R dimmer

0-255

Red dimmer from dark to bright

CH9

G dimmer

0-255

Green dimmer from dark to bright

CH10

B dimmer

0-255

Blue dimmer from dark to bright

CH11

W dimmer

0-255

white dimmer from dark to brigh

CH12 Effect show of

numbers and

punctuations

0-89

Effect show of numbers from 0 to 9

90-233

Effect show of punctuations

234-235

Running water effect

CH13 Effect show of letters

0-234

Effect show of letters fromAto Z

234-235

Running water effect

CH14 Effect show of static

gobos

0-234

Effect show of static gobos

234-235

Running water effect

CH15

Color of letters

0-255

Color choice for the letters

CH16 Dynamic gobos show

0-234

Effect show of dynamic gobos

234-235

Running water effect

CH17

Speed of effects

0-255

From fast to slow

CH18 Macro Function

0-49

No function

50-74

Numbers and punctuations show(Against CH12)

75-99

Letters show(Operate against CH 13)

100-124

Static gobos show(Operate against CH 14)

125-149

Dynamic gobos show(Operate against CH 16)

150-199

Auto Run

200-255

Sound activated

CH19 Reset

0-250

No function

251-255

Reset within 3 seconds

29CH MODE

Channel Function value Details

CH1 Pan movement 0-255 0-540 degree

CH2 Unlimited Pan

movement

0-55 Pan non movement

56-155 Pan unlimited clockwise rotate slow to fast

156-255 Pan unlimited reversely rotate slow to fast

CH3 Pan fine 0-255 16 bit Pan fine adjustment

CH4 Tilt 0-255 0-270 degree

CH5 Unlimited Tilt

movement

0-55 Tilt non movement

56-155 Tilt unlimited clockwise rotate slow to fast

156-255 Tilt unlimited reversely rotate slow to fast

CH6 Tilt fine 0-255 16 bit Till fine adjustment

CH7 Pan/Tilt s peed 0-255 From fast to slow

CH8 Dimmer 0-255 Linear dimmer from dark to bright

CH9 Strobe

0-3 No function

4-95 Strobe with the same step from slow to fast

96-176 Random strobe

177-255 Thunder strobe

CH10 R1 dimmer 0-255 Circle 1 Red dimm er from dark to brigh

CH11 G1 dimmer 0-255 Circle 1 Green dimmer from dark lo bright

CH12 B1 dimmer 0-255 Circle 1 Blue dimmer from dark to bright

CH13 W1 dimmer 0-255 Circle 1 white dimmer from dark to brigh

CH14 R2 dimmer 0-255 Circle 2 Red dimm er from dark to bright

CH15 G2 dimmer 0-255 Circle 2 Green dimmer from dark lo bright

CH16 B2 dimmer 0-255 Circle 2 Blue dimmer from dark to bright

CH17 W2 dimmer 0-255 Area 2 white dimmer from dark to brigh

CH18 R3 dimmer 0-255 Circle 3 Red dimm er from dark to bright

CH19 G3 dimmer 0-255 Circle 3 Green dimmer from dark lo bright

CH20 B3 dimmer 0-255 Circle 3 Blue dimmer from dark to bright

CH21 W3 dimmer 0-255 Circle 3 white dimmer from dark to brigh

CH22 Effect show of

numbers and

punctuations

0-89

Effect show of numbers from 0 to 9

90-233

Effect show of punctuations

234-235

Running water effect

CH23 Effect show of letters

0-234

Effect show of letters fromAto Z

234-235

Running water effect

CH24 Effect show of static

gobos

0-234

Effect show of static gobos

234-235

Running water effect

CH25 Color of letters 0-255 Color choice for the letters

CH26 Dynamic gobos show

0-234

Effect show of dynamic gobos

234-235

Running water effect

CH27

Speed of effects

0-255

From fast to slow

CH28 Macro Function

0-49 No function

50-74 Numbers and punctuations show(Against CH22)

75-99 Letters show(Operate against CH 23)

100-124 Static gobos show(Operate against CH 24)

125-149 Dynamic gobos show(Operate against CH 26)

150-199 Auto Run

200-255 Sound activated

CH29 Reset 0-250 No function

251-255 Reset within 3 seconds

117CH MODE

Channel Function value Details

CH1

Pan movement

0-255

0-540 degree

CH2

Unlimited Pan movement

0-55

Pan non movement

56-155

Pan unlimited clockwise rotate slow to

fast

156-255

Pan unlimited reversely rotate slow to fast

CH3

Pan fine

0-255

16 bit Pan fine adjustment

CH4

Tilt

0-255

0-270 degree

CH5

Unlimited Tilt movement

0-55

Tilt non movement

56-155

Tilt unlimited clockwise rotate slow to fast

156-255

Tilt unlimited reversely rotate slow to fast

CH6

Tilt fine

0-255

16 bitTill fine adjustment

CH7

Pan/Tilt s peed

0-255

From fast to slow

CH8

Dimmer

0-255

Linear dimmer from dark to bright

CH9 Strobe

0-3

No function

4-95

Strobe with the same step from slow to fast

96-176

Random strobe

177-255

Thunder strobe

CH10

R1 dimmer

0-255

LED 1 Red dimm er from dark to bright

CH11

G1 dimmer

0-255

LED 1 Green dimmer from dark lo bright

CH12

B1 dimmer

0-255

LED 1 Blue dimmer from dark to bright

CH13

W1 dimmer

0-255

LED 2 white dimmer from dark to brigh

...

......

...

......

...

......

...

......

CH106

R25 dimmer

0-255

LED 25 Red dimmer from dark to bright

CH107

G25 dimmer

0-255

LED 25 Green dimmer from dark to bright

CH108

B25 dimmer

0-255

LED 25 Blue dimmer from dark to bright

CH109

W25 dimmer

0-255

LED 25 white dimmer from dark to bright

CH110

Effect show of numbers

and punctuations

0-89

Effect show of numbers from 0 to 9

90-233

Effect show of punctuations

234-235

Running water effect

CH111 Effect show of letters

0-234

Effect show of letters fromAto Z

234-235

Running water effect

Inhaltsverzeichnis

Andere MJ LED LIGHTNING Beleuchtungsausrüstung Handbücher

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3192A Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1350B Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1012 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3301B-6IN1 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2037C Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING WIRELESS BATTERY PAR 910 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1034A Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3110 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3337C-200W Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3046 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3112A Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1280 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2007 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1005 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3325C-200W26D Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1029A Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1057 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2020 3W25DRGBW Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3118B Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3200 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2010A-4IN1 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3343A20W36DCW Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2029E Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MATRIX BAR 910 Bedienungsanleitung

Beliebte Beleuchtungsausrüstung Handbücher anderer Marken

Brizo

Brizo 8SP-MU-4 Bedienungsanleitung

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Bedienungsanleitung

IKEA

IKEA BJÖRKSPIREA Bedienungsanleitung

Laserworld

Laserworld Evolution Series ES-400RGB Bedienungsanleitung

Alien

Alien RG STAR Bedienungsanleitung

EuroLite

EuroLite LED B-40 Bedienungsanleitung

Qazqa

Qazqa Suplux SL 3 Black 103062 Bedienungsanleitung

Commercial Electric

Commercial Electric 54568141 Bedienungsanleitung

CREE LIGHTING

CREE LIGHTING 304 Series Bedienungsanleitung

Goobay

Goobay 49867 Bedienungsanleitung

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Bedienungsanleitung

Alkalite

Alkalite Krypton KT-81 Bedienungsanleitung

Clas Ohlson

Clas Ohlson GU10 Bedienungsanleitung

DTS

DTS DELTA 10 F Bedienungsanleitung

ring

ring Solar Steplight Bedienungsanleitung

One Stop Gardens

One Stop Gardens 57696 Montageanleitung

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Bedienungsanleitung

SIREM

SIREM Swimeo A2 Bedienungsanleitung
