Mobi Technologies 70061 Bedienungsanleitung

Model #70061

Additional Camera

USER’S MANUAL

TABLE OF CONTENTS

INTRODUCTION 2

PACKAGE CONTENT 2

FEATURES & COMPONENTS 3

SAFETY TIPS 4

INSTALLATION & SET UP 6

CAMERA OPERATION & INSTALLATION 7

POWER ON/OFF 7

CHANNEL SELECTION 7

VOICE ACTIVATION (VOX) 7

AUTOMATIC INFRARED NIGIT VISION 7

PROBLEMS & SOLUTIONS 8

FCC REGULATION 9

LIMITED WARRANTY 10

1 10

INTRODUCTION

Thank you for purchasing the Additional Camera for the Mobi-

Cam AV Wireless Audio/Video Monitoring System. The 900 MHz

MobiCam AV, incorporates the latest in advanced technology

enabling you to transmit picture and sound wirelessly. We highly

recommend you read the entire Instruction Manual before use.

PACKAGE CONTENTS

Please note the package should include the following:

a) 1 x Camera Unit

b) 1 x AC Adaptor

c) Instruction Manual

9 2

MONITOR UNIT FEATURES & COMPONENTS

24 25

(Monitor sold separately but shown as reference)

1. TFT LCD Display

2. Channel Indicator LEDs

3. Channel Selection Switch

4. Speaker

5. Automatic Channel Scan Indicator

6. Power On/O Indicator

7. Power On/O Switch & Volume Control

8. LCD On/O Switch

9. DC Jack

10. Belt Clip

11. Brightness Controls (+)(-)

12. Battery Door

13. Audio/Video Output

14. Child-Safe Battery Door Screw

3 8

15. Camera Lens

16. Channel Indicator LEDs

17. Channel Selection Switch

18. Voice Activation Action Selection Switch

19. Analog Audio/Video Input Jack

20. Light Sensor for Automatic Night Vision

21. Power On/O Switch

22. Power On/O Indicator

23. DC Jack

24. Microphone

25. Child-Safe Battery Door Screw

26. Battery Door

24 25

CAMERA UNIT FEATURES & COMPONENTS

SAFETY TIPS

For proper setup and use, please read all instructions

Please keep this manual for future reference.

• This Product is not intended to be used as a medical monitor

and its use should not replace adult supervision

• Periodically examine this product for damage to the cord,

housing or other parts that may result in the risk of ﬁre, electric

shock or injury.

• Never use transmitter and receiver near water (i.e. bathtub,

sink, etc.)

• The AC adaptor is not a toy

• Always use transmitter and receiver where there is adequate

ventilation. To prevent overheating, keep away from heat

sources such as radiators, heat registers, stoves, or other appli-

ances that produce heat.

7 4

5 6

• Always remember that you are using public airways when using

your monitor.

• Use only a dry cotton cloth to keep the Camera and Monitor units

free of dust. Do not use a dampened cloth, water, or liquid cleaner

of any kind.

• Always remove batteries from the Camera and Monitor and

unplug the AC adaptors from wall outlets during long periods of

non-use.

• Replace only with the same or equivalent type. Please dispose of

old, defective batteries in an environmentally friendly manner in

accordance with the relevant legislation.

INSTALLATION & SET UP

Installing Batteries

Your MobiCam AV can be powered by either using the supplied

AC power adaptors or batteries.

Using Batteries:

a) Remove the battery door (12, 26) at the bottom/ back of each

unit by loosening the child-safe screw (14, 25) and sliding the

cover downward to release.

b) Both units use 1.5 volt AA size batteries. Always use batteries of

the same brand and age (alkaline recommended). Insert 4 AA

batteries into the camera and 6 AA batteries into the monitor.

c) Replace the covers by aligning the tabs with the tab holes and

tightening the child-safe screws.

CAUTION: Remove batteries immediately once they run out of

power and dispose of them properly. Do not use batteries while

using the AC adaptor for extended periods of time as this might

cause battery leakage.

Using AC Adaptors:

a) Insert the AC adaptor into the DC Jack (9, 23) of either unit (The

AC adaptors are the same for both the Camera and Monitor).

b) Plug the AC adaptor plug into a standard AC power outlet.

5 6

CAMERA OPERTATION & INSTALLATION

Power ON/OFF

Use the Power ON/OFF sliding switch to turn ON/OFF the unit (see

#21 on page 3).

Channel Selection

Press the Channel Selection Switch (g. 17) on the Camera to

choose which channel you want the unit to transmit on. The chan-

nel indicator LED (g. 16) will illuminate which channel the Camera

is set to (A or B). Make sure to set the additional camera to a dier-

ent channel than the rst camera. For instance, if the st Camera is

set to Channel A, then the additional should be set to Channel B.

Voice Activation

To Activate: Select the VOX setting on the Function Activation

Switch (18)on the left side of the Camera unit. When the sound level

within the area surrounding the unit reaches a preset level, the

Camera will begin transmitting the image and sound to the Monitor.

NOTE: The LCD on the Monitor unit will automatically switch to

standby mode if no signal is received from the Camera. To Deacti-

vate: Select the CAMERA setting on the Function Activation Switch

of your camera.

Automatic Infra-Red Night Vision

The infra-red night vision feature will switch on automatically

during darkness or periods of very low levels of light and a black

and white image will be displayed on the monitor. Once the feature

is activated objects must be within 6 ft/ 2 m of the camera to be

seen on the monitor.

7 4

PROBLEMS & SOLUTIONS

Problem Solution

Poor reception • Battery Levels (check Led indicator:

Full Power - Green; Low Power -

Orange)

• The camera may not be set to

Camera Mode.

• Wrong Channel (Please note the

monitor will return to Channel A

automatically after power oﬀ)

Only Black & White • Camera has switched to “Infrared

picture displayed Night Version” mode.

Units Continually • Check to see if the scanning feature

Loses Signal is enabled

• Check to see if Camera is in VOX

mode

• Make sure both cameras are not on

the same channel. Each camera

should be set to its own channel to

ensure your unit is monitoring two

rooms.

Unit does not • AC Adapter has not been connected.

turn on • Unit has not been switched on.

• AC Adapter is plugged into AV jack.

Make sure to connect the power

plug to the DC jack.

FCC REGULATION

These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

equipment generates uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio commu-

nications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception,

which can be determined by turning the equipment o and

on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit diﬀerent

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for

help.

Operation with non-approved equipment or unshielded cables

is likely to result in interference to radio or TV reception. The

user is cautioned that changes and modications made to the

equipment without the approval of manufacturer could void

the user’s authority to operate this equipment.

9 2

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Mobi Technologies Sicherheitssystem Handbücher

Mobi Technologies

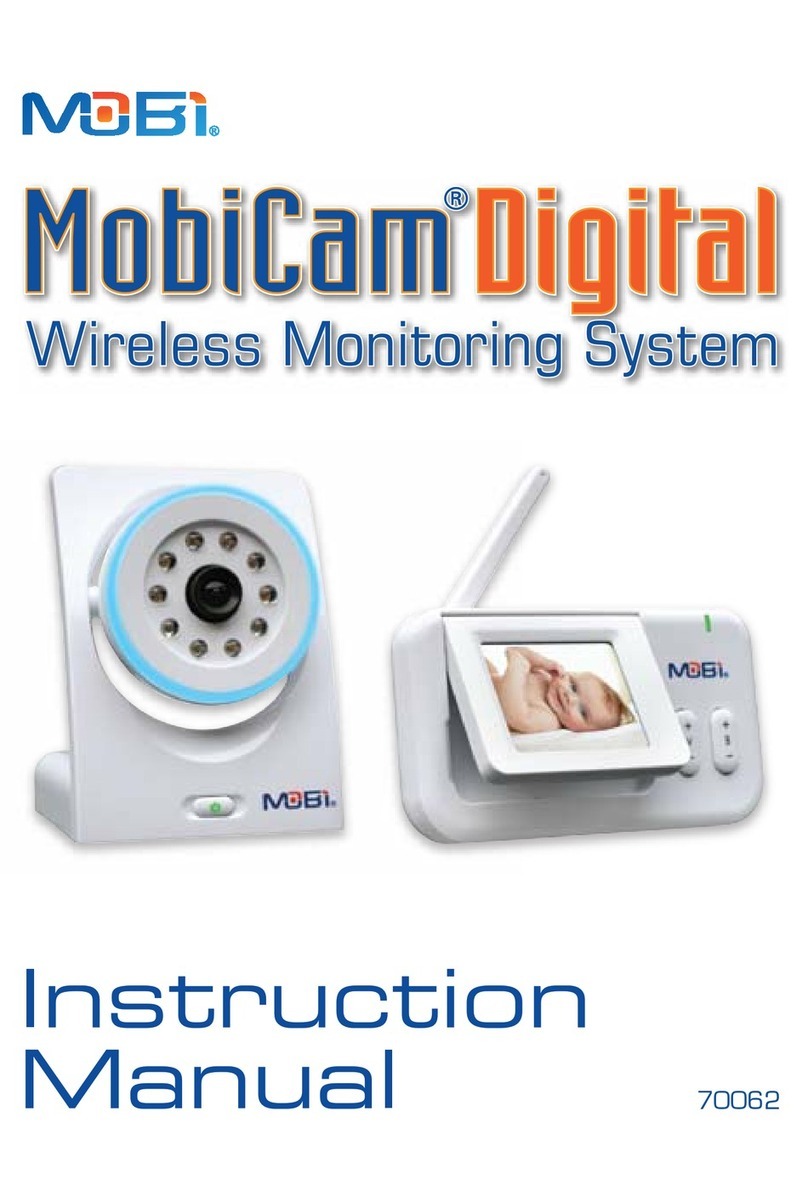

Mobi Technologies MOBICAM Digital Bedienungsanleitung
