Mobibooth Cruise Bedienungsanleitung



Mobibooth Cruise™

Hand-held roaming photo booth series for iPad mini and iPad Pro.

 



Introduction 3
What’s in the Box 4
Unpack and Inspect the Cruise™ roamer 4
Operator Controls 5
Getting Started 6
Installation of iPad charge cable 6
Installation of iPad 8
Powering the Unit 12
Recommended Battery Pack 12
LED Controls 12
Manual Mode Usage 12
Selecting Attract Mode Pattern 13
Setting Pattern Brightness 13
Manual White Light 14
Automatic Mode Usage 14
Supported Fx Patterns 14

Mobibooth.co Copyright 2020 Mobibooth, LLC All Rights Reserved - 7/9/2020 2 / 16

Introduction

Congratulations on your purchase of the new Mobibooth Cruise™ series

hand-held roaming photo booth. These devices make it easy to provide

photo booth services to large events such as festivals and large outdoor

parties with ease. They’ve been purposefully built with ease of use and

ergonomic comfort in mind.

The Mobibooth Cruise™ can operate in two unique modes that include a

decoupled manual mode, where the operator triggers the white light during

photo taking, and fully automatic mode where the app can change the

lights throughout the photo session automatically.

Continue through this manual to learn all about the functionality of your

hand-held roaming photo booth.

What’s in the Box

In addition to the Cruise roamer

and carrying case you’ll find the

following items in the box. The

charge cable used to power the

LEDs and optionally charge the

iPad along with a backup.

Two metal plates with adhesive

backing. Attach to the back of

the iPad to further secure it.

Spare plastic handle bolt.

Unpack and Inspect the Cruise™ roamer

When you receive the Cruise™ roamer, immediately unpack it and inspect

for shipping damage.

● Save all packing materials.

● Check all exterior surfaces for damage.

If you discover shipping damage upon inspection:

● Immediately notify the shipping company and file a damage report.

Mobibooth, LLC is not responsible for any damage to the roamer

incurred during shipment, and will not cover the repair of this damage

under its warranty policy.

● Keep all packaging material for shipping company inspection.

● Notify the Mobibooth support team at [email protected].

Operator Controls

Manual White Light Button - used to manually switch all LEDs to white.

Handle - used for holding the roamer.

5VDC Input Plug - supplies power to the LEDs.

Manual Pattern Select Button - selects between 13 preprogrammed

pattern/color combinations.

USB iPad charge passthrough - used to connect iPad power cable directly

to the iPad charge port.

Getting Started

This section outlines the steps required to set up the Cruise™ roamer for

the first time use.

Installation of iPad charge cable

This is an optional step that is only necessary if you decide to charge the

iPad during operation.

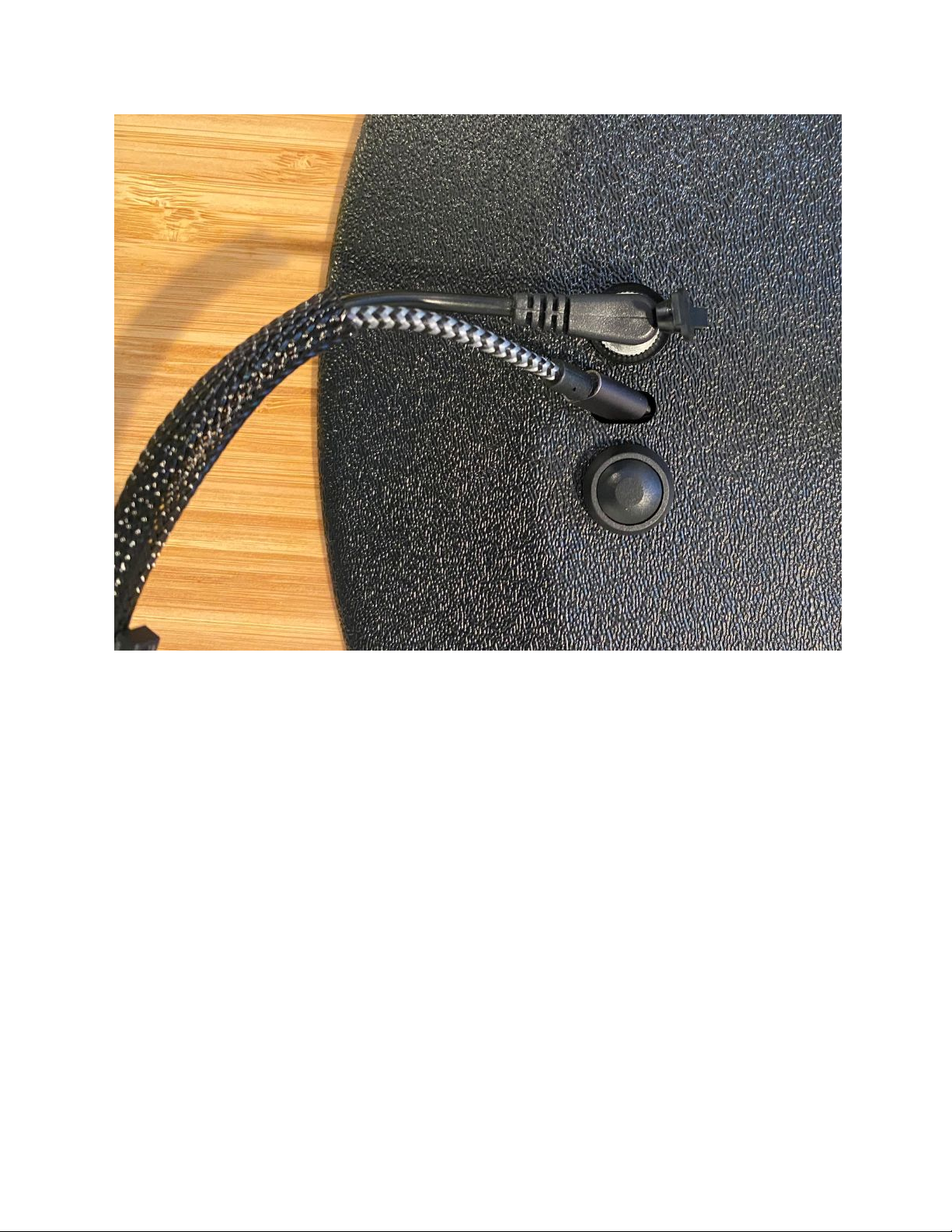

1. Insert the 2.1mm power connector into the 5VDC input plug.

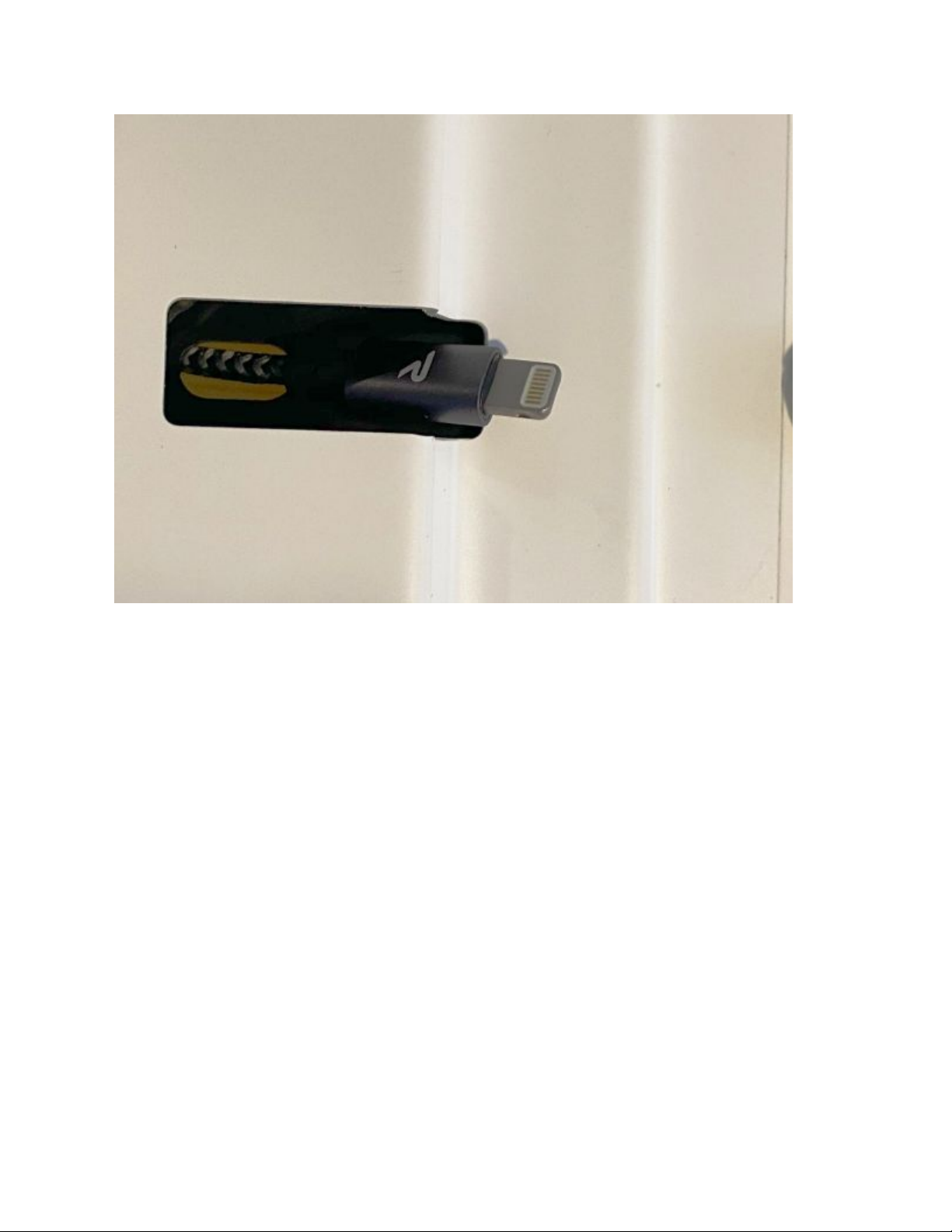

2. Insert the iPad charge cable (lightning connector/USB-C) into the

passthrough.

3. Pull the iPad charge cable through on the inside.

Installation of iPad

In this section we will discuss preparing the iPad for installation and

installing it with charging.

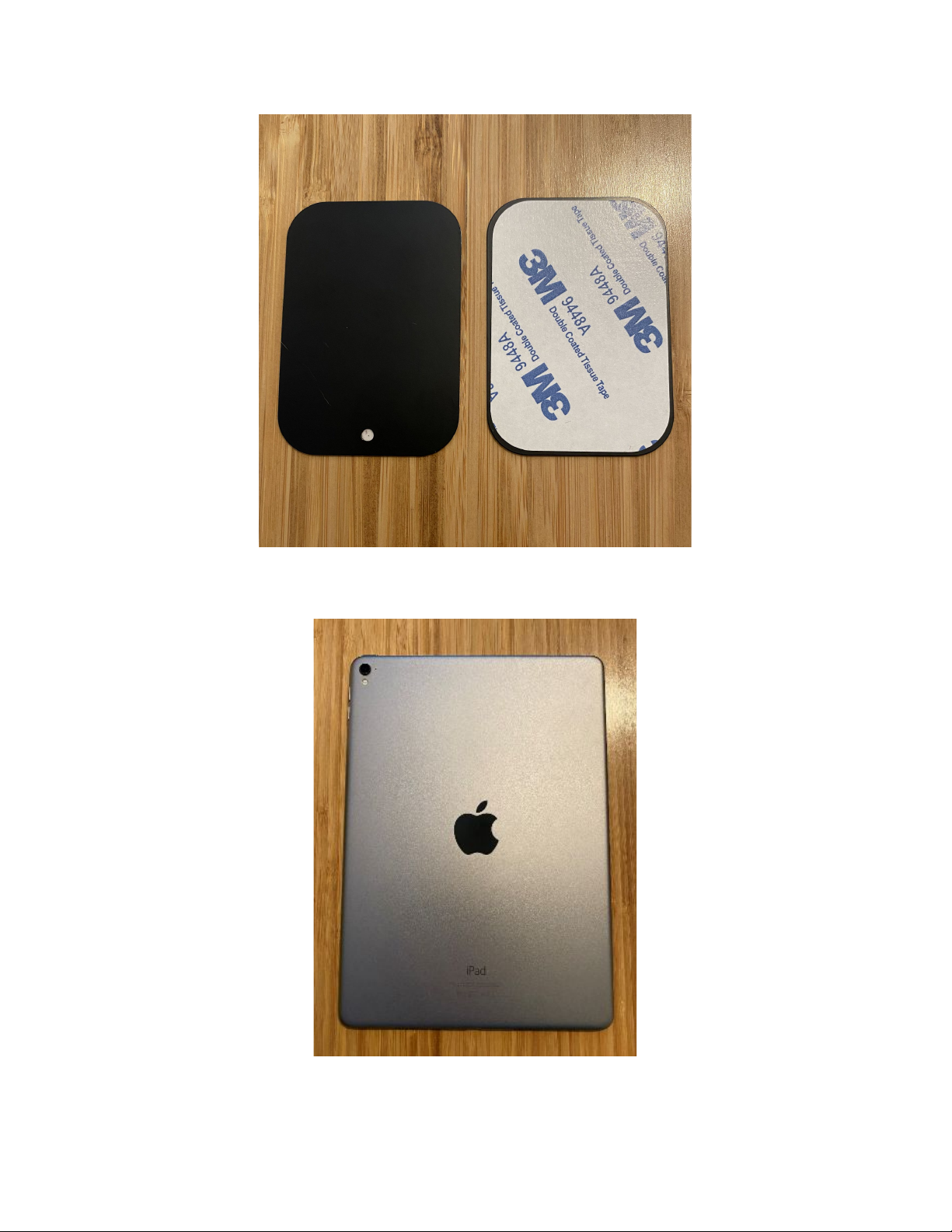

1. Locate the two metal plates (shown below) shipped with your

Cruise™ roamer.

2. Place the iPad backside up on a flat surface.

3. Peel the paper back off of one metal plate and attach in the center of

the iPad. The Apple logo is a great reference.

4. Peel the paper back off the second metal plate and attach it to the

previously placed metal plate making a stack of two.

5. Remove the Cruise™ roamer faceplate. It is recommended that you

firmly grip the faceplate through the iPad opening and the outside and
