T24 Quick Guide
Accept call and speak
Pick up receiver > key 7 > microphone is activated
Open door
Pick up receiver > key 1
Turn on light
Pick up receiver > key 3
Video recording in case of suspicion
Pick up receiver > key 9
Turn doorbell to mute
Pick up receiver > 3x key * > key 1 > press key 1 repeatedly
until profile 0 is activated > key * > doorbell is muted
Turn doorbell back on: Activate profile 1
Change volume of receiver
Line key > key F1 >
pick up receiver
> arrow keys
7
1
3
9
* * * 1 1 *
F1
+
-
HD Super Panorama – No Blind Spots From Wall To Wall
180°
12/2011
EN
The HiRes Video Company
Video Phone Grandstream GXV3140
Hands-free mode
Arrow keys
Sub menu
Main menu Display of status
Access latest message
Pick up receiver > key * > key 1 > key 2
View video recordings
Pick up receiver > 2x key * > player mode is activated
Move camera image
Pick up receiver
>
key
2 (up),
key
8 (down),
key
6 (right),
key
4 (left);
key
0 (default view); alternatively, arrow keys
can be used
Zoom camera image
Pick up receiver > key 5 (zoom mode is activated),
key 2 (zoom in), key 8 (zoom out), key 0 (default view);
alternatively, arrow keys can be used
Status icons
Door open Light on
Door closed Microphone mute
Door locked Recording on
Door unlocked Latest message
Error/Manipulation Camera error
*1 2
* *
2
85
4 6
5
2
85
4 6
EN
The HiRes Video Company

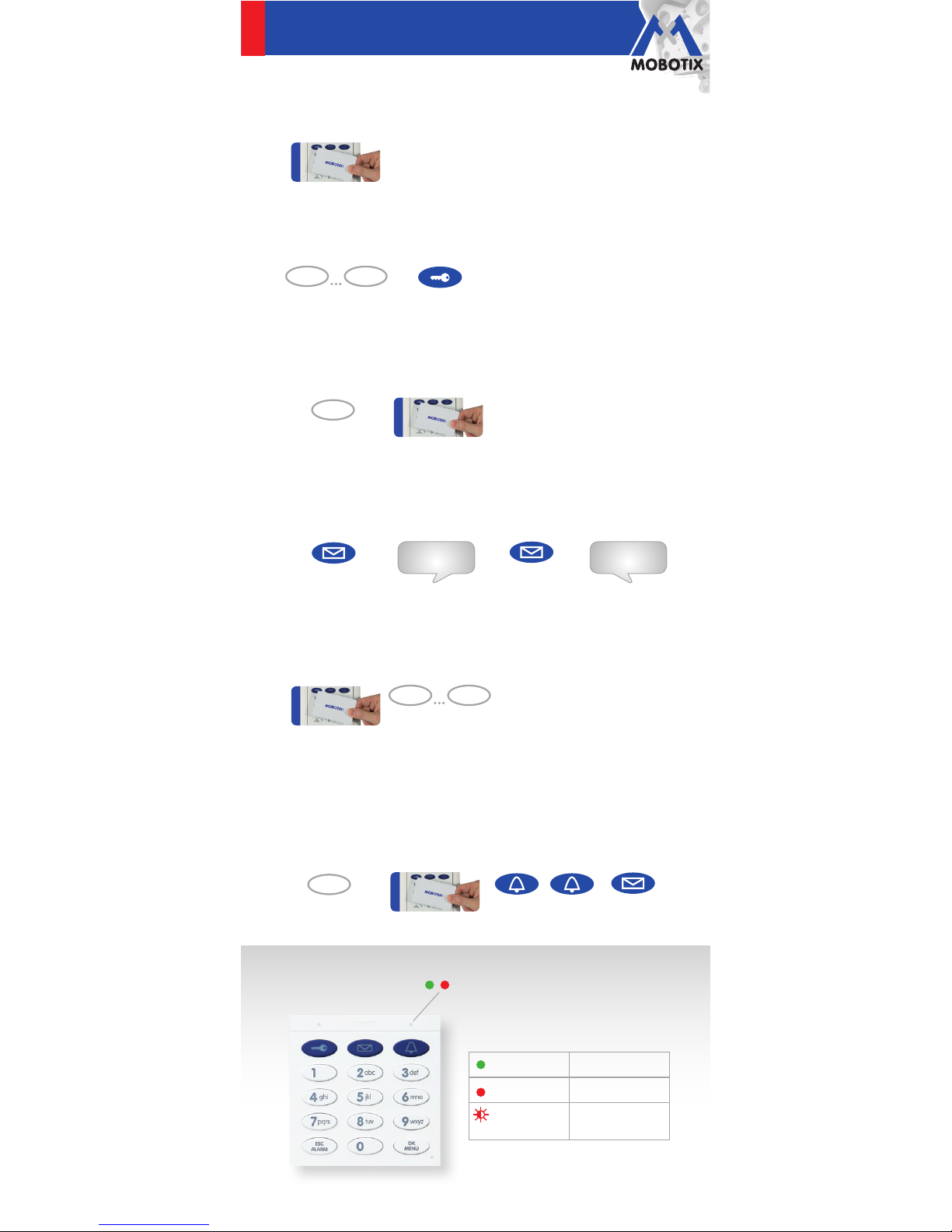

Keypad with RFID
Open door with blue user card
Hold up user card > door is unlocked
Open door with PIN code
Enter PIN code > press key button > door is unlocked
Open door on power failure (red LED ashes every 4 sec)
Press ESC/ALARM (until sound signal/lighting is on) >
opening the door with card and PIN is possible now
Leave a message (for standard mailbox)
Press envelope key > welcome message plays > keep
envelope key pressed and leave message
Play back messages*
Hold up user card > keys 0 – 9 blink: 0 – 9 new messages >
play back with keys 0 – 9
Record new welcome message for mailbox*
Press OK/MENU and hold the key > hold up user card >
press bell key > press bell key again > keep envelope key
pressed and leave message > let go of envelope key >
welcome message is activated
PIN code
0 9
Zutritts PIN
keep pressed
ESC
hold (2nd beep)
keep pressed
Welcome
message Message
hold
Messages
0 9
Zutritts PIN
keep pressed keep pressed
hold (2nd beep)
OK
hold
* only for cards with activated mailbox functions - see System Manual Part 2, 2.2.3 Add User Cards
Status LEDs
on Normal status
on Device error
flashes
every 4 sec
Emergency
operation
EN
The HiRes Video Company
Security Door Opener
Open door (also on power failure)
Keep door opener key pressed for 3 seconds
Conrm message display (green LED blinks every 2 sec)
Press door opener key briefly
Switch doorbell on/o
Press doorbell key (left) briefly > doorbell is switched on or o
Change volume
Keep doorbell key (left) pressed for 2 seconds (until double
sound signal)
Lower: Press doorbell key (left) briefly
Higher: Press door opener key (right) briefly
Change ring tone
Keep doorbell key (left) pressed for 2 seconds (until
double sound signal) > press both keys at the same time
briefly > press door opener key (right) repeatedly (until
desired ring tone is found)
+
-
Doorbell Door opener
Status LEDs
on
Door closed & locked
flashes every
2 sec
Door closed &
unlocked
on No contact
blinks every
2 sec
New message
briefly o after
1 sec
Missed the ringing
by less than 5 min
briefly o after
2 sec
Missed the ringing
by more than 5 min
on Device error
flashes every 4 sec Emergency operation
flashes every 3 sec
Battery is empty
Door
Error Establishing Contact
Technical specifi cations subject to change without notice!
