Homeowner's Installation

and Operating Manual

CWC Series Woodburning Fireplace

87D1504





Read all instructions and warnings carefully before starting installation. Failure to

follow these instructions may result in a possible fire hazard and will void the warranty.



The CWC Series fireplaces are solid fuel, woodburning

premium fireplaces. The CWC are circulating models

with removable grilles (louvers).

Both models are fully insulated fireplaces.



MHSC fireplaces and component parts have been highly

tested and will operate safely when installed in accor-

dance with instructions provided in this manual. Careful-

ly read and understand all instructions  beginning

installation.

If you notice any damage to fireplace or component

parts, immediately report damage to your MHSC dealer.

Only use MHSC components or the warranty will be

voided and a fire hazard may be created.

MHSC warranty will be voided by and MHSC disclaims

any responsibility for the following actions:

• 





• 



• 

(except for chase

flashings as detailed in the Chimney Top installa-

tion instructions).

• 



• 













Consult local building codes to ensure that you are in

compliance installing the fireplace.

Fireplaces must be vented to the out-of-doors.















 Fuels used in gas, woodburn-

ing or oil fired appliances, and the products of combus-

tion of such fuels, contain chemicals known to the State









Safety Information . . . . . . . . . . . . . . . . . . 2

Specifications and Framing . . . . . . . . . . 3

Parts Identification . . . . . . . . . . . . . . . . . 4

Chimney Requirements . . . . . . . . . . . . . 5

Planning Information . . . . . . . . . . . . . . . . 6

Installation ....................... 7

Replacement Parts . . . . . . . . . . . . . . . . 18

Accessories ...................... 19



of California to cause cancer, birth defects and other

reproductive harm.

California Health & Safety Code Sec. 25249.6









The fireplace should not be located in areas that create

drafts (ie: frequently opened doors and central heating air

inlets/outlets) that hamper the normal flow of air into the

fire.



If you plan to install a gas log, the gas line should be in-

stalled  framing the fireplace. The gas line must be

installed by a certified gas line installer.

CWC Series Woodburning Fireplace

87D1504

50" (1270mm)

42"

(1067mm)

35Z\v" (895mm)

46" (1168mm)

B\,"

(16mm)

B\," (16mm)

Z\x" (13mm)

Z\x"

19C\v" (502mm)

1C\v"

(45mm)

38" (965mm)

21"

(533mm)

7C\v"

(197mm)

7Z\x"

(191mm)

Recessed

Nailing Flange

FP592A

WMC42 SPECS

1/28/99

13C\," Dia.

(340mm)

Rough Opening Width 47"

Rough

Opening

Height

Rough

Opening

Depth

Gas Line

Access

50" (1270mm)

70Z\x" (1791mm)

8Z\v"

(210mm)

22"

(559mm)

22Z\x"

(572mm)

26Z\v"

(667mm)

40C\v"

(1035mm)

14B\,"

(372mm)

15C\,"

(391mm)

9Z\x"

(241mm)

36B\,"

(930mm)

(76mm)

(203mm)

7Z\x"

(191mm)

Outside Air

Electrical

Access

11" Dia.

(279mm)

(1194mm)

Gas Line Access

8" Dia.

(203mm)

36" (914mm)

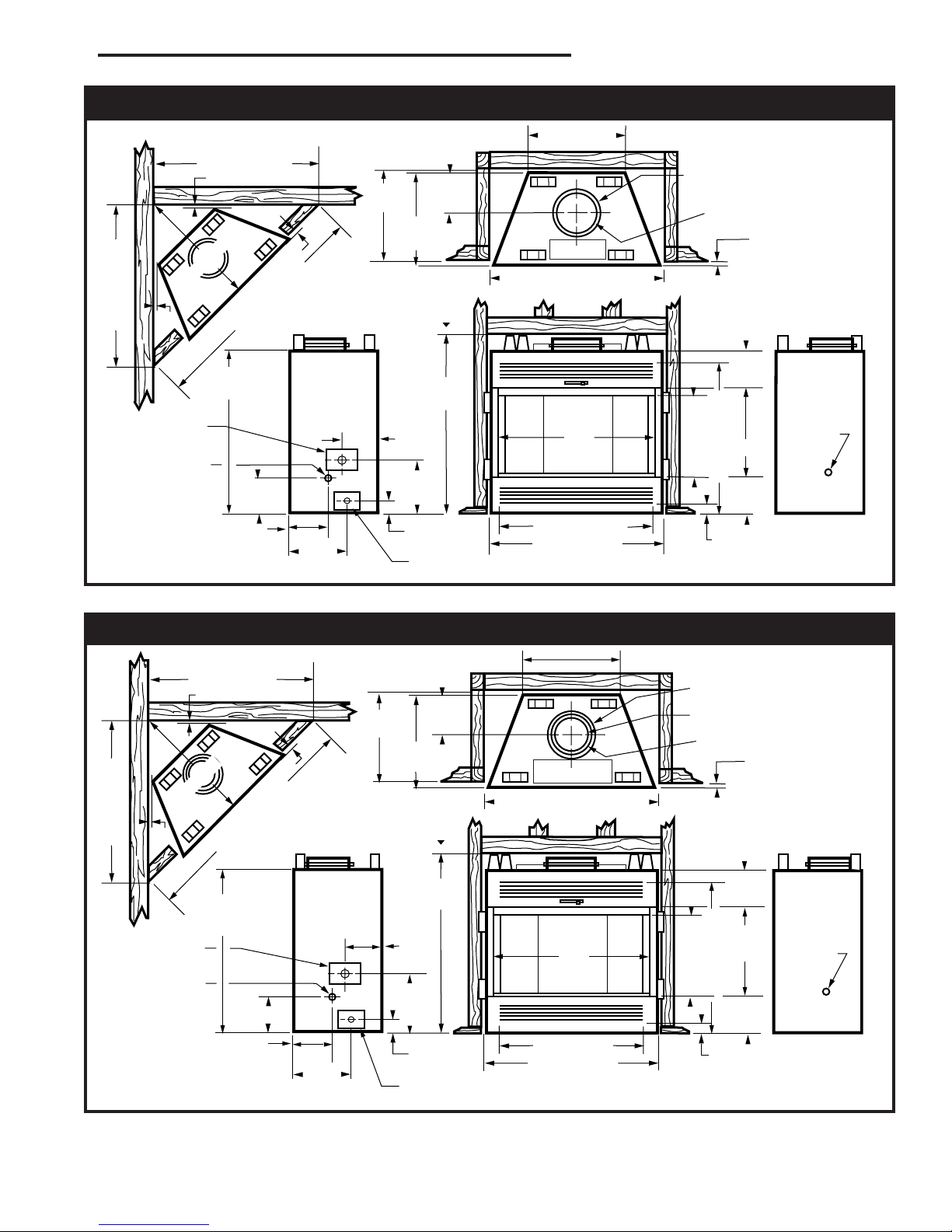

CWC500 Series specifications and framing.

FP592A



FP590A

WMC36 SPECS

1/28/99 djt

B\," (16mm)

Z\x" (13mm)

Z\x"

36"

(914mm)

35Z\v" (895mm)

40" (1016mm)

B\,"

(16mm)

19 C\v" (502mm)

1C\v"

(45mm)

35Z\x" (902mm)

21"

7C\v"

(197mm)

7Z\x"

(191mm)

Recessed

Nailing Flange

11" Dia.

(279mm)

Rough Opening Width 41"

Rough

Opening

Height

Rough

Opening

Depth

Gas Line

Access

47" (1194mm)

66Z\v" (1683mm)

8Z\v"

(210mm)

22"

(559mm)

22Z\x"

(572mm)

22" (559mm)

40C\v"

(1035mm)

14B\,"

(372mm)

15C\,"

(391mm)

9Z\x"

(241mm)

36B\,"

(930mm)

(76mm)

(203mm)

7Z\x"

(191mm)

Outside Air

Gas Line Access

Electrical

Access

8" Dia.

(203mm)

33C\v" (857mm)

(1041mm)

FP590A

CWC400 Series specifications and framing.



CWC Series Woodburning Fireplace

87D1504



Insulation methods shown are optional

for cold climate, not a requirement for

unit operation.

FPC554

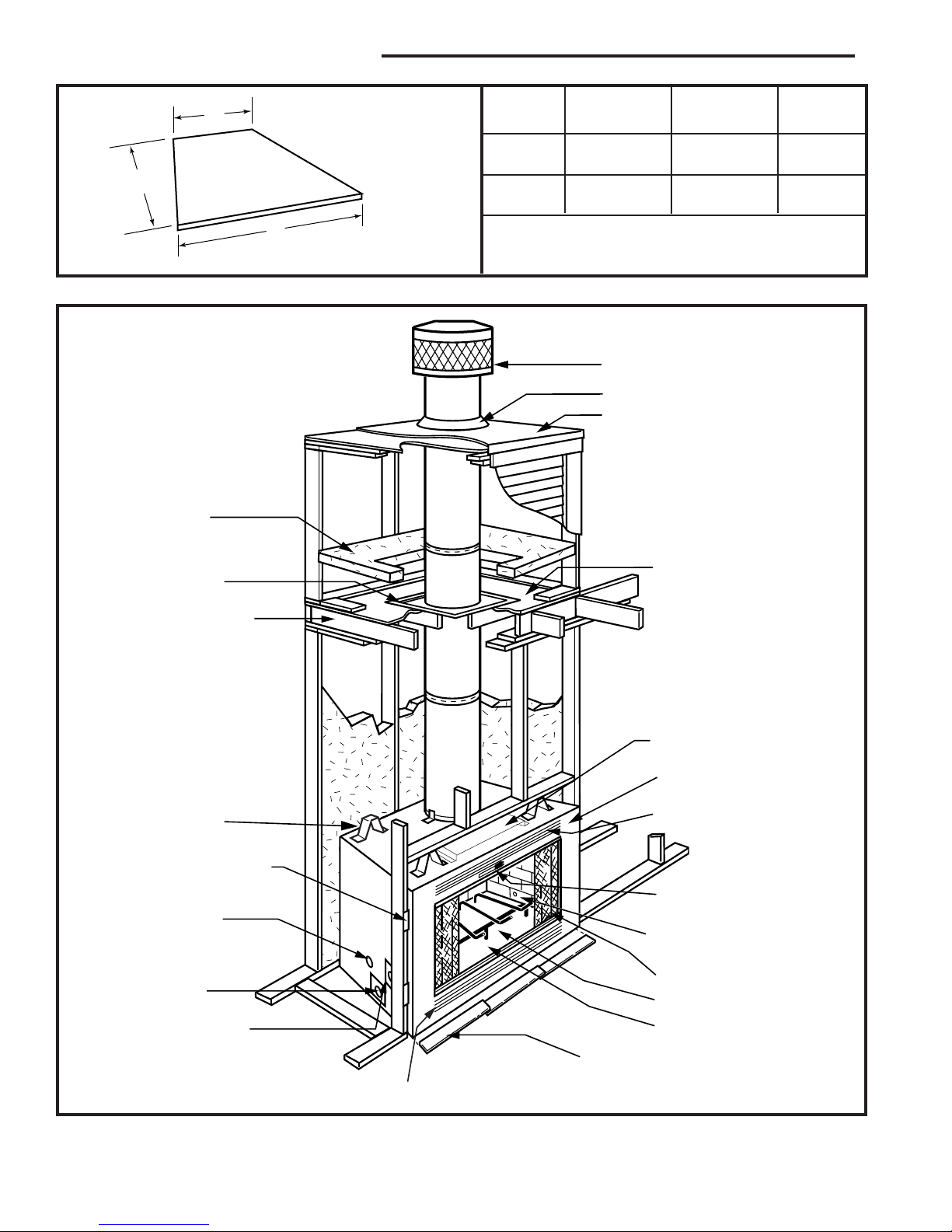

 Fireplace and chase parts identification.

Termination Cap

Storm Collar

Pan Flashing

Draftstop

Top Shield

Surround

Outlet Grille

Damper

Control

Gas Line Knockout

(both sides)

Screen

Grate

Firebox

Metal Safety Strips

(1, 2 or 3 pieces)

Inlet Grille

Outside Air

Cover Plate

Electrical Access

Gas Line Access

(both sides)

Nailing Flange

Standoff

Batt Insulation

(cut out around firestop)

Firestop

Ceiling Level

FP1531

hearth dimensions

9/04 djt

  

    

CWC400 33Z\x" 20Z\v" 18Z\v"

(851 mm) (514 mm) (464 mm)

CWC500 39B\," 23C\," 18Z\v"

(1007 mm) (594 mm) (464 mm)

FP1531

 Hearth dimensions.

CWC Series Woodburning Fireplace

87D1504

RISE

OFFSET

6 FT.

HEARTH

FLOOR

CHIMNEY

SECTION

CHIMNEY FLUE EXIT

ELBOW

FPC269

Chimney Requirements -typ. offset

Circulating models

1/28/99 djt

30˚

OFFSET

ELBOW

30˚

OFFSET

ELBOW

30˚

RETURN

ELBOW

30˚

RETURN

ELBOW

SKCS8

SUPPORT

Example 1 Example 2 Example 3





 ¹⁄₂   



The following safety rules apply to

offset installations (letters correspond

with illustration above):

 Height of the chimney is measured

from the hearth to the chimney exit.

CWC400 CWC500

Maximum: 90' 90'

Minimum:

Without Elbows 12' 6" 12' 6"

With 2 Elbows* 15' 0" 15' 0"

With 4 Elbows* 21' 0" 21' 0"

 Do not use more than 4 elbows per

chimney.

Attach the straps of the return (top)

elbow to a structural framing member.

The offset (first) elbow of any pair does

not have straps.

FPC269

IWF282

MBUF

5/26/96

OFFSET

RISE

IWF282

* In Canada, two (2) SK845 are allowed.

 Chimney system requirements.





0 0 0 0 0 3" 11"

1 0 0 0 0 8Z\v" 20"

0 1 0 0 0 11Z\v" 25Z\v"

2 0 0 0 0 13Z\x" 29Z\v"

1 1 0 0 0 16Z\x" 34Z\v"

0 0 1 0 0 20Z\v" 40C\v"

2 1 0 0 0 21C\v" 43Z\x"

0 0 0 1 0 26Z\v" 51Z\v"

0 1 1 0 0 28Z\x" 55Z\v"

1 0 0 1 0 31Z\x" 60Z\v”

0 1 0 1 0 34Z\x" 65Z\x"

0 0 2 0 0 37Z\x" 70C\v"

1 1 0 1 1 41Z\x" 77C\v"

0 0 1 1 1 45" 83C\v"

0 1 2 0 1 47Z\v" 87Z\x"

0 0 0 2 1 51" 94"

0 1 1 1 1 53Z\v" 98"

0 0 3 0 1 56Z\v" 103Z\v"

0 1 0 2 1 59Z\v" 108Z\x"

0 0 2 1 1 62Z\v" 113Z\x"

0 1 3 0 1 64Z\x" 117Z\x"

0 0 1 2 1 68Z\v" 124"

0 1 2 1 1 70Z\x" 128"

0 0 0 3 1 74Z\v" 134Z\x"

0 1 1 2 2 78" 140C\v"

0 0 3 1 2 81" 146"

0 1 0 3 2 84" 151Z\v"

0 0 2 2 2 87" 156Z\x"

0 1 3 1 2 89Z\v" 160Z\v"

0 0 1 3 2 93" 166C\v"

0 1 2 2 2 95Z\v" 170C\v"

0 0 0 4 2 99Z\v" 177C\v"

0 1 1 3 2 101Z\v" 181C\v"

0 0 3 2 2 104Z\v" 186Z\v"

0 1 0 4 2 107Z\v" 191Z\x"

0 0 2 3 2 110Z\v" 196C\v"

0 1 3 2 3 114" 203Z\v"

0 0 1 4 3 117C\v" 209C\v"

0 1 2 3 3 120" 213Z\x"

0 0 0 5 3 123C\v" 220"

The chimney cannot be more than 30°

(45° in Canada) from the vertical plane in

any installation*.

The maximum length of the angled run

of the  chimney system is 20 feet. (G

plus H cannot exceed 20 feet.)

 A chimney support (Model SKCS8,

TCS8A - 8 inch triple wall) is required

every 6 feet of angled run of chimney.

Chimney supports are required for every

30 feet and 60 feet (SK8 pipe) or 20 feet

and 40 feet (3-wall pipe) of vertical chim-

ney height above the hearth.

Determine the offset distance of your

chimney arrangement from the centerline

of the fireplace to the centerline of the

chimney where it is to pass through the

first ceiling.

 This offset distance may not be

your full offset distance. See Examples 2

and 3.

 G + H cannot exceed 20 feet.

Air Space Clearances: SK8 (2-wall) = 1Z\x" and "S" Series (3-wall) = 2"

CWC Series Woodburning Fireplace

87D1504



Preplanning an installation is very important to ensure

safety and to save time and money. An installer must

predetermine where a fireplace will be set and how the

chimney system will be run.



A fireplace may be mounted on the following surfaces:

1. A flat combustible surface.

2. A raised wooden platform.

3. A concrete block or other solid object placed be-

neath each of the four (4) corners of the fireplace.

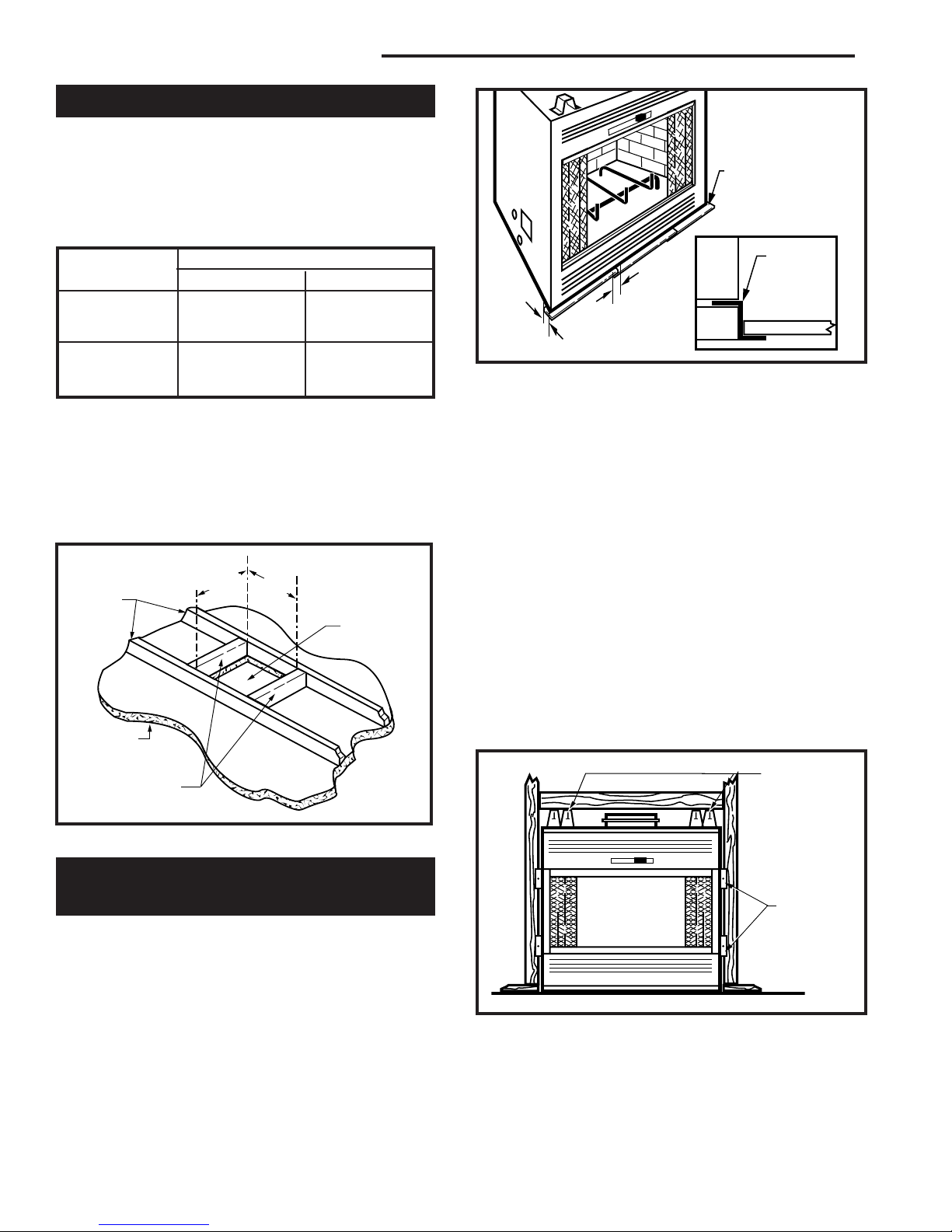

The fireplace  be spaced 1/2" (13 mm) from a

combustible back wall and 1/2" (13 mm) from a com-

bustible side wall or support. Refer to Page 14, Figure

18.



Determine how the chimney will be run, length of run

and chimney components required to complete the

job. (Fig. 4)  install a chimney below minimum

heights.



Major U.S. building codes specify a minimum chimney

height above the roof top. The “Ten Foot Rule” is a fire

safety rule and not a draft rule. It is recommended that

you always meet or exceed the “Ten Foot Rule,” espe-

cially when installing a termination on a high pitch roof.

(Fig. 6)

The key points of the "Ten Foot Rule" are:

1. If the horizontal distance from the chimney to the peak

of the roof is 10' (3 m) or less, the top of the chimney

must be at least 2' (609 mm) above the peak of the

roof, but never less than 3' (914 mm) in height above

the highest point where it passes through the roof.

2. If a horizontal distance from the chimney to the peak

of the roof is more than 10' (3 m), a chimney height

reference point is established that is on the surface of

the roof a distance of 10' (3 m) from the chimney in a

horizontal plane. The top of the chimney must be at

least 2' (609 mm) above the reference point, but never

less than 3' (914 mm) in height above the highest

point where it passes through the roof.

In planning a chimney system, it is important to know:

1. The height of a chimney is measured from the

hearth to the exit point on the termination.

2. A chimney cannot be offset more than 30° from a

vertical plane.

3. A chimney may run straight up or it may be neces-

sary to offset it to avoid obstructions.

4. The maximum length of an angled run (total chim-

ney system) is 20' (6 m).

5. No more than 2 offsets (4 total 30° elbows in U.S./

or 2 total 45° elbows in Canada) per fireplace may

be used.

6. A guy wire stabilizer (not provided) is required for

chimneys extending more than 6' (1.8 m) above a

roof line.

LTMODEL SK

2 WALL

CHIMNEY

TOTAL

LENGTH

(LT)

INSTALLED

LENGTH

(L1)

SK81

SK818

SK83

SK84

56O

56O

56O

56O

56O

56O

56O

56O

FP288A

MBUF-INSTALLED LENGTH

Triple wall

1/28/99 djt

TRIPLE

WALL

818

FP288A

 Installed lengths of chimney sections.

2’ Min.

3’

Min.

0 To 10’

3’

Min.

0 To 10’

AC246

4/1/96

Reference

Point

AC246

 Ten Foot Rule illustration.

CWC Series Woodburning Fireplace

87D1504



The chimney system is supported by the fireplace for

vertical chimney heights less than 30' (9 m) above the

hearth. Chimney supports are required if the vertical

height exceeds 30' (9 m) with SK8 chimneys or 20' (6

m) with 3-wall chimneys. Locate chimney supports

at ceiling holes or other structural framing at 30' (9 m)

(SK8) or 20' (6 m) (3-wall) heights. Spacing between

chimney supports  exceed 30' (9 m) (SK8)

or 20' (6 m) (3-wall). Use Chimney Support Model

SKCS8 (SK8) and TCS8A (3-wall). 



 Support provided by elbow straps ful-

fills the support requirement only if they are spaced as

previously described. (A chimney support is 2Z\x" long

when installed.)

Angled chimney runs require a support every 6' (1.8

m) in addition to the elbow straps. Chimney supports

are used for this function. (Fig. 7)



A chase is a vertical boxlike structure which encloses

the fireplace and/or chimney. Chases are typically built

on the outside of the house with fireplace opening cut

into the outer wall of a room. (Page 5, Fig. 3)

If you need help in determining fireplace location or

how the chimney system should be run, contact your

MHSC dealer for assistance.





If you live in a cold climate, it is not required but

 that you insulate fireplace

enclosure to eliminate cold air penetration as much

as possible.

Insulate base of fireplace with a noncombustible

insulation rated for a minimum of 300°F. Insulating

is  for outside wall installations over

a concrete slab. If fireplace is installed on a platform,

insulation should be placed on top of the platform

fireplace is set. (Fig. 8)

When a fireplace is installed in a chase or on a

outside wall, enclosure should be treated like any

outside wall in a home. Insulation should be installed

on the inside wall as well as the outside wall(s). In a

chase, it is also a good idea to install a firestop at the

first ceiling level above the fireplace and enclose the

chase with sheeting material. Insulation may then be

installed above sheeting material to assure the space

around the fireplace is totally protected. (Fig. 3)

When installing the chimney,  caulk between

outer pipe and firestop. It is vital that some air be al-

lowed to flow through this very thin gap.

 WHEN INSTALLING A FIREPLACE IN

AN INSULATED ENCLOSURE, BE SURE ALL RE-

QUIRED AIR SPACES ARE MAINTAINED. (Page 13,

Fig. 18)



FP284

 Chimney support installation.

FP284

MBUF CHIMNEY SUPPORT

1/28/99 djt

Chimney Sup-

port Strap

Chimney

Support

FPC555

Platform insulation

circulating model

1/28/99 djt

FPC555

 Insulating between platform and fireplace.

Cover Plate

Top Shield

Hard, Flat

Surface

Insulation

Platform

CWC Series Woodburning Fireplace

87D1504



Framing can be constructed before or after the fire-

place is set in place, however, most installers build the

frame before setting the fireplace.

Frame fireplace with 2 x 4 lumber or heavier materials.

Refer to framing dimensions in Figures 1 and 2 for

basic fireplace specifications.

 Framing should be positioned to accommo-

date wall covering and fireplace facing material.











 To prevent electrical shock, the house

power must be disabled. This can be accomplished by

positioning the circuit breaker to off.

The fan kit assembly and model EB1 junction box are

factory installed.

 Check local building codes to determine if a

junction box is required at the romex pigtail/house wire

connection.



The SCVS Variable Speed Control is tested and safe

when installed in accordance with these instructions.

Read all instructions before beginning installation. Fol-

low instructions carefully.

The SCVS speed control may be used as an alternate

wall switch in lieu of the single pole (Listed 1.5 Amp

120V) switch described in the fan or fireplace installa-

tion instructions.



For mounting the speed control, a 2" deep standard

electrical box should be used. Using wire nuts sup-

plied with the speed control, connect control in series

with fan motors and line voltage. Refer to Figure 9 for

wiring diagram.

Mount speed control in electrical box and attach wall

plate with screws provided. Push on knob so that indi-

cator is in OFF position. (Fig. 10)



Turn control knob counterclockwise until a click is

heard for OFF position. To operate fans, turn knob

clockwise and adjust fan speed as desired.

Green

White

Black

White

FP1212

SCVS wiring

5/23/02 djt

Ground

Ground Screw

Variable Speed Con-

trol (optional)

Wire Nuts

(supplied)

Receptacle

Fireplace

Junction Box

Ground

Stud

Wall

Junction Box

(not supplied)

Black

FP1212

 SCVS wiring diagram.

OFF

LOW

FP1213

SCVS

components

5/24/02 djt

Electrical Box

(not supplied)

Speed Con-

trol Cover

Plate

Oval

Head

Screw

Plastic

Knob

Flat

Head

Screw

Wire Nut FP1213

 Speed control mounting.

CWC Series Woodburning Fireplace

87D1504



Since you have already preplanned the chimney run,

you should know exactly how the installation is to be

accomplished - how much pipe is required, the number

of elbows, if any, and type of termination to be used.

 REPORT TO YOUR DEALER ANY PARTS

DAMAGED IN SHIPMENT, SPECIFICALLY CHECK

THE END CONNECTION OF CHIMNEY SECTIONS

AND ELBOWS.

 The CWC400 may use MHSC model SK8,

or Model S (three wall) chimney systems. However,

a TWABR adapter collar is required when using the

Model S (triple wall) chimney system on this unit. The

CWC500 is designed to use only the "S" triple wall

chimney system. Either chimney system may be used,

but  be mixed.

 To use the TWABR adapter on the CWC400,

remove and discard the cover plate on the top shield.

(Fig. 8)



To mark the centerline of the flue, put the fireplace in

final position and measure out from the wall: 9Z\v" (235

mm). Mark a spot on the ceiling directly above the

fireplace. Draw a line parallel to the back wall through

this mark. (Fig. 11)

Using a plumb bob positioned directly over center

point of fireplace flue collar, mark the ceiling to estab-

lish the chimney center point. (Fig. 11)



In order to clear an obstruction, it may be necessary

to offset chimney from vertical. This is accomplished

by using MHSC elbows. Use the 30° Offset Elbow

table on Page 5 to determine proper offset and parts

required.

Each offset requires two (2) elbows. The second

elbow is equipped with support straps. It is very

important to install the second elbow in each offset as

close to the ceiling or support as possible so the elbow

straps can be secured to framing members to help

support the weight of the chimney.

Determine offset distance of your chimney arrange-

ment from centerline of fireplace to centerline of chim-

ney where it is to pass through ceiling.

Locate center point of the chimney on ceiling as

though a straight up chimney arrangement is to be

used. Measure your offset dimension from straight up

chimney center point on ceiling.





The size of the hole in ceiling will vary with the angle at

which the chimney passes through ceiling.

Drive a nail up through ceiling at marked chimney center

point. Go to floor above and see where hole will be cut.

Check to see where existing ceiling joists and other pos-

sible obstructions are located...i.e. wiring, plumbing etc...

If necessary, reposition chimney and/or fireplace to avoid

obstructions.



Cover fireplace collar opening and cut proper sized

chimney hole in chimney. The SK8 pipe allows you to

run pipe through a typical 16” on center joist without cut-

ting joists.

FPC556

WMC

LOCATE CENTER LINE

Circulating model

1/28/99 djt

9Z\v"

(235mm)

FPC556

 Locate centerline of chimney with plumb line.

Chimney Centerline

Actual Centerpoint

Plumb Line

Plumb Bob

Imaginary Cen-

terpoint

CWC Series Woodburning Fireplace

87D1504



Frame the ceiling chimney hole as shown in Figure 13.

It is good practice to use framing lumber that is the

same size as the ceiling joists; this is a requirement at

attic level.

The following table gives firestop spacer model num-

bers:

Safety strips are used to ensure that any combustible

materials in front of the fireplace are protected even

though a noncombustible hearth extension is required.

If fireplace is to be elevated above the floor, a “Z”

shaped metal safety strip must be fabricated and used

to protect combustible surfaces in front of the fireplace.

This “Z” shaped safety strip is not provided but must be

fabricated of metal with each horizontal leg at least 1Z\x"

(38 mm) wide and equal in length to the metal strips

provided with the fireplace.

Safety strips are not required over noncombus-

tible floors where all supports at the base of the fireplace

are noncombustible.

Nailing flanges are integrated on the face of the fire-

place. To level the box and secure it firmly in place, bend

the nailing flanges and install as shown in Figure 15.

 Typical frame for ceiling chimney hole.

FP551

WF551

BR/BC

9/29/97

See

Fig. 12

See

Fig. 12

Existing

Ceiling

Joists

Ceiling

New Framing

Members

Chimney

Hole

 Ceiling chimney hole sizes necessary for installing

firestop spacer.

   

8" Flue SKFS2A SKFS6A

"SK" Series 14Z\x" x 14Z\x" 14Z\x" x 25Z\x"

(368mm x 368mm) (368mm x 648mm)

8" Flue FS2A FS6A

"S" Series 3-Wall 17Z\x" x 17Z\x" 17⁷\," x 29B\,"

(445mm x 445mm) (454mm x 753mm)



The inside dimension of the frame must be the same

as the hole size selected from Figure 13 in order

to provide required air space between the outside

diameter of the chimney and the edges of the framed

ceiling hole. (1Z\x" - SK8; 2" - 3 wall)





Slide fireplace into position.

Lift the fireplace front slightly and slide the metal safety

strips under front bottom edge about 1Z\x" (38 mm),

allowing the remainder to extend in front of firebox.

Overlap strips at least 1/2" (13 mm) to provide a posi-

tive joint. (Flat safety strips are packed with fireplace.)

(Fig. 14)

FPC557

 Safety strip installation.

FPC557

WMC Safety strip installation

circulatin models

1/29/99 djt

Metal Safety

Strips

(1, 2 or 3 Pieces)

Z\x" (13mm)

Min. Overlap

1Z\x"

(38mm)

"Z"

Safety

Strip

Fire-

Place

Plat-

Form Hearth Ext.

(not supplied)

FPC549

 Fasten fireplace in position.

FPC549

Nail flange/standoff

circulating models

1/29/99 djt

Nail Top

Standoffs

Nail Side-

Nailing

Flanges

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Monessen Hearth Kamin im Innenbereich Handbücher

Monessen Hearth

Monessen Hearth GCUF Series Bedienungsanleitung

Monessen Hearth

Monessen Hearth Direct Vent BDV500C Montageanleitung

Monessen Hearth

Monessen Hearth VFF32LNI Handbuch

Monessen Hearth

Monessen Hearth DIS33 Bedienungsanleitung

Monessen Hearth

Monessen Hearth Mojo22-R Bedienungsanleitung

Monessen Hearth

Monessen Hearth DFX DBX24C Bedienungsanleitung

Monessen Hearth

Monessen Hearth NBST27-F Bedienungsanleitung

Monessen Hearth

Monessen Hearth Direct Vent Gas Fireplace KHLDV SERIES Bedienungsanleitung

Monessen Hearth

Monessen Hearth SBV400A B Vent Montageanleitung

Monessen Hearth

Monessen Hearth VFI Series Handbuch

Monessen Hearth

Monessen Hearth HVFL18 Bedienungsanleitung

Monessen Hearth

Monessen Hearth 624WBPF Peninsula Montageanleitung

Monessen Hearth

Monessen Hearth Natural Blaze Series Montageanleitung

Monessen Hearth

Monessen Hearth VWF30 Bedienungsanleitung

Monessen Hearth

Monessen Hearth Vent Free Insert DIS33G Montageanleitung

Monessen Hearth

Monessen Hearth Direct Vent Gas Fireplace MDV500 Bedienungsanleitung

Monessen Hearth

Monessen Hearth 36" and 42" Wood Burning Fireplaces BWB500A Montageanleitung

Monessen Hearth

Monessen Hearth ACUF32-BD Bedienungsanleitung

Monessen Hearth

Monessen Hearth AVFL60DLS Bedienungsanleitung

Monessen Hearth

Monessen Hearth Direct Vent Gas Insert IDV380NVC Bedienungsanleitung

Monessen Hearth

Monessen Hearth HBDV300N/PV7 Bedienungsanleitung

Monessen Hearth

Monessen Hearth LO-Rider Designer Vent Free Fireboxes LSTF36 Montageanleitung

Monessen Hearth

Monessen Hearth HWB700HB Bedienungsanleitung

Monessen Hearth

Monessen Hearth LO-Rider Designer Vent Free Fireboxes LLCF36 Bedienungsanleitung

Beliebte Kamin im Innenbereich Handbücher anderer Marken

Brigantia

Brigantia 35-DVRS31N-2 Betriebsanleitung

Nordpeis

Nordpeis Bergen Bedienungsanleitung

Superior

Superior BCT2536TMN Bedienungsanleitung

Quadra-Fire

Quadra-Fire 5100I-GD-B Bedienungsanleitung

Renaissance

Renaissance RUMFORD 1000 Bedienungsanleitung

Lacunza

Lacunza IV-800 Bedienungsanleitung

Baxi

Baxi 940 Gebrauchsanweisung

Dru

Dru Maestro 60/2 Tall RCH Bedienungsanleitung

Diamond Fireglass

Diamond Fireglass SS-O22 Bedienungsanleitung

HearthStone

HearthStone Windsor Bay 8830 Programmierhandbuch

Napoleon

Napoleon ASCENT B42 Bedienungsanleitung

Enviro

Enviro E33GI Bedienungsanleitung

Smeg

Smeg L30 FABE Montageanleitung

KEDDY

KEDDY K700 Bedienungsanleitung

Godin

Godin 3451 Bedienungsanleitung

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Bedienungsanleitung

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Bedienungsanleitung

Desa

Desa CCFPDFT Bedienungsanleitung
