Monogram®Professional Range

2

IMPORTANT SAFETY NOTICE

The information in this presentation is intended for use by individuals

possessing adequate backgrounds of electrical, electronic, & mechanical

experience. Any attempt to repair a major appliance may result in

personal injury & property damage. The manufacturer or seller cannot be

responsible for the interpretation of this information, nor can it assume

any liability in connection with its use.

WARNING

To avoid personal injury, disconnect power before servicing this product.

If electrical power is required for diagnosis or test purposes, disconnect

the power immediately after performing the necessary checks.

RECONNECT ALL GROUNDING DEVICES

If grounding wires, screws, straps, clips, nuts, or washers used to complete

a path to ground are removed for service, they must be returned to their

original position & properly fastened.

3

GE Factory Service Employees are required to use safety glasses with side

shields, cut resistant (Dyneema®) gloves & steel toe shoes for all repairs.

Dyneema® Cut

Resistant Glove

Safety Glasses must be compliant with

ANSI Z87.1-2003

Prescription Safety Glasses

Plano Safety Glasses

Steel Toe Shoes

4

ZDP486NDPSS

ZDP486LDPSS

ZDP486NRPSS

ZDP486LRPSS

ZDP484NGPSS

ZDP484LGPSS

ZDP366NPSS

ZDP366LPSS

ZDP364NRPSS

ZDP364LRPSS

ZDP364NDPSS

ZDP364LDPSS

ZDP304NPSS

ZDP304LPSS

Pro Range Models

5

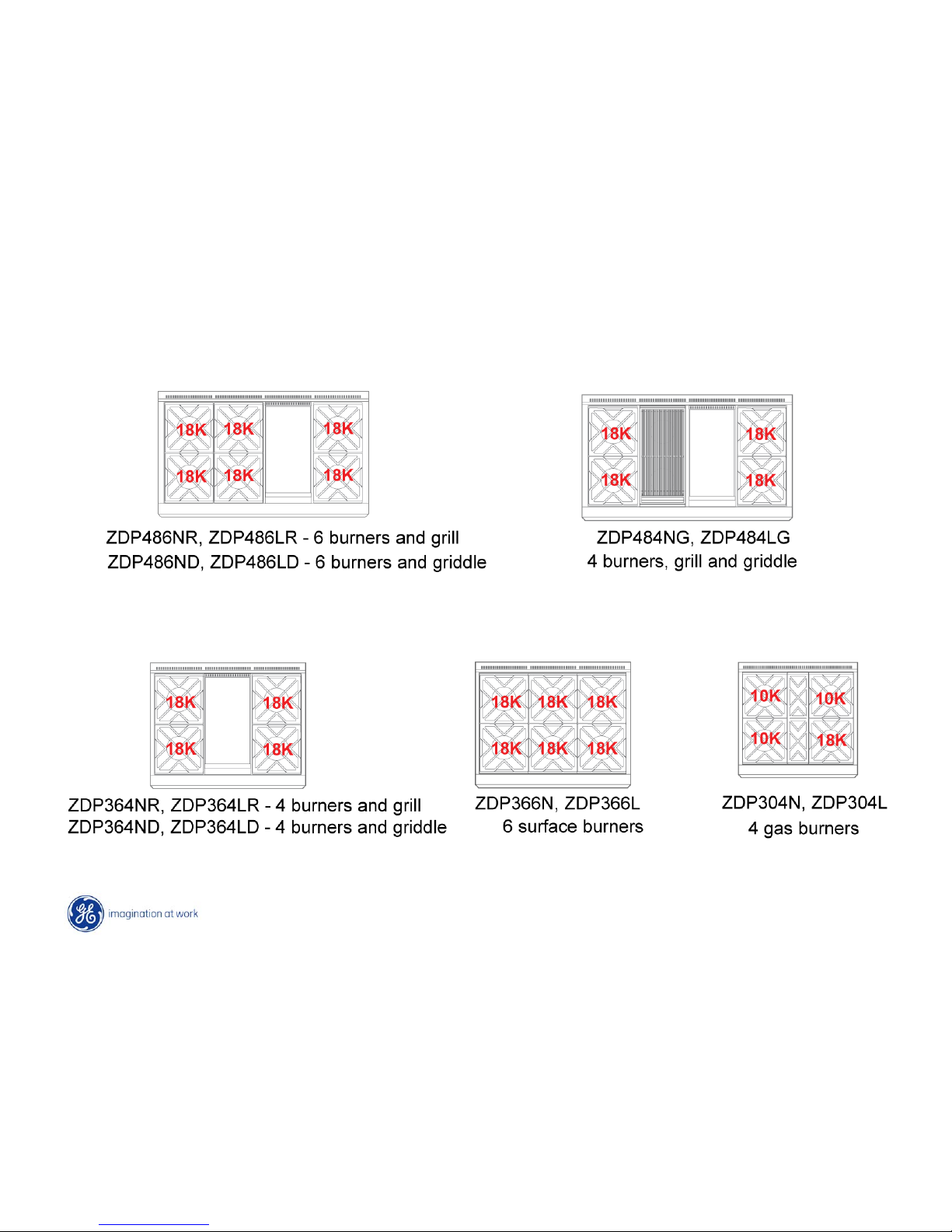

Burner Configurations

6

Pro Range Nomenclature

7

Pro Range Model Location

The model tag is located under the

front control panel on the left side. The model and serial number is

also located behind the left front

knob on the bezel.

8

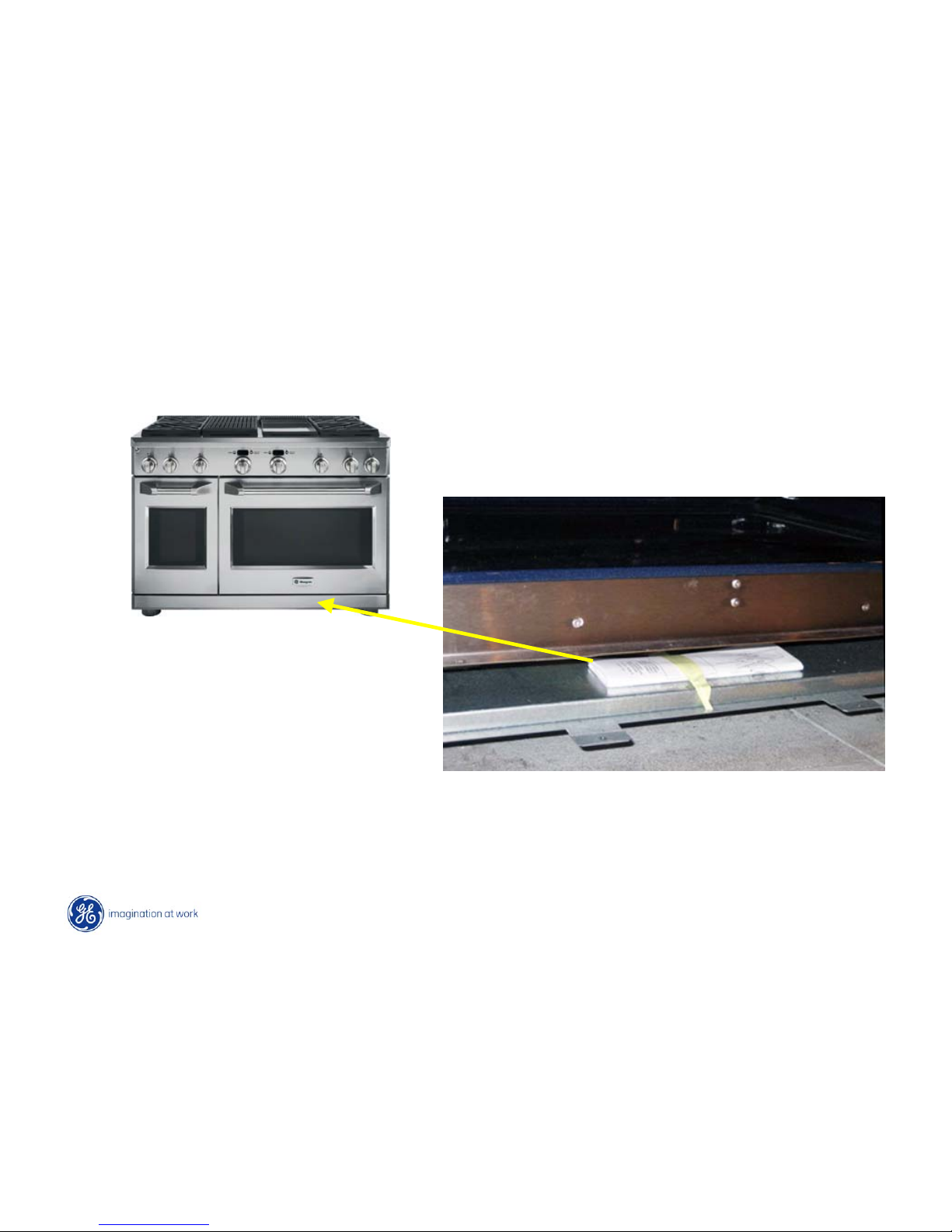

Mini-Manual Location

The mini-manual is located at the bottom behind the access panel

9

12” height

36” with adjustable height shelf

Backsplashes are available

in 30”, 36” and 48” widths

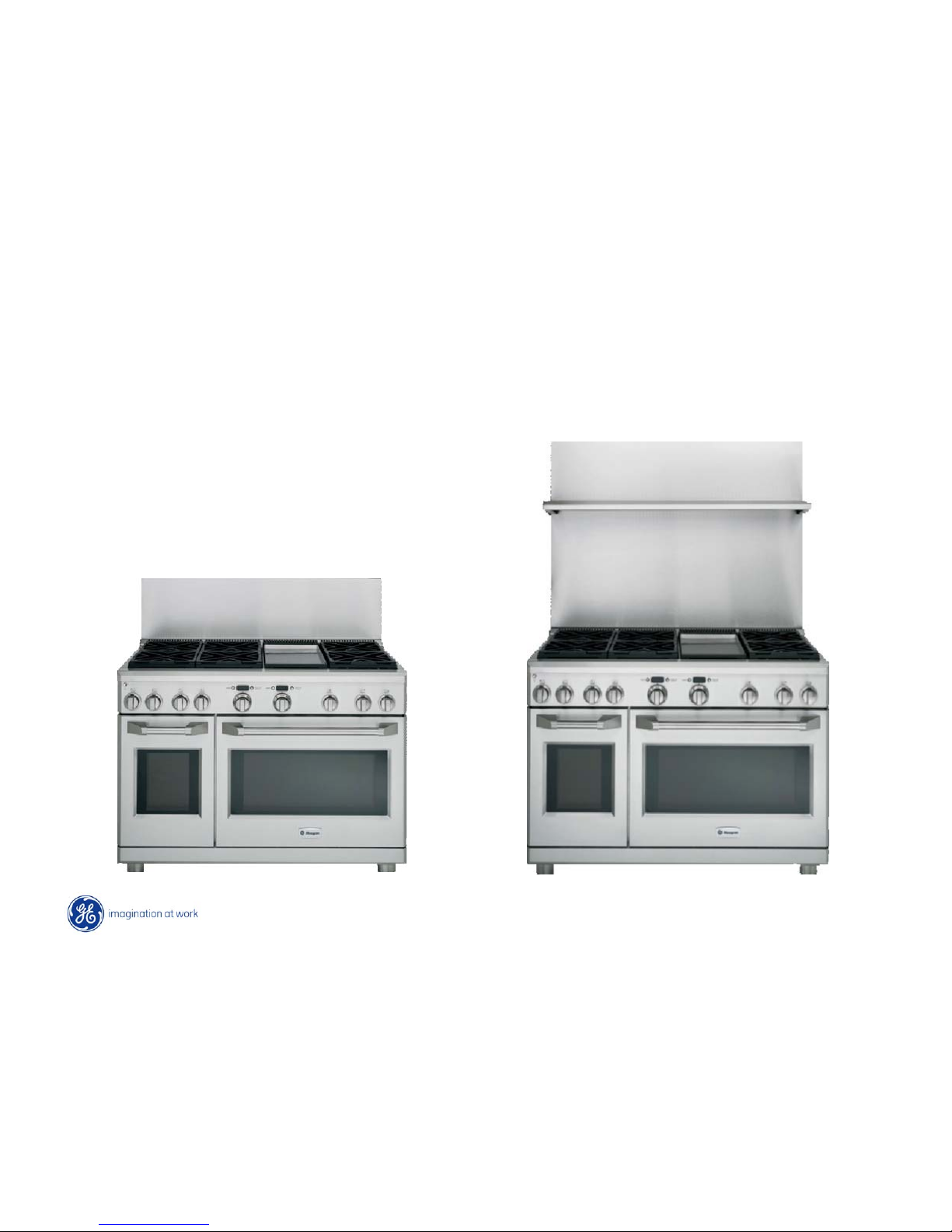

Optional Backsplash Kits

10

Pub Number 24-M488

Activates all lights and control displays

Pro Range Sales Demo Kit

120V applied to L1 and L2 (note jumper L2-N)
