Monogram ZICS360NHRH Kurzanleitung

Design Guide with

Installation

Instructions

36”Built-In Bottom-Freezer

Refrigerators

monogram.com

31-49079-1

224D3095P003

04-15 GE

Safety Information

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT– Save these instructions for

local inspector’s use. Observe all governing codes

and ordinances.

• Note to Installer – Be sure to leave these

instructions with the Consumer.

• Note to Consumer – Keep these instructions with

your Owner’s Manual for future reference.

If you received a damaged refrigerator, you should

immediately contact your dealer or builder.

Skill Level – Installation of this refrigerator requires

basic mechanical, carpentry and plumbing skills.

Proper installation is the responsibility of the installer.

Product failure due to improper installation is not

covered under the GE Appliance Warranty.

See the Owner’s Manual for warranty information.

WARNING Electrical Shock Hazard.

Plug into a grounded 3-prong outlet.

Do not remove the ground prong.

Do not use an adapter.

Immediately replace electric cords that become frayed

or damaged.

Do not use an extension cord with this appliance.

Failure to follow these instructions can result in death,

fire, or electrical shock.

Follow the instructions in the section Grounding the

Refrigerator.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and the word “DANGER”, “WARNING”, or “CAUTION”. These

words are defined as:

DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

For Monogram local service in your area, call 1.800.444.1845.

For Monogram service in Canada, call 1.800.561.3344

For Monogram Parts and Accessories, call 1.800.626.2002.

www.monogram.com

WARNING Tip Over Hazard.

These refrigerators are top heavy, especially with any doors open, and must be secured to prevent tipping

forward which could result in death or serious injury. Read and follow the entire installation instructions for

securing the refrigerator with the anti-tip system.

WARNING Explosion Hazard.

Keep flammable materials and vapors, such as gasoline, away from refrigerator. Failure to do so can result in

fire, explosion, or death.

WARNING To reduce the risk associated with choking, do not allow children under 3 years of age to have

access to small parts during the installation of this product.

CAUTION Lifting Hazard

This refrigerator is very heavy. To reduce the risk of person injury during maneuvering and installing this

refrigerator, 3 people are required for proper installation.

AVERTISSEMENT Risque de basculement

Ces réfrigérateurs présentent une partie supérieure lourde, en particulier avec une porte ouverte; ils doivent donc

être fixés pour prévenir le basculement vers l’avant et le risque concomitant de blessure grave ou fatale. Lisez et

suivez les instructions d’installation complètes pour l’installation du système anti-basculement.

AVERTISSEMENT Risque d’explosion.

Conservez les matériaux et vapeurs inflammables tels que l’essence à l’écart de votre réfrigérateur. Le non-

respect de cette instruction peut entraîner un risque d’incendie, d’explosion ou de décès.

AVERTISSEMENT Pour réduire le risque d’étouffement pendant l’installation de ce produit, ne pas laisser les

petites pièces à la portée des enfants âgés de moins de 3 ans.

ATTENTION Risque associé à la manutention d’une charge lourde

Ce réfrigérateur est très lourd. Pour réduire le risque de blessure lors de la manutention de ce réfrigérateur, trois

(3) personnes sont nécessaires pour procéder à l’installation appropriée du modèle 36 pouces, quatre (4) pour

l’installation des modèles 42 ou 48 pouces.

Consignes de Sécurité

AVERTISSEMENT Risque de choc électrique.

Branchez l’appareil dans une prise triple avec terre.

Ne retirez pas la broche de terre.

N’utilisez pas d’adaptateur.

Le non-respect de ces instructions peut entraîner des

risques d’incendies, des chocs électriques ou la mort.

Remplacer immédiatement tout cordon électrique

effiloché ou endommagé.

N’utilisez pas de rallonge avec cet appareil.

Le non-respect de ces instructions peut entraîner des

risques d’incendies, des chocs électriques ou la mort.

Suivez les instructions de la section Mise à la terre du

réfrigérateur.

Ce symbole représente une alerte de sécurité. Ce symbole vous avise de dangers possibles pouvant causer la mort, des

blessures ou autres. Tous les messages de sécurité seront précédés du symbole d’alerte de sécurité ainsi que des mots «

DANGER », « AVERTISSEMENT » ou « MISE EN GARDE ». Ces messages sont les suivants :

Signale une situation qui présente un danger imminent et qui, si elle n’est pas évitée, entraînera des bles

sures graves, voire la mort.

Signale une situation qui présente un danger imminent et qui, si elle n’est pas évitée, peut entraîner des

blessures graves, voire la mort. .

Signale une situation qui présente un danger imminent et qui, si elle n’est pas évitée, peut entraîner des

blessures mineures ou graves.

AVERTISSEMENT

DANGER

ATTENTION

Contents

Safety 2, 3

Instructions for Standard Installation 5-19

Planning Guide

The Installation Space 6

Dimensions and Clearances 6

Customization Basics 7

Refrigerator Location 7

Optional Accessory Kits 7

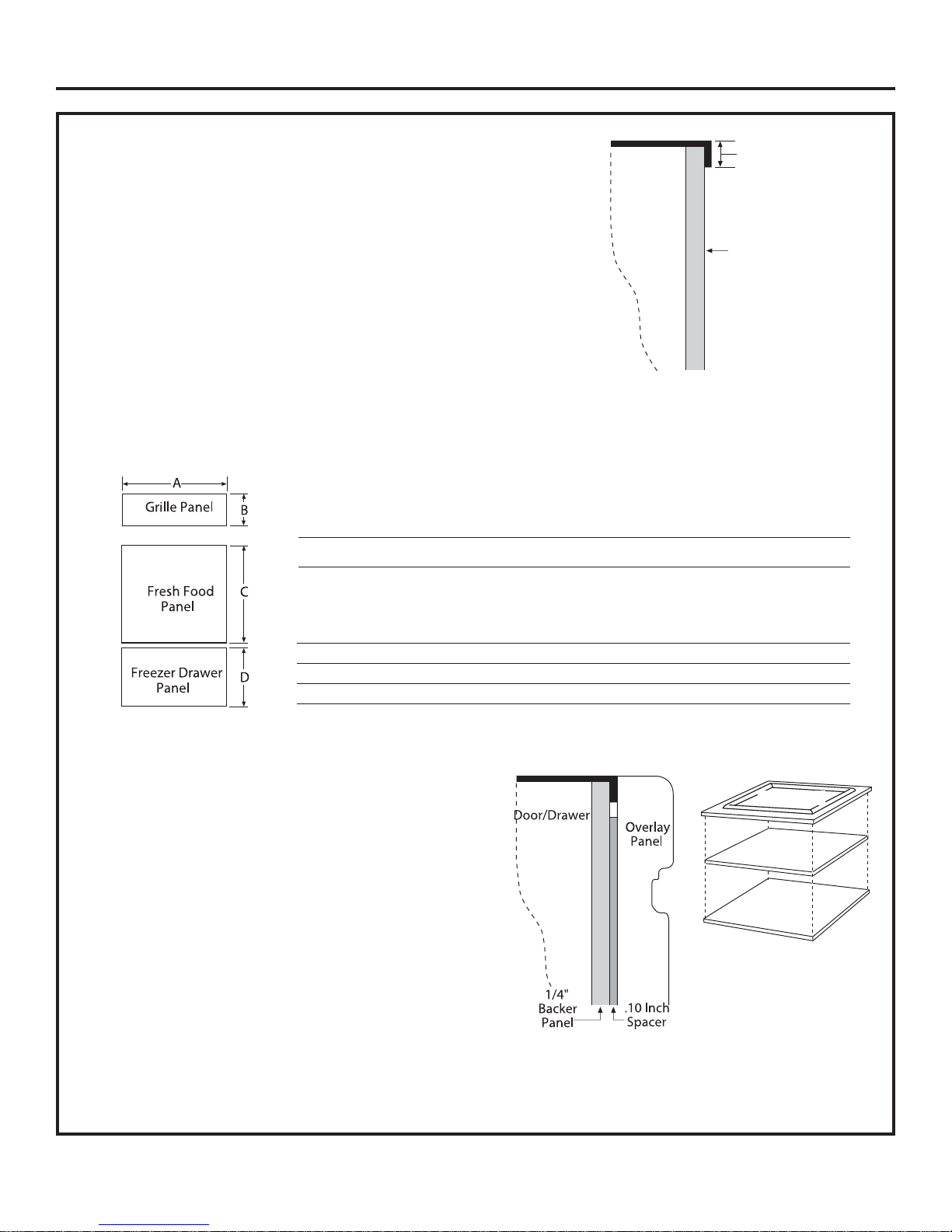

1/4” Framed Panel Dimensions 8

3/4” Overlay Panel Dimensions 8

Side Panels 9

ZUG2 Grille Panel Dimensions 9

130° Door Swing 10

Installation Instructions

Tools, Hardware, Materials 11

Grounding the Unit 11

Step 1. Remove Packaging 12

Step 2. Install Water Line 12

Step 2A. Water Line with Reverse Osmosis System 13

Step 3. Install Side Panels 13

Step 4. Anti-Tip Procedures 13-15

Step 5. Level Unit 15

Step 6, Secure Unit to Wall 15

Step 7. Alternate Anti-Tip Procedure 16

Step 8. Adjust Door Swing 16

Step 9, Install Grille Panel 17

Step 10, Install 1/4” Framed Panels 17

Step 10A, Install Overlay Panels 18

Step 11. Connect Water Supply 19

Step 12. Connect Power 19

Step 13. Start Icemaker 19

Step 14. Install Toekick 19

Instructions for Flush Installation 21-36

Planning Guide

The Installation Space 21

Dimensions and Clearances 21

Custom Handle Design Guide 21

1/2” Overlay Panel Dimensions 22

3/4” Decorative Panel Dimensions 23

Customization Basics 23

Refrigerator Location 23

3/4” Raised Fresh Food Door Panel Routing 24

3/4” Raised Freezer Door Panel Routing 25

3/4” Raised Grille Panel Routing 26

Optional Accessory Kits 26

Installation 27

ZUGF2 Grille Panel Dimensions 27

Side Panels 27

Side Cleats 27

Installation Instructions

Tools, Hardware, Materials 28

Grounding the Unit 28

Step 1. Remove Packaging 29

Step 2. Install Water Line 29

Step 2A. Water Line with Reverse Osmosis System 30

Step 3. Install Side Panels 30

Step 4. Install Case Trim 30

Step 5. Anti-Tip Procedure 30-32

Step 6. Alternate Anti-Tip Procedure 32

Step 7. Adjust Door Swing 33

Step 8. Install Grille Panel 33

Step 9. Install Door Panels 34

Step 10. Connect Water Supply 35

Step 11. Connect Power 35

Step 12. Start Icemaker 35

Step 13. Install Toekick 35

Instructions for Stainless Steel Installation 36-46

Planning Guide

The Installation Space 37

Dimensions and Clearances 37

Customization Basics 38

Side Panels 38

Optional Accessory Kits 38

Refrigerator Location 38

130° Door Swing 39

Installation Instructions

Tools, Hardware, Materials 40

Grounding the Refrigerator 40

Step 1. Remove Packaging 41

Step 2. Install Water Line 41

Step 2A. Water Line with Reverse Osmosis System 42

Step 3. Install Side Panels 42

Step 4. Anti-Tip Procedure 42-44

Step 5. Level Refrigerator 45

Step 6, Secure Unit to Wall 45

Step 7. Alternate Anti-Tip Procedure 45

Step 8. Adjust Door Swing 45

Step 9. Connect Water Supply 46

Step 10. Connect Power 46

Step 11. Start Icemaker 46

Step 12. Install Toekick 46

Instructions for Standard Installation

36" Frame to

Frame Width

*84" From

Floor to

Top Frame

35"

Case Width

*83-1/2"

Rear

25-3/8"

Case Depth

Depth Including Handles 26-7/8"

THE INSTALLATION SPACE

Water And Electrical Locations

Electrical and water supply must be located as shown.

The Cutout Depth Must Be 24”

The refrigerator will project forward, slightly beyond

adjacent cabinetry, depending on your installation.

Allow minimum 1/8” air gap between case back & wall.

Cutout depth beneath a soffit:

When installed beneath a soffit, the soffit cannot exceed

the 24”installation depth shown. The top case trim

overlaps the bottom of the soffit.

Additional Specifications

• A 115 volt 60Hz., 15 or 20 amp power supply is required.

An individual properly grounded branch circuit or circuit

breaker is recommended. Install a properly grounded

3-prong electrical receptacle recessed into the back wall.

Electrical must be located on rear wall as shown.

NOTE: GFI (ground fault interrupter) is not recommended.

• Water line can enter the opening through the floor or

back wall. Route GE SmartConnect™kit or 1/4”O.D.

copper tubing between the cold water line and the water

connection location. The tubing should be long enough

to extend to the front of the refrigerator. Installation of

an easily accessible shut-off valve in the water line is

required.

DIMENSIONS AND CLEARANCES

* Shipping height. The

refrigerator can be

adjusted to fit into a

cutout that is 84-1/2”

max. height. Note that

the top case trim at

the front is 1/2”higher

and will overlap upper

cabinetry or soffit. Use

leveling legs and wheels

for a maximum 1”height

adjustment.

Product Clearances

These refrigerators are equipped with a 3-position door

stop. The factory set 115° door swing can be adjusted to

90° if clearance to adjacent cabinets or walls is restricted.

Wall View

Electrical

Area

84-1/2" max

Finished

Opening

75" From

Floor to

Bottom

of Electrical Area

10"

24" Cutout Depth

35-1/2"

Finished Width

2-5/16"

10"

3-1/2" 3-1/2"

3-1/2"

Water Supply

For Dual Installation

• If you are installing two refrigerators, side by side,

the installation space must be 71-1/2”wide.

NOTE: Additional cutout width may be required when side panels

are used. Add side panel thickness to the finished cutout to

calculate rough-in width.

• The water and electrical locations for each product must

be located as shown.

• A separate 115V, 60Hz., 15 or 20 amp power supply is

recommended for each product.

Allow 25”minimum clearance for

a full 130° door swing. Allow 15”

for pan removal.

For a 90° door swing, allow 4”

min. clearance to a wall. If the

90° door stop position is used, pan

access is maintained, but pan

removal is restricted.

See illustration on page 10 to

determine door swing interaction

with adjacent cabinets or

countertops.

Design Guide - Standard Installation

115° Door Swing

4”

CUSTOMIZATION BASICS:

Framed Or Overlay Panels, Custom

Handles and Accessory Kits

These refrigerators are designed to be customized with

decorative panels. Field installed custom door and grille

panels are required.

Side Panels

Side panels must be used whenever the sides of the

refrigerator will be exposed.

Optional Accessory Kits

• ZKHCSS2: Monogram Tubular Stainless Steel handles

designed to fit 3/4”overlay panels. This kit also includes a

handle side trim for custom handles.

• ZKHPSS1: Professional Tubular Stainless Steel Handle

designed to fit 3/4” overlay panels. Kit includes one

handle. Order 2 kits for bottom-freezer refrigerators from

your Monogram supplier.

• ZUG2/ZUGSS2: For side-by-side installation of two

trimmed bottom-freezer refrigerators. This kit provides for

the installation of a unified custom grille panel to span the

width of two units using a framed or overlay panel.

• ZKHCT: Handle side trim for left-hand and right-hand

doors. For use on 3/4”custom panels when using a

custom handle.

Design Guide - Standard Installation

REFRIGERATOR LOCATION

• Do not install the refrigerator where the temperature

will go below 55°F (13°C). It will not run often enough

to maintain proper temperatures.

• Do not install the refrigerator where temperatures will

go above 100°F (37°C). It will not perform properly.

• Do not install the refrigerator in a location exposed to

water (rain, etc.) or direct sunlight.

• Install it on a floor strong enough to support it fully

loaded.

1/4”FRAMED PANEL DIMENSIONS

If you choose to install framed panels, they must be cut

to the dimensions shown. The panels will slide into the

frame on the door, drawer and grille.

If the custom panel is less than 1/4”thick and if it fits

loosely in the door frame, it can be backed up with a

piece of filler material or foam tape to improve the fit.

3/4”OVERLAY PANEL DIMENSIONS

For a more custom appearance, overlay panels may be installed

on trimmed models. The overlay panel must be secured to a

1/4”thick backer panel which slides into the trim. A spacer

panel 0.10”thick must be placed between the overlay and

backer panel.

Assemble the panels with glue and screws.

• Center the spacer panel on the backer panel, left to right and

top to bottom. Secure the panels with glue.

• Center the spacer and backer panel on the overlay panel and

secure with glue and screws. Screws must

be countersunk into the backer panel.

Spacer Panel

Backer Panel

Overlay Panel

Framed Panel Dimensions

A (Width) B (Grille Height) C (FF Height) D (FZ Height)

1/4”Framed Panel 33-7/8”8-7/8”46-1/16”21-7/8”

Overlay Panel Dimensions

A (Width) B (Grille Height) C (FF Height) D (FZ Height)

1/4”Backer Panel 33-7/8”8-7/8”46-1/16”21-7/8”

0.10”Spacer Panel 32-1/2”7-5/8”44-11/16”20-1/2”

3/4”Overlay Panel 34-1/8”9”46-5/16”22”

NOTE: Left-to-right offset is not always equal to

top-to-bottom offset.

1/4"

Panel

Door

5/16"

Trim

Reveal

IMPORTANT NOTE: Maximum total

panel weight:

• Fresh food door panel – 58 lbs.

• Freezer drawer panel – 28 lbs.

• Grille Panel – 11 lbs.

IMPORTANT NOTE: Maximum

total weight for the assembled

panels:

• Fresh food door panel – 58 lbs.

• Freezer drawer panel – 28 lbs.

• Grille Panel – 11 lbs.

Design Guide - Standard Installation

ZUG2 GRILLE PANEL DIMENSIONS

The ZUG2 unified grille panel kit provides for the

installation of a framed or overlay grille panel.

Assemble the overlay panels in the same manner as

the door and drawer panels.

Framed Panel Dimensions

A (Width) B (Height)

1/4”Framed Panel 69-7/8”8-7/8”

Overlay Panel Dimensions

A (Width) B (Height)

1/4”Backer Panel 69-7/8”8-7/8”

0.10”Spacer Panel 68-1/2”7-5/8”

3/4”Overlay Panel 70-1/8”9”

*84"

2-9/16"

24"

*3" to 4"

3/16"

1-7/8"

SIDE PANELS

Side panels must be used whenever the sides of the

refrigerator will be exposed. The 1/4”side panels will

slip into the side case trim. Secure the panels to the

refrigerator with stick-on hook and loop fastener strips.

Order the side panels from the cabinet manufacturer.

• Cut a notch in the top front corner as shown to allow

clearance for corner keys in the front side trim.

* Depending on

installation height.

1/4" 1/2" 3/4" 1" 1-1/4"

3/4" Overlay

Panel

(Nominal Size)

Stainless Steel

1/4"

1/2"

3/4"

1-1/4"

1-1/2"

1-3/4"

2-1/4"

2-1/2"

2-3/4"

1/4"

1/2"

3/4"

Door

23-7/8" From

Rear of

Refrigerator

Case

Trim

Top View

130° DOOR SWING

Scale 1:1

Frameless Cabinets: The case trim

overlaps cabinets at the top and sides.

Therefore, frameless cabinets

may require filler strips to prevent

interference with cabinet door swing.

The opening must allow for filler strips.

Design Guide - Standard Installation

Inhaltsverzeichnis

Andere Monogram Kühlschrank Handbücher

Monogram

Monogram ZFSB25DXSS Bedienungsanleitung

Monogram

Monogram ZIDS240 Bedienungsanleitung

Monogram

Monogram ZISB360DRF Bedienungsanleitung

Monogram

Monogram Side-by-Side36" Bedienungsanleitung

Monogram

Monogram Built-in refrigerators Bedienungsanleitung

Monogram

Monogram ZIDI240 Bedienungsanleitung

Monogram

Monogram Monogram ZIC36N RH Bedienungsanleitung

Monogram

Monogram ZICP720 Bedienungsanleitung

Monogram

Monogram ZIP364NBVII Bedienungsanleitung

Monogram

Monogram Bottom-Freezer Built-In Refrigerators Bedienungsanleitung

Monogram

Monogram 30" Built-InBottom-Freezer Bedienungsanleitung

Monogram

Monogram ZIBI240HII Bedienungsanleitung

Monogram

Monogram ZISS360DKSS Bedienungsanleitung

Monogram

Monogram Monogram ZFSB23DRSS Benutzerhandbuch

Monogram

Monogram ZISW480D Bedienungsanleitung

Monogram

Monogram ZDOD240HSS Bedienungsanleitung

Monogram

Monogram ZFSB25D SS Bedienungsanleitung

Monogram

Monogram ZICP360NHRH Bedienungsanleitung

Monogram

Monogram ZIRP360NXARH Bedienungsanleitung

Monogram

Monogram ZDOG240 Bedienungsanleitung

Monogram

Monogram 30? Bedienungsanleitung

Monogram

Monogram Bottom-Freezer Built-In Refrigerators Bedienungsanleitung

Monogram

Monogram ZWE23E series Bedienungsanleitung

Monogram

Monogram ZFGB21HZBSS Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
