4K 2x1 Dual DisplayPort® and USB KVM Switch

P/N 36652

User's Manual

SAFETY WARNINGS AND GUIDELINES

Please read this entire manual before using this device, paying extra attention to these

safety warnings and guidelines. Please keep this manual in a safe place for future

reference.

This device is intended for indoor use only.

Do not expose this device to water or moisture of any kind. Do not place drinks

or other containers with moisture on or near the device. If moisture does get in

or on the device, immediately unplug it from the power outlet and allow it to

fully dry before reapplying power.

Do not touch the device, the power cord, or any other connected cables with

wet hands.

Do not subject the product to extreme force, shock, or fluctuations in

temperature or humidity.

Do not expose this device to excessively high temperatures. Do not place it in,

on, or near heat sources, such as a fireplace, stove, radiator, etc. Do not leave it

in direct sunlight.

Prior to operation, check the unit and power cord for physical damage. Do not

use if physical damage has occurred.

Before plugging the unit into a power outlet, ensure that the outlet provides the

same type and level of power required by the device.

Unplug this device from the power source when not in use.

Take care to prevent damage to the power cord. Do not allow it to become

crimped, pinched, walked on, or become tangled with other cords. Ensure that

the power cord does not present a tripping hazard.

Ensure that power is turned off and disconnected before making any electrical

connections.

Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or

detergents. For stubborn deposits, moisten the cloth with warm water.

This device has no user serviceable parts. Do not attempt to open, service, or

modify this device.

INTRODUCTION

This Dual DisplayPort® & USB KVM Switch allows you to use either of two DisplayPort

equipped PCs with a single dual display, keyboard, mouse, USB, and audio workstation.

It features two sets of dual DisplayPort video inputs and a dual DisplayPort video

output, as well as connections for a USB keyboard, USB mouse, headphones or

speakers, microphone, and USB data connections.

FEATURES

Share two DisplayPort® monitors, a USB keyboard, and a USB mouse with two

dual display computers

Supports video resolutions up to 4K@30Hz

Supports video link rates up to 21.6Gbps

Fully compatible with the DisplayPort 1.2 standard

Includes connections for headphones/speakers and microphone

Includes two USB 2.0 data ports with over-current detection and protection

Metal housing for improved RF shielding

CUSTOMER SERVICE

The Monoprice Customer Service department is dedicated to ensuring that your

ordering, purchasing, and delivery experience is second to none. If you have any

problem with your order, please give us an opportunity to make it right. You can

contact a Monoprice Customer Service representative through the Live Chat link on our

website www.monoprice.com or via email at su[email protected]. Check the

website for support times and links.

PACKAGE CONTENTS

Please take an inventory of the package contents to ensure you have all the items listed

below. If anything is missing or damaged, please contact Monoprice Customer Service

for a replacement.

1x 2x1 Dual DisplayPort® & USB KVM switch

1x AC power adapter (5 VDC, 2A)

1x User's manual

PRODUCT OVERVIEW

Front Panel

1. PC1 LED: The LED illuminates when the PC1 source is selected.

2. PC2 LED: The LED illuminates when the PC2 source is selected.

3. Power LED: The LED illuminates when power is applied.

4. Select Button: Momentarily press the button to switch between the PC1 and PC2

sources.

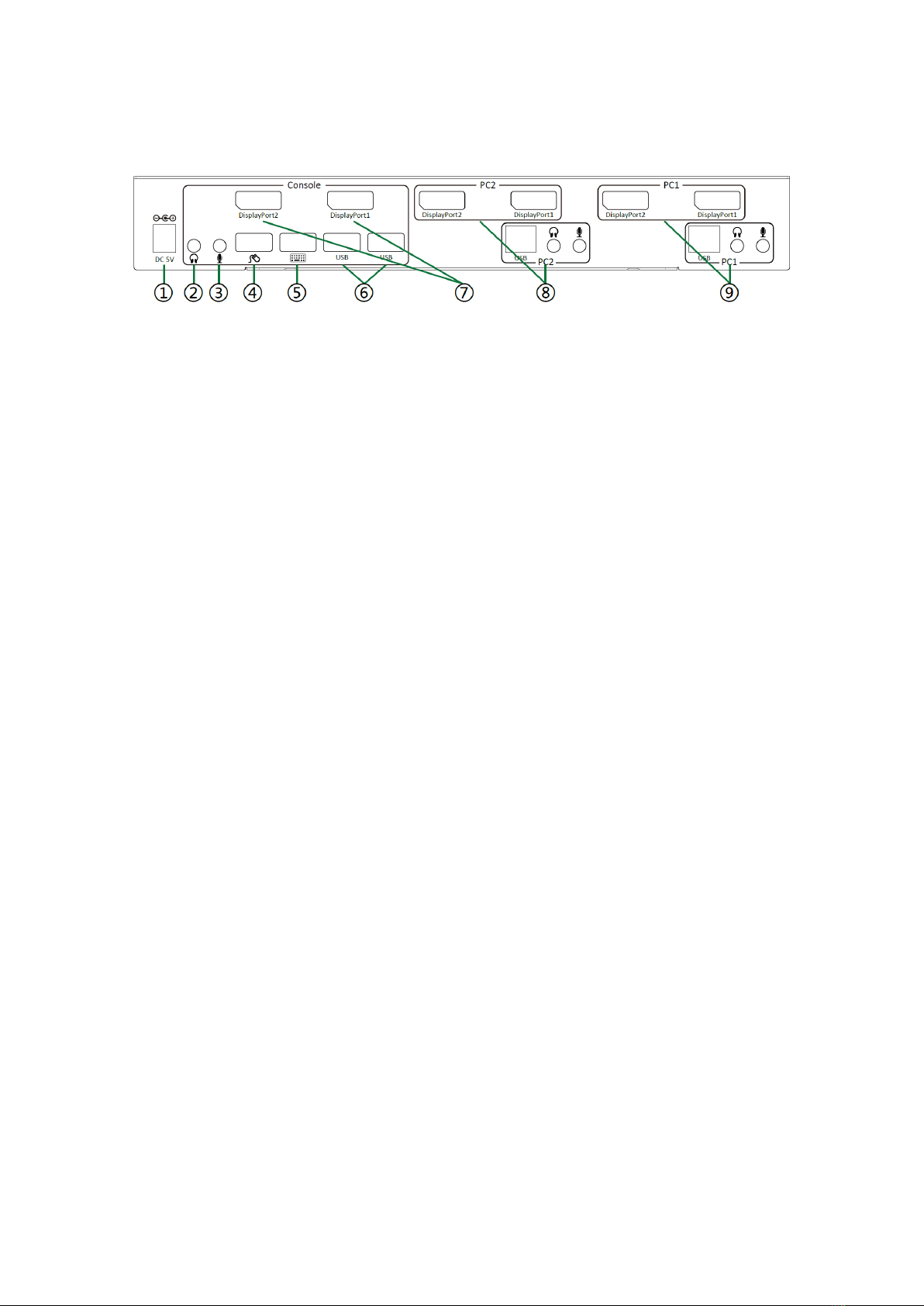

Rear Panel

1. DC 5V: DC barrel connector for connecting the included AC power adapter.

2. Console Headphone: 3.5mm TRS jack for connecting a pair of headphones or

speakers.

3. Console Microphone: 3.5mm TS jack for connecting a microphone.

4. Console Mouse: USB port for connecting a USB mouse.

5. Console Keyboard: USB port for connecting a USB keyboard.

6. Console USB: Two USB 2.0 ports for connecting USB peripherals other than the

keyboard and mouse.

7. Console DisplayPort: Two DisplayPort® video ports for connecting one or two

DisplayPort monitors.

8. PC2 Inputs: Two DisplayPort video inputs, one USB Type-B port, one 3.5mm TRS

jack for connecting the audio output of the second PC, and one 3.5mm TS jack

for connecting the microphone input to the second PC.

9. PC1 Inputs: Two DisplayPort video inputs, one USB Type-B port, one 3.5mm TRS

jack for connecting the audio output of the first PC, and one 3.5mm TS jack for

connecting the microphone input to the first PC.

SAMPLE CONNECTION DIAGRAM

INSTALLATION

1. Power off and disconnect from its power source each device that will be

connected to the switch.

2. Using a DisplayPort® cable (not included), plug one end into the DisplayPort

input on your first monitor, then plug the other end into the Console DisplayPort

1port on the switch.

3. Using a DisplayPort® cable (not included), plug one end into the DisplayPort

input on your second monitor, then plug the other end into the Console

DisplayPort 2 port on the switch.

4. Plug a USB keyboard into the Console Keyboard port on the switch.

5. Plug a USB mouse into the Console Mouse port on the switch.

6. (Optional) Plug a pair of speakers or a headset into the Console Headphone jack

on the switch.

7. (Optional) Plug a microphone with a 3.5mm plug into the Console Microphone

jack on the switch.

8. (Optional) Plug a USB hub and/or other USB devices into the Console USB ports

on the switch.

9. Using a DisplayPort® cable (not included), plug one end into PC1 DisplayPort 1

port on the switch, then plug the other end into the first DisplayPort video

output on your first computer.

10. Using a DisplayPort cable (not included), plug one end into PC1 DisplayPort 2

port on the switch, then plug the other end into the second DisplayPort video

output on your first computer.

11. Using a USB Type-A to Type-B cable (not included), plug the Type-B end into the

PC1 USB port on the switch, then plug the Type-A end into a USB port on your

first computer.

Note: In order for the switching function to work, the first connection must be to a

computer. The other connections can be to computers, consoles, Blu-ray Disc™ players,

or other devices with DisplayPort® video output.

12. Using a DisplayPort® cable (not included), plug one end into PC2 DisplayPort 1

port on the switch, then plug the other end into the first DisplayPort video

output on your second computer.

13. Using a DisplayPort cable (not included), plug one end into PC2 DisplayPort 2

port on the switch, then plug the other end into the second DisplayPort video

output on your first computer.

14. Plug the Type-B end of a USB Type-A to Type-B cable (not included) into the

PC2 USB port on the rear panel, then plug the Type-A end into a USB port on

your second computer.

15. Plug one end of the included AC Power Adapter into the DC 5V jack on the rear

panel, then plug the other end into a nearby AC power outlet.

16. Plug in and power on your first computer.

17. Wait for it to fully boot to the desktop, then verify that you can view the video

and control it using the keyboard and mouse. If you connected a microphone,

speakers/headset, and/or USB device(s), verify that they work, as well.

18. Press the Select button on the front panel, then plug in and power on your

second computer.

19. Wait for it to fully boot to the desktop, then verify that you can view the video

and control it using the keyboard and mouse. If you connected a microphone,

speakers/headset, and/or USB device(s), verify that they work, as well.

TECHNICAL SUPPORT

Monoprice is pleased to provide free, live, online technical support to assist you with

any questions you may have about installation, setup, troubleshooting, or product

recommendations. If you ever need assistance with your new product, please come

online to talk to one of our friendly and knowledgeable Tech Support Associates.

Technical support is available through the online chat button on our website

www.monoprice.com or through email by sending a message to [email protected]om.

Check the website for support times and links.

HOTKEYS

The switch can respond to several hotkey commands. The basic form of the hotkey

command is to tap the CAPS LOCK key twice, then tap the command key(s). The

following table shows the various hotkey commands that can be performed. The

individual keys to be tapped are separated with commas.

Command

Function

CAPS, CAPS, 1

Switch to PC1

CAPS, CAPS, 2

Switch to PC2

CAPS, CAPS, or

Switch to the next PC

CAPS, CAPS, or

Switch to the previous PC

CAPS, CAPS, S

Auto-scan every 10 seconds

CAPS, CAPS, S, #

Auto-scan every # seconds

CAPS, CAPS, Esc

Switch from auto-scanning every # seconds

to auto-scanning every 10 seconds

Note that the #above can only be a single digit.

REGULATORY COMPLIANCE

Notice for FCC

This device complies with Part 15 of the FCC rules. Operation is subject to the following

two conditions: (1) this device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

Modifying the equipment without Monoprice's authorization may result in the

equipment no longer complying with FCC requirements for Class A digital devices. In

that event, your right to use the equipment may be limited by FCC regulations, and you

may be required to correct any interference to radio or television communications at

your own expense.

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a commercial installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause

harmful interference, in which case the user will be required to correct the interference

at his own expense.

Notice for Industry Canada

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

DisplayPort® and the DisplayPort® logo are registered trademarks of the Video

Electronics Standards Association.

Blu-ray Disc™, Blu-ray™, and the logos are trademarks of the Blu-ray Disc Association.
