Montarbo FiveO V-MATE 10A Bedienungsanleitung

INDICE

Appendix

CONTENUTO DELL’IMBALLO

◗

◗CE

Nell’interesse della propria e della altrui sicurezza, e per non invalidare

la garanzia, si raccomanda una attenta lettura di questa sezione prima di

utilizzare il prodotto.

Classe di isolamento I

PEREVITAREIL RISCHIO DI INCENDIO E/O DI FOLGORAZIONE:

•

Questo apparecchio non contiene parti interne destinate all’intervento

diretto da parte dell’utilizzatore. Per evitare il rischio di incendio e/o

folgorazione, non smontarlo e non rimuovere il pannello posteriore.

Per qualsiasi intervento di manutenzione o riparazione, rivolgetevi

alla Elettronica Montarbo srl e/o a personale altamente quali�cato

speci�camente segnalato da questa.

•

[!] Non esporre i bambini a forti sorgenti sonore.

I materiali e la costruzione rispettano i piùalti standard

professionali per assicurare la massima af�dabilità.

Fire10A

Woofer da 10" con magnete in ferrite.

Driver a compressione da 1,4" caricato a tromba (80°x 60°).

2 ampli�catori in classe D (750 W + 150 W).

[D]

[C]

[G]

[A]

[B]

[H]

[E]

[F]

❯❯❯ Vedere pagina 13.

[12] [3]

[2]

[9]

[11]

[10]

[4]

[5]

[6]

[7]

[8]

[1]

[13] [14]

CURA EMANUTENZIONEDEL PRODOTTO

•Posizionare la cassa lontano da fonti di calore (caloriferi o qualsiasi altro

•Non porre sulla cassa sorgenti di �amme nude, quali candele accese.

•Evitare di esporre la cassa alla radiazione solare diretta, ad eccessive

•Evitarel’usoed ildepositodell’apparecchioinambientipolverosi o umidi:

•Evitarel’usodell’apparecchiovicinoafontidiinterferenzeelettromagnetiche

•

•Proteggerel’apparecchiodalrovesciamentoaccidentalediliquidiosostanze

•

•Per rimuovere la polvere usare un pennello o un sof�o d’aria,non usare

•Avere cura dei cavi di collegamento, avvolgerli evitando nodi e torsioni.

•Non forzare i connettori ed i comandi.

•Accertarsi che l’interruttore di rete sia in posizione ’0’(spento) prima di

•All’interno dell’apparecchio possono essere presenti potenziali elettrici

COLLEGAMENTO ALLA RETE

•

•Accertarsi che latensionedi alimentazionecorrispondaaquellaindicata

•Collegare il cavo di alimentazione ad una presa di corrente dotata

•

COLLEGAMENTO AL MIXER

•Utilizzare sempre solo cavi SCHERMATI (cavi di segnale) di adeguata

•Prima di effettuare i collegamenti tra casse attive e mixer accertarsi

•SeilmixerhauscitebilanciateXLR:utilizzarenormaliconnettoriXLRbilanciati.

•

•Seil mixerhausciteJACKbilanciate(Jackstereo): èpossibileutilizzarecavi

•Se il mixer ha uscite JACK sbilanciate (Jack mono): èpossibile utilizzare

❯❯❯ Vedere pagina 13.

COLLEGAMENTO IN PARALLELO DI PIÙSISTEMI

•Utilizzaresemprecavi SCHERMATIdiadeguatasezioneedi buonaqualità.

❯❯❯ Vedere pagina 14.

SENSIBILITÀECLIPPING. COMEEVITAREIL CLIPPING

Come evitare il clipping

In order to protect your own and others’safety and to avoid invalidation

of the warranty of this product, please read this section carefully

before operating this product.

TO AVOID THERISK OFFIREAND/ORELECTRICSHOCK:

•Never expose thisproduct to rain or moisture, never useit in proximity of water or on

•

This product does not contain user serviceable parts.

To prevent �re and/or electrical shock, never disassemble it or

remove the rear panel. For maintenance and servicing alwaysrefer to the

of�cial Elettronica Montarbo srl Distributor in your Country or

to quali�ed personnel speci�cally authorised by the Distributor.

•

•To avoid shocks, kicks, or whatever action, always reserve a protected area with no

•This product can generate veryhigh acoustic pressureswhich are dangerousfor the

[!] Never expose children to high sound sources.

INDEX

Appendix

PACKAGECONTENTS

◗

◗CE

Construction and components conform to the highest

professional standards for maximum reliability.

Fire10A

10" woofer with ferrite magnet.

1.4”compression driver loaded by a 80°x 60°horn.

2 class D ampli�ers (750 W + 150 W).

[D]

[C]

[G]

[A]

[B]

[H]

[E]

[F]

❯❯❯ See page 13.

[12] [3]

[2]

[9]

[10]

[4]

[5]

[6]

[7]

[8]

[1]

[13] [14]

[11]

•If themixer hasJACKbalancedoutputs(stereojacks):it ispossibletouse

•If the mixer has JACK unbalanced outputs (mono jacks): use suitable

❯❯❯ See page 13.

PARALLEL CONNECTION OFTWO ORMORESYSTEMS:

•Alwaysmakesuretouseonlyheavygauge,highqualitySHIELDEDcables.

❯❯❯ See page 14.

INPUT SENSITIVITY AND CLIPPING.

How to avoid clipping

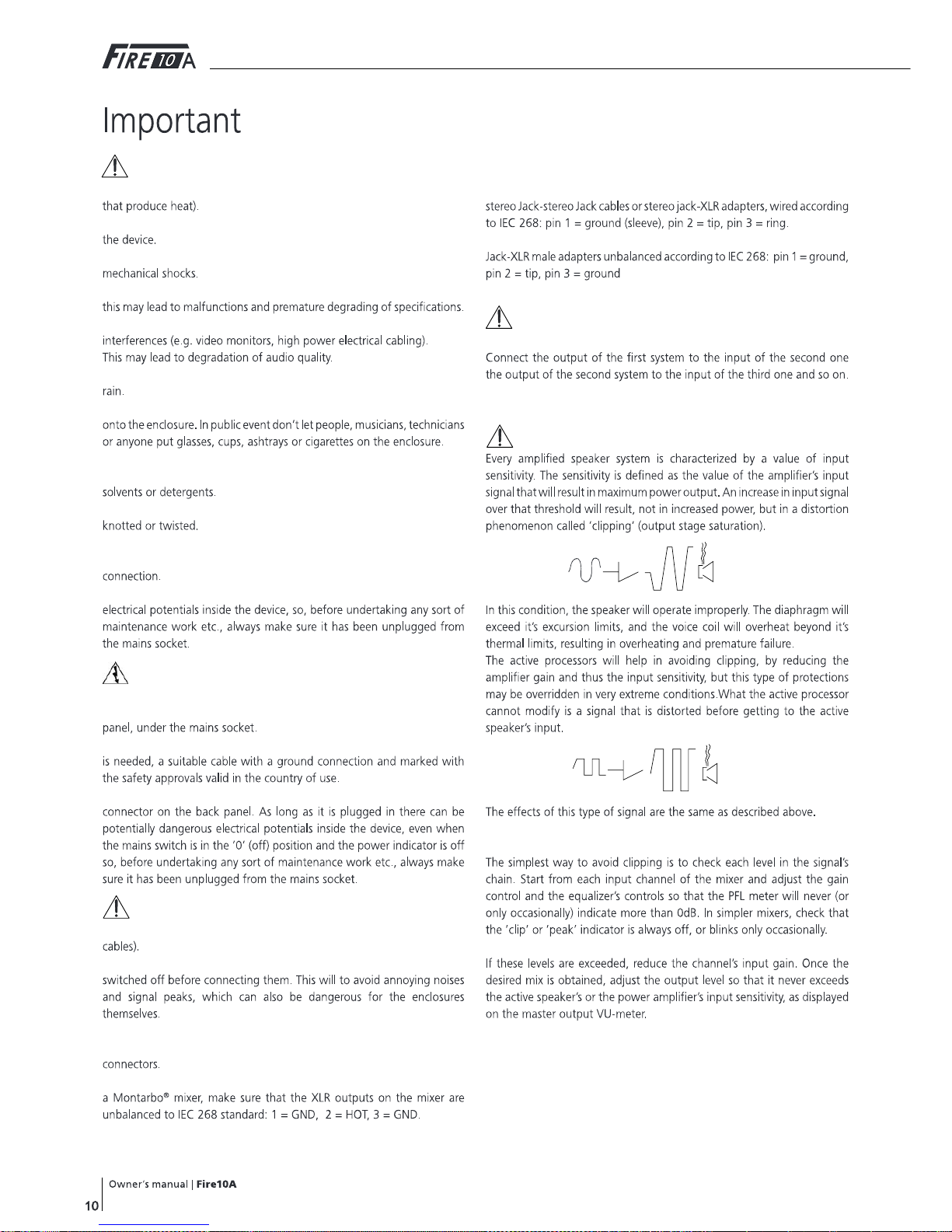

PRODUCT CAREAND MAINTENANCE

•Never expose the enclosure to heat sources(heatersor other products

•Never place burning candlesor other sourcesof open �ame on top of

•Never expose the enclosure to direct sunlight, excessive vibrations or

•Avoid operating and storing the enclosure in damp or dusty places:

•Avoid using the enclosure close to strong sources of electromagnetic

•When setting up the system up outdoors, be sure to protect it against

•Careshould betaken so that objectsdo not fall and liquid isnot spilled

•Always leave the protective grid mounted on the enclosure.

•Useasoft brush or ajet of air toclean theenclosure. Donot usealcohol,

•Takecareofyourconnectorcables.Makesurethat theyarenotdamaged,

•Do not forceconnectorsand controls.

•Make sure the mains power switch is OFF (’0’) before starting any

•As long as it is plugged in there can be potentially dangerous

POWERSUPPLY CONNECTION

•Make sure the mainspower switch is OFF(’0’).

•Check that mainsvoltage corresponds to the voltage indicated on the

•Use only the factory supplied mainscable or, if a different plug style

•Leave enough room to get to the mains power socket and the mains

CONNECTION TO THEMIXER:

•Always use only heavy gauge, high quality SHIELDED cables (signal

•Always make sure that the mixer and the powered enclosures are

•Alwaysmake sure that the ’Line/mic’switch isup.

•If the mixer has XLR balanced outputs: use standard balanced XLR

•If the mixer has XLR unbalanced outputs: in this case, unless using
