Montpellier MIFF5051F Bedienungsanleitung

Integrated 50/50 Fridge Freezer

MIFF5051F - Frost Free

Please read these instructions carefully before attempting to install or use this appliance.

We recommend that you keep these instructions in a safe place for future reference.

Installation and Operating Instructions

THE PERFECT BALANCE OF FUNCTION AND STYLE

LAUNDRY - DISHWASHING - COOKING - COOLING

Thank you for choosing this Montpellier Integrated Fridge Freezer.

Our refrigeration products have been designed to provide you with the best combination of style, reliability and

performance to give you years of trouble-free use.

You may be familiar with a similar product, but please take time to read these instructions carefully before installing

or using your Fridge Freezer to ensure you get the most from your purchase.

We recommend that you keep this manual in a safe place for future reference.

Your Integrated Fridge Freezer is covered by a comprehensive five year Parts

& Labour Guarantee. In the unlikely event that you experience a problem with

your Fridge, you can rest assured that you are fully protected against the

cost of repairs for the first 5 Years. Please note that any claim must be

accompanied by the model reference number, serial number and proof of

purchase.

To activate your guarantee, you will need your product serial number. This can

be found on the rear of the machine.

There are two ways to register your Guarantee:

•Online: Visit the Support page on our website and complete the online Product

Registration form. www.montpellier-appliances.com

•By Post: Simply detach and ll in the form provided, attach a stamp and send

it in the post. Don’t forget to include your e-mail address so that we can send

conrmation through to you.

Welcome

Note: We are unable to take registrations over the phone.

ACROSS INTEGRATED COOLING

YEAR

GUARANTEE

PA R T S & L A B O U R

www.montpellier-appliances.com

Built in Frost Free

Fridge Freezer

PERFORMANCE

Energy ef

Energy consumption - Kwh/year

Net storage - vol fresh food ltrs (cu.ft.)

Total net vol - ltrs (cu.ft.)

Frozen food compartment rating

Conservation time from failure

Freezing capacity fresh food - kg (lb) / 24 hrs.

Climate class

Operating noise level dB(A)

Net storage - vol frozen food ltrs (cu.ft.)

A+

163 (5.8)

254 (9.0)

13 h.

4.25 (9.4)

SN-ST

4 STAR

91 (3.2)

298

MIFF5051F

WARNING !

IMPORTANT !

DO NOT connect your appliance to the electricity supply until all packing and transit protectors

have been removed.

•Leave to stand for at least 4 hours before switching on to allow compressor oil to settle if transported

horizontally. r, disable the lock/latch,

ensure that it is left in a safe condition to prevent the entrapment of young children.

•This fridge/freezer must only be used for its intended purpose i.e the storing and freezing of edible

foodstuff.

in transpor

ignition source and immediately ventilate the room where the appliance is situated.

•We suggest you contact your local authority for disposal information and facilities available.

•We do not recommend use of this appliance in an unheated, cold room.

(E.g.: garage, conservatory, annex, shed, out-house etc.) See Installation Instructions on page 5

for further information.

• To obtain the best possible performance and trouble free operation from your appliance it is very

important to carefully read these instructions.

•Ensure that the plug remains readily accessible. Do not use multiple adapter bar.

•Failure to observe these instructions may invalidate your right to free service during the guarantee

period.

• Route electrical supply cord to allow easy connection and disconnection after installation.

• We recommend a separate switch be employed to ensure easy switch on / off.

WARNING- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of

obstruction.

WARNING- Do not use mechanical devices or other means to accelerate the defrosting process, other

than those recommended by the manufacturer.

WARNING- Do not damage the refrigerant circuit.

WARNING- Do not use electrical appliances inside the food storage compartments of the appliance,

unless they are of the type recommended by the manufacturer.

• We suggest you keep these instructions in a safeplace for easy reference.

•This appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they

do not play with the appliance.

MONTPELLIER

is an ongoing commitment. This appliance which is among the latest range introduced is particularly

environment friendly. Your appliance contains non CFC / HFC natural substances in the cooling

CONTENTS PAGE

SAFETY FIRST / ELECTRICAL REQUIREMENTS

TRANSPORTATION INSTRUCTIONS

IMPORTANT INSTALLATION INSTRUCTIONS

GETTING TO KNOW YOUR FRIDGE / FREEZER

SUGGESTED ARRANGEMENT OF FOOD IN THE FRIDGE / FREEZER

TEMPERATURE CONTROL AND ADJUSTMENT

STARTING

STORING FROZEN FOOD

FREEZING FRESH FOOD

MAKING ICE CUBES

DEFROSTING

CLEANING AND CARE

REPLACING THE INTERIOR LIGHT BULB

DO'S AND DON'TS

ENERGY SAVING TIPS

PROBLEM SOLVING

INSTALLATION INSTRUCTIONS DETAILED STEP BY STEP

REVERSING THE DOORS

INSTALLATION OF HIGH LEVELLING FOOT

15-21

22-23

24-26

POINTS OF CONTACT & GUARANTEE 27

cut of ff as a plug with

(See diagram).

1. Connect the green-yellow or green (Earth)

wire to the terminal in the plug marked “E”

green and yellow or green.

2. Connect the blue (Neutral) wire

to the terminal in the plug

marked 'N' or coloured black.

3. Connect the brown (Live) wire to

the terminal in the plug marked 'L'

or coloured red.

With alter

in the main fuse box.

or with the symbol or coloured

bared cord could cause a shock hazard if inserted into a socket elsewhere in the house.

The moulded plug on this appliance incorporates a 13 A fuse. Should the fuse

need to be replaced an ASTABEAB approved BS 1362 fuse of the same rating must be used.

r. In the event of losing the fuse cover the plug must not

cover must be the same colour as that visible on the pin face of the plug. Fuse covers are

available from any good electrical store.

IMPORTANT! FITTING A DIFFERENT PLUG

As the colours of the wires in the mains lead

of this appliance may not correspond with

the coloured markings identifying the

terminals in your plug proceed as follows:

FITTED WITH

BS 1362 13A FUSE ALWAYS

FIT BS 1362 REPLACEMENT

CARTRIDGE FUSE

GREEN &

YELLOW

GREEN

BLUE

BLACK

BROWN

RED

22mm.

6mm.

6mm. 32mm.

12mm.

FUSE

CORD GRIP

ELECTRICAL REQUIREMENTS

Before you insert the plug into the wall socket make sure that the voltage and the

frequency shown in the rating plate inside the appliance corresponds to your

electricity supply.

Rating label is on the left hand side of fridge inner liner.

We recommend that this appliance be connected to the mains supply via a suitable

switched and fused socket. The appliance must be positioned so that the plug is accessible.

WARNING: When positioning the appliance ensure the supply cord is not trapped

or damaged.

Should the mains lead of the appliance become damaged or should it need

replacing at any time, it must be replaced by a special purpose made mains lead

which can only be obtained from a MONTPELLIER Authorised Service Agent.

WARNING: Do not locate extension sockets or charging transformers/power supplies

or Lithium-Iron battery operated products adjacent to the compressor as they

could overheat.

WARNING! THIS APPLIANCE MUST BE EARTHED

TRANSPORTATION INSTRUCTIONS

1. The appliance should be transported only in a vertical upright position. The

packing as supplied must be intact during transportation.

2. If during the course of transport the appliance has to be transported

horizontally, it must only be laid on its left hand side when standing in the

front of the appliance. After bringing it to upright position,it must not be

operated for at least 4hours to allow the system to settle.

3. Failure to comply with the above instructions could result in damage occuring

to the appliance. The manufacturer will not be held responsible if these

instructions are disregarded.

4. The appliance must be protected against rain, moisture and other

kitchen furniture, related parts and doors, pipes, wall coverings etc. Do not

move the appliance by pulling by the door.

Empty any water in the drain tray before moving. See section‘Defrosting’and

‘Care & cleaning’forfurtherinformation.

the plastic evaporating pan on the top of the compressor, to avoid defrosted

IMPORTANT: Care must be taken while cleaning / carrying the appliance to

avoid touching the bottom of the condenser metal wires at the back of the

Do not attempt to sit or stand on top of your appliance as it is not designed for

such use. You could injure yourself or damage the appliance.

"IMPORTANT: Make sure that mains cable is not caught under the appliance

during and after carrying / moving the appliance, to avoid the mains cable

becoming cut or damaged."

Do not allow children to play with the appliance or tamper with the controls.

MONTPELLIER declines to accept any liability should the instructions not be

followed.

From Cookers 50 mm (2")

From Radiators 300 mm (12")

From Freezers 25 mm (1")

A special receptacle is supplied to store the

mains plug during transit. The receptacle is

fixed at the back of the

cabinet, on the side of the compressor.

(See diagram) Gently remove the plug

from the receptacle. Never pull the

mains cord, you may damage the

appliance. In the case of transportation,

ensure you locate the plug in the receptacle

provided to avoid transit damage.

5. Refer to cleaning and care section to prepare your appliance for use.

IMPORTANT

INSTALLATION INSTRUCTIONS

1. The space in the room where the appliance is installed must not be smaller than

10 cubic metres.

2. See pages 13 to 21 for detailed Installation Instructions including reversing door

opening direction.

3. This appliance has been designed to operate in ambient temperatures up to 38

degrees C (100 degrees F) and is equipped with Freezer Guard technology which

ensures that even if the ambient temperature falls to -15 °C, frozen food in the

freezer does not thaw thanks to this. So you may then install your appliance in a

garage or an unheated room without having to worry about frozen food in the

freezer being spoilt. However at low ambient temperatures mentioned above, fridge

contents are likely to freeze, so check and consume food in the fridge accordingly.

When the ambient temperature returns to normal, you may change the knob

setting to suit your needs.

If the ambient temperature is below 0°C, the food in the fridge compartment will

freeze. So, we recommend you don’t use the fridge compartment in such low

ambient conditions. You can continue using the freezer compartment as usual.

4. Do not place the appliance near cookers, radiators or in direct sunlight as this will

cause your appliance to work harder. If installed next to a source of heat

or freezer, maintain the following minimum side clearances:

GETTING TO KNOW YOUR COMBI FROST FREE FRIDGE/FREEZER

DEFROST WATER

COLLECTION

CHANNEL

EGG TRAY

FAST FREEZE

COMPARTMENT

FROZEN FOOD

STORAGE DRAWERS

CABINET

SHELVES

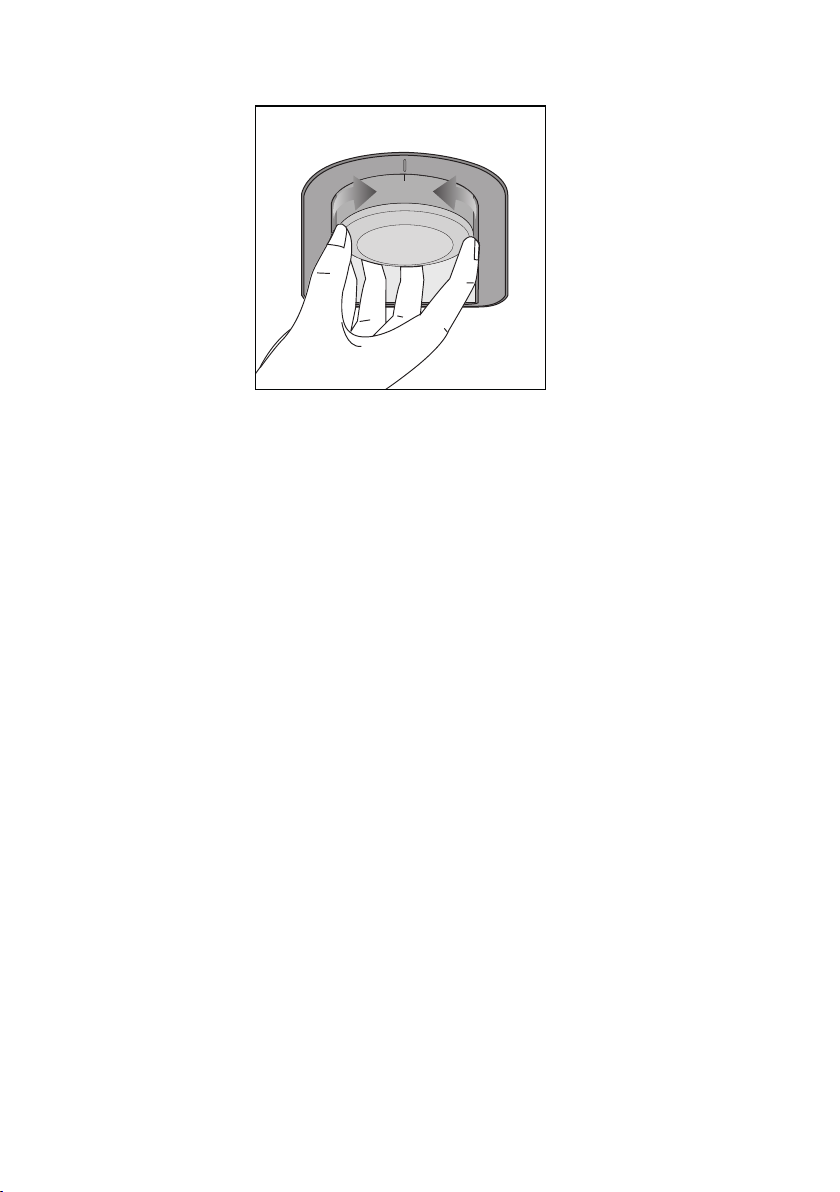

TEMPERATURE SETTING

KNOB

INTERIOR LIGHT &

AUDIBLE ALARM

BOTTLE

SHELF

DOOR

SHELF

DOOR

SHELF

SALAD

CRISPER

FREEZER FAN

CFigures in this user manual are schematicand may not match the

product exactly. If the subject parts are not included in the product

youhave purchased, then those parts are valid for other models.

SUGGESTED ARRANGEMENT OF FOOD IN THE FRIDGE/FREEZER

Arrangement Examples (See diagram)

The following guidelines and recommendations are suggested to obtain the best

results and storage hygiene.

1. The fridge compartment is for the short term storage of fresh food and drinks.

2. The freezer compartment is rated and suitable for the freezing and

storage of pre frozen food. The recommendation for storage as

stated on the food packaging should be observed at all times.

3. Cooked dishes must be stored in airtight covered containers.

4. Fresh wrapped produce can be placed on the shelf. Fresh fruit and vegetables

should be cleaned and stored in the crisper bins.

5. Bottles can be placed in the door section.

6. To store raw meat, wrap in polythene bags and place on the lowest shelf. Do not

allow to come into contact with cooked food to avoid contamination. For safety, only

store raw meat for two to three days.

7. Keep the food packed, wrapped or covered. Allow hot food and beverages to cool

before placing them in the fridge. Do not store explosive substances. High proof

alcohol must be stored upright in sealed containers. Left over canned food should

not be stored in the can.

should not be consumed too cold.

9. Some fruit and vegetables suffer damage if kept at temperatures near 0°C.

Therefore wrap pineapples, melons, cucumbers, tomatoes and similar produce

in polythene bags.

10. Place chilled cooked food and similar food near the rear of the fridge inner

liner where the cold wall is located.

12. Do not leave frozen food at room temperature to thaw; the best way to defrost

food is to put it in the fridge to thaw slowly. Make sure you avoid defrosting

food or food juices drip onto other food.

13. For hygiene reasons, always wrap food using a suitable packaging material

before storing in your appliance to avoid contact with the appliance surface.

1. Baked, chilled cooked food,

dairy products, cans.

2. Meat, sausages, cold cuts.

4. Fruit, vegetables, salads.

Frozen food and freezing of fresh food.

5. Frozen food.

6. Butter, cheese.

7. Small bottles, cans, tubes.

8. Eggs.

9. Tall, large bottles, beverages.

TEMPERATURE CONTROL AND ADJUSTMENT

Operating temperatures are controlled by the thermostat knob (see diagram)

located on the ceiling of fridge compartment. Settings may be made from 1 to 5, 5

being the coldest position.

When the appliance is switched on for the first time, the thermostat should be

adjusted so that after 24 hours, the average fridge temperature is no higher than

+5°C (+41°F). We recommend you set the thermostat half way between the 1 and 5

setting and monitor to obtain the desired temperature i. e. towards 5 you will

obtain a colder fridge temperature and vice versa. Some sections of the fridge may

be cooler or warmer ( such as the salad crisper and the top part of the cabinet )

which is quite normal.

The normal storage temperature of the freezer should be -18°C (0°F). Lower

temperatures may be obtained by adjusting thermostat knob towards 5 position.

We recommend that you check the temperature with an accurate thermometer to

ensure that the storage compartments are kept to the desired temperature.

Remember you must take your reading very quickly since the thermometer

temperature will rise very rapidly after you remove it from the freezer.

Please remember each time the door is opened cold air escapes and the internal

temperature rises. Therefore never leave the door open and ensure it is closed

immediately after food is put in or removed.

In case of a temporary ice build up in the fridge compartment, reduce the

thermostat setting to 1, monitoring at the same time that the fridge

temperature is maximum +5 degrees C [41 degrees F]. Once the ice build up

disappears and the appliance starts auto defrosting again as normal, then

you may increase the thermostat setting, if required.

If the ambient (room or garage) temperature is between 0 °C and -15 °C, we

recommend you adjust the knob to setting 4 to reach -18 C in the freezer

compartment. Lower temperatures may be obtained by adjusting setting knob

towards max position.

Inhaltsverzeichnis

Andere montpellier Kühlschrank Handbücher

montpellier

montpellier MRF54W Bedienungsanleitung

montpellier

montpellier MAB341K Bedienungsanleitung

montpellier

montpellier M605W Bedienungsanleitung

montpellier

montpellier MFF152W Bedienungsanleitung

montpellier

montpellier MITL325 Bedienungsanleitung

montpellier

montpellier MON-MRF48W Installationsanleitung

montpellier

montpellier MAB345C Bedienungsanleitung

montpellier

montpellier MAB2030 Bedienungsanleitung

montpellier

montpellier MITR125 Bedienungsanleitung

montpellier

montpellier MITR122 Bedienungsanleitung

montpellier

montpellier MFF185DW Bedienungsanleitung

montpellier

montpellier MS310-2W Bedienungsanleitung

montpellier

montpellier MAB551C Bedienungsanleitung

montpellier

montpellier MRF54W/BK Bedienungsanleitung

montpellier

montpellier MRF48W Bedienungsanleitung

montpellier

montpellier MIFF5151F Bedienungsanleitung

montpellier

montpellier MFF183DW Bedienungsanleitung

montpellier

montpellier MICL88 Bedienungsanleitung

montpellier

montpellier MXD83X Bedienungsanleitung

montpellier

montpellier MS165W Bedienungsanleitung

montpellier

montpellier MS310-2 Bedienungsanleitung

montpellier

montpellier MLA48W-1 Bedienungsanleitung

montpellier

montpellier MNF1860X Bedienungsanleitung

montpellier

montpellier MLM308BG Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung

montpellier MIFF5051F Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken
