Morel Solan Series Bedienungsanleitung

3. PHASE CONTROL

The phase control allows phase adjusting of the subwoofer to match that of the other speakers in your home

theater system. With the system turned on, turn the phase control ﬁrst to 0° then to 180°, and leave it in the

position at which the bass level in your room sounds strongest and deepest.

Solan MSP 10 subwoofer speaker connections

1. WIRELESS INPUT

For conecting subwoofer in wireless input, please see Morel's

Sub Wireless receiver manual (purchased separately).

4. FREQUNECY CONTROL

The crossover control determines the range of frequencies your subwoofer will reproduce. When turned to 60Hz,

the subwoofer will only issue the lowest bass frequencies. As you turn the knob towards 140Hz, the subwoofer

will reproduce more high frequency notes (higher range). When the crossover control is adjusted correctly, the

subwoofer, together with the other speakers in your system, reproduces the entire range of frequency.

RCA INPUT JACKS.

The RCA input terminals of the subwoofer ampliﬁer

(line in) connects via RCA cables the unit to your

ampliﬁer/receiver subwoofer out if there is only mono output

from the amplifer, then use the R input for mono.

6. LEVEL CONTROL

The level control adjusts the bass level (volume) of your subwoofer.

Adjust your required level of bass relative to the sound reproduced by the other speakers in the system. The

bass level reproduced by the subwoofer will change as you modify the volume control setting on your

ampliﬁer/receiver, maintaining the relative level set by this control.

5 0

L I N E I N LEVEL

W I R E L E S S I N

H z L F E

FREQUENCY

200

H z

PHASE

180

120-240V~ 50/60Hz 1.6A

POWER

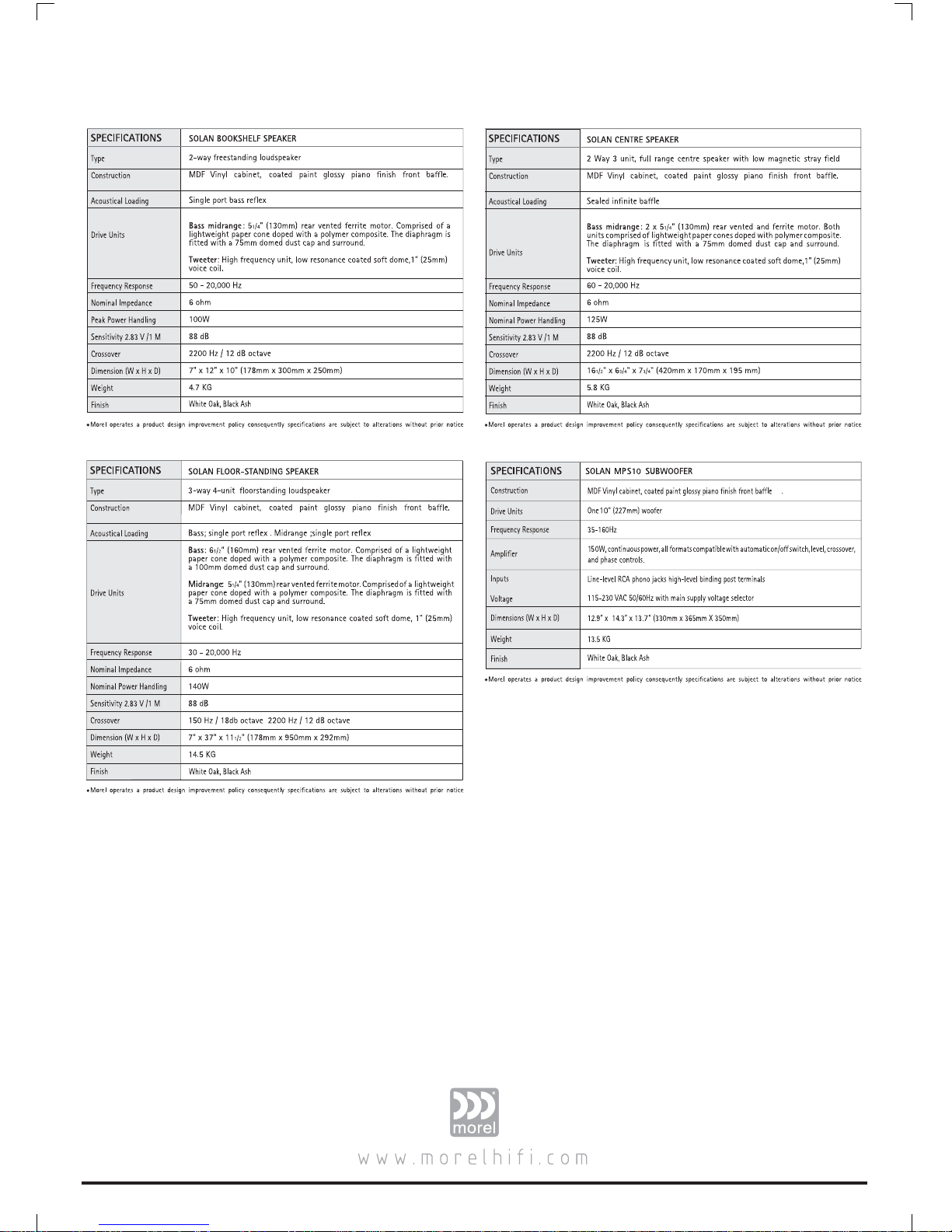

SOLAN Speakers Speciﬁcations
