Motorola I706 Bedienungsanleitung

1Congratulations

Congratulations

MOTOROLA i706

The MOTOROLA i706 brings the convenience of

push-to-talk calls together with a sleek slider design in

an affordable package.

•PrivateCalls.Stay in touch with your family, friends,

and colleagues with the simple touch of a button.

• FM Radio. Listen to your favorite stations wherever

you go.

•MyPhone,MyWay.It’s your phone—make it that

way. Customize your home screen with personal

pictures, and change wallpapers and ringtones.

Caution: Before assembling, charging or using your

phone for the first time, please read the important

legal and safety information packaged with your

phone.

More information

On your computer—Go to

www.motorola.com/support/.

2Your phone

Yo u r p h o n e

the important keys & connectors

Navigation

Key with

OK Key r

Press center

key to select

Left Soft Key K

Performfunctions

in lower left display.

KRight Soft Key

Performfunctions

in lower right display.

1.3 MP Camera

Behind slider

display.

Talk Key -

Make &

answer calls.

.End/Power Key

Turn phone on &

off, end calls,

exit menus.

)Speaker Key

Turn speaker

on & off.

eCameraKey

Take photos.

Menu Key /

Fromhome screen

open main menu

screen.

10:05pm 04/23

Ready

Blutooth LED

Message LED

Note: Yo u r p h o n e m i g h t l o o k a l i tt l e d i ffe r e n t .

Volume Keys

Battery Latch

2.5mm

Audio Jack &

Micro USB

Connector

PTT Key

10:05pm 04/23

Ready

3Contents

Contents

Menu map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Push-to-Talk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

SDG calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

MOTOtalk™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Talkgroups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Text e n tr y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Media center. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

FM radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Bluetooth™ wireless . . . . . . . . . . . . . . . . . . . . . . . 42

Too l s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . 47

Menu map

main menu

Call Alert

Bluetooth®

•HandsFree

•LinktoDevices

•DeviceHistory

•Setup

•FindMe

Settings

•(seesettings

menu)

Ring Tones

• Vibrate All: On/Off

•Ringer

•Vibrate

•Silent

Java Apps

•JavaSystem

•FMRadio

GPS

•Position

•Privacy

•Interface

Media Center

Camera

Net

Datebook

My Info

•Myname

•Line1

•Line2

•PrivateID

•GroupID

•CarrierIP

•IP1Address

•IP2Address

VoiceRecord

•[NewVoiceRec]

Memo

Recent Calls

Shortcuts

• [Help]

•1)Shortcuts

•2)Cntcs[New

Contact]

• 3)Recent Calls

•4)Contacts

•5)Datebook

• 6)Messages

•7)VoiceRecord

•8)Net

•9)CallForward

Contacts

•[NewContact]

•[NewSDGList]

•[NewMsgGroup]

4Contents

main menu (con’t.)

Call Forward

Quick PTT

Profiles

•[NewProfile]

• Standard

•Car

•Meeting

•Office

• Outdoors

•Headset

•PRVTOnly

• CNTCS Only

•Surveillance

Call Timers

•LastCall

•PhoneReset

•PhoneLifetime

•Prvt/GrpReset

•Prvt/GrpLife

• Kbytes Reset

PT Manager

•QuickPTT

• Send Message

•SendPicture

•SendEvent

•SendMyInfo

•SendContact

• Configure

Messages

•[CreateMessage]

• Voice Mail

•Inbox

•Drafts

•Outbox

•FaxMail

•Netalert

•SentItems

Mototalk

•GoToMOTOtalk

•Setup

•Help

This is the standard main menu layout.

Your phone’s menu may be

different.

settings menu

• Display/Info

•Wallpaper

•TextSize

•Theme

•HomeIcons

• Backlight

•SlideClose

•Clock

•MenuView

•LargeDialing

• Language

• Phone Calls

•SetLine

• Any Key Ans

•AutoRedial

•CallWaiting

•AutoAns

•SlideActivation

•MinuteBeep

•CallDuration

•TTY

•HearingAid

• Notifications

• DTMF Dialing

•Prepend

•2-WayRadio

•TkgrpSilent

•TkgrpArea

•OneTouchPTT

•AlertType

•PTTQuickNotes

•On/OffPTT

•StoreRcvdInfo

•PTTBacklight

Personalize

•MenuOptions

•UpKey

•DownKey

•LeftKey

•RightKey

•CenterKey

•LeftSftkey

•RightSftkey

•PowerUp

• Volume

•Line1

•Line2

• Messages

• Earpiece

•Speaker

•Keypad

•JavaEarpiece

•JavaSpkr

• Data

5Let’s go

settings menu (con’t.)

•Security

•PhoneLock

•KeypadLock

•SIMPIN

•GPSPIN

• Change Passwds

Advanced

•AlertTimeout

•Headset/Spkr

• Connectivity

• Reset Defaults

•ReturntoHome

• Transmitters

•PhoneOnly

•BaudRate

Let’s go

let’s get you up and running

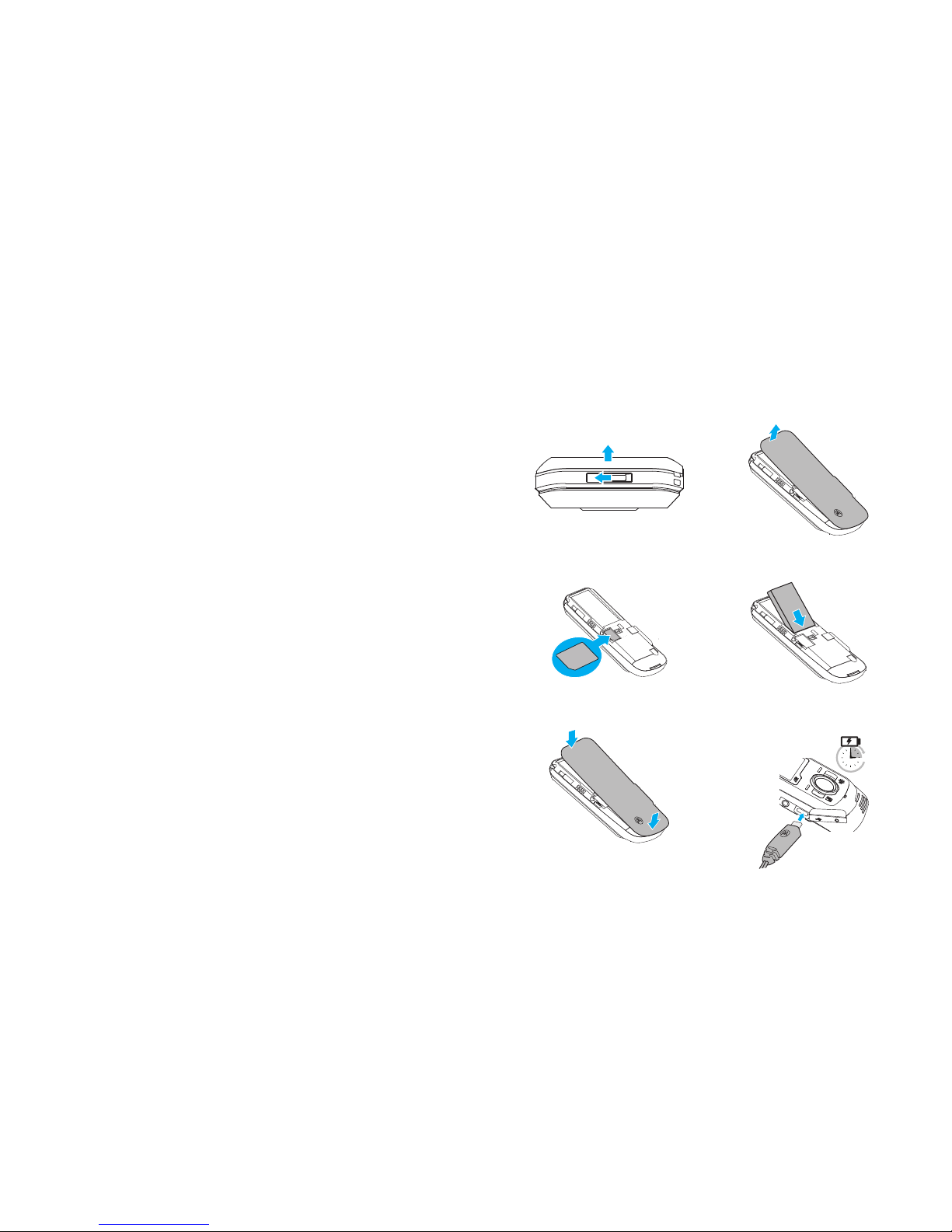

Assemble & charge

1Battery door latch 2Remove cover

3SIM in 4Battery in

5Cover on 6Charge up

6Let’s go

Caution: Please read “Battery Use & Safety” on

page 47.

Battery indicators

indicator

dBlue, three bars, 100% to 90% capacity.

eGreen, two bars, 65% capacity.

fYe l l o w, o n e b a r, 10 % c a p a c i t y.

gRed, flashing bar, 5% capacity

hCharging

Tu r n i t o n & o ff

To tu r n o n yo u r p h o ne , p r e s s a n d

hold End/Power . for a few

seconds or until the display turns

on. If prompted, enter your

four-digit unlock code.

Note: If you press End/Power .for more than four

seconds, the phone will turn on in Transmitters Off

mode.

To t u r n o ff y o ur p h o n e, p r e s s a n d h o l d E n d / Pow er .

for a few seconds.

Enable security

Yo u w i l l n e e d t o e n a b l e s e c u r i t y t h e f i r s t t i m e y o u

power on your phone or within 10 days of first

activation of your phone.

1Press Ok.

2Yo u a r e p r o m p t e d t o e n a b l e s e c u r i t y. P r e s s Yes and

follow the on-screen instructions.

3Press End/Power .to return to the home screen.

7Basics

Basics

About this guide

This guide shows how to locate a menu feature as

follows:

Find it: Menu /> TSettings > Phone Calls

This means that, from the home screen:

1Press the Menu key /to open the main menu.

2Press the navigation keys to scroll to the

TSettings menu option and press the center key

rto select it.

3Press the navigation keys to scroll to Phone Calls,

and press the center key rto select it.

Home screen

Yo u r p h o n e s h o w s t h e home screen when you are not

on a call or using the menu.

Left

Soft Key

Left

Soft Key

Label

Status

Indicators

Right

Soft Key

Right

Soft Key

Label

10:05pm 04/23

Ready

Note: You r h o m e s c r e e n m i g h t l o o k d i ffe r e n t f r o m t h e

one shown, depending on your service provider.

Soft key labels in the home screen show the current

soft key functions.

Indicators at the top of your phone’s display provide

important status information, such as incoming calls,

missed messages, and other conditions. Here are the

indicators you may see:

indicator

zSignal Strength—Vertical bars show the

strength of the network connection.

$ (Active Phone Line—Indicates whether

phone line one or two is active.

!Speaker On—Sound associated with PTT

calls, SDG calls, and Talkgroup calls are set

to come through the speaker.

"Speaker Off—Sound associated with PTT

calls, SDG calls, and Talkgroup calls are set

to come through the speaker.

,Ringer Off—Your phone is set not to ring.

/Vibrate All—Your phone is set to vibrate

for all incoming calls, messages, and

notifications.

8Basics

Adjust volume

Press the volume keys up or

down to:

•change the earpiece volume

during calls

•change the ringer volume from

the home screen

•turn off a call alert before answering the call

~No Service—Phone is in area with no

service coverage.

2New Message—Phone received a new

text message.

7Packet Data—Your phone is ready to

transfer packet data.

dBattery Level—Shows battery charge

level. The more bars, the greater the

charge.

cBluetooth On—Your phone’s Bluetooth

power is On.

3New Voicemail Message —Phone

received a new voicemail message.

indicator

Tip: Yo u c a n q u i ck l y s e t y o u r r i n g e r t o Vibrate All by

holding down the volume key while on the home

screen.

Navigation key

Press the navigation key up,

down, left, or right to scroll to

items in the display. When you

highlight the desired item,

press rto select it.

Transmitters

Consult airline staff about the use of the Transmitters

Off feature during a flight. Turn off your phone

whenever instructed to do so by airline staff.

Tr a n s m i tt e r s O ff t ur n s o ff y ou r p h o n e’s c a l l i n g a n d

Bluetooth features in situations where wireless phone

use is prohibited. You can use the phone’s other

non-calling features when the transmitters are turned

off.

Find it: Menu /> TSettings > Advanced >

Transmitters > Off

9Basics

Features for the hearing impaired

Use your phone with a hearing aid

Note: Yo u r p h o n e h a s a h e a r i n g a i d r a t i n g o f M _ .

For more information, see “Hearing Aid Compatibility

with Mobile Phones” on page 56.

For best results, use the optimization and phone

setting. They generally apply as well for users with

cochlear implants.

Optimize your phone position and orientation

While on a phone call slide your phone up and down,

then left and right until best microphone coupling is

obtained. You also may need to adjust your hearing aid

(HA) volume setting.

If your HA has a telecoil, activate its switch, then also

rotate the phone as illustrated to align the telecoils.

Note: Some automatically switched hearing aids may

need an auxiliary switching magnet.

If you are unsure whether your HA is telecoil equipped

or needs an auxiliary magnet, please refer to your HA

user guide or contact a hearing aid professional or

supplier.

Choose your hearing aid setting

Find it: Menu /> TSettings > Phone Calls >

Hearing Aid

The Microphone option optimizes your phone for

microphone coupling. The Telecoil option meets the

US federal requirements for telecoil coupling. The

factory default setting for this feature is Off.

10:05pm 04/23

Ready

Approximate telecoil location is within

6-13 mm of this location

Approximate telecoil location is just

above battery

Off - Shut off

M - Microphone

T - Telecoil

10 Calls

TTY

features

turn on TTY feature

Press Menu /> TSettings > Phone Calls > TTY

> Use TTY > On.

choose TTY mode

Press Menu /> TSettings > Phone Calls > TTY

> Type > TTY, VCO or HCO.

change the TTY baud rate

Press Menu /> TSettings > Phone Calls > TTY

> Baud > 45.45 or 50.00.

change TTY mode during a call

While in a TTY call, press Menu /> In Call Setup

> TTY > Type > TTY, VCO or HCO.

Calls

it’s good to talk

Make & answer calls

Enter a number, then press Talk -.

To a n s w e r a c a l l , p r e s s Ta l k -.

To e n d a c a l l , p r e s s E n d / Powe r ..

Any key answer

To a n s w e r p h on e c a l l s b y p r e s s in g a n y key o n t h e

keypad, press Menu /> TSettings > Phone Calls

> Any Key Ans > On.

Call waiting

To a c c e p t t h e s e c o n d c a l l a n d p u t t h e a c t i ve c a l l o n

hold, press Yes.

To a c c e p t t h e s e c o n d c a l l a n d e n d t h e a c t i v e c a l l , p r e s s

Talk -.

Three-way calls

To s t a r t a c o n fe r e n c e c a l l , c a l l t h e f i r s t n u m b e r. A ft e r

they answer, press Menu /> 3 Way. Enter the

second number. When the next number answers,

press Menu /> Join.

Note: Yo u c a n’t m a k e a n y o t h e r p h o n e c a l l s d u r i n g a

three-way call, even if one party hangs up.

Inhaltsverzeichnis

Andere Motorola Handy Handbücher

Motorola

Motorola edge 30 fusion Bedienungsanleitung

Motorola

Motorola V60 Bedienungsanleitung

Motorola

Motorola DTR410 - On-Site Digital Radio Bedienungsanleitung

Motorola

Motorola MOTO VE465 Bedienungsanleitung

Motorola

Motorola MILESTONE 3 XT861 Bedienungsanleitung

Motorola

Motorola Moto Z2 Play Bedienungsanleitung

Motorola

Motorola MOTO EM330 Kurzanleitung

Motorola

Motorola Moto Z Play Bedienungsanleitung

Motorola

Motorola MOTORAZR V3M Bedienungsanleitung

Motorola

Motorola Telus Mike i576 Technisches Datenblatt

Motorola

Motorola Timeport Phone Bedienungsanleitung

Motorola

Motorola moto g STYLUS Merkblatt

Motorola

Motorola i296 Bedienungsanleitung

Motorola

Motorola Maxx Bedienungsanleitung

Motorola

Motorola Moto G Montageanleitung

Motorola

Motorola I670 - Nextel - IDEN Phone Bedienungsanleitung

Motorola

Motorola Barrage V860 Bedienungsanleitung

Motorola

Motorola M800 Technisches Datenblatt

Motorola

Motorola MOTO W376g Bedienungsanleitung

Motorola

Motorola A760 Bedienungsanleitung

Motorola

Motorola Fire XT 530 Bedienungsanleitung

Motorola

Motorola moto G9 PLAY Bedienungsanleitung

Motorola

Motorola Hint QA30 Bedienungsanleitung

Motorola

Motorola Moto Z Play Bedienungsanleitung

Beliebte Handy Handbücher anderer Marken

Zte

Zte BLADE A520 Bedienungsanleitung

Nokia

Nokia Lumia 620 Bedienungsanleitung

Blackbe;rry

Blackbe;rry KEYone Bedienungsanleitung

Bea-fon

Bea-fon X5 Premium Bedienungsanleitung

Blackbe;rry

Blackbe;rry 8707 Series Bedienungsanleitung

Blackbe;rry

Blackbe;rry Storm Betriebsanleitung

LG LM-X420QN Bedienungsanleitung

LifeWatch

LifeWatch V Bedienungsanleitung

Bea-fon

Bea-fon SILVER LINE SL860 Bedienungsanleitung

IKI Mobile

IKI Mobile KF4.5i Bedienungsanleitung

Hitech

Hitech HT-850 Bedienungsanleitung

Yezz

Yezz Fashion F10 Bedienungsanleitung

Point Mobile

Point Mobile PM60 Bedienungsanleitung

Blackbe;rry

Blackbe;rry Q10 Bedienungsanleitung

Blackbe;rry

Blackbe;rry Bold 9900 Bedienungsanleitung

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Bedienungsanleitung

LG LM-K420EMW Bedienungsanleitung

ISAFE MOBILE

ISAFE MOBILE IS655.2 Bedienungsanleitung

Motorola i706 Bedienungsanleitung

Beliebte Handy Handbücher anderer Marken
