Motorola Moto e Betriebsanleitung

02/25/2015

Initial release.

04/24/2015

Updated Tools Required for Disassembly and Display Removal (With Display

Removal Fixture) sections with photos of current fixture.

05/21/2015

Added subheadings for Lens Removal Fixture Setup, Pre-Heat Method A,

Pre-Heat Method B, and Display Removal to Display Removal (With Display

Removal Fixture).

Revised Pre-Heat Method A steps to allow proper Hot Plate warm up time.

Added Pre-Heat Method B as an additional option for process time reduction.

Changed the Generic Lens Removal Fixture set temperature from 110 °C

(230 °F) to 100 °C (212°F).

Added instruction to hold the Styx Lens Removal Fixture down until the

Generic Lens Removal Fixture gauge reads 90 kPa.

Added note to Display Removal (Damaged Display Only) stating optional pre-

heat methods A and B can be used before removing a damaged Display

Lens.

Attached Generic Lens Removal Fixture user manual to end of manual.

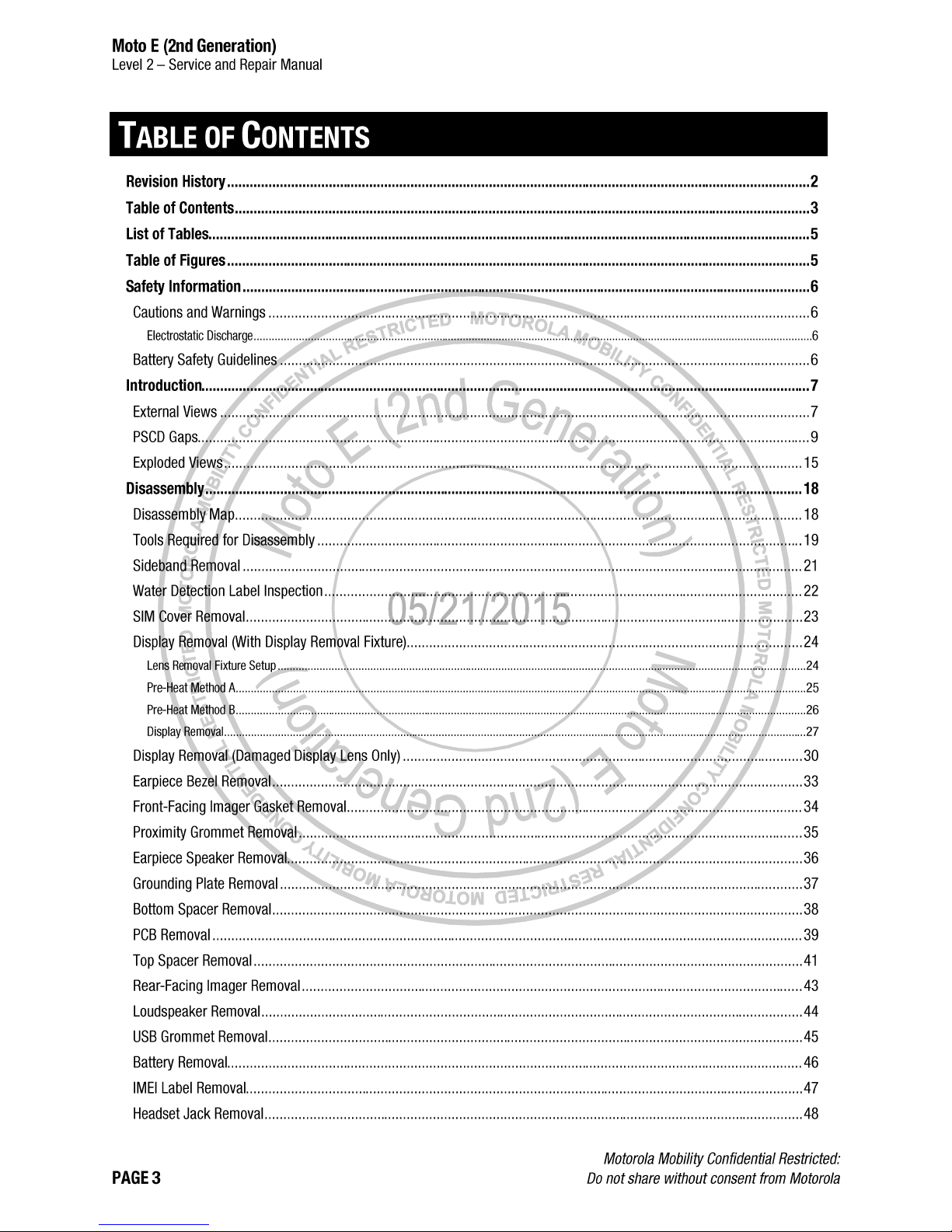

The phone components may be damaged by electrostatic discharge (ESD). Always use an ESD mat and ground strap

when working with internal components.

Handle Battery with care. Ensure Battery edges and surfaces are not dented or deformed. If the Battery Pack is dropped

to the floor, it may be internally damaged and must be scrapped.

Ensure all surfaces, fixtures, and phone components contacting the Battery are smooth and clean.

Ensure Battery and its insulation are not damaged (e.g. scratched, dented, punctured) prior to and throughout

assembly.

Prior to assembly, ensure Battery edges and surfaces are not dented or deformed, and that fixtures and parts that

will contact the Battery are free of foreign material.

Ensure screws and screwdrivers do not contact the Battery.

Failure to adhere to Safety Critical Note(s) may increase risk of rupture, burning, or failure to function safely when

used by the customer.

Earpiece

Front-Facing Imager

Main Display

Sideband

Housing

Rear-Facing Imager Deco Ring

Rear-Facing Imager

Motorola Logo

Power Key

Volume Key

Display Bezel

USB Port

Headset Jack

All dimensions are in millimeters (mm). The following gaps are considered maximum allowable without further approval

from a supervisor. Measure gaps at an angle perpendicular to the surface/area being measured. Feeler Gauges must

not be used at an angle as they will give false-positive results.
