Welcome

The Motorola Wireless Headset HS810 with Bluetooth

technology defies

traditional expectations. This third generation product by Motorola makes

connectivity invisible and reliable. It is astonishingly advanced, yet intuitive

and simple to use. It is decidedly smaller than its predecessors, yet more eye-

catching than ever. And although you are no longer connected by wires, you

are intrinsically connected to a growing group of leading-edge technology

pioneers who are embracing the global Bluetooth movement.

Innovation is a recognized part of Motorola’s 75-year heritage. A company

that understands the way the world is moving...and then jumps in to

intelligently shape its direction. Motorola consumer products with Bluetooth

wireless technology are challenging the expected and defying the traditional

rules. Connectivity is bringing us together–need it be hampered by wires?

Technology is making life more integrated–must it be complicated?

Motorola is actively creating Bluetooth solutions for work, for play, for home,

for life–everywhere around the globe. Welcome to the movement. And thank

you for choosing the Motorola Wireless Headset HS810!

6809461A37-O

Wireless Headset

HS810

Casque sans fil

Guide de l’utilisateur

Auricular inalámbrico

Guía del usuario

User Guide

Contents

Safety and General Information

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Introduction

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

What Is Bluetooth Wireless Technology? . . . . . . . . . . . . . . . . . . . . . . . . . .6

How Can I Use My Wireless Headset? . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Headset Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Using Your Headset

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Charging Your Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Wearing the Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Pairing Your Headset and Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Controlling Headset Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Placing and Receiving Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Using Your Headset Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Safety and General Information

IMPORTANT INFORMATION ON SAFE AND EFFICIENT

OPERATION. READ THIS INFORMATION BEFORE USING YOUR

DEVICE.

Users are not permitted to make changes or modify the device in any way.

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment. See 47

CFR Sec. 15.21.

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation. See 47 CFR Sec. 15.19(3).

Electromagnetic Interference/Compatibility

Note:

Nearly every electronic device is susceptible to electromagnetic

interference (EMI) if inadequately shielded, designed, or otherwise configured

for electromagnetic compatibility.

Facilities

To avoid electromagnetic interference and/or compatibility conflicts, turn off

your device in any facility where posted notices instruct you to do so.

Hospitals or health care facilities may be using equipment that is sensitive to

external RF energy.

Safety and General Information

Aircraft

When instructed to do so, turn off your device when on board an aircraft. Any

use of a device must be in accordance with applicable regulations per airline

crew instructions.

Medical Devices

Hearing Aids

Some devices may interfere with some hearing aids. In the event of such

interference, you may want to consult with your hearing aid manufacturer to

discuss alternatives.

Other Medical Devices

If you use any other personal medical device, consult the manufacturer of

your device to determine if it is adequately shielded from RF energy. Your

physician may be able to assist you in obtaining this information.

Industry Canada Notice to Users

Operation is subject to the following two conditions: (1) This device may not

cause interference and (2) This device must accept any interference,

including interference that may cause undesired operation of the device Ref

IC RSS 210 Sec. 5.11. The term “IC:” before the certification/registration

Safety and General Information

number only signifies that registration was performed based on a Declaration

of Conformity indicating that Industry Canada technical specifications were

met. It does not imply that Industry Canada approved the equipment. See Ref

IC Self-Marking 6(f) and RSP-100 Sec. 4.

FCC Notice to Users

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment to an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Introduction

What Is Bluetooth Wireless Technology?

Bluetooth wireless technology propels you into a new dimension in

connectivity.

Bluetooth devices communicate without wires, using built-in radio

transceivers that operate on a globally available radio frequency to ensure

worldwide compatibility. Your Bluetooth Wireless Headset can communicate

with other Bluetooth devices within a range of approximately 10 meters (33

feet).

How Can I Use My Wireless Headset?

Your Wireless Headset equipped with Bluetooth technology lets you connect

with other similarly equipped devices such as a

Motorola V600 with

integrated Bluetooth technology.

• Use your phone hands free.

• Handle incoming and outgoing calls with the headset multifunction

control button (MFB).

• Use voice activation to make calls.

Note:

The HS810 supports both Headset and Hands Free Bluetooth

Profiles for increased functionality and compatibility with more products.

Consult your User’s Guide for more information.

Introduction

Headset Features

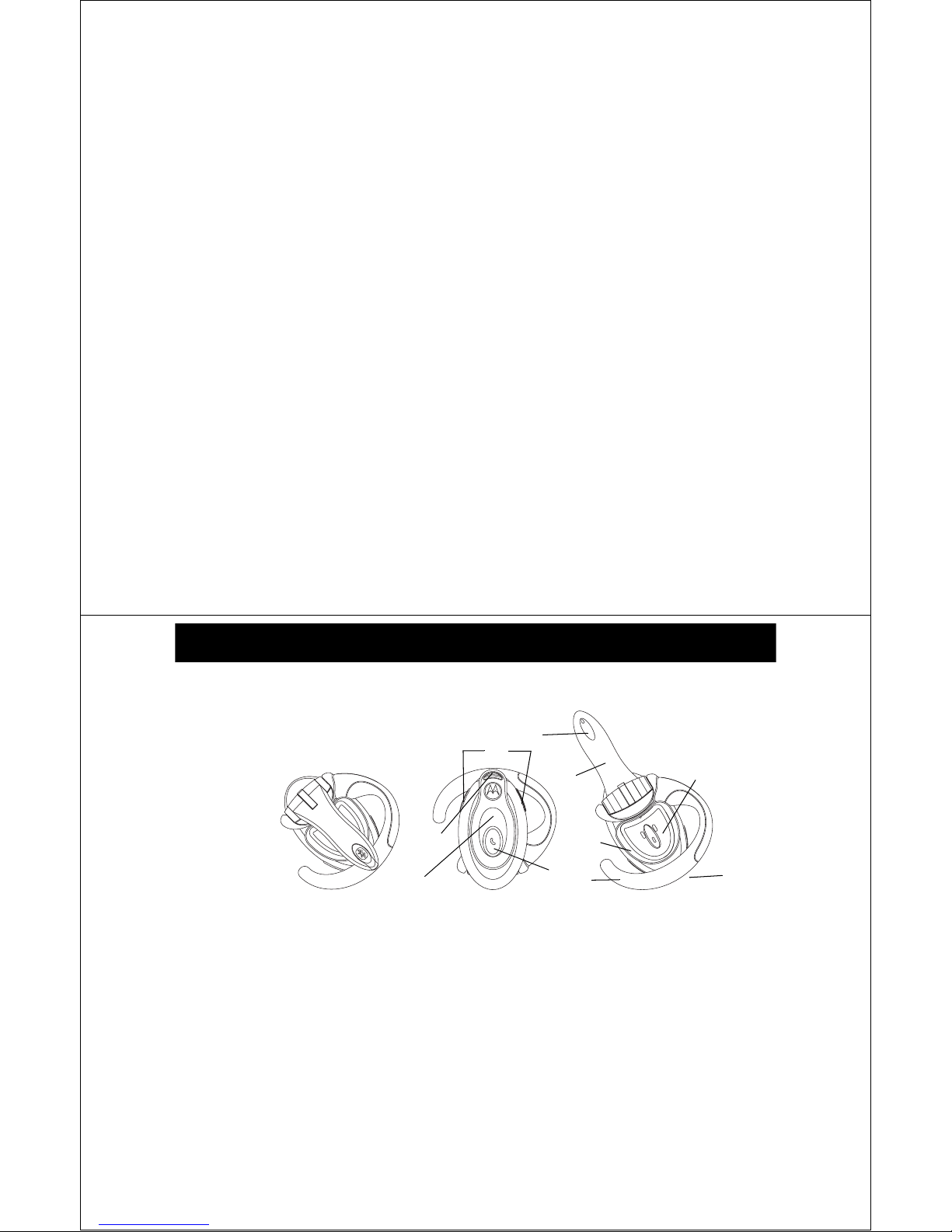

1—Headset Indicator LED

Provides visual cue about headset status.

2—Volume Control Buttons

Adjusts speaker (receive) volume up and down.

3—Microphone

Picks up your voice input.

4—Boom

Contains microphone and controls power (On/Off) status of headset.

5—Earhook

Attaches headset to ear.

6—Speaker

Plays the sound you receive on the call.

7—Charging Port

Receives the plug for your battery charger.

8—Lanyard Loop

Lets you attach a lanyard to the headset, so you can wear

the headset around your neck and always keep it near.

9—Multifunction Button

Controls several headset functions.

10—Removable Speaker Shroud

Helps channel sound to the ear. Shroud

may be removed if it causes discomfort.

Headset Off

(boom closed)

Headset On

(boom open)

Using Your Headset

Charging Your Headset

When to Charge

First-Time Use

—Before you can use your headset, you need to charge its

self-contained battery for two hours.

Recharging

—When you hear five rapid high tones through the headset

speaker, repeated at 20-second intervals, the headset battery needs to be

recharged.

Over extended periods of time, batteries gradually wear down and require

longer charging times. This is normal. The more you talk on the phone with

the headset, the less standby time your battery has.

The rechargeable batteries that power this product must be

disposed of properly and may need to be recycled. Contact your

local recycling center for proper disposal methods. Never dispose of

batteries in a fire because they may explode.

Using Your Headset

How to Charge

Note:

You can also use a Motorola Original Vehicle Power Adapter to charge

the headset while in your vehicle.

A fully charged headset battery provides approximately:

• talk time

–

5 hours

• standby time (boom open)

–

100 hours

Step

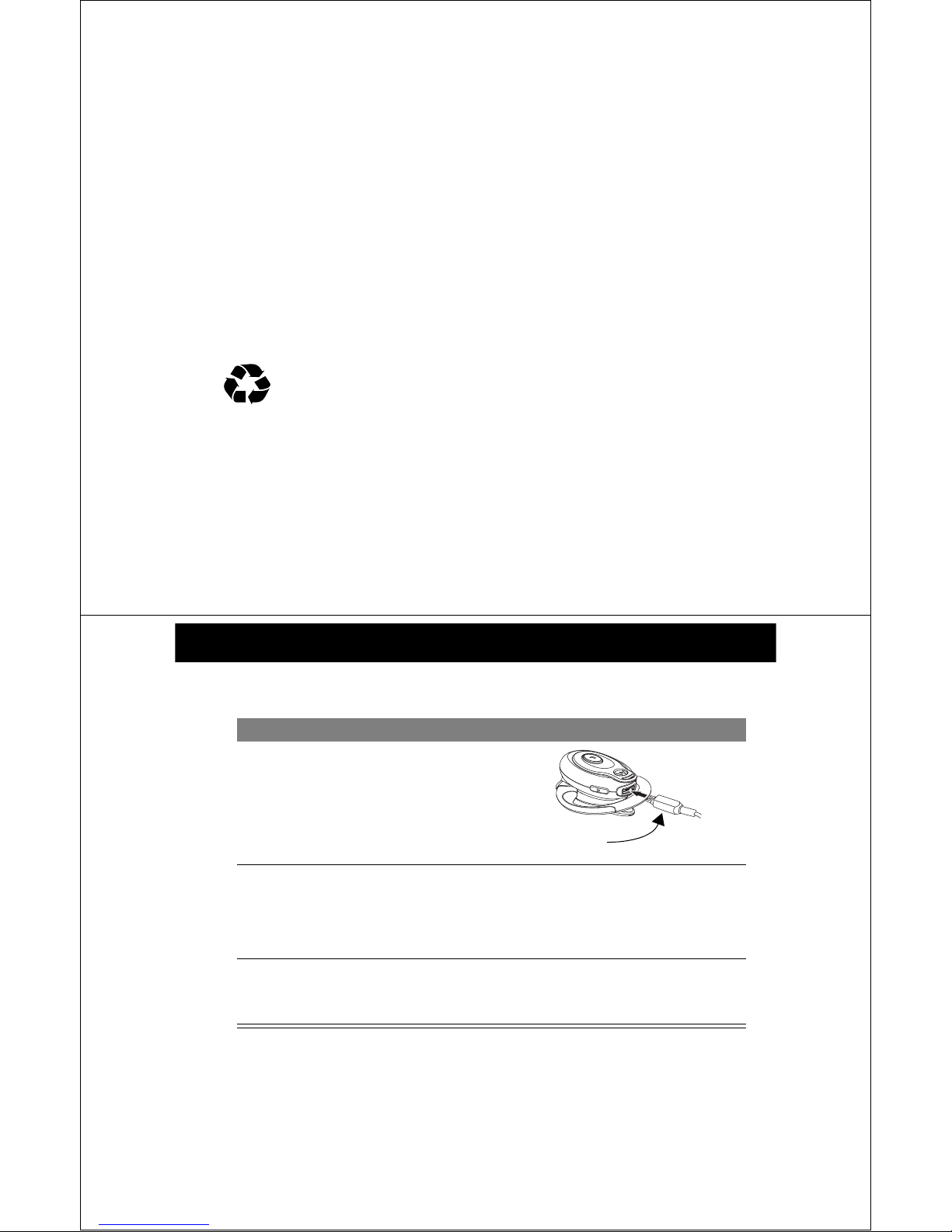

Plug the Motorola charger into

the headset, with the charger’s

release tab facing down and the

headset facing up.

Plug the other end of the charger into an electrical outlet.

During charging, the headset indicator turns on and remains lit until

charging is complete. The headset will not function while charging. Your

headset requires approximately two hours to receive a full charge.

When charging is complete (indicators off), remove the charger from

the electrical outlet, press the release tab, and detach the charger cord

from the headset.

Release Tab

Facing Down

Using Your Headset

Wearing the Headset

Placing the Headset on Your Ear

When packaged, the headset is configured for wear on the right ear.

Step

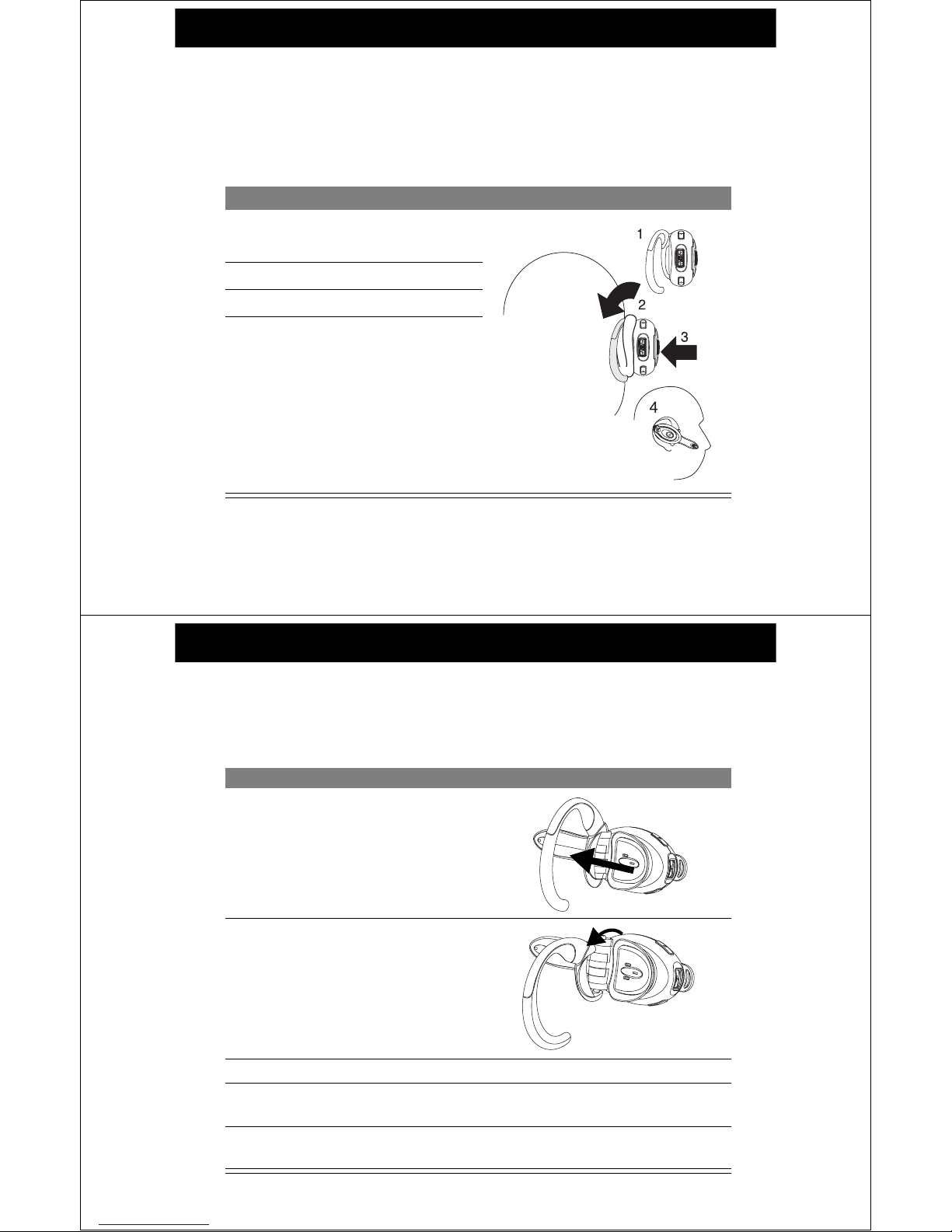

Open the boom, then open the

earhook (45

from the headset).

Loop the earhook over your ear.

Press the headset to your ear.

Point the boom toward your

mouth.

Using Your Headset

Changing for Wear on the Left Ear

When packaged, the headset is configured for wear on the right ear. To

change it for wear on your left ear:

Step

Open the boom, then open the

earhook (90

from the headset).

Gently lift and pull the top of the

earhook up and off the upper

hinge pin. Then pull it away to

remove it.

Flip the headset over.

Hook the bottom of the earhook onto the lower hinge pin, then lift and

pull the top of the earhook over the upper hinge pin.

To change the volume button orientation, see “Controlling Headset

Volume” on page 15.

Using Your Headset

Pairing Your Headset and Phone

Note:

You must pair your headset and phone before you can make a call.

“Pairing” creates a link between devices equipped with Bluetooth wireless

technology and allows the phone to remember the headset’s unique ID. Once

your headset and phone are paired, your headset automatically connects to

your phone any time you open the boom.

Pairing

With the headset and phone in close proximity:

Step Result

Put the headset into pairing mode.

With the headset’s boom

closed, press and hold the

Multifunction Button

until the

headset indicator turns on

(about 3 seconds).

Release the button, then open

the headset boom.

The headset indicator turns on.

The indicator remains lit.

Using Your Headset

Paired Link to Additional Devices

Your headset can store pairing information for up to eight different devices

equipped with Bluetooth wireless technology. Devices are stored in a “Paired

Device List” in memory in chronological order. When an attempt to pair to

more than eight devices is made, the oldest paired device is removed from

the list.

Any of the eight paired devices can initiate a paired connection to the headset.

Perform a

device

discovery

from

the phone.

For details on device discovery

for your phone, refer to the

user’s guide for the phone.

When the scan is complete, the

phone displays the devices

found.

Select the Motorola HS810 from the

discovered devices list and confirm

following the on screen prompts.

When prompted by the phone, enter

the passkey

0000

and confirm to

pair the headset with the phone.

The device ID is now stored in

the phone’s memory.

Pairing is successful when the

headset indicator flashes 10

times rapidly.

Step Result

Using Your Headset

The headset will only automatically initiate a paired connection (via opening

the boom) with the

last

device it was

connected to

. If you want to connect

the headset to another device in the paired device list, you must initiate the

connection from that device. Whichever of the eight devices initiates a

connection to the headset afterwards, that device then becomes the “last

connected” device.

Controlling Headset Volume

Increasing and Decreasing Volume

To increase speaker volume, press the top volume button repeatedly until you

reach the desired volume level.

To decrease speaker volume, press the bottom volume button repeatedly until

you reach the desired volume level.

Volume Orientation Technology

To change the volume button orientation for left or right ear:

Repeat the above steps anytime to change the volume button orientation.

Step

With the headset’s boom closed, press and hold the Multifunction

button until the headset indicator turns on (about 3 seconds).

Press the volume button that you want to use as the volume up. The

headset indicator will flash several times to indicate success.

Using Your Headset

Placing and Receiving Calls

Your headset supports both Hands Free and Headset Profiles. Accessing call

functions depends on which profile your phone supports.

Note:

Some phones do not support all features listed. Please consult you

phone user’s guide.

You can activate call functions for both Hands Free and Headset Profiles

according to the following table:

Device Status Action

Function Phone Headset Hands Free Profile Headset Profile

Enter Pairing

(Configuration)

Mode

On Off

(boom

closed)

Press & hold

until LED remains lit.

Release

, open boom.

Make a Voice

Dial Call

On in idle On Short press

speak name, phone

dials call

Press

, speak

name, phone dials call

Dial a Number On–user

dials number

On N/A Press

, call is sent

Redial a

Number

On–Voice

dialingturned

on or off

On–

(Idle)

Long press

Press

, (recalls last

phone number)

Press

, (call is sent)

End a Call On–in call On Short press

Press

Using Your Headset

Note:

If the link is abnormally disconnected (e.g., out of range) the headset

tries to reestablish the link.

Device Status Action

Function Phone Headset Hands Free Profile Headset Profile

Put Active

Call On Hold

On–in call On Long press

N/A

Receive a

Call

On–phone

rings

On Short press

(call

is answered)

Press

(call is

answered)

Reject a Call On–phone

rings

On Long press

N/A

Answer 2nd

incoming call

On–in call,

2nd call

coming in

On Long press

places 1st call on

hold, answers

incoming call

N/A

Toggle

between two

active calls

On–in call,

2nd call on

hold

On Long press

N/A

Transfer call

from phone to

Headset

On–in call On Short press

, (call

transferred to

headset)

Press

(call

transferred to

headset)

Using Your Headset

Using Your Headset Indicators

Headset Indicator (LED)

With charger plugged in:

With no charger attached:

Note:

When the wireless headset is paired to the phone and there is no

activity for 5 minutes, the blue flashing LED turns off. Any button press on the

headset will reawaken the headset and the flashing resumes. If you press the

up and down volume buttons simultaneously during a call, the pulsing LED

turns off for the duration of that call.

Headset Indicator Headset

ON charging in progress

OFF charging complete

Headset Indicator Headset

OFF power off

ON (steady) pairing mode

10 rapid flashes pairing successful

flashes at a 3-second interval

(.1 seconds ON 2.9 seconds OFF)

standby (not on a call)

pulses at an 8-second interval

(2.0 seconds ON, 6.0 seconds OFF)

connected (on a call)

Using Your Headset

Audio Tones

Audio Tone Headset Status

single high tone when pressing

volume button

volume maximum or minimum

reached

five rapid high tones, repeated every

20 seconds

low battery

no audio indications; deteriorating

audio quality

out of range

series of 4 tones, low to high audio link open (Headset mode),

active call (Hands Free mode)

ring tone incoming call

single high tone pairing confirmation

single low tone initiate voice activation

dual high/low tone voice tag not recognized

single high tone end call

series of 4 tones, high to low audio link closed (Headset mode),

call ended (Hands Free mode)

fast high/low tone every 5 seconds

(max. & min. volume confirm beep)

no network/service

no tone power ON/OFF

Bienvenue

Le casque sans fil HS810 avec technologie Bluetooth

de Motorola

surpasse toutes les attentes. Ce produit de troisième génération de Motorola

permet une connectivité invisible et fiable. Il s’agit d’un produit

remarquablement évolué, mais d’usage simple et intuitif. Il est, sans l’ombre

d’un doute, plus petit que ses prédécesseurs tout en étant plus attrayant que

jamais. Et même si vous ne vous connectez plus à l’aide de fils, vous êtes

connectés de manière intrinsèque à un groupe sans cesse plus grand de

pionniers des technologies de pointe qui adoptent le mouvement mondial

Bluetooth.

L’innovation est un élément reconnu de l’héritage Motorola vieux maintenant

de 75 ans. Une entreprise qui comprend l’évolution du monde... et qui s’y

élance pour en façonner l’avenir avec brio. Les produits de consommation

Motorola avec technologie sans fil Bluetooth surpassent les attentes et

défient les règles traditionnelles. La connectivité nous rapproche, alors

pourquoi s’embarrasser de fils? La technologie s’intègre à la vie, faut-il pour

autant se compliquer la vie?

Motorola est un créateur actif de solutions Bluetooth pour le travail, les loisirs,

la maison et le quotidien, et ce, partout sur la planète. Bienvenue dans la

vague. Et merci d’avoir choisi le casque sans fil HS810 de Motorola!
