Motorola M-Series Bedienungsanleitung
CLEAR MODEM
(SERIES M)
USER GUIDE
1
GET TO KNOW YOUR CLEAR MODEM – SERIES M 3
WHAT’S IN THE BOX? 3
INFORMATIVE LED INDICATORS 3
USE WITH CARE 3
SET UP THE MODEM 4
PLACE THE MODEM ON A FLAT, STABLE SURFACE 4
PLUG IN THE CABLES 4
CONNECT TO CLEAR 4G 5
CONNECT TO THE INTERNET 6
MANAGE YOUR MODEM 7
CLEAR MODEM HOME PAGE OVERVIEW 7
CLEAR MODEM HOME PAGE / WIZARD 8
CLEAR MODEM HOME PAGE / WIZARD / PASSWORD 8
CLEAR MODEM HOME PAGE / WIZARD / DEVICE TIME 9
CLEAR MODEM HOME PAGE / WIZARD / CONGRATULATIONS 9
CLEAR MODEM HOME PAGE / STATUS / NETWORK 10
CLEAR MODEM HOME PAGE / STATUS / NETWORK (CONTINUED) 11
CLEAR MODEM HOME PAGE / STATUS / TELEPHONY 12
CLEAR MODEM HOME PAGE / PERSONALIZE / PASSWORD 13
CLEAR MODEM HOME PAGE / PERSONALIZE / DEVICE TIME 14
CLEAR MODEM HOME PAGE / PERSONALIZE / DEVICE NAME 15
CLEAR MODEM HOME PAGE / PERSONALIZE / RESTORE FACTORY SETTINGS 16
CLEAR MODEM HOME PAGE / INTERNET / WIMAX SECURITY 17
CLEAR MODEM HOME PAGE / INTERNET / INTERNET PROTOCOL 18
CLEAR MODEM HOME PAGE / ADVANCED / FIREWALL 19
CLEAR MODEM HOME PAGE / INTERNET / DYNAMIC DNS 20
CLEAR MODEM HOME PAGE / PORT FORWARDING / BASIC 21
CLEAR MODEM HOME PAGE / PORT FORWARDING / FORWARDING 22
CLEAR MODEM HOME PAGE / LOCAL ADDRESS / DHCP SERVER 23
CLEAR MODEM HOME PAGE / LOCAL ADDRESS / LEASE STATUS 24
CLEAR MODEM HOME PAGE / LOCAL ADDRESS / LEASE RESERVATION 25
CLEAR MODEM HOME PAGE / CONTROL PANEL / SOFTWARE 26
CLEAR MODEM HOME PAGE / CONTROL PANEL / CERTIFICATE 27
CLEAR MODEM HOME PAGE / CONTROL PANEL / SYSTEM 28
CLEAR MODEM HOME PAGE / CONTROL PANEL / ABOUT 29
CLEAR MODEM HOME PAGE / TELEPHONY / ACCOUNT 30
QUICK TIPS 31
UNDERSTANDING THE LED LIGHTS 31
TO MAXIMIZE SIGNAL STRENGTH 31
2
UNABLE TO BROWSE THE INTERNET? 31
CONNECT TO YOUR HOME WIRELESS NETWORK 31
IMPORTANT MESSAGE FROM CLEAR 32
IMPORTANT INFORMATION 32
TECHNICAL SPECIFICATIONS 32
STILL NEED HELP? 32
FAQS AND LIVE CHAT SUPPORT 32
TELEPHONE SUPPORT 32
QUESTIONS ABOUT YOUR BILL? 32
IMPORTANT INFORMATION DOCUMENT 32
WARRANTY INFORMATION 33
LEGAL DISCLOSURES 33
3
Get to Know Your CLEAR Modem – Series M
What’s in the Box?
CLEAR Modem - Series M Ethernet Cable Power Adapter Quick Start Guide
Informative LED Indicators
The LED indicators are located on the side of the CLEAR Modem – Series M (Modem).
The Signal Strength LEDs indicate the strength of the CLEAR 4G signal (five LEDS lit indicates
an excellent signal).
Use with Care
Do not throw, drop, or dismantle the Modem.
Keep the Modem out of direct sunlight.
Keep pets and children from playing with the Modem.
Do not immerse the Modem in water or other liquid.
Make sure your hands are dry before handling the Modem.
Signal Strength
4
Set up the Modem
Place the Modem on a Flat, Stable Surface
Rotate the foot of the Modem and place it upright on a flat, stable surface.
Do not place the Modem on its side or block the top air vents. The preferred location is near a
window and away from obstructions.
Plug in the Cables
1) Plug one end of the Ethernet Cable into the ethernet port on your computer and plug the other end
into the Modem.
2) Plug one end of the Power Adapter into the AC Power Port on the Modem and plug the other end
into a power outlet.
5
Set up the Modem (continued)
Connect to CLEAR 4G
After you’ve plugged in the cables, the Modem automatically will search for a CLEAR 4G signal.
It’s best to position the Modem near an outside wall or window, and away from microwaves, cordless
phones, wireless routers, and stereo speakers.
If at least two LED lights are not lit, try moving the Modem to another room.

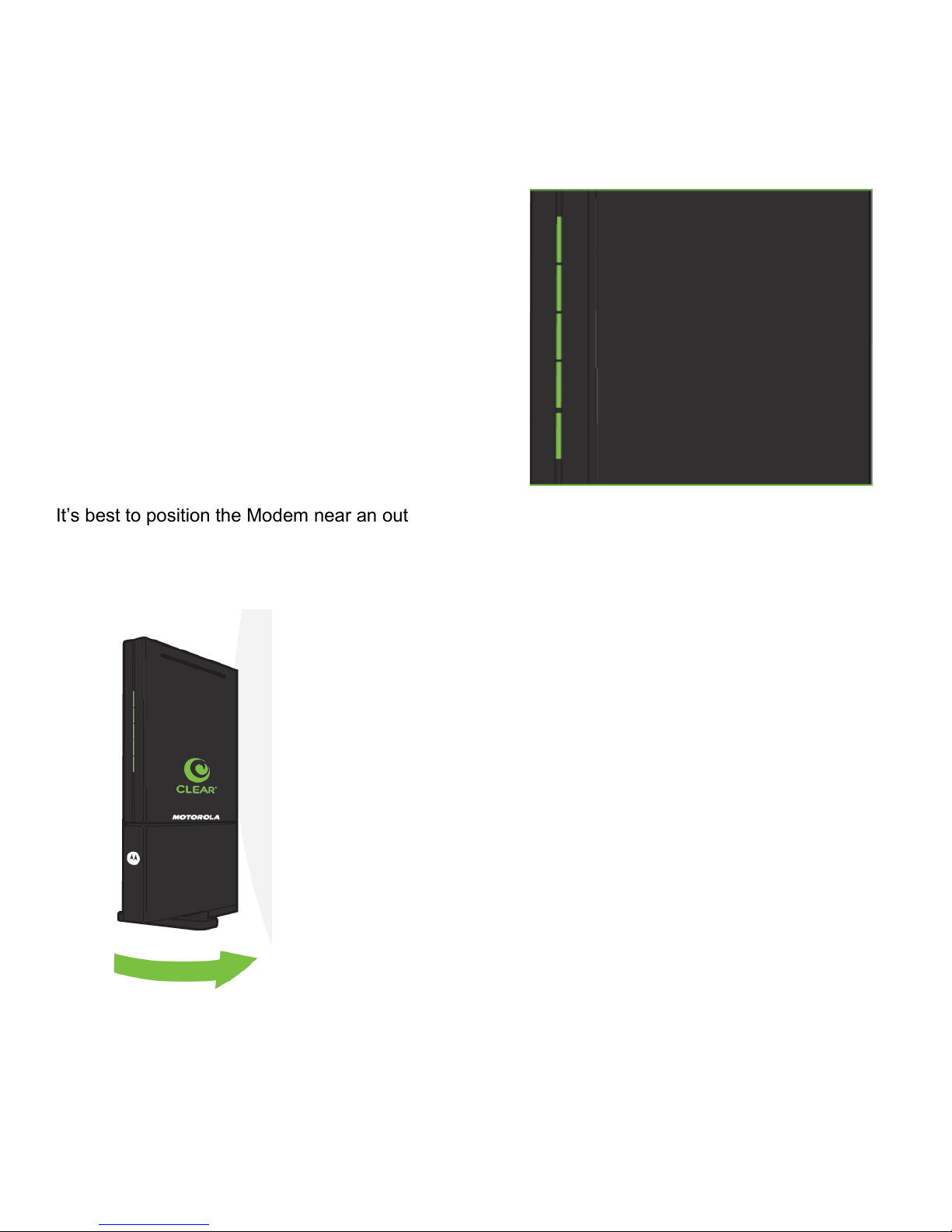

As the Modem is searching for the
CLEAR 4G signal, five LED lights,
located on the front of the Modem, will
blink sequentially and then in unison.
When the Modem is connected to the
CLEAR 4G signal, the LED lights will
stop blinking and remain lit.
Note: The number of lights indicates the
CLEAR 4G signal strength. For optimal
signal strength, you should try different
locations for the Modem in order to
ensure a minimum of two lights are lit.
Move the Modem (not your computer) to another room,
and wait 15 – 20 seconds after the LED lights are solid
green, in order to obtain the most accurate reading of
the CLEAR 4G signal.
To optimize the signal strength in the Modem’s current
location, try turning the Modem by small ¼”
increments.
When you find the strongest CLEAR 4G signal,
reconnect the Modem to your computer.
If, for some reason, the room with the strongest
CLEAR 4G signal is not where you want to put the
Modem, consider using a longer Ethernet Cable or
ordering a wireless router by logging in to your CLEAR
online account.
6
Set up the Modem (continued)
Connect to the Internet
The first time you connect to the internet with your Modem, you’ll be directed to a page to review your
rate plan information, complete your CLEAR online account, and read / accept the CLEAR Terms of
Service.
Congratulations!
You’re ready for INTERNET AWESOMENESS!
7
Manage Your Modem
CLEAR Modem Home Page Overview
It’s easy to manage your Modem with the CLEAR Modem Home Page.
Set up your Modem.
Change security settings.
View signal strength.
View and upgrade the Modem firmware.
And more!

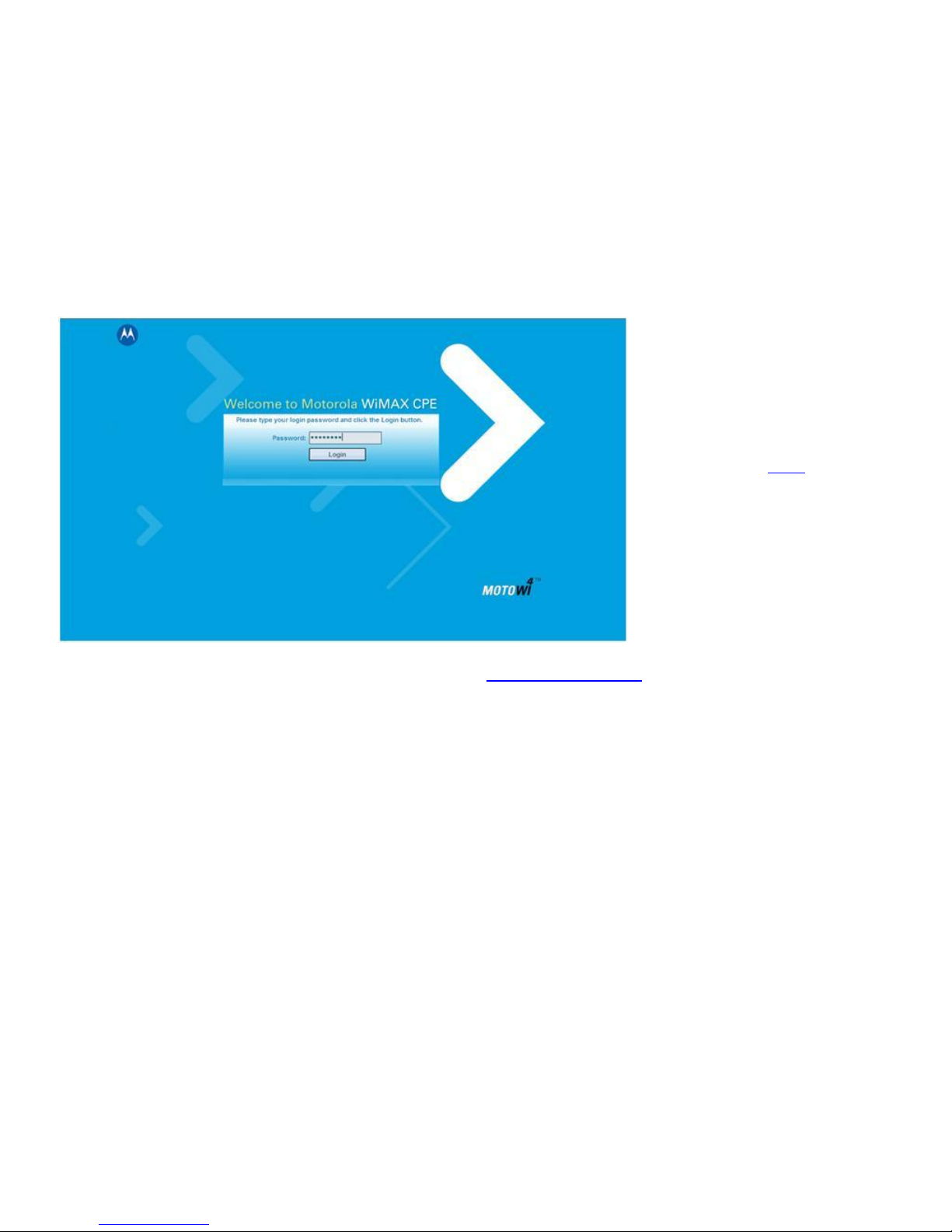

With your computer connected to the Modem, enter http://192.168.15.1 in your web browser in order
to open the Modem Home Page.
To log in to the Modem Home Page, you’ll need to enter a password. There are two admin default
passwords. Enter “Motorola” first, and if that does not work, enter “CLEAR123”.
It is not required to log in to the Modem Home Page to access the internet. Logging in to the Modem
Home Page is required to manage the settings of your Modem.
Note: Making any changes to the settings may adversely affect the performance of the connection to
the internet. The Modem works without any additional configuration changes and the information is
provided for advanced users.
We recommend bookmarking the Modem Home Page for easy reference.
If you’re using your Modem
and are connected to the
internet, click here to open
the Modem Home Page.
8
Manage Your Modem (continued)
CLEAR Modem Home Page / Wizard

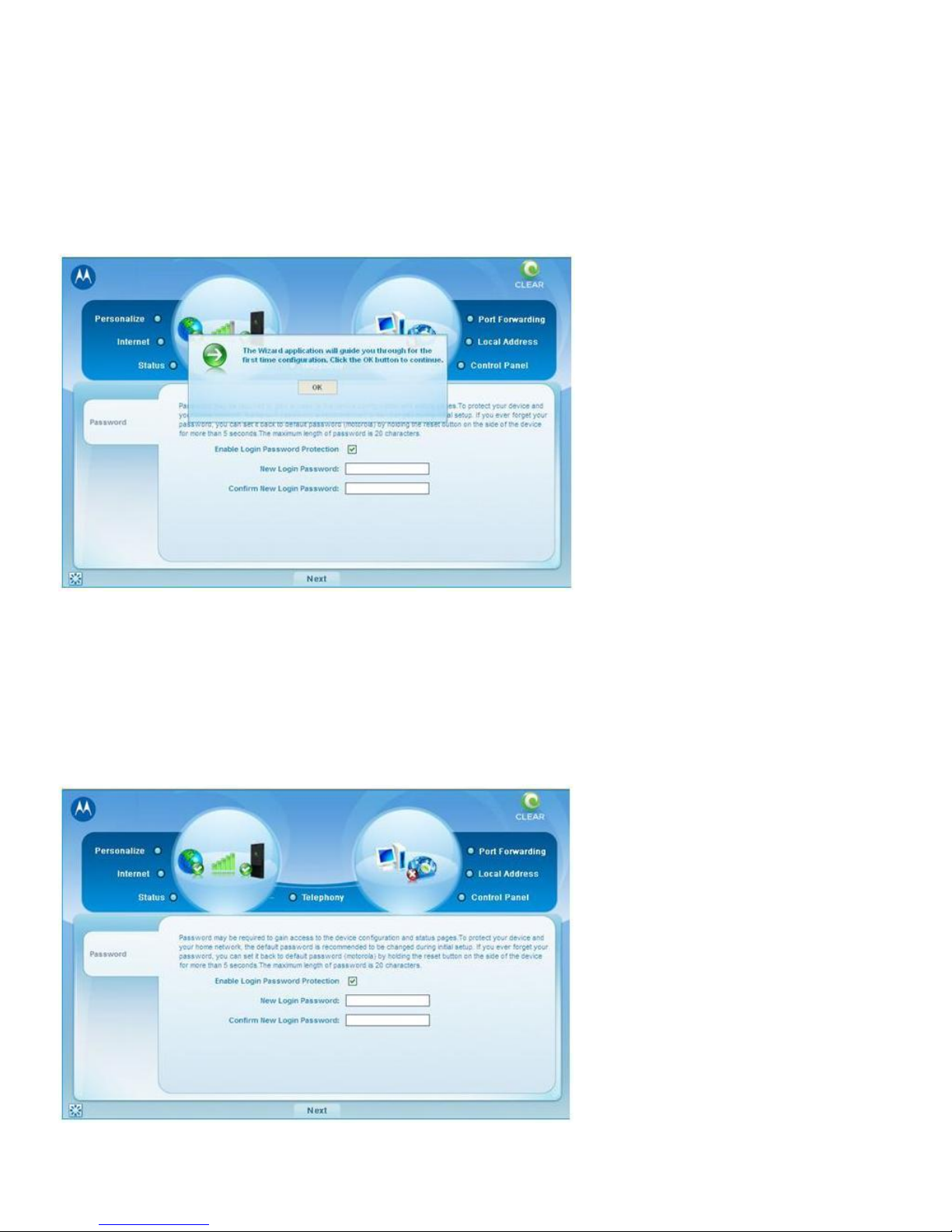

After you’ve logged in to the CLEAR Modem Home Page, you’ll see the Wizard application, which will
guide you through the first time configuration of your Modem.
Click “OK” to continue.
CLEAR Modem Home Page / Wizard / Password
Next, you’ll see a screen where you can “Enable Login Password Protection”. Using a password
may help prevent unauthorized access to your Modem. CLEAR recommends enabling password
protection.
Enter and confirm your new login password and click “Next”.
9
CLEAR Modem Home Page / Wizard / Device Time
Next, set the time zone for your current location, and enable or disable “Auto Adjust” for Daylight
Savings Time.
Click “Apply” when you’re ready to change the time zone settings for your Modem.
If you don’t want to make any changes to the time zone settings, click “Back”.
CLEAR Modem Home Page / Wizard / Congratulations
You’ll see a congratulations message, indicating you have completed the initial set up of your
Modem.
Click “OK” to see the other screens of the Modem Home Page.
