GM600 User Guide

English

Contents

GM600

User Guide

Contents Page:

General Information.............................................2

Radio Care..........................................................2

Safety Information ...............................................2

Radio Controls.....................................................3

Audio Tones.........................................................4

Display Icons.......................................................4

Display.................................................................5

Getting Started....................................................5

Turning the Radio On/Off...............................5

Outgoing Calls.....................................................6

Shortform Dialling..........................................6

Dedicated Calls .............................................6

Last Number Redial.......................................6

Incoming Calls.....................................................7

Call in Absence..............................................7

Call Diversion ................................................8

Talkgroup Select............................................8

Page:

Special Calls....................................................... 8

Status Calls................................................... 8

Priority Calls.................................................. 8

Emergency Calls........................................... 9

Broadcast Calls............................................. 9

Cancelling Calls.................................................. 9

Ending Calls........................................................ 9

External Alarm.................................................... 9

Conventional Mode............................................. 9

Computer Software Copyright........................... 10

User Guide Cover Page 1 Wednesday, July 16, 1997 9:31 am

General Information

English

General Information/Radio Care/Safety Information

General Information

This user guide covers the operation of the GM600

Series mobile radios used on MPT1327 Trunked

Radio Systems.Please note that not all types of call

may be possible on your system, please contact

your network manager for further information on the

calls available on your particular system.

This user guide describes the operation of radios

with and without a display. On radios

without

display certain types of call described below may not

possible.

WARNING: Ensure the radio is switched off

when installing or removing the

mobile radio from the vehicle.

Radio Care

If cleaning is required, the radio housing should be

cleaned with a cloth dampened with clean water and

a mild liquid soap solution.

Caution:

The use of chemicals such as detergents,

alcohol, aerosol sprays, and petroleum

products may be harmful and damage the

radio housing.

Safety Information

Every radio, when transmitting, radiates energy into

the atmosphere which may, under certain

conditions, cause the generation of a spark.

All users of vehicles ﬁtted with radios should be

aware of the following warnings:

WARNING: Do not operate the radio near

inﬂammable liquids or in the

vicinity of explosive devices.

During normal use, the radio will subject you to radio

energy substantially below the level where any kind

of harm is reported.

To ensure personal safety, please observe the

following simple rules:

■

DO NOT

transmit when the antenna is very close to, or

touching, exposed parts of the body, especially the

face and eyes.

■

DO NOT

hold the transmit (PTT) key in when not actu-

ally desiring to transmit.

■

DO NOT

allow children to play with any radio equip-

ment containing a transmitter.

■

DO NOT

operate the radio whilst driving.It should also

be noticed that the use of a hand held microphone

while driving could constitute an offence under the

Road Trafﬁc Regulation.

Radio Controls

English

Radio Controls

The numbers refer to the illustrations on the inside

front cover.

On/Off Button

Turns the radio on/off.

2. Microphone Connector

3. Volume Up/Down Control

4. Three Colour Indicators

(LEDs)

Green, Flashing: Scanning.

Green, Continuous: Power On.

Yellow, Slow Flashing: Call setup requested.

Yellow, Fast Flashing: Call acknowledged or

Emergency call.

Yellow, Continuous: Call In Progress.

Red, Continuous: Radio Transmitting.

Red, Flashing: Channel Busy (Conventional).

5. Scroll Up/Down

Used to scroll through the shortform dial entries

and radio idents to select for call.

6. Numeric Display

Three characters and icons.

Programmable backlighting.

7. Clear Button

For cancelling a call, clearing down at the end of a

call or Carrier Monitor (Conventional).

8. Base Call Button

For making calls to a commonly used, prepro-

grammed number.

9. Select Buttons A,B,C,D

The select buttons A to C are either programmed

to operate as their assigned select/deselect modes

or to operate as a dedicated call.Select button D

can only be programmed to operate as a dedi-

cated call.

The select buttons A to D are programmed to oper-

ate in the following way:

- Conventional Mode Select/Deselect, otherwise

a dedicated call button (if programmed).

- Call in Absence Interrogate mode Select/Dese-

lect (display radio only), Call in Absence Callback

(non-display radio only), otherwise a dedicated call

button (if programmed).

- External Alarm Select/Deselect, otherwise a

dedicated call button (if programmed).

- Dedicated call button (if programmed).

10. Select Button LEDs

If the select buttons are programmed to operate as

their assigned modes the LEDs function as fol-

lows:

- On, continuous, indicates Conventional mode

selected.The LED will ﬂash whilst changing mode.

- On, ﬂashing, indicates Call in Absence mes-

sage in stack (non-display radio).

- On, continuous, indicates External Alarm

selected.

- Not Used.

11.Transmit (PTT) Button

Push to talk, release to listen.

Audio Tones

English

AudioTones

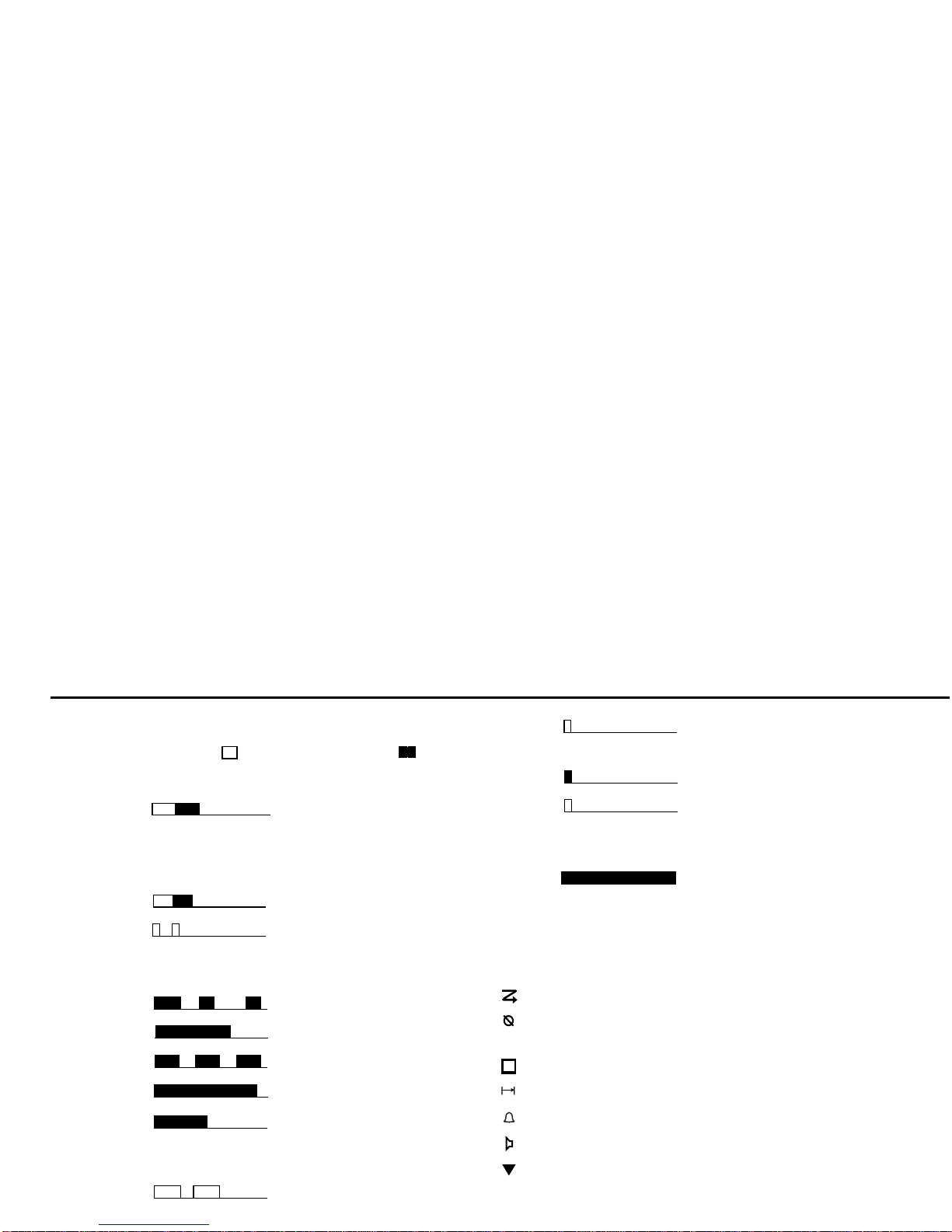

High pitched tone Low pitched tone

Self test: Sounded on power up or

selecting between

trunked and conventional

Mode.

Tone A: Call clear indication.

Tone B: Speech channel

allocated and PTT/Mic/

Loudspeaker enabled.

Tone C1: System busy.

Tone C2: Unavailable.

Tone C3: Called party busy.

Tone C4: Invalid number.

Tone D: Call set up in progress,

wait for further

indications.

Tone E: Incoming call, press PTT,

then wait for further

indications.

Tone F: Transaction conﬁrmed,

called unit will call back.

Tone G: Look at display for call set

up or system information.

Tone H: Invalid entry.

Key click: Conﬁdence tone when

any key pressed/speech

limitation warning.

Fail tone: Hardware error or call

timed out.

Display Icons

The icons which appear on the display are:

Scanning.

Control Channel Conﬁrmed or

in Conventional mode -Carrier Monitor Selected.

Call In Absence Received.

Tx Frequency=Rx Frequency (Conventional Mode).

External Alarm Selected.

Loudspeaker Open.

Above button A - Conventional mode selected.

Above button B - Call in absence interrogate

selected.

Above button C - External alarm selected.

Audio Tones/Display Icons

Getting Started

English

Display

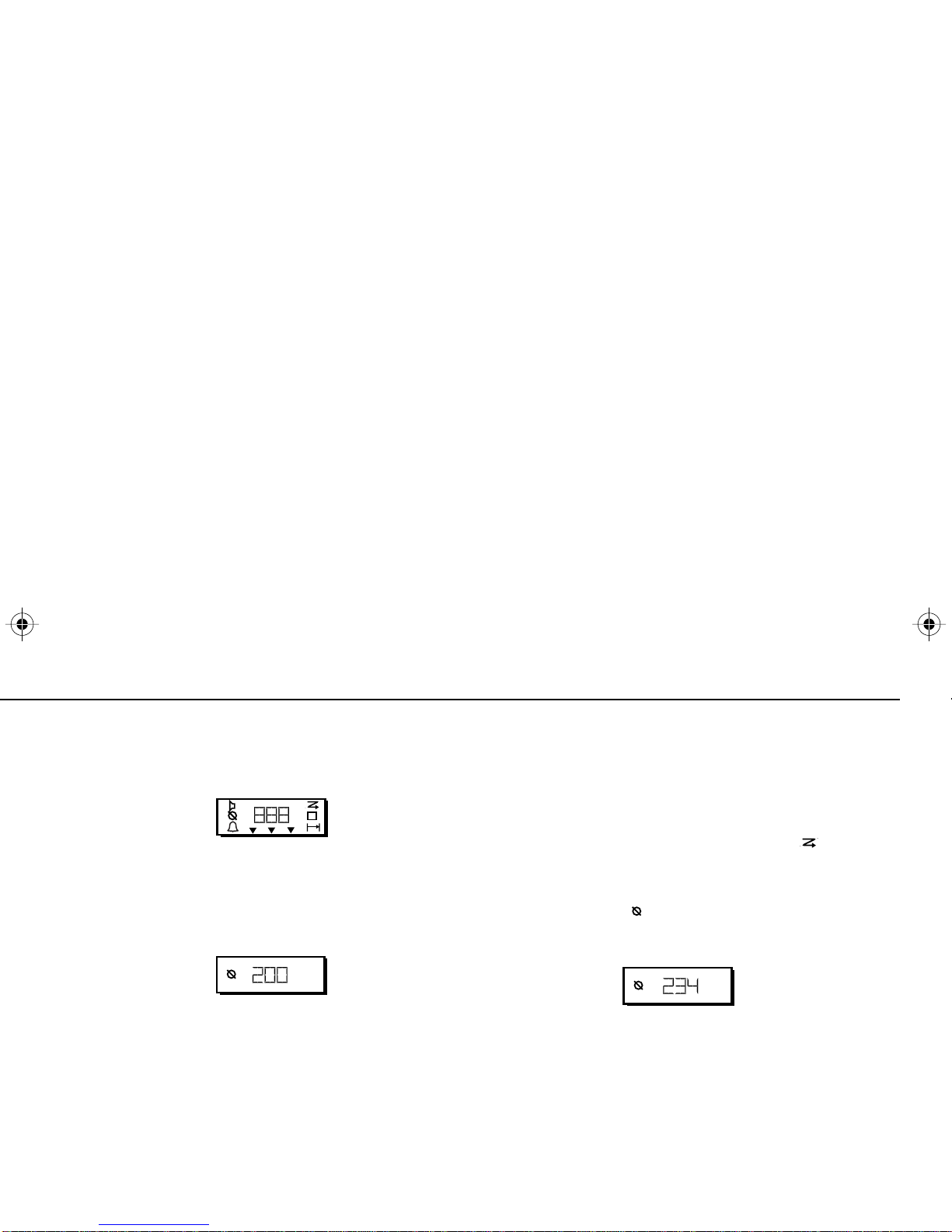

The display, showing icon locations, is as follows:

In the IDLE state the display shows the radio’s

identity number.On making a call the display will

show the called number followed by the transmit

timer, see

Outgoing calls

Note that status is represented, in the display, by a

bar.

Getting Started

Turning the Radio On/Off

Turn the radio on by pressing the ON/OFF button.

The radio then enters a self test routine. During the

test the display will be activated, the self test tone

will sound, and the green LED will light.If the radio

fails the self test a continuous low tone will sound

and the red or yellow LED will ﬂash.The radio is

turned off by depressing the ON/OFF button for 2

seconds.

Note:

If the radio fails the self test routine, consult your

dealer.

When the self-test is complete the radio displays its

identity number (display radio only).

After this the radio scans for a radio system, with the

green LED ﬂashing and the scanning icon lit.

When a control channel is acquired, the green LED

will go on and the scanning icon will be replaced by

the registered icon .The display will also show

the radio identity number.This is known as the IDLE

STATE.

The radio must be in this state before you can make

or receive a call (except for emergency calls).

Display/Getting Started

GM600 User Guide [EN]-1 Page 5 Tuesday, August 12, 1997 3:58 pm

Outgoing Calls

English

Outgoing Calls

The radio is capable of making a variety of calls

including calls to individual radios or group of radios.

The radio can select calls by using either the

Shortform Dial

up/down scroll keys, the

Select

Buttons A to D

(if they are programmed to function

as a dedicated call button), or the

Base Call Button

When making a call note that the radio has a

maximum call duration timer.This appears on the

display, replacing the radio identity number.

The counter is bi-directional and when counting

down the radio displays the remaining call time.Ten

seconds before the radio returns to the IDLE state

the keyclick tone sounds.When counting up the

maximum duration of the call is determined by the

system. Please contact your network manager for

further information.

Shortform Dialling

When the radio is in the IDLE state shortform

dialling may be used.This allows quick access to

preprogrammed numbers using the shortform dial

up/down scroll keys.The radio scrolls through the

shortform dial list, the in-ﬂeet unit numbers and then

the group unit numbers.

On selecting the required number the call request is

sent by pressing the PTT. If the scroll keys are

pressed, but no call is preprogrammed, tone H

sounds and the display reverts to the IDLE state.

Dedicated Calls

The Base Call Button and the Select Buttons A to D

may be preprogrammed to make a dedicated call.

Press the Base Call Button or a Select Button for a

short period to make a call to a preprogrammed

number.The number is then displayed and the call

initiated to the requested number.

Last Number Redial

The last number called is stored in the memory of

the radio.For status calls only the called number is

stored, not the status message.This feature is

accessed by pressing the PTT from the IDLE state.

Outgoing Calls

Incoming Calls

English

Incoming Calls

There are two types of systems that the radio may

be used on, Off Air Call Set Up (OACSU) and Full

Off Air Call Set Up (FOACSU).

If you are in any doubt about which system you are

operating on, consult your network manager.

Receiving a call on an OACSU system

When the radio is called tone D will sound and the

yellow LED ﬂashes.This will then be followed by

tone B.

Receiving a call on an FOACSU system

When the radio is called tone E will sound and the

yellow LED ﬂashes.Press the PTT to accept the

call.Tone D will sound until a speech channel is

allocated, then tone B sounds.

Note:

The system may have a limited call time and the

call may be terminated automatically if this call

time is exceeded.

Call In Absence

Call in Absence only applies to radios if

preprogrammed, please consult your network

manager.

If programmed, when a call is not answered within a

set amount of time, the call is stored by the radio.

Group calls are ignored.

Up to 5 calls can be stored. If the same radio calls

more than once, the call is only stored once.When 5

calls have been stored by the radio the sixth call

received overwrites the ﬁrst.

Note:

The calls in the stack are deleted when the radio is

turned off.It is not possible to call back status calls.

Display Radios

When a call has been stored by the radio, tone G

sounds every ten seconds.The call in absence icon

will be lit to indicate there is a call in the stack.

To view/interrogate the calls in the stack press the

Select Button B and use the up/down scroll keys to

view numbers in the stack.

The most recent call stored by the radio is displayed

ﬁrst. Select the up/down scroll keys to display calls

in the stack.If the stack is empty tone H sounds.

To exit the call in absence interrogate mode press

Select Button B again.

Press the PTT button to make a call to the number

displayed.On a successful call set-up, the entry is

automatically deleted from the stack. Unanswered

calls may be deleted from the stack at any time by

pressing the Clear Button.

Incoming Calls

Special Calls

English

Non-Display Radios

When a call has been stored by a non-display radio,

LED B (above Select Button B) will ﬂash.

Press Select Button B to make a call to the oldest

entry in the stack.On a successful call set-up, the

entry is automatically deleted from the stack.

Unanswered calls may be deleted from the stack at

any time by pressing the Clear Button. LED B will

continue to ﬂash while unanswered calls remain in

the stack.

If Select Button B is pressed and there are no

entries in the stack, Tone H is sounded.

Call Diversion

Incoming speech calls or status calls can be

diverted either from your radio or from another radio.

Call Diversion/Cancellation is only possible if

programmed in the shortform dial list. Please

contact your network manager for further

information.

If a call is made to a radio whose calls are currently

being diverted, tone D will sound. A call will then

automatically be set up to the radio which is

receiving the diverted calls.

Talkgroup Select

Talkgroup Select only applies to display radios if

preprogrammed, please consult your network

manager.

If the user is a member of many talk groups, this

feature can be used to select one of the talk groups

only.This is particularly beneﬁcial if working at

different sites where each site has a different

talkgroup. In this case each site/talkgroup can be

tied to a ‘channel’ on the Shortform Dial Position

Selector.If Talkgroup Select is programmed into

your radio it is very likely that Last Number Re-Dial

will be disabled, in which case pressing the PTT will

make a call to the currently selected position of the

Shortform Dial Position Selector.Please consult

your network manager for more details.

Special Calls

The following calls are only available if

preprogrammed to function via the Base Call Button

or the Shortform Dial up/down scroll keys.They are

also available via the Select Buttons A to D if

programmed as additional dedicated calls.

Status Calls

A status is a code for transmitting prearranged

messages, e.g. status “05” may indicate “return to

base”.

Special Calls

Cancelling Calls

English

Priority Calls

A priority call allows you to gain priority over other

users of the system when requesting a call.

Emergency Calls

An emergency call allows you the highest form of

priority calling and normally takes precedence over

all other calls.

Broadcast Calls

A broadcast call allows you to make broadcast calls

to groups of radios. Note that on a broadcast call,

only the calling radio can talk and there is no

indication that any radios have received the call.

Cancelling Calls

At any time while setting up a call it may be

cancelled by pressing the clear button or by

replacing the microphone into the holder.

Ending Calls

A call should always be ended by pressing the clear

button or by replacing the microphone into the

holder.

External Alarm

The external alarm activates the vehicle horn and/or

lights to inform you a call is being received.

Press Select Button C to enable and disable this

feature.When activated the display will show the

icon, and the icon above button C (on display

radio) or the LED above button C (non-display

radio).

When activated, pressing any key will deactivate the

vehicle horn and/or lights.

Conventional Mode

In the conventional mode the radio operates as a

standard two-way radio. Press the select button A to

select this mode.The Select Button LED will light,

permanently. Use the up/down scroll keys to display

the desired conventional channel.

Prior to transmission always make sure that the

channel is free (red LED not ﬂashing). Press the

PTT to transmit, release it to listen.The red LED

lights while the radio transmits and ﬂashes if the

channel is busy. Some channels may be monitored

for activity by pressing the clear button.The icon

will be lit, and the radio will stay in this mode, until

the channel is changed, the clear button is pressed

again or the microphone is replaced.

Cancelling Calls/Ending Calls/External Alarm/Conventional Mode

Computer Software Copyright

English

In the conventional mode the radio is equipped with

a maximum transmit duration timer.This is

programmed to start whenever the PTT is pressed.

Tone G sounds ﬁve seconds before the transmitter is

switched off.If the timer expires whilst still

transmitting, transmission will cease and a

continuous fail tone will sound until the PTT is

released.

Computer Software Copyright

The products described in this manual may include copyrighted computer

programmes stored in semiconductor memories or other media. Laws in the

United States of America and other countries preserve for Motorola Europe

and Motorola Inc. certain exclusive rights for copyrighted computer

programmes, including the right to copy or reproduce in any form the

copyrighted computer programme. Accordingly, any copyrighted computer

programmes contained in the products described in this manual may not be

copied or reproduced in any manner without the express written permission of

the holders of the rights.Furthermore, the purchase of these products shall not

be deemed to grant either directly or by implication, estoppel, or otherwise, any

licence under the copyrights, patents, or patent applications of the holders of

the rights, except for the normal non-exclusive royalty free licence to use that

arises by operation of the law in the sale of the product.

Computer Software Copyright

Inhaltsverzeichnis

Andere Motorola Radio Handbücher

Motorola

Motorola ASTRO Digital Spectra Bedienungsanleitung

Motorola

Motorola GM160 Bedienungsanleitung

Motorola

Motorola GP644R Bedienungsanleitung

Motorola

Motorola MWR839 Bedienungsanleitung

Motorola

Motorola XPR 3000 Series Bedienungsanleitung

Motorola

Motorola GM1200E Bedienungsanleitung

Motorola

Motorola TALKABOUT T5500 Gebrauchs- und Pflegehandbuch

Motorola

Motorola TETRA MTM5000 Series Bedienungsanleitung

Motorola

Motorola RADIUS GM300 Bedienungsanleitung

Motorola

Motorola GTR 8000 Bedienungsanleitung

Motorola

Motorola TMR 2 Bedienungsanleitung

Motorola

Motorola TETRA MTM800 Bedienungs- und Wartungshandbuch

Motorola

Motorola EMS APX 7500 Bedienungsanleitung

Motorola

Motorola GM360 Bedienungsanleitung

Motorola

Motorola CLP series Bedienungsanleitung

Motorola

Motorola ASTRO Digital XTS 3000 Bedienungsanleitung

Motorola

Motorola GTX Bedienungsanleitung

Motorola

Motorola Pro3100 Bedienungsanleitung

Motorola

Motorola APX 7500 O5 Bedienungsanleitung

Motorola

Motorola GM1200E Bedienungsanleitung

Motorola

Motorola Syntor X9000 Bedienungsanleitung

Motorola

Motorola TLKR T40 Bedienungsanleitung

Motorola

Motorola MTM800 FuG ET Bedienungsanleitung

Motorola

Motorola ASTRO APX Service-Handbuch

Beliebte Radio Handbücher anderer Marken

EisSound

EisSound KBSound iSelect Bedienungsanleitung

Midland

Midland 1001LWX Bedienungsanleitung

Konig

Konig HAV-SR41 Bedienungsanleitung

Roberts

Roberts exprssion Bedienungsanleitung

VDigi

VDigi DD3.0 Bedienungsanleitung

Radio Shack

Radio Shack 21-1863 Bedienungsanleitung

Roberts

Roberts Stream 207 Bedienungsanleitung

Sony

Sony Walkman SRF-M97 Bedienungsanleitung

Stanley

Stanley FatMax FMC770 Bedienungsanleitung

auna

auna DAB-Radio 10026947 Bedienungsanleitung

SOUNDMASTER

SOUNDMASTER UR190 Bedienungsanleitung

HYT

HYT TC-320 Bedienungsanleitung

auna multimedia

auna multimedia Yellowstone 10026851 Bedienungsanleitung

B-Tech

B-Tech GMRS-V2 Bedienungsanleitung

Weierwei

Weierwei VEV-V8 Bedienungsanleitung

SOUNDMASTER

SOUNDMASTER DAB750 Bedienungsanleitung

Telefunken

Telefunken TF-1505 Bedienungsanleitung

Makita

Makita LXRM03 Bedienungsanleitung
